Sim Racing Cockpit | Apevie Simulator | Shop Now

Apevie RTR V2

$895.00

Apevie RTR V2 racing simulator — product view 2.

Apevie RTR V2 racing simulator — product view 3.

Apevie RTR V2 racing simulator — product view 4.

Apevie RTR V2 racing simulator — product view 5.

Apevie RTR V2 racing simulator — product view 6.

Apevie RTR V2 racing simulator — product view 7.

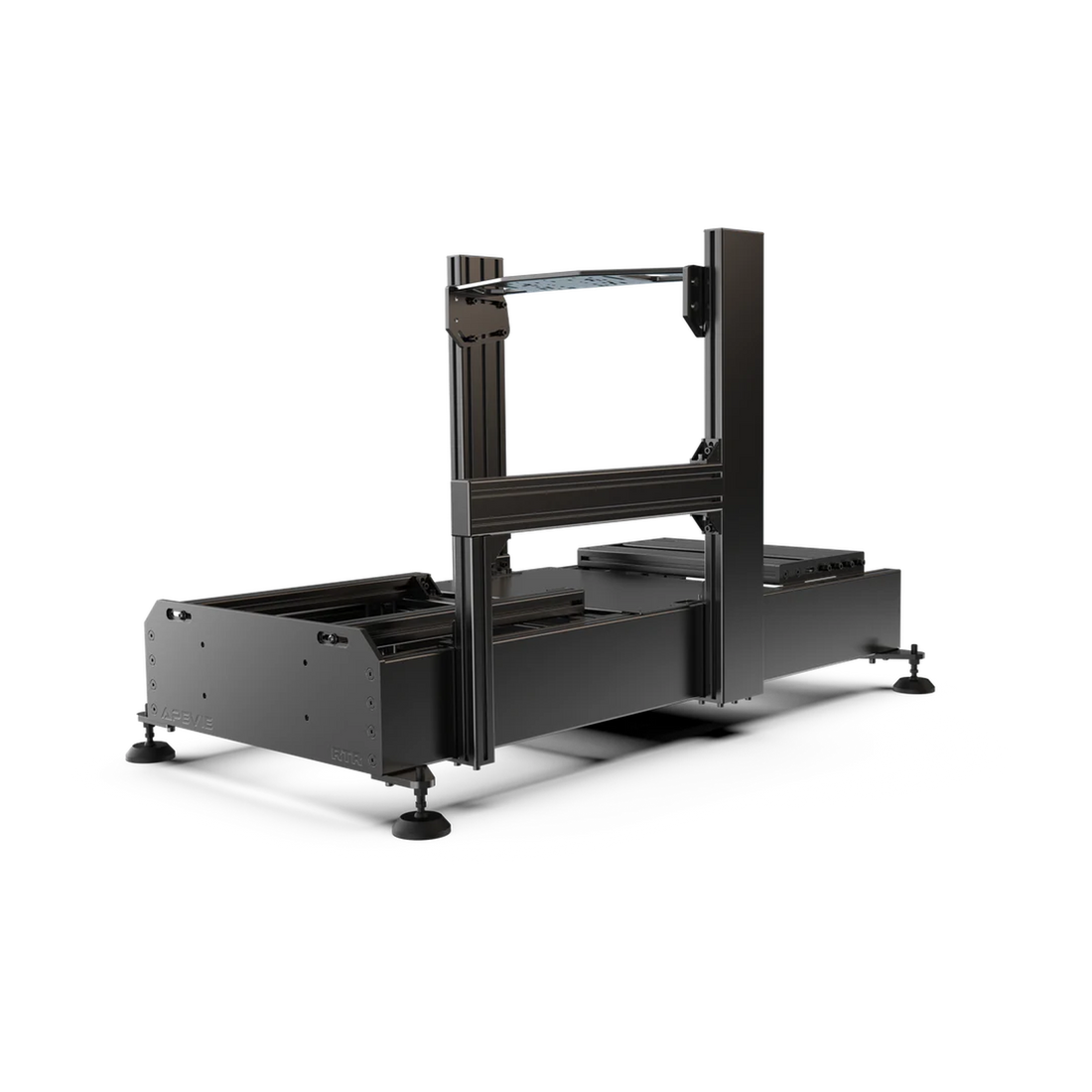

Apevie RTR V2

Aluminum Extrusion Racing Simulator Cockpit --1600mmx400mm

NEW

$895.00

Wheel Base Mount Universal

Universal Universal (Powder Coated Cockpit) Fanatec DD and DD+ Fanatec DD and DD+ (Powder Coated Cockpit) Simucube Simucube (Powder Coated Cockpit)

Item is in stock

BUILT FOR SERIOUS SIM RACING

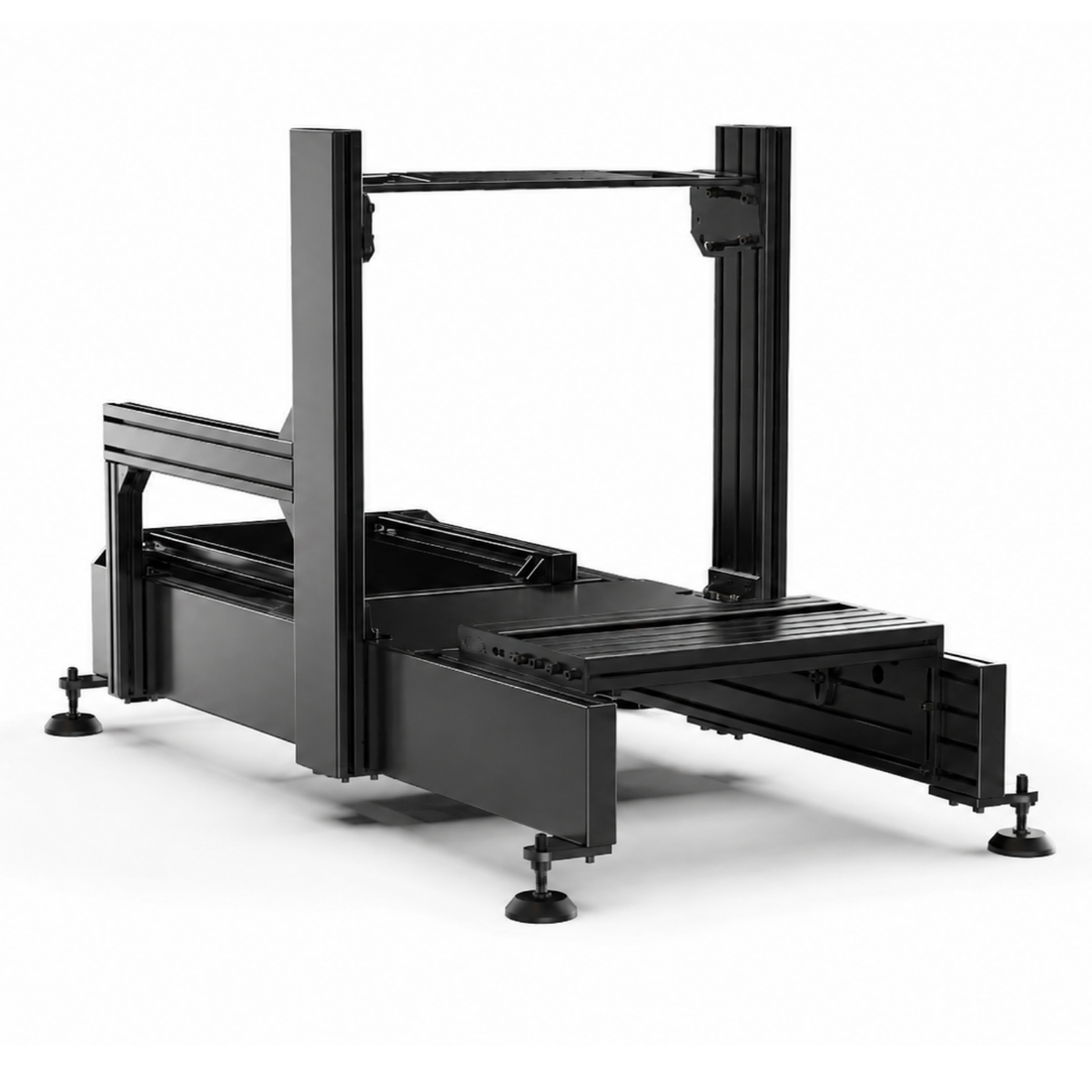

A Rigid, Motion-Ready Foundation

The Apevie RTR V2 is a heavy-duty aluminum-extrusion racing simulator cockpit engineered to provide a stable foundation for high-performance sim racing equipment.

Its rigid construction and no-flex wheel deck help maintain consistent control during demanding racing sessions. The cockpit features a direct-drive front mounting system with sliding and angle adjustments, allowing the driving position to be configured around the racer and equipment.

Designed with future upgrades in mind, the RTR V2 is motion-ready and compatible with a wide selection of belt-driven and direct-drive wheel bases.

Heavy-Duty Chassis

Built with rigid 160 mm × 40 mm anodized aluminum profiles for a stable, high-performance racing platform.

No-Flex Wheel Deck

Provides a solid mounting platform that minimizes unwanted movement during demanding racing sessions.

Fully Adjustable Mounting

Sliding and angle adjustments allow the wheel position to be configured for greater comfort and control.

Motion-Ready Design

Engineered to accommodate future motion-system upgrades.

Product Details

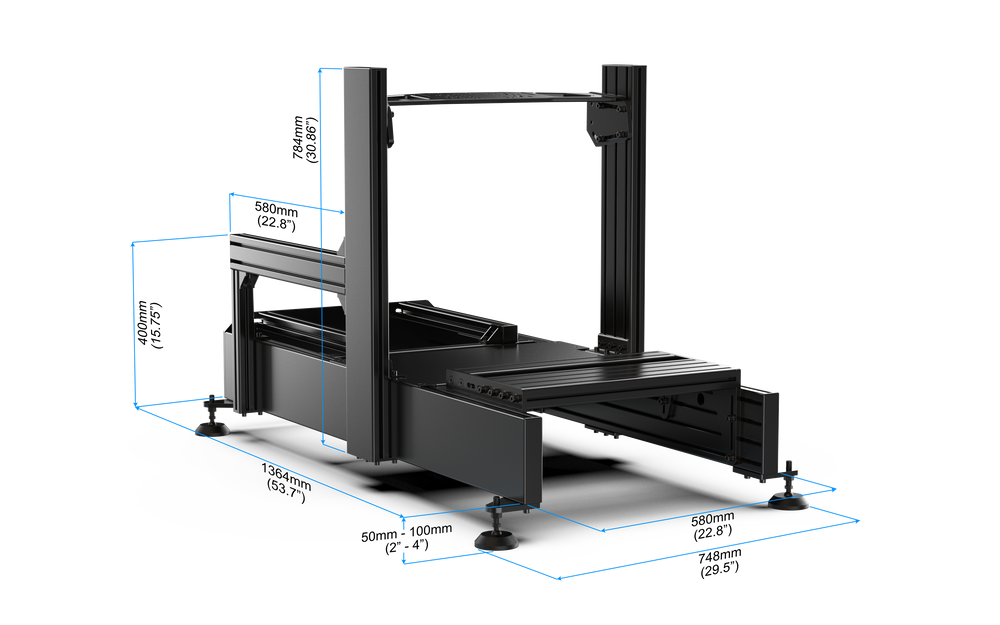

Technical Specifications

Product	Apevie RTR V2 Racing Simulator Cockpit
Construction	Heavy-duty aluminum extrusion
Profile size	160 mm × 40 mm
Wheel mount	Direct-drive front mount
Wheel mount adjustment	Sliding and angle adjustment
Wheel base support	Belt-driven and direct-drive wheel bases
Motion compatibility	Motion-ready
Standard finish	Black anodized aluminum
Optional finish	Custom metallic powder coating
Powder-coating lead time	Approximately 1–2 weeks per cockpit

RTR V2 PACKAGE CONTENTS

Everything Included with Your RTR V2 Cockpit

The RTR V2 cockpit is supplied in three boxes. Review the components below before assembly. All bolts, washers, T-nuts, and other installation hardware are packed in Box P3.

1 Box P1 | 2 × 40 × 160 mm aluminum extrusions, 53 1/8 in long, threaded on one side

2 Box P2 - Frame Extrusions | 2 × 40 × 120 mm extrusions, 30 11/16 in; 1 × 40 × 160 mm extrusion, 19 11/16 in; 2 × 40 × 40 mm extrusions, 19 11/16 in, threaded on one side; 1 × 40 × 80 mm extrusion, 22 13/16 in; 1 × 40 × 40 mm extrusion, 12 5/8 in, threaded on one side

3 Box P2 - Brackets and Legs | 4 × 160 L corner brackets; 2 × 120 L corner brackets; 1 × 40 L corner bracket; 5 × corner brackets; 4 × legs

4 Box P3 - Frame Components | 1 × 40 × 80 mm aluminum extrusion, 18 7/8 in; 1 × 40 × 160 mm aluminum extrusion, 18 7/8 in

5 Box P3 - Mounting Parts | 2 × pedal brackets; 2 × wheelbase side brackets; 4 × leg brackets; 2 × 120 × 80 mm plates; 1 × 80 × 40 mm plate; 1 × back plate; 1 × wheelbase mount

6 Box P3 - T-Nuts and Washers | 89 × M8 T-nuts; 62 × M8 flat washers; 63 × M8 lock washers

7 Box P3 - Button Head Screws | 27 × M8 × 20 mm button head socket screws

8 Box P3 - Socket Head Screws | 33 × M8 × 25 mm socket head cap screws; 47 × M8 × 16 mm socket head cap screws

9 Box P3 - Countersunk Screws | 12 × M8 × 15 mm countersunk socket head screws; 6 × M6 × 16 mm countersunk socket head screws

Everything Included with Your RTR V2 Cockpit

System Support

Compatibility

The RTR V2 supports many popular belt-driven and direct-drive wheel bases. Select the appropriate wheel base mount when ordering. Certain models may require additional mounting hardware. Contact Apevie Support before ordering if your wheel base is not listed.

Simucube

Simucube 2 Sport, Pro, and Ultimate; Simucube 3 Sport, Pro, and Ultimate

Fanatec

CSL DD and GT DD Pro; ClubSport DD and DD+; ClubSport V2.5; Podium DD1 and DD2; CSL Elite

Logitech

G25, G27, G29, G920, and G923; G PRO Racing Wheel

Thrustmaster

T150, T248, T300, and T500 RS; TS-PC, T80, TMX, and TX; TS-XW, T-GT, T-GT II, and T818

MOZA Racing

R5, R9, R12, R16, and R21

Simagic

M10, Alpha Mini, Alpha, and Alpha U

Asetek SimSports

La Prima, Forte, and Invicta

AccuForce

V1 and V2

Cammus

C5; 15 Nm Direct Drive Wheel Base

Order Fulfillment

Shipping Information

Orders ship from Huntington Beach, California.

Orders placed before 11:00 AM Pacific Time are generally dispatched the same business day. Orders placed after 11:00 AM are generally dispatched on the next business day.

Custom metallic powder-coated cockpits require an estimated lead time of 1–2 weeks before shipment.

Shipping charges and applicable taxes are calculated during checkout. Delivery times may vary according to the destination, selected configuration, and carrier service.

METALLIC POWDER COATING AVAILABLE

Over 6500 custom powder cat colors available. Lead time 1-2 weeks per cockpit.

RTR V2 Installation Guide

apevie rtr v2

Frequently Asked Questions

Which wheel bases is the Apevie RTR V2 compatible with?

The variant determines the front mount configuration. The Universal variant fits most wheel bases, while the Fanatec DD/DD+ and Simucube variants include a dedicated front mount engineered specifically for those direct-drive wheelbases.

What is the difference between the Universal, Fanatec DD, and Simucube variants?

Can the RTR V2 handle a high-torque direct drive wheelbase?

Yes. The RTR V2's aluminum extrusion construction is designed for hard-mounting direct-drive wheel bases, keeping the frame rigid under sustained high-torque force feedback.

Does the Apevie RTR V2 include a seat?

No — the RTR V2 is a cockpit frame; the seat is sold separately. Popular pairings are the Apevie AS-M3 Racing Seat, the Apevie X1 Carbon Fiber Bucket Seat, and the Apevie X1-R Carbon reclining seat. Apevie Seat Brackets and the Seat Slider are fully compatible with all of them.

What is the powder-coated option?

The powder-coated variants feature a premium powder-coated frame finish for a cleaner look and a more durable, scratch-resistant surface.

Where can I buy the Apevie RTR V2 racing simulator cockpit?

Direct from Apevie Simulator — we design and build the RTR V2, and orders ship from California with free standard US shipping.

Still Have Questions?

Our team is ready to help you choose the right simulator solution.

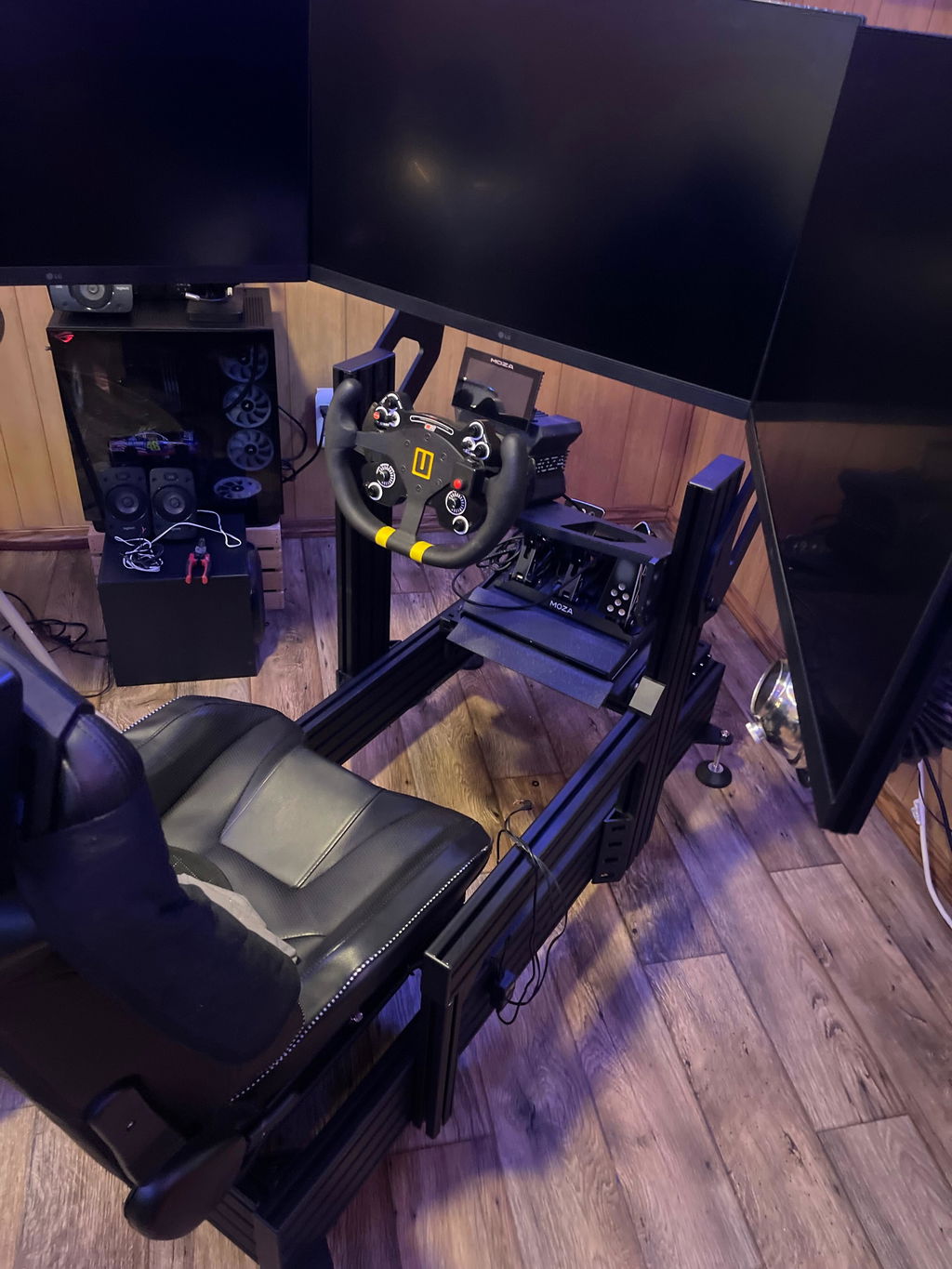

Have co worker with same cockpit and he liked it. Was enough for me to order, my build should start soon.

Pretty Good

The profile sides came a bit damaged and smashed on the corners. However, I was able to face them down to hide the cosmetic defects. Perhaps add some corrugated 'slates' in the boxes on the ends to prevent coming through the box and damaging. A bit irritating considering the price point.

The universal mount only had two screw holes that lined up with the the R12 Moza base. Another come on moment. Ibreached out to Apevie and they sent out one with 4 holes no questions asked, however the 2 extra holes that were added were misaligned. I just cut a whole new mount plate in the Haas at work and was done with it.

I can only rate it a 3 for these issues.

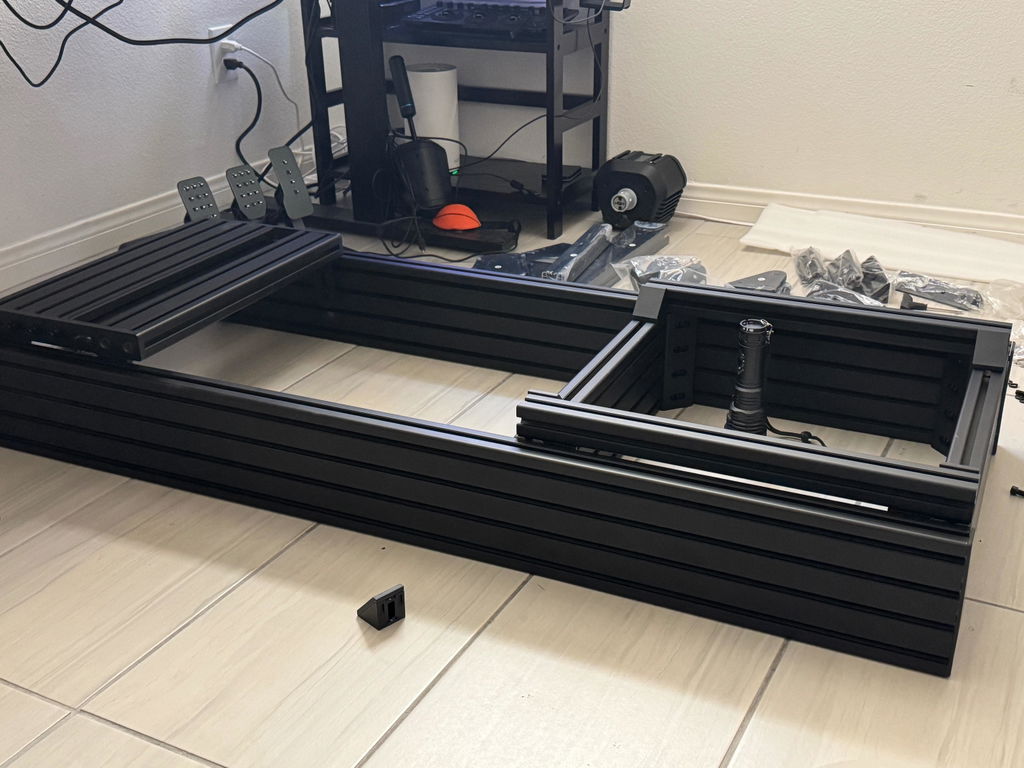

Love the rig. Took some time to put together, but worth it. Build quality is great. Heavier than i thought it would be. Delivery was super quick. Instructions could be better. Recommend tools such as measuring tape and possibly a drill that supports M8 bits.

Great product

The chassis is awesome, great quality, super stiff, and a perfect base to build a motion rig.

A couple of feedbacks for the Apevie Team:
1. There wasn’t enough T nuts in the kit about 5-6 short, same with the socket head cap screws
2. The shipping cost was pretty high. Buying from other vendors it is more than double the price. The shipping was fast which was really awesome, but might be good to add an additional option for slower economical shipping for those on a budget.

Exceeded expectations

I was in the market for my first sim rig during Black Friday weekend. Been searching multiple manufacturers and Apevie came up. The build quality is excellent. I highly recommend two put it together if possible. I was able to build it alone, but took some extra time. All pieces were included. Took only two days to receive after order. My only critique is the instructions need a little polishing. I’d recommend a measuring tape for consistency. Recently had family over and everyone had a great time trying out the rig.

Great rig

Compared to other rigs out there in this price range or higher this is a phenomenal rig. Solid solid solid. Definitely a step above the rest in parts and quality. Loving it!

Amazing product

This is totally worth the money. Very heavy duty and everything you need comes with it. Fantastic value for money - it would cost you more to buy the individual parts if you tried to build it yourself. Really excellent frame. I'm using it with the Qubic QS-220 actuators for 3DOF motion and its certainly strong enough.

Fantastic product

Fantastic product, made heavy duty, great service and support. Buy it don’t hesitate!!

Amazing!

I picked up in person and they were super nice , comes well packaged and everything in good condition. Worked with me to make a deal and super helpful with all the questions I had. 100% recommend this chassis

Better than expected

Shipping was fast, the quality is amazing.
