VIRTUAL FLY FLIGHT SIM THROTTLE QUADRANT – TQ3+
$699.00
VIRTUAL FLY FLIGHT SIM THROTTLE QUADRANT – TQ3+
$699.00
THREE-AXIS THROTTLE QUADRANT

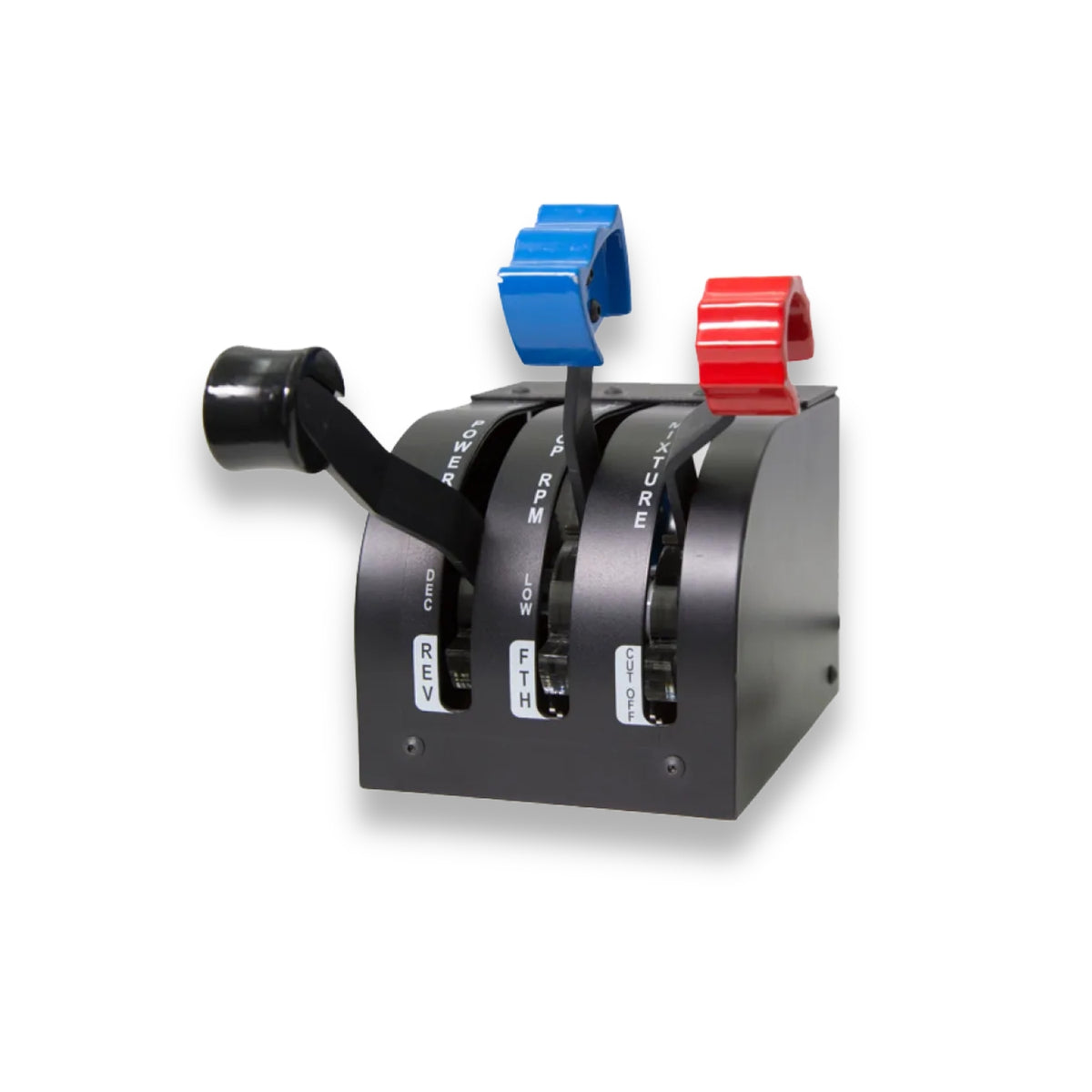

THROTTLE, PROPELLER & MIXTURE CONTROL WITH REAL DETENTS

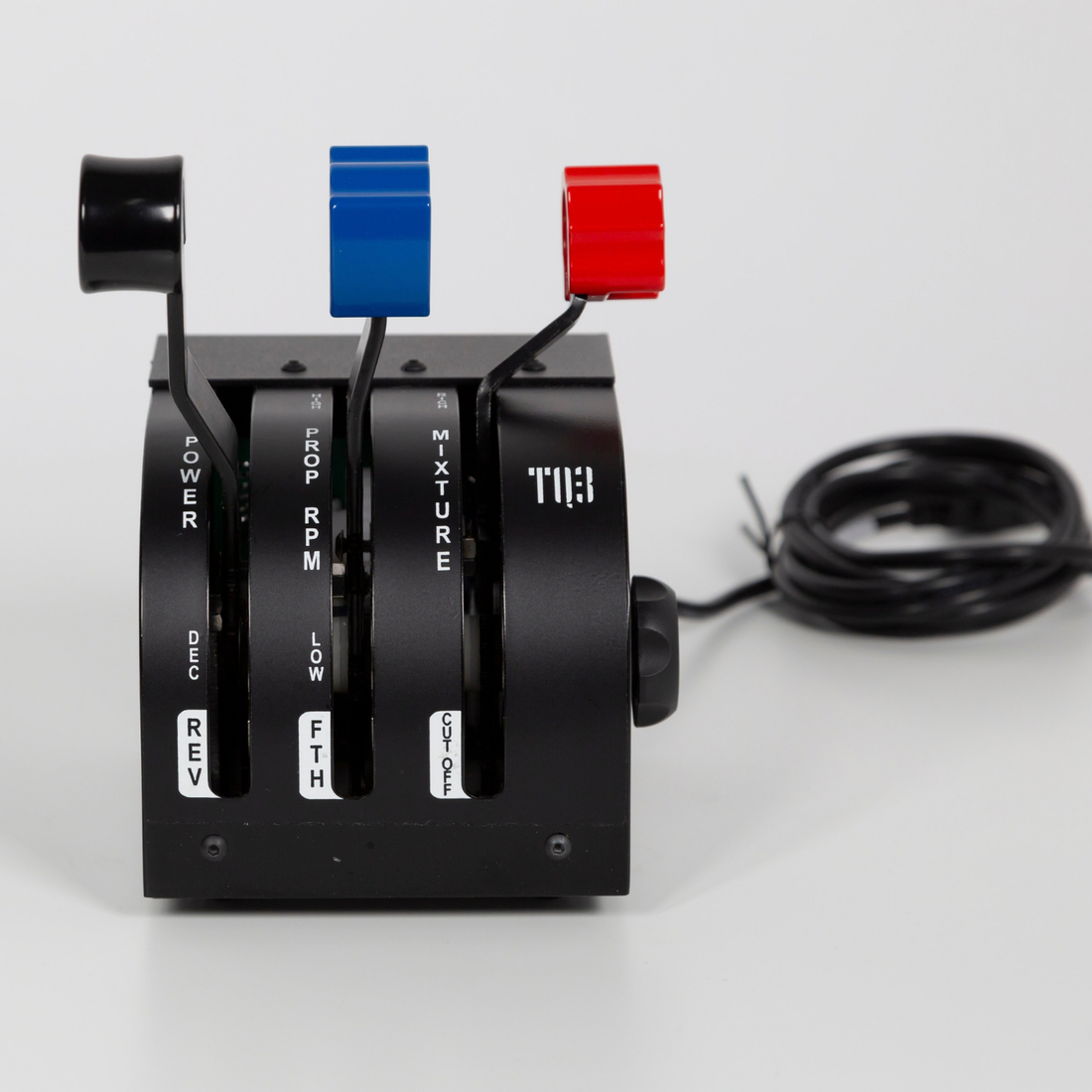

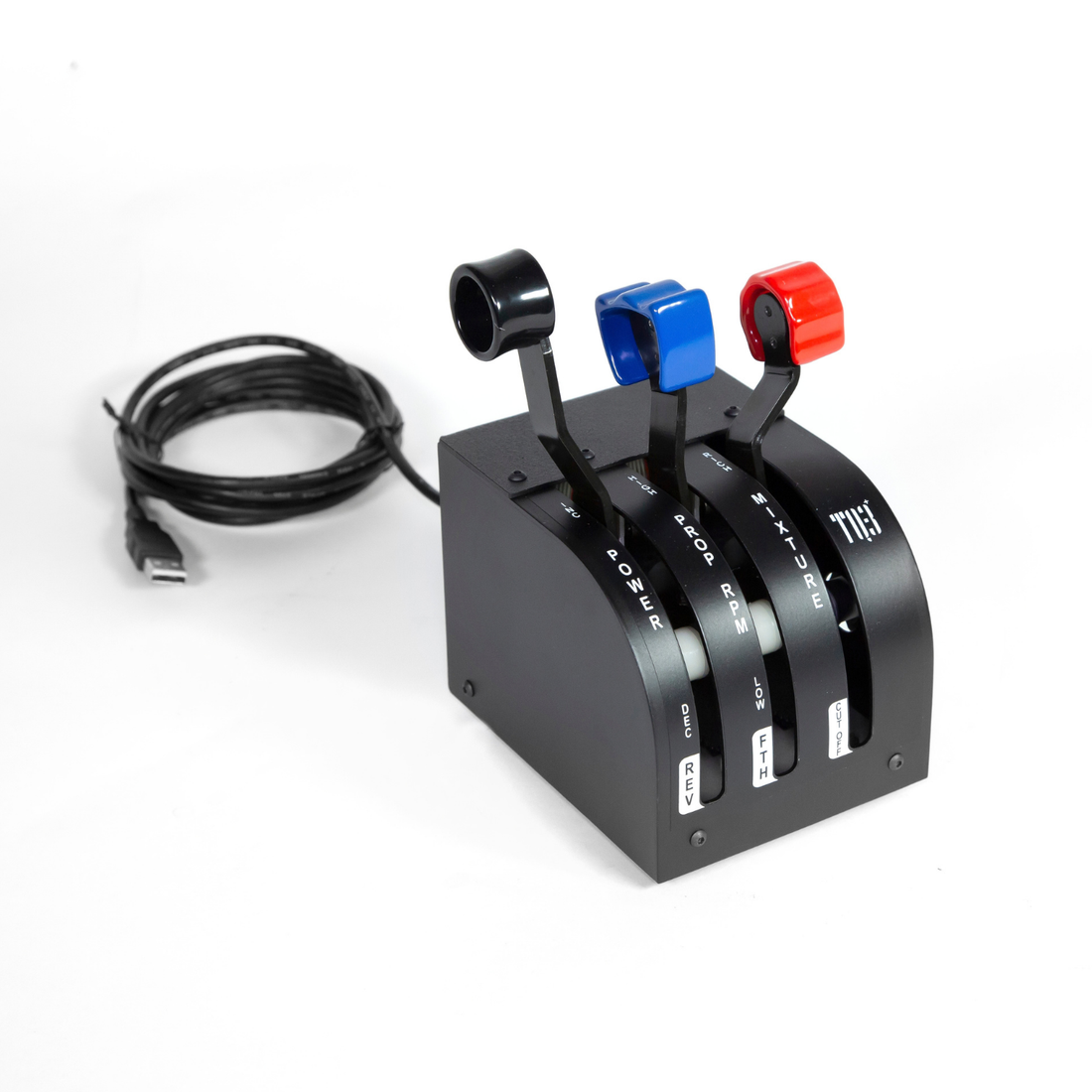

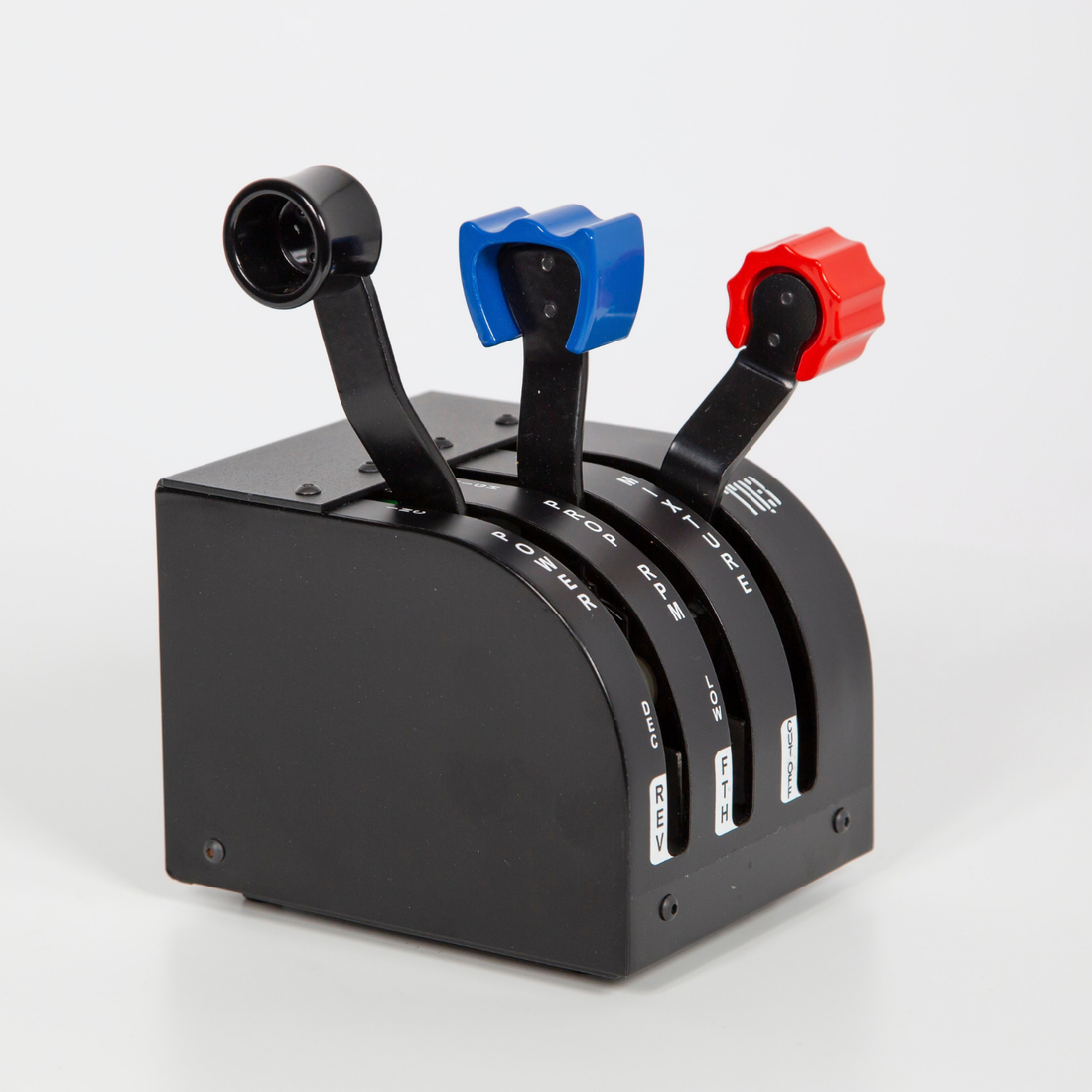

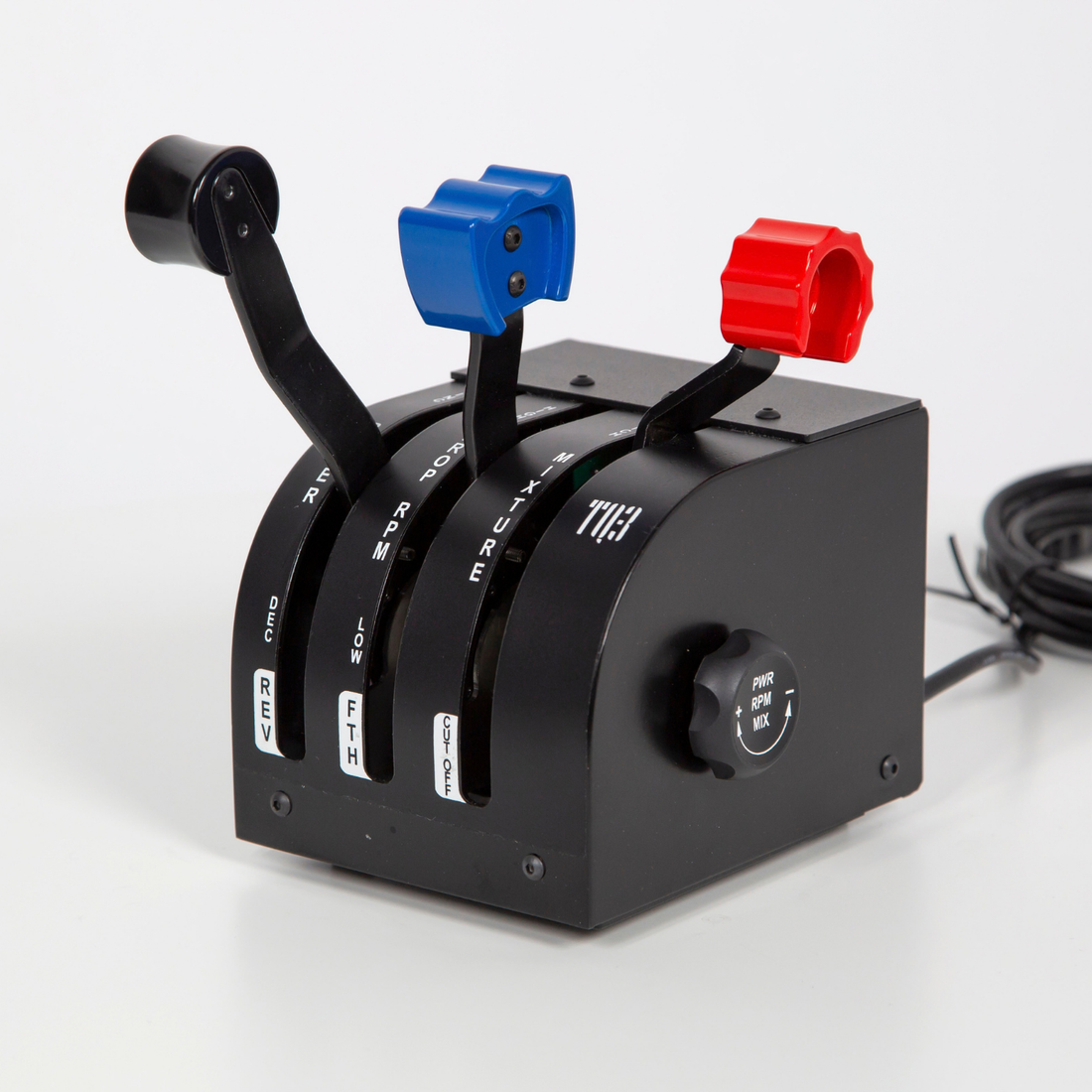

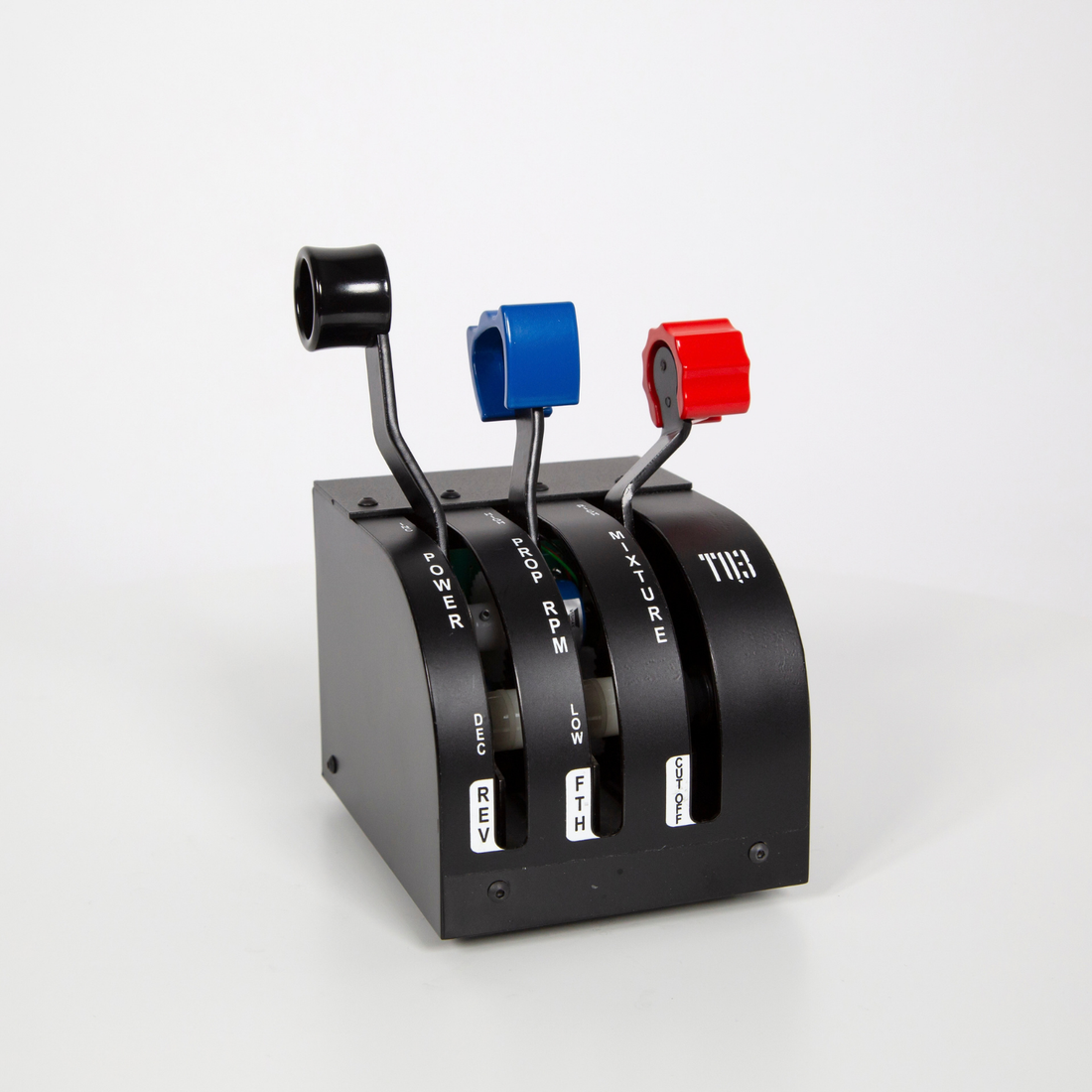

The Virtual Fly TQ3+ is a three-axis throttle quadrant designed for piston-engine, turboprop, and turbofan flight simulation. Its three controls reproduce distinct aircraft functions: the Throttle lever includes a Reverse Thrust zone, the Propeller lever includes a Feather zone, and the Mixture lever includes a Cut-Off zone. Mechanical detents and markings distinguish each operating zone. Each axis uses a Hall effect magnetic sensor with 12-bit resolution and 4096 values, while lever resistance can be adjusted to change the force required for movement. Each lever is made from metal and uses a different height, shape, and color. Overall construction is 95% metallic.
The TQ3+ can be mounted to a desktop using the included clamp for desks up to 50 mm / 2 inches thick, or installed using screws. It supports Plug and Play USB installation and Virtual Fly’s VFHub software for testing, calibration, setup, and adjustment.
The TQ3+ can be mounted to a desktop using the included clamp for desks up to 50 mm / 2 inches thick, or installed using screws. It supports Plug and Play USB installation and Virtual Fly’s VFHub software for testing, calibration, setup, and adjustment.

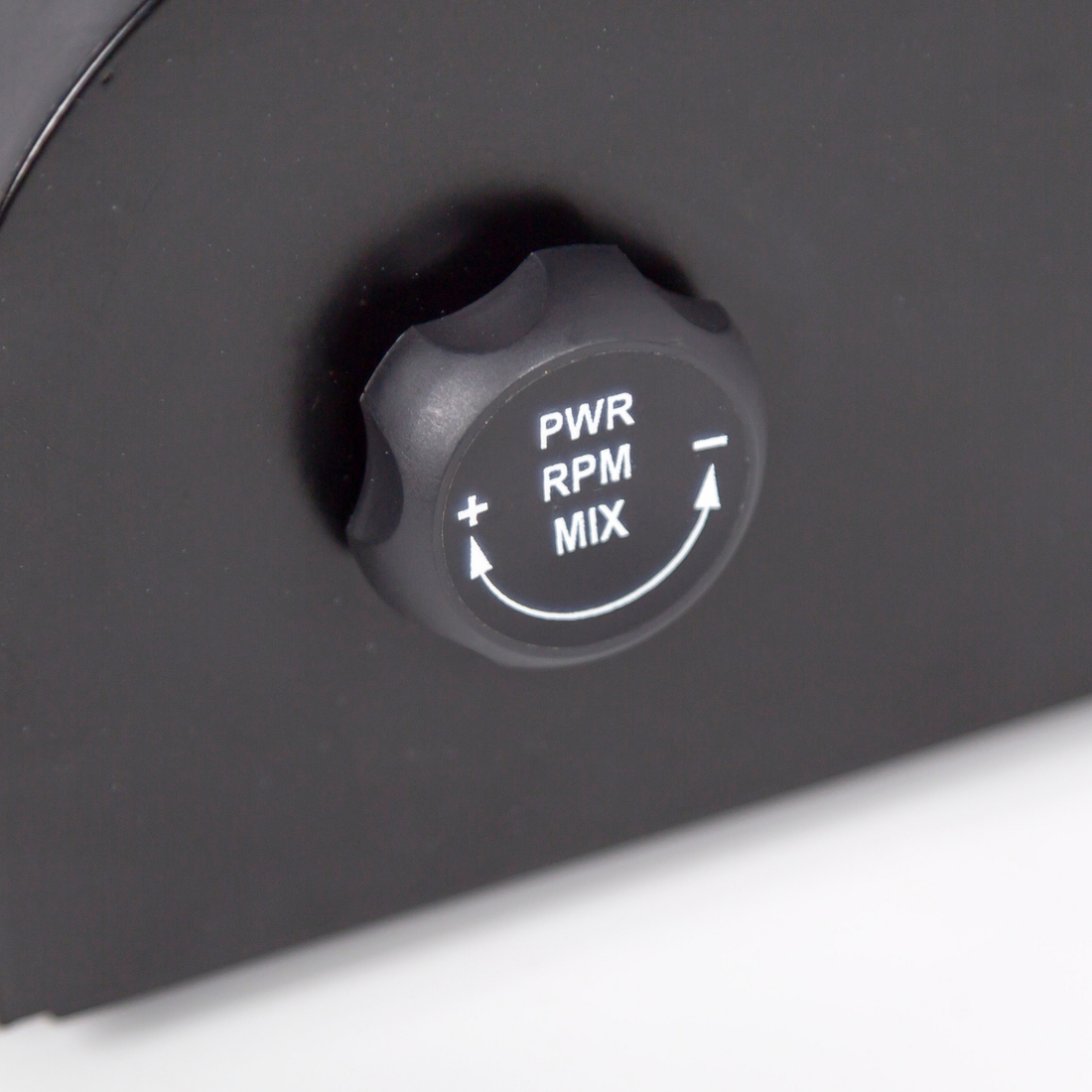

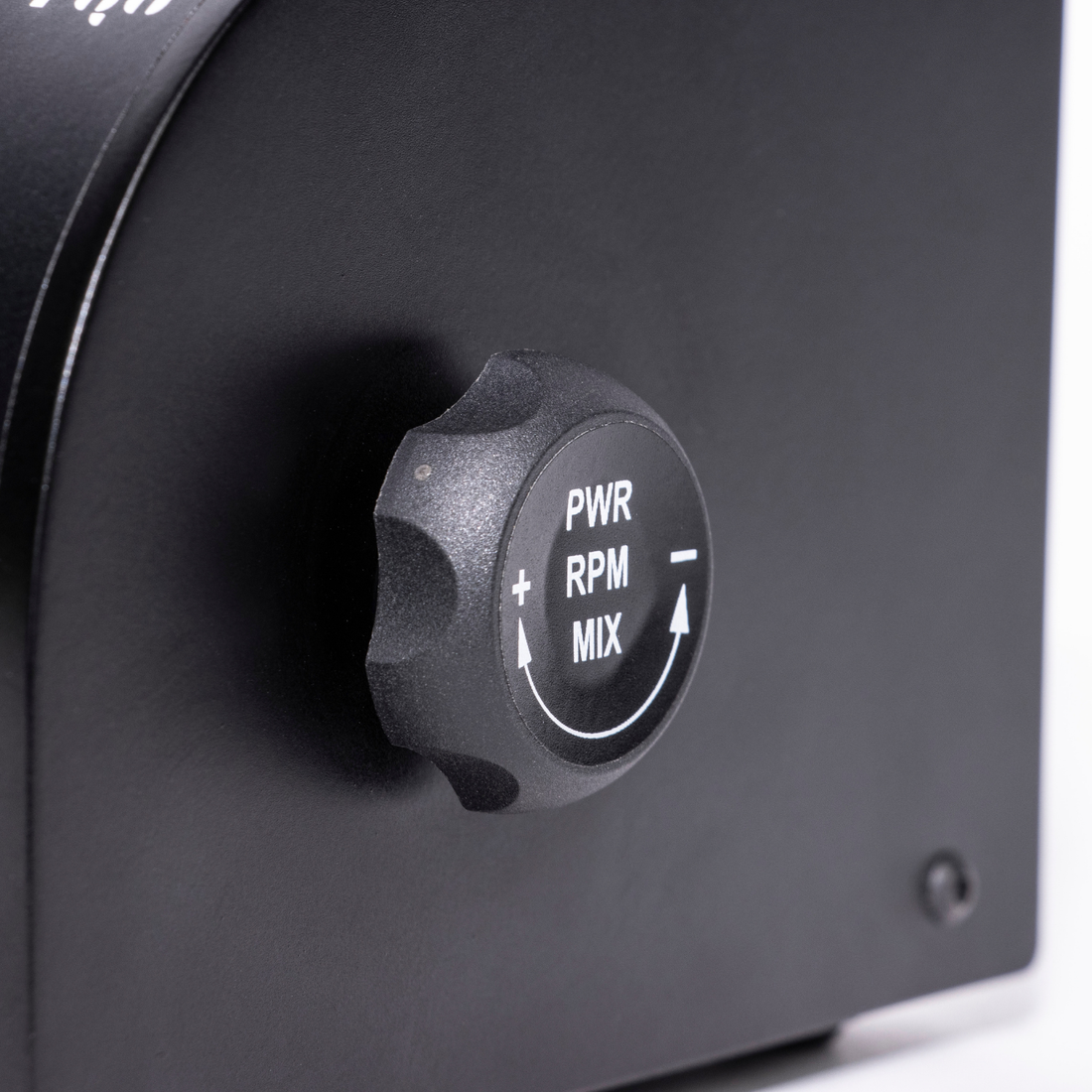

Adjustable Lever Resistance
Adjust the strength required to move the throttle, propeller, and mixture levers.
12-Bit Hall Sensors
Hall effect magnetic sensors provide 12-bit resolution with 4096 values on each of the three axes.

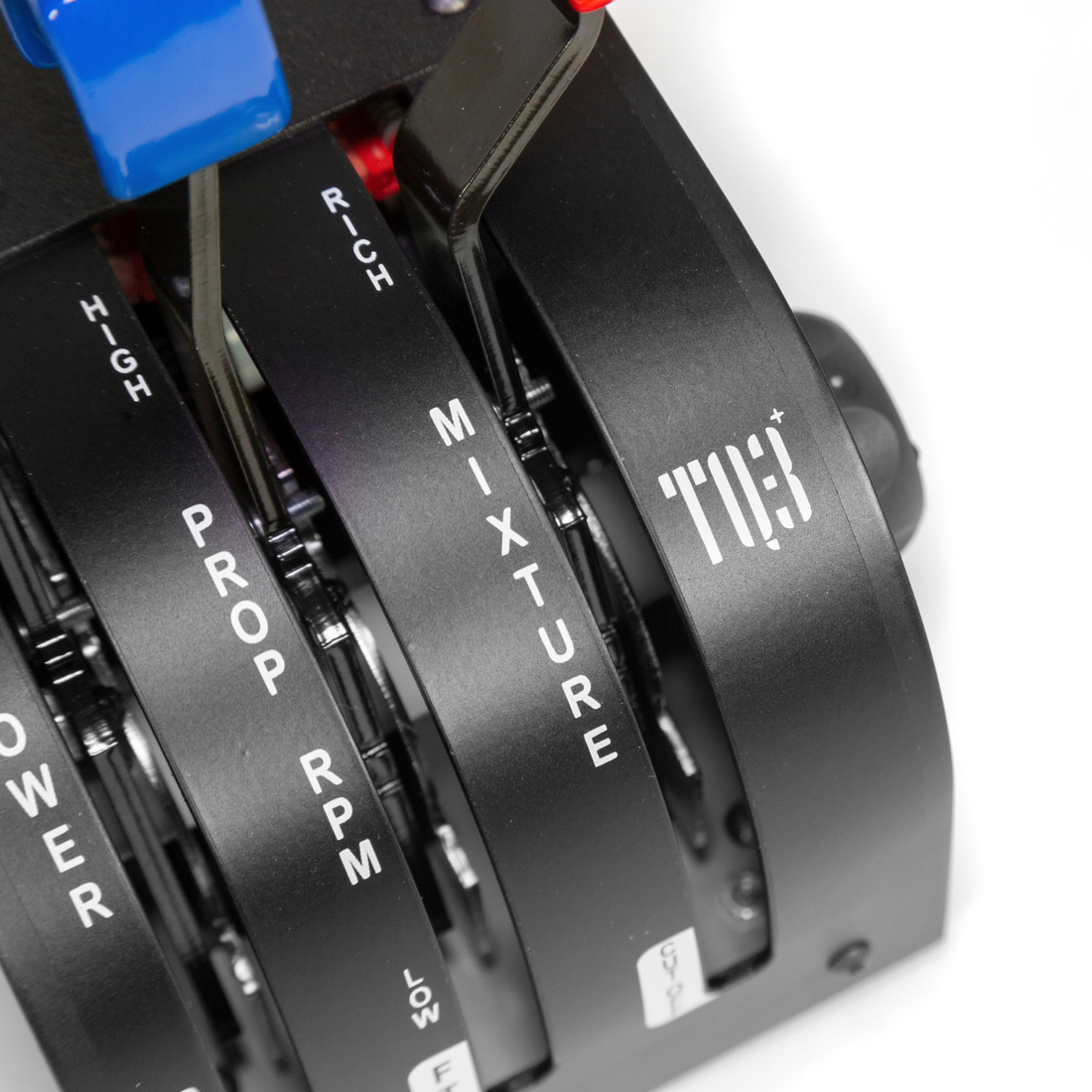

Mechanical Detent Zones
Mechanical detents and markings distinguish the operating zones of each lever.

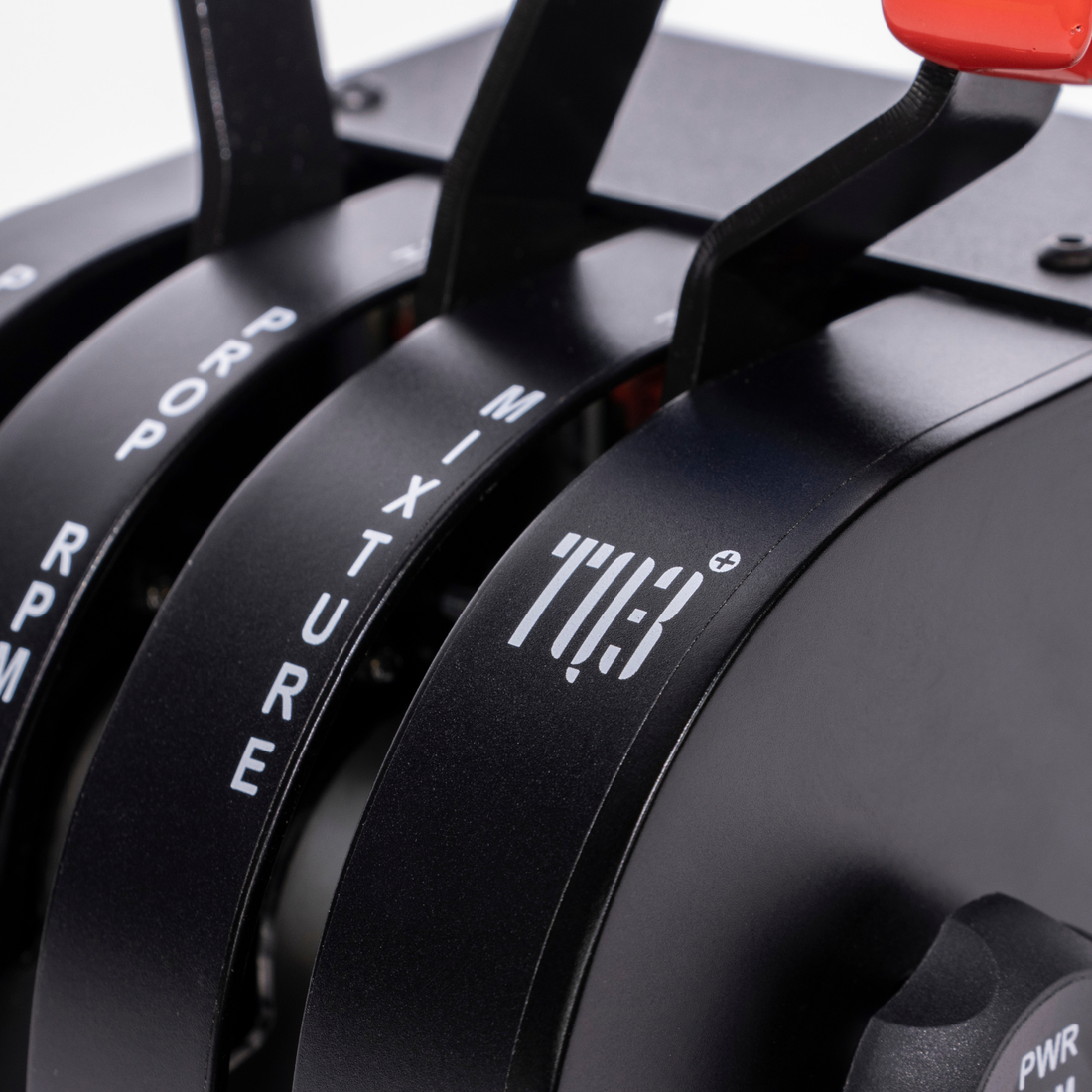

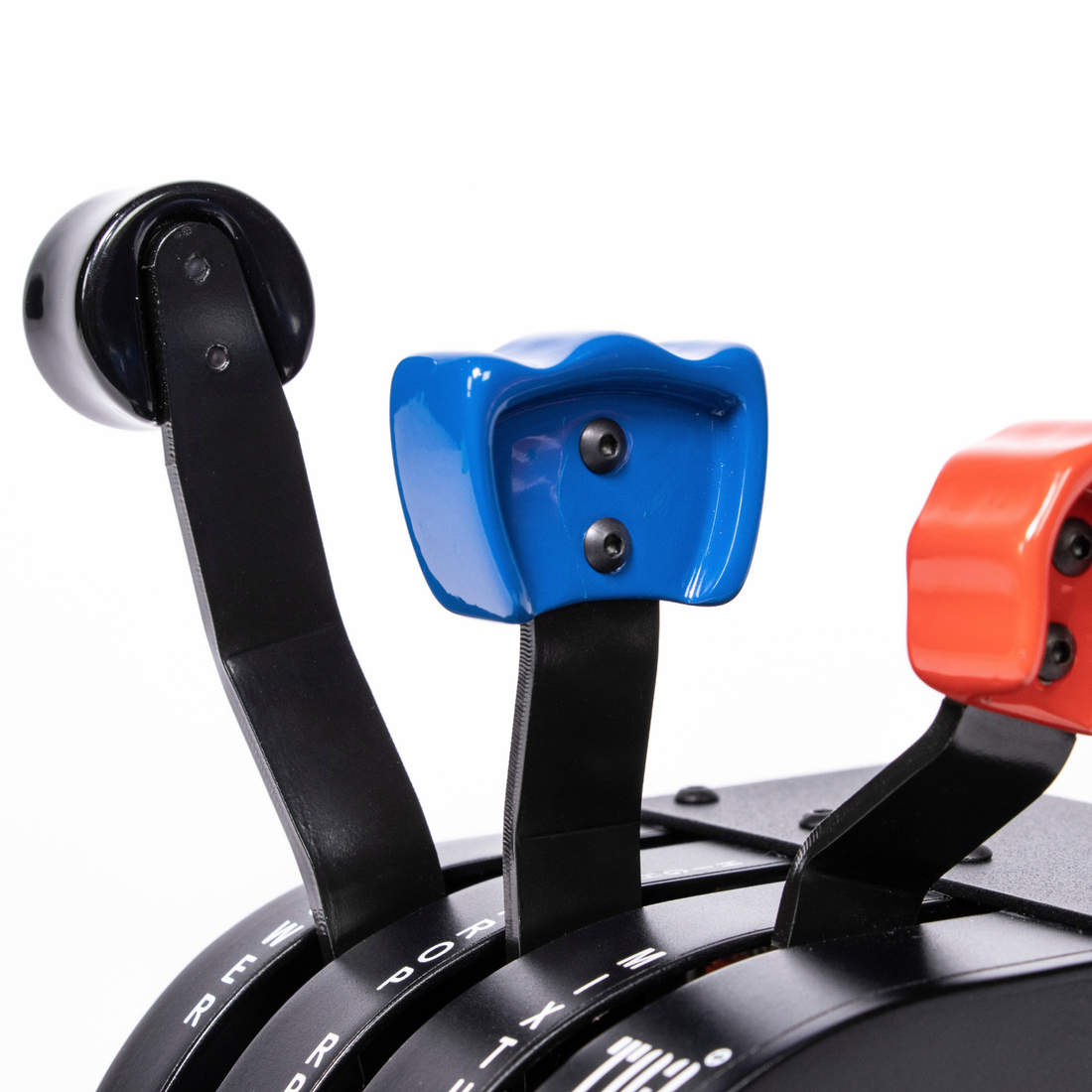

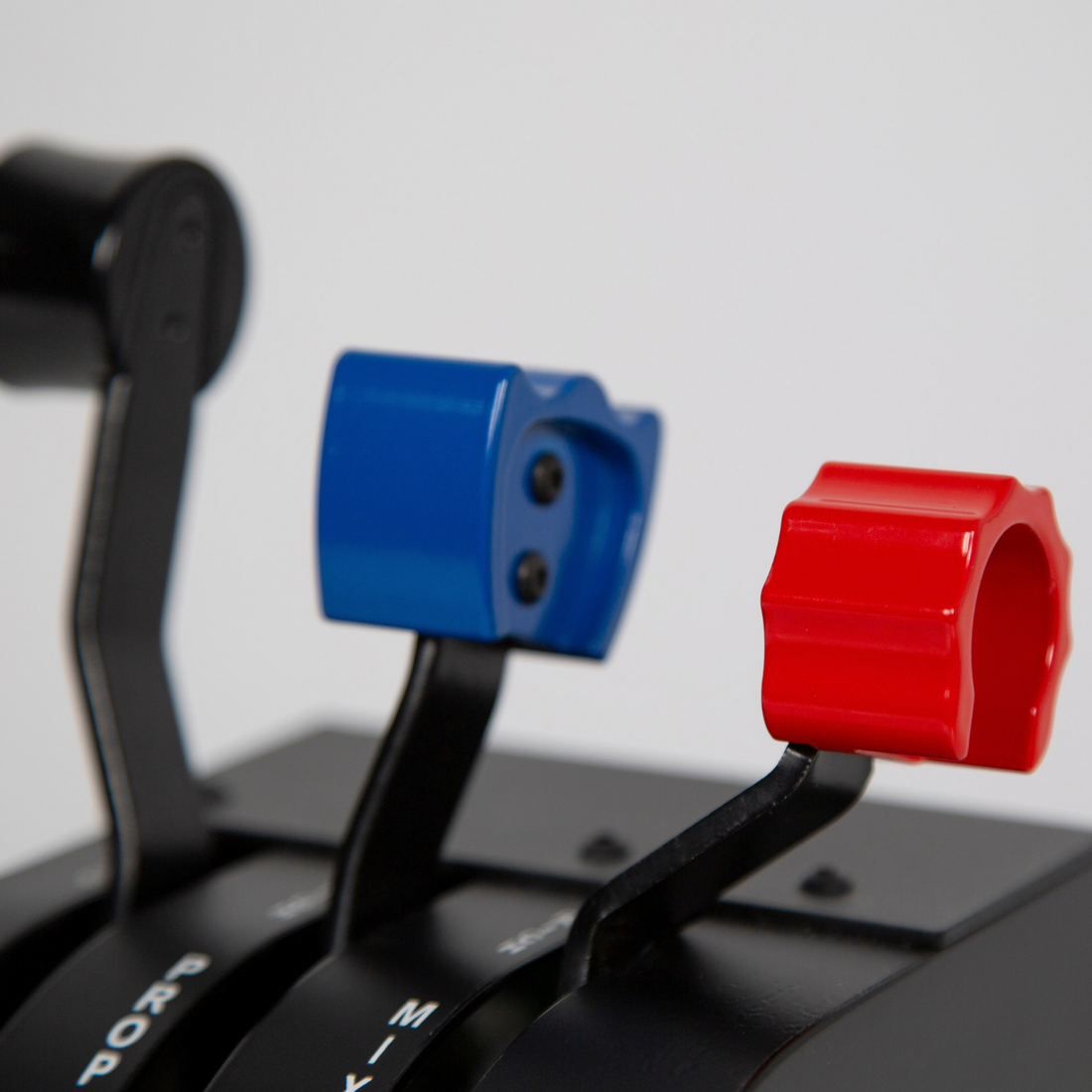

Metal Lever Construction
Each lever is made from metal and uses a different height, shape, and color.
Two Mounting Options
Install using the included desktop clamp or secure the unit with screws.
Plug-and-Play USB
Supports driverless USB installation for computer use.
VFHub Support
VFHub provides testing, calibration, setup, and adjustment for the TQ3+.
Product Details
Technical Specifications
| Product | Virtual Fly TQ3+ |
|---|---|
| Product Type | Three-Axis Flight Simulator Throttle Quadrant |
| Axes | Throttle, Propeller, Mixture |
| Axis Sensors | Hall Effect Magnetic Sensors |
| Resolution | 12-Bit, 4096 Values on Each Axis |
| Lever Resistance | Adjustable |
| Throttle Function | Reverse Thrust Zone |
| Propeller Function | Feather Zone |
| Mixture Function | Cut-Off Zone |
| Zone Identification | Markings and Mechanical Detents |
| Lever Construction | 100% Metal |
| Overall Construction | 95% Metallic |

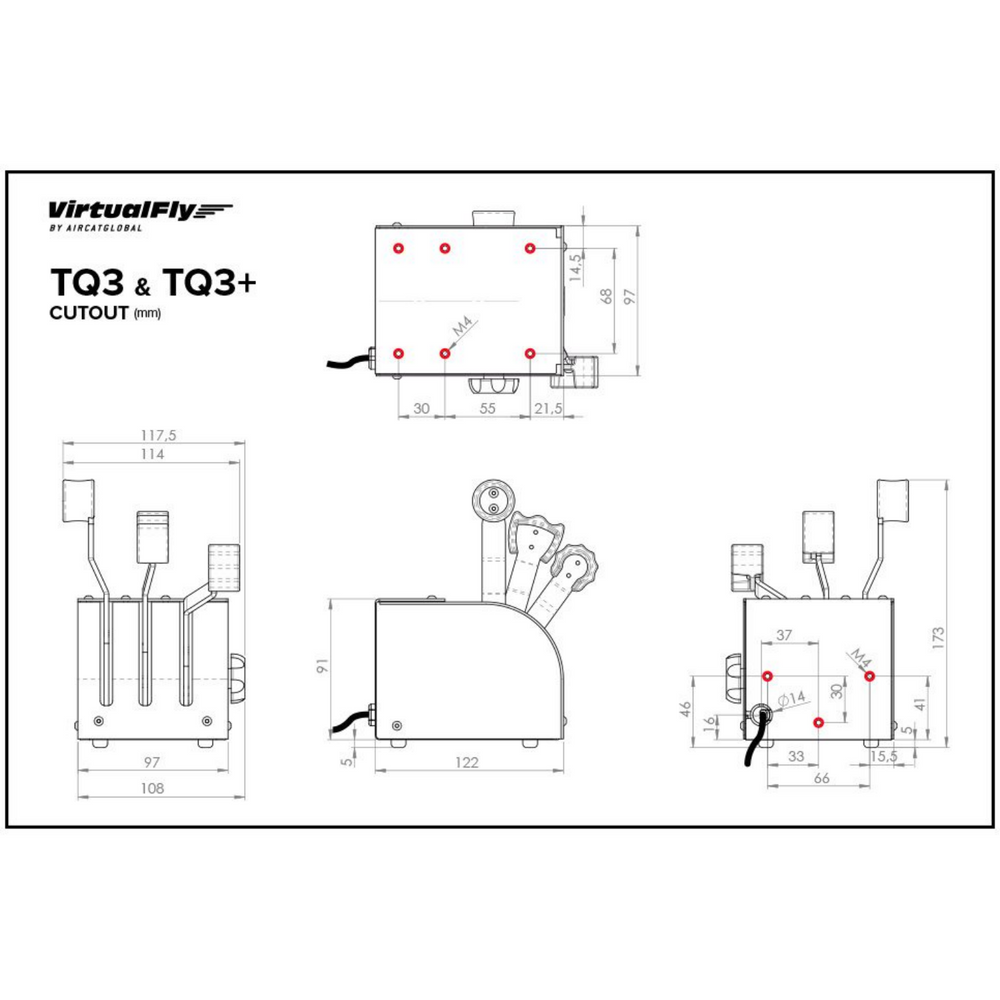

| Mounting | Included Clamp or Screw Mounting |
| Maximum Desk Thickness with Clamp | 50 mm / 2 in |
| USB Installation | Plug and Play, Driverless |
| Connectivity | USB |
| Factory Calibration | Calibrated from Factory |
| Packed Dimensions | 260 × 260 × 200 mm |
| Packed Weight | 2 kg |
| BETA-GND Function | Not Included |
| Software | VFHub |
In The Box
What's Included
1
Virtual Fly TQ3+ Throttle Quadrant with Unique Serial Number
2
Standard Throttle Clamp for Desks up to 50 mm / 2 in
3
All Required Screws
4
Warranty Card with Related Serial Number for Technical Support
5
All Necessary Cables
System Support
Compatibility
Prepar3D
Compatible with Prepar3D. VFHub specifically supports Prepar3D v4-v5.
X-Plane
Compatible with X-Plane. VFHub specifically supports X-Plane 11.
Windows
Compatible with Windows.
macOS
Compatible with macOS.
Virtual Fly Flight Panels
Compatible with Solo GA Series, Solo Airliner Series, and Solo PRO Series.
Stay Level Flight Panels
Compatible with customized flight panels by Stay Level.
Other Simulator Hardware
Compatible with other hardware in the market for mixed-peripheral flight simulator setups.
