Build Your Ultimate Sim Racing Setup

Putting together a sim racing rig can feel overwhelming — with hundreds of wheels, bases, cockpits, and pedals available, knowing what works together is half the battle. Apevie's Sim Rig Configurator takes the guesswork out of it. Browse every major component category, compare products side by side, and get real-time compatibility warnings when components from different ecosystems may need an adapter or simply won't work together.

Whether you're building your first entry-level cockpit or a full direct-drive rig with motion, our configurator covers everything: chassis, wheel base, steering wheel, pedals, motion platform, seat, and accessories. All products ship from Apevie Simulator with expert support at every step.

⚙️

All Major Categories Cockpits, direct drive wheel bases, steering wheels, load cell pedals, motion platforms — everything in one tool.

🔒

Compatibility Engine Automatic alerts when your selected wheel and base are from incompatible ecosystems, so you know before you buy.

🛒

One-Click Cart Select every component for your build, share it with a link, then add everything to your cart in a single click.

Sim Rig Configurator

Select a category to begin

Build Total $0.00

Build Your Rig

⚙

Start building your rig

Pick a category from the left to get started.

Your Build

0 items selected

No items selected yet.

Prefer a custom quote? Tell us your goals, space, and budget — our team will spec a complete build for you.

Inquire Now →

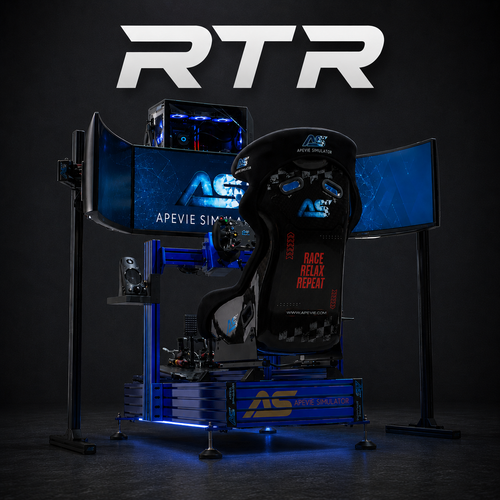

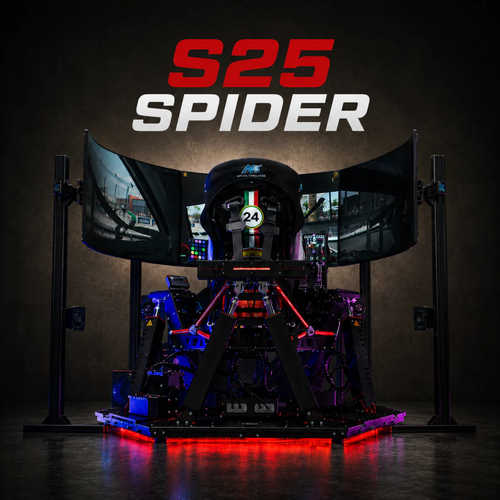

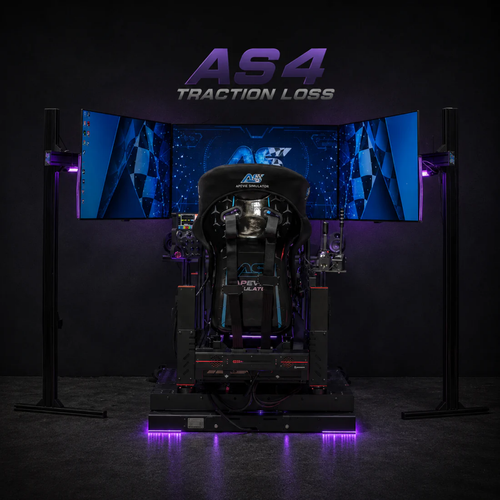

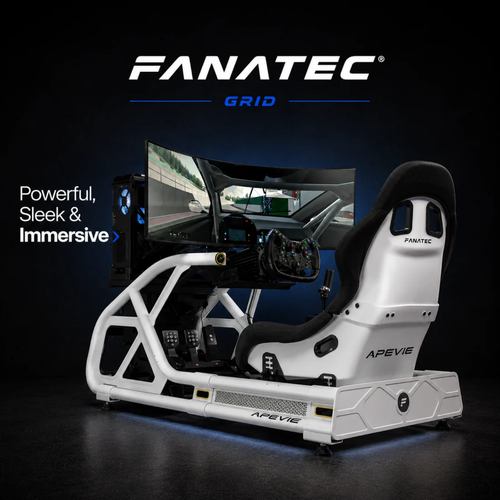

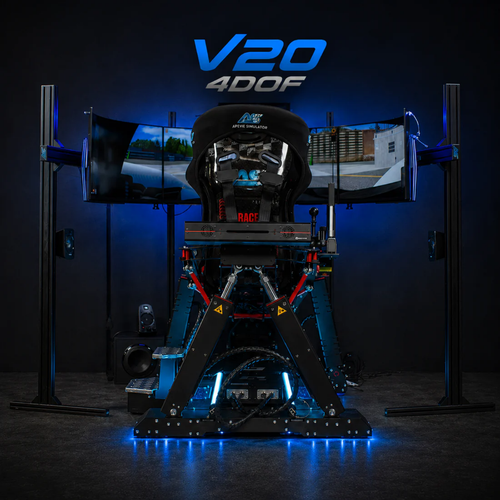

Prefer a Ready-To-Race Package?

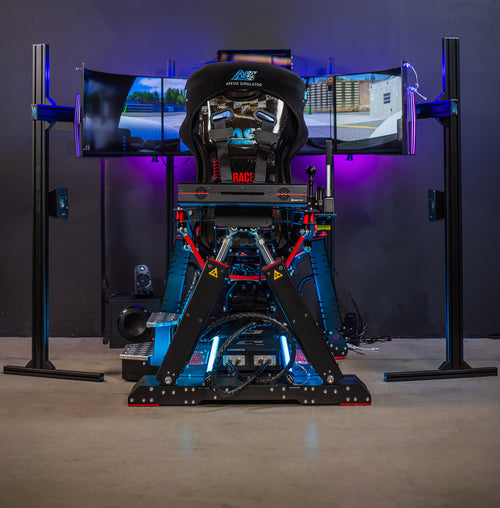

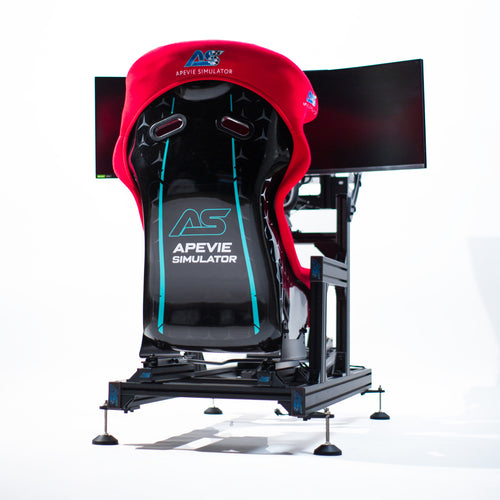

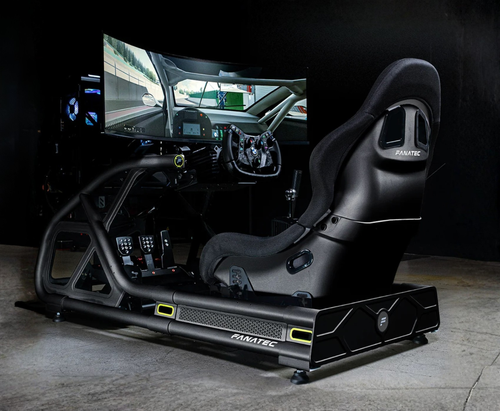

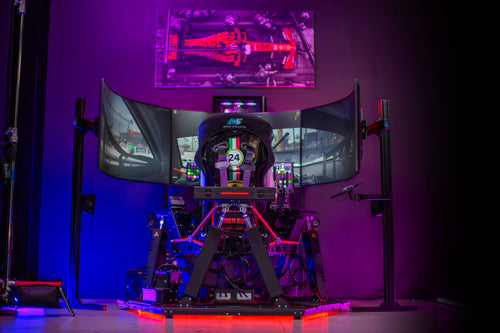

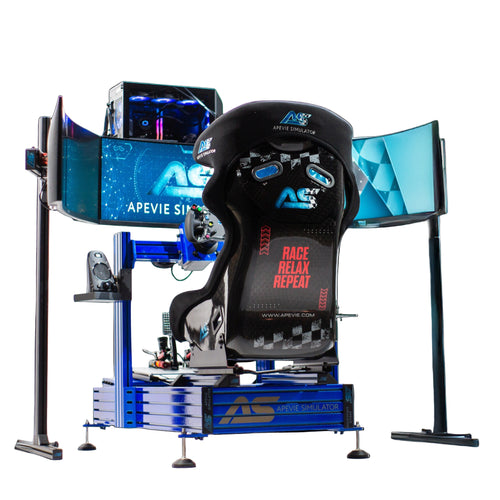

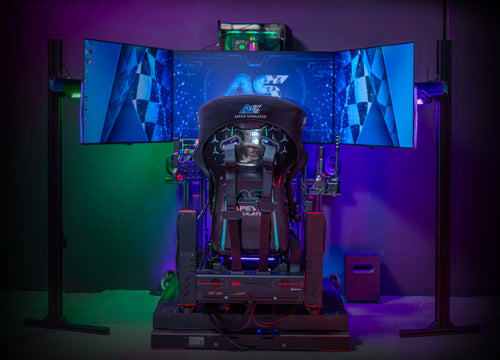

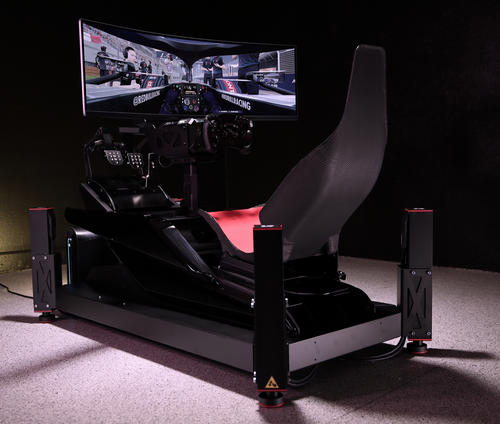

Don't want to configure piece by piece? Our Turn-Key Packages arrive pre-built, tested, and calibrated — from plug-and-play console rigs to full 6DOF motion simulators. Pick one and you're done.

Full-Service Builds

Let Us Build It For You

Skip the configurator entirely. Our team designs, builds, tests, and installs your complete sim racing system — delivered assembled and ready to race.

🚚

White-Glove Delivery

Fully assembled, installed, and calibrated at your location

⚡

3–4 Week Build

From consultation to delivery, typical turnaround

🏁

Pro Components

Direct drive, motion platforms, triple displays, high-spec PC

💬

1-on-1 Consultation

We spec every build around your driving goals and space

"Boran and Apevie went way over what I expected from a service provider."
— Naveen D.

Inquire Now →

Or call our team: (714) 794-7763

Complete systems from $10,000 · Motion simulators to $100,000+ · Approx. 6′ × 8′ space

Sim Racing Setup Guide: What You Need to Know

Choosing a Sim Racing Wheel Base

The wheel base is the most critical component in any sim racing setup. Direct drive (DD) wheel bases — from Simucube, Fanatec, Moza Racing, Simagic, Asetek, and Cammus — connect the steering wheel directly to the motor shaft, delivering unmatched force feedback precision. Belt-drive bases are a budget-friendly alternative. Torque output ranges from 5 Nm for entry-level to over 25 Nm on professional-grade DD systems. Choose based on your driving style and the titles you sim in most.

Sim Racing Steering Wheels & Compatibility

Not all steering wheels work with all wheel bases. Fanatec uses a proprietary quick-release system — Fanatec wheels only fit Fanatec bases without an adapter. Simucube, Moza, Simagic, and most other direct drive brands use the standard 70 mm PCD bolt pattern, so most aftermarket sim racing wheels mount with a standard adapter plate. Our compatibility engine checks this automatically as you build. Always confirm the quick-release standard when mixing brands.

Sim Racing Pedals: Load Cell vs Potentiometer

Pedal quality has a dramatic effect on lap times and braking consistency. Entry-level pedals use potentiometers to measure travel distance, while performance-oriented pedals use load cell sensors to measure pressure — just like a real race car. Brands like Heusinkveld, Fanatec ClubSport, Moza CRP, and Simagic P-Series all offer load cell braking. A 3-pedal set with clutch is recommended for manual gearbox titles like iRacing, Assetto Corsa, and Le Mans Ultimate.

Sim Racing Cockpits & Chassis

A rigid cockpit eliminates frame flex that wastes force feedback energy and degrades immersion. GT-style rigs suit most road and touring car racing, while formula-style frames offer an upright, open-wheel driving position. Look for aluminium extrusion profiles, adjustable pedal decks, and compatible mounting for button boxes, shifters, and handbrakes. Confirm that your rig is compatible with your chosen seat mounting standard before buying.

Motion Platforms for Sim Racing

Motion platforms add a physical dimension to sim racing — moving your cockpit in response to lateral G-force, acceleration, braking, and road surface. 2DOF platforms cover pitch and roll; 3DOF adds heave for kerb and bump reproduction; full 6DOF delivers yaw, surge, and sway for maximum immersion. Motion systems are software-compatible with most major sim titles via SimTools, SimFeedback, or manufacturer-specific motion software. Any wheel and pedal setup works with a motion platform.

Building a Complete Sim Rig on Any Budget

Entry-level sim rigs combining a belt-drive base, basic pedal set, and aluminium cockpit can be built from under €1,000. Mid-range builds — a 10–15 Nm direct drive base, load cell pedals, and a proper chassis — typically run €2,000–€4,000. High-end professional setups with Simucube Sport or high-torque Simagic bases, carbon steering wheels, Heusinkveld Ultimate pedals, and a motion platform can reach €10,000 and beyond. Apevie stocks and supports every tier.
