VIRTUAL FLY FLIGHT SIM TPM – V3RNIO+
$1,239.00
VIRTUAL FLY FLIGHT SIM TPM – V3RNIO+
$1,239.00
VERNIER-STYLE TPM QUADRANT

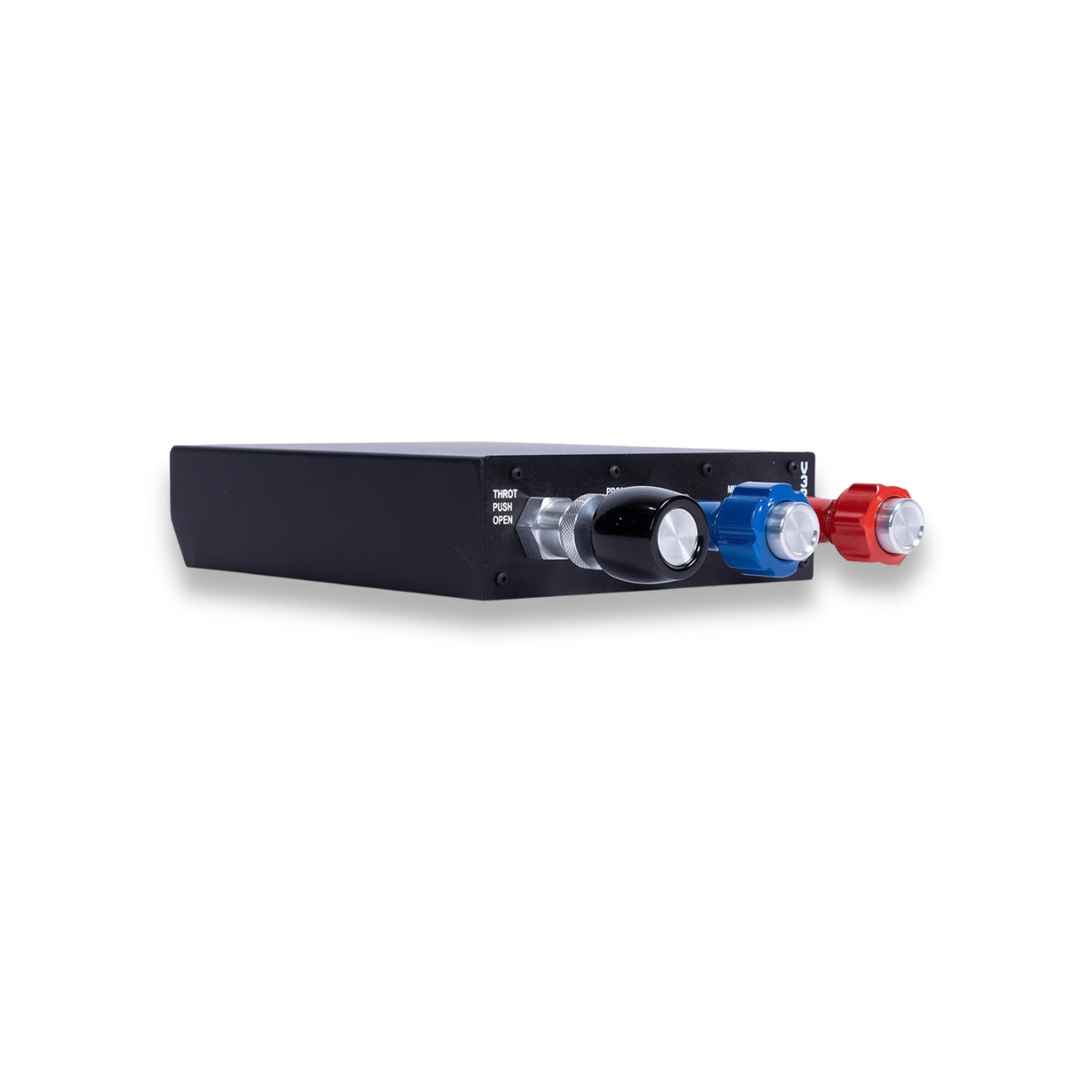

PRECISE THROTTLE, PROPELLER & MIXTURE CONTROL

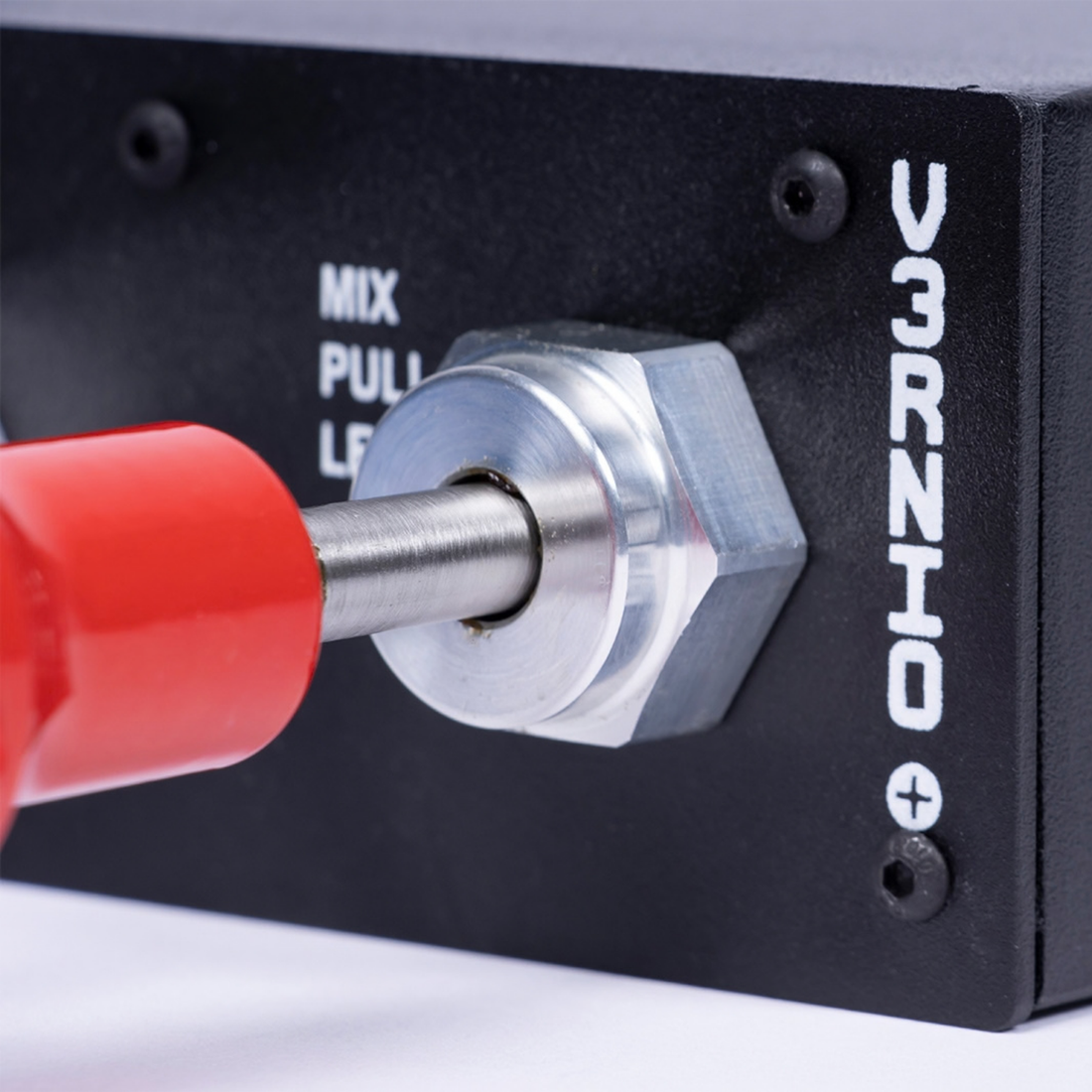

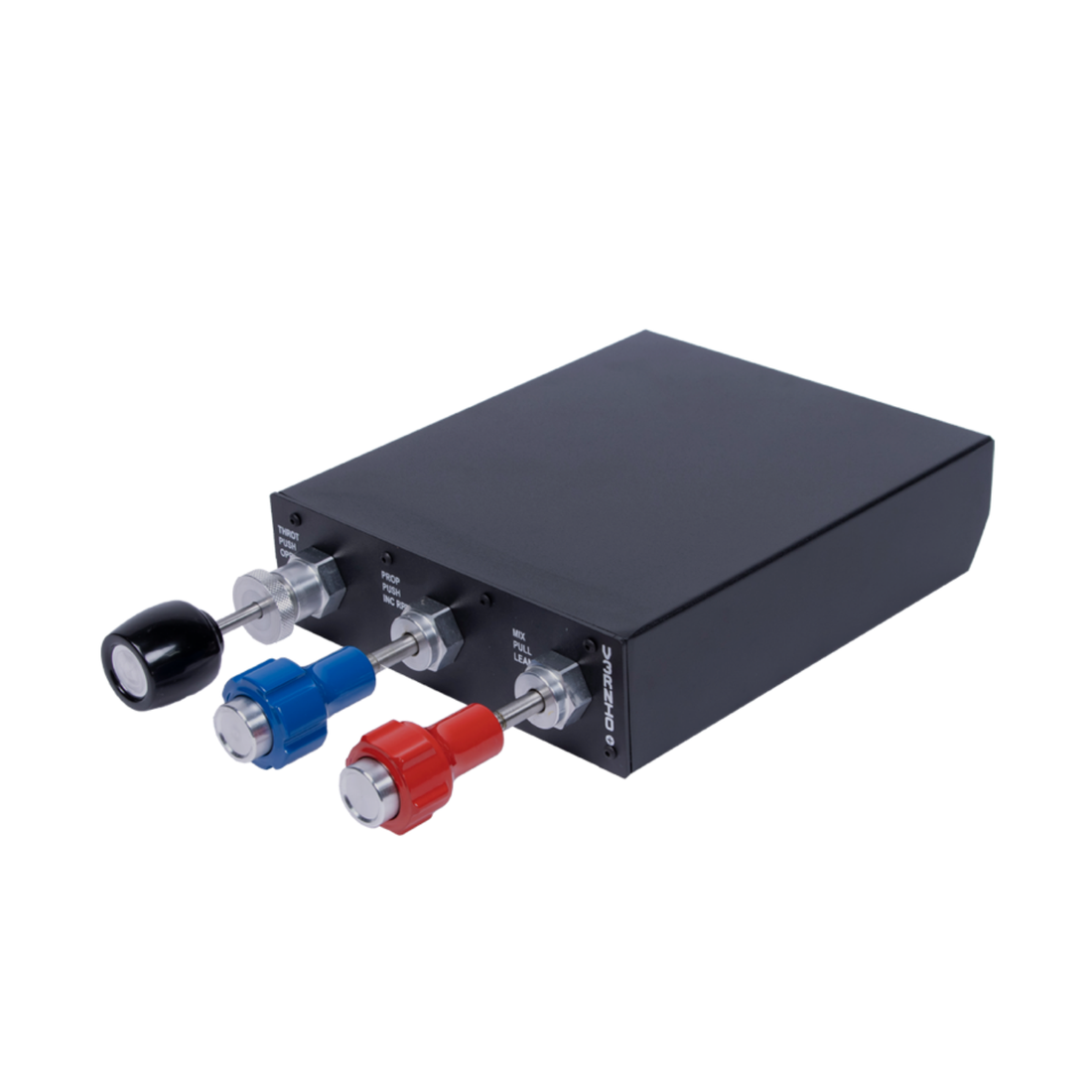

The Virtual Fly V3RNIO+ is a vernier-style throttle, propeller, and mixture quadrant designed with Hall effect magnetic sensors and heavy-duty metallic construction.
The propeller and mixture controls support two adjustment methods. Push the aluminum button to move the control by sliding for quick adjustment, or rotate the handle for precise adjustment of mixture leaning and propeller pitch. The throttle lever resistance is adjustable, allowing the force required for movement to be increased up to the point where the lever can remain fixed in position. Each of the three axes provides 12-bit resolution with 4096 values, while the controls use different shapes and colors and are manufactured from metal.
The V3RNIO+ supports Plug and Play USB installation and Virtual Fly’s VFHub software for testing, calibration, setup, and adjustment.
The propeller and mixture controls support two adjustment methods. Push the aluminum button to move the control by sliding for quick adjustment, or rotate the handle for precise adjustment of mixture leaning and propeller pitch. The throttle lever resistance is adjustable, allowing the force required for movement to be increased up to the point where the lever can remain fixed in position. Each of the three axes provides 12-bit resolution with 4096 values, while the controls use different shapes and colors and are manufactured from metal.
The V3RNIO+ supports Plug and Play USB installation and Virtual Fly’s VFHub software for testing, calibration, setup, and adjustment.
Quick & Precise Control
Propeller and mixture controls can be adjusted by sliding for quick changes or rotating for precise adjustment.
Adjustable Throttle Resistance
Adjust the force required to move the throttle lever, including settings that can hold it firmly in position.
12-Bit Hall Sensors
Hall effect magnetic sensors provide 12-bit resolution with 4096 values on each of the three axes.
Metal Controls
Throttle, propeller, and mixture controls are manufactured from metal and use distinct shapes and colors.
Heavy-Duty Construction
Features 95% metallic construction for the V3RNIO+ heavy-duty range.
Clamp or Screw Mounting
Install on a desktop using the included clamp or secure the unit using screws.
Plug-and-Play USB
Supports driverless USB installation for computer use.
VFHub Support
VFHub provides testing, calibration, setup, and adjustment for the V3RNIO+.
Product Details

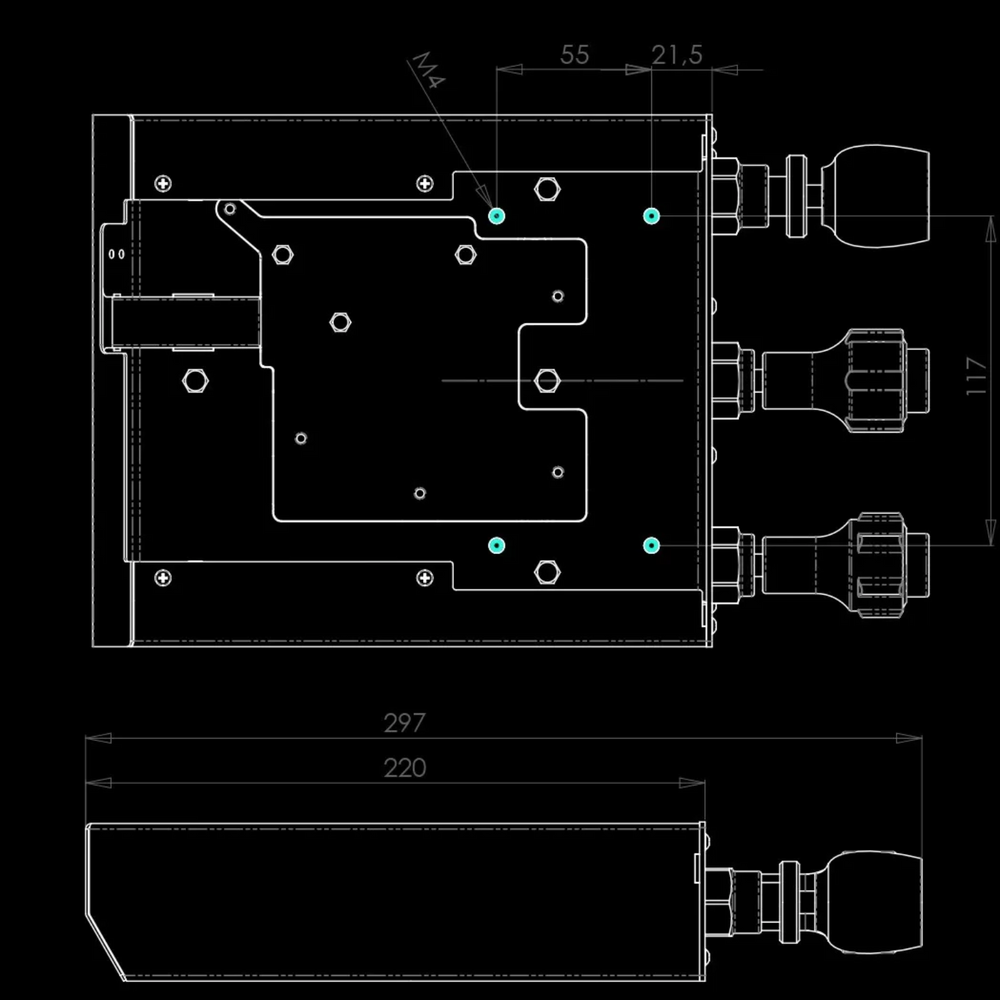

Technical Specifications
| Product | Virtual Fly V3RNIO+ |
|---|---|
| Product Type | Vernier-Style Throttle, Propeller & Mixture Quadrant |
| Axes | Throttle, Propeller, Mixture |
| Axis Sensors | Hall Effect Magnetic Sensors |
| Resolution | 12-Bit, 4096 Values on Each Axis |
| Propeller Adjustment | Sliding for Quick Adjustment or Rotating for Precise Adjustment |
| Mixture Adjustment | Sliding for Quick Adjustment or Rotating for Precise Adjustment |
| Throttle Resistance | Adjustable |
| Control Construction | 100% Metal |
| Overall Construction | 95% Metallic |
| Mounting | Included Clamp or Screw Mounting |
| USB Installation | Plug and Play, Driverless |
| Connectivity | USB |
| Packed Dimensions | 350 × 300 × 130 mm |
| Packed Weight | 4 kg |
| Software | VFHub |
In The Box
What's Included
1
Virtual Fly V3RNIO+ Throttle Quadrant with Unique Serial Number
2
Standard Throttle Clamp
3
All Required Screws
4
Warranty Card with Related Serial Number for Technical Support
5
All Necessary Cables
System Support
Compatibility
The V3RNIO+ supports major flight simulation software, Windows and macOS, Virtual Fly flight panels, and other compatible simulator hardware.
Prepar3D
Compatible with Prepar3D. VFHub specifically supports Prepar3D v4-v5.
X-Plane
Compatible with X-Plane. VFHub specifically supports X-Plane 11.
Windows
Compatible with Windows.
macOS
Compatible with macOS.
Virtual Fly Flight Panels
Compatible with Solo GA Series, Solo Airliner Series, and Solo PRO Series.
Stay Level Flight Panels
Compatible with customized flight panels by Stay Level.
Other Simulator Hardware
Compatible with other hardware in the market for mixed-peripheral flight simulator setups.
