Spatial Thumb Operating Zone
Button height and orientation are arranged around the natural position of the thumb while holding the wheel, creating a three-dimensional control layout.
CONSPIT 290GP Formula Wheel with 50-70mm Adaptor
$659.00
CONSPIT 290GP Formula Wheel with 50-70mm Adaptor
$659.00
The True Next Generation

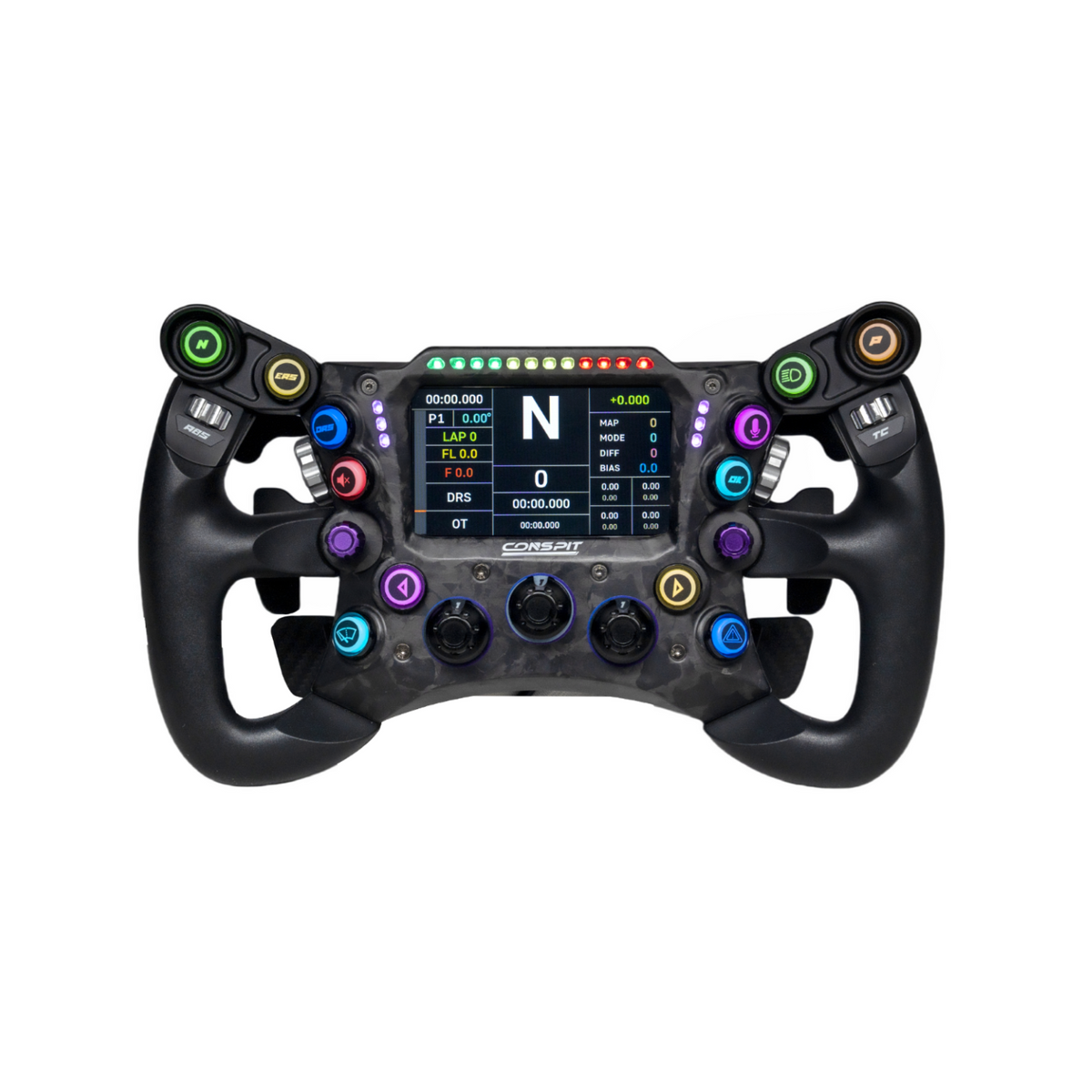

CONSPIT 290 GP Formula Wheel
The CONSPIT 290 GP is built around the brand's "N+1" product concept, using a three-dimensional ergonomic design to move beyond conventional planar Formula wheel layouts.
Its structure combines a real molded carbon fiber front panel with a high-strength aluminum alloy body. At 290 mm grip-to-grip and 1400 g without the quick release or adapter, the wheel combines a compact Formula-style format with a rigid structural design.
Driver controls include 12 modular RGB ErgoTouch buttons, four encoders, three 12-position rotary switches, and two 7-way joysticks. The 290 GP also incorporates dual-clutch paddles and CONSPIT's MagFlip rocker-type magnetic paddle shifter group.
A fully integrated 4.3-inch 800 × 480 LCD dashboard provides telemetry information and real-time operation feedback, while CONSPIT Link 2.0 supports the wheel's PC-based control system.
Its structure combines a real molded carbon fiber front panel with a high-strength aluminum alloy body. At 290 mm grip-to-grip and 1400 g without the quick release or adapter, the wheel combines a compact Formula-style format with a rigid structural design.
Driver controls include 12 modular RGB ErgoTouch buttons, four encoders, three 12-position rotary switches, and two 7-way joysticks. The 290 GP also incorporates dual-clutch paddles and CONSPIT's MagFlip rocker-type magnetic paddle shifter group.
A fully integrated 4.3-inch 800 × 480 LCD dashboard provides telemetry information and real-time operation feedback, while CONSPIT Link 2.0 supports the wheel's PC-based control system.
Real Molded Carbon Fiber
The front panel is made from real molded carbon fiber and paired with a high-strength aluminum alloy body.
3D Ergonomic Design
A three-dimensional control layout and Spatial Thumb Operating Zone position controls around the natural movement and position of the driver's thumbs.
4.3-Inch LCD Dashboard
Fully integrated 4.3-inch 800 × 480 dashboard with adjustable brightness, 500-nit brightness, and a 60 fps refresh rate.
Modular Driver Controls
Features 12 ErgoTouch RGB buttons, four encoders, three 12-position rotary switches, and two 7-way joysticks.
RGB Control Feedback
Modular RGB button lighting supports customizable colors and telemetry settings.
Enduro Grips
Durable TPU grips are designed for long-distance driving and ergonomic hand positioning.
MagFlip Paddle Shifters
Rocker-type magnetic paddle shifters support both push and pull shifting methods.
Lightweight & Rigid Structure
The wheel weighs 1400 g without the QR or adapter and combines a carbon fiber front cover with an aluminum alloy main structure.
Product Details

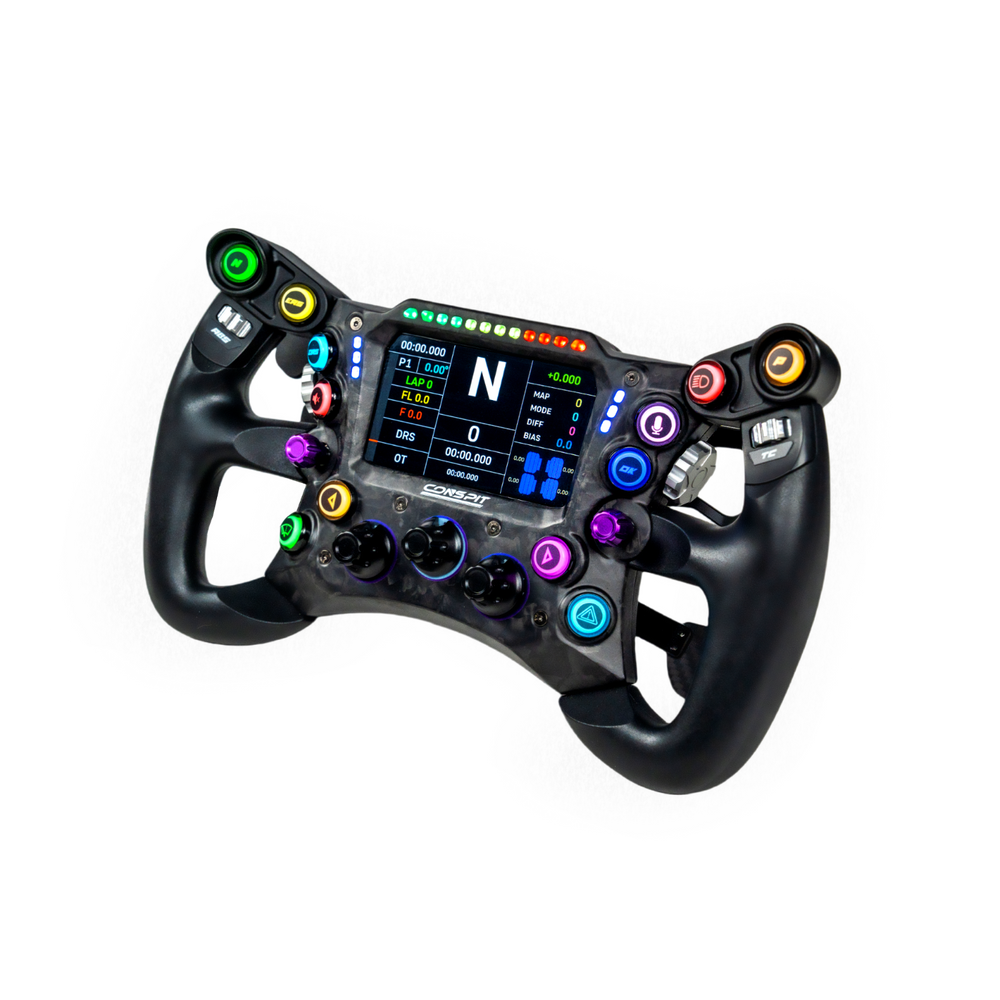

Technical Specifications
| Display | 4.3-inch 800 × 480 LCD, adjustable brightness |
|---|---|
| Display Brightness | 500 nit |
| Display Refresh Rate | 60 fps |
| Indicators | 18 × RGB LEDs |
| Size | 290 × 175 × 100 mm |
| Net Weight | 1400 g, without QR / adapter |
| Grip-to-Grip Size | 290 mm |
| Front Cover Material | Carbon Fiber |
| Main Material | Aluminum Alloy |
| Buttons | 12 × ErgoTouch Modular RGB Buttons |
| Paddle Shifter | MagFlip Rocker-Type Magnetic Paddle Shifter Group |
| Encoders | 4 |
| Rotary Switches | 3 × 12-position rotary switches |
| 7-Way Joysticks | 2 |
| Clutch | Dual clutch paddles |
| Mounting | 3 × 50 mm M5 |
| Platform | Windows PC |
| Connection | USB direct, CONSPIT CAN |
| Cable | USB cable |
| Software | CONSPIT Link 2.0 |
3D Ergonomics & Driver Interaction
Controls Built Around the Driver
The 290 GP uses three-dimensional component placement, ergonomic grips, modular controls, and tactile paddle systems to keep important racing functions accessible without relying on a conventional flat control layout.
ErgoTouch RGB Buttons
Twelve modular RGB buttons use independently assembled structures for consistent tactile feedback and support customizable RGB telemetry lighting.
Thumb Wheel Controls
The thumb-wheel design is positioned for rapid thumb operation and uses a roller-type encoder structure for clear actuation feedback.
Enduro Grips
Specially modified TPU grips are precision molded using a double-layer process and designed for long-distance endurance driving.
Grip Ergonomics
The grip design accommodates both two-finger and three-finger lower grip styles and follows the natural curvature of the hand.
MagFlip Paddle Shifters
Rocker-type magnetic paddle shifters are designed for both push and pull gear-change operation.
Hall-Effect Paddle Sensing
Paddle sensors use non-contact Hall-effect sensing with internally integrated sensor and moving components.
Ready-to-Go Dashboard
The 4.3-inch dashboard includes multiple instrument pages and real-time operation pop-ups that display corresponding control changes.
CDP Quick Release
Uses spring-contact electrical connections and a clasp-and-ball structure CNC-machined from 7075 aluminum alloy.
