Direct-Drive Wheel Bases
Compatible with most direct-drive wheel bases on the market.
SOELPEC Spectra LT
$1,609.00
SOELPEC Spectra LT
$1,609.00
User Guide
We recommend you to download and install the latest version of SimHub for utilizing all the illumination and dashboard functionalities of the display. All you need to do is simply select the SOELPEC - Spectra XR in the devices section.
It is recommended to use a powered USB hub for higher brightness levels.
SOELPEC SIM RACING CONTROL
302 MM WHEEL WITH RGB ILLUMINATION & DUAL CLUTCHES
The SOELPEC Spectra LT is a 302 mm sim racing steering wheel built around a 6061 anodized aluminum structure, carbon fiber center plate, and 50A overmold silicone grips.
Its control layout includes 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The Spectra LT features fully customizable RGB illumination, 16 additional configurable LEDs, and customizable LED light bars.
Ball-bearing magnetic shifters use black N52 magnets, while the dual clutches use Hall sensors. A dedicated Settings Button provides direct access to wheel settings.

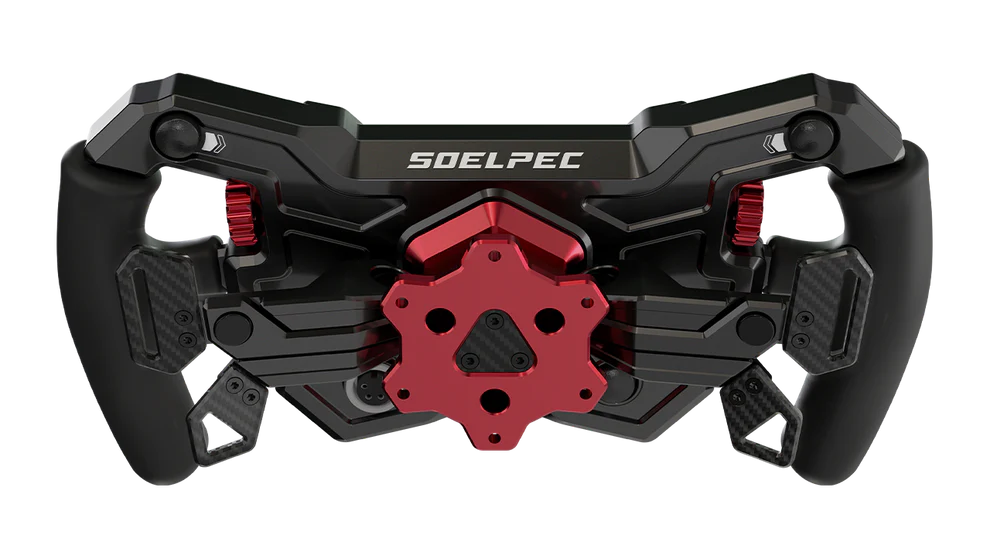

The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern.
Its control layout includes 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The Spectra LT features fully customizable RGB illumination, 16 additional configurable LEDs, and customizable LED light bars.
Ball-bearing magnetic shifters use black N52 magnets, while the dual clutches use Hall sensors. A dedicated Settings Button provides direct access to wheel settings.
The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern.
6061 Aluminum Structure
Built around a 6061 anodized aluminum structure with a carbon fiber center plate.
17 Tactile Push Buttons
Includes 17 push buttons using 700 gf tactile switches.
Dual-Action Thumb Encoders
Two custom thumb encoders provide up to 8 inputs.
Customizable RGB Illumination
Features fully customizable RGB illumination across the wheel.
Configurable LED Lighting
Includes 16 additional configurable LEDs and customizable LED light bars.
Magnetic Shifters & Dual Clutches
Features ball-bearing magnetic shifters with N52 magnets and dual clutches with Hall sensors.
Dedicated Settings Button
Includes a dedicated Settings Button for wheel controls.
42 mm Rear Hub
Included rear hub supports a 70 mm 6-hole mounting pattern.
Product Details
SPECTRA LT SPECIFICATIONS
| Product | SOELPEC Spectra LT Steering Wheel |
|---|---|
| Wheel Diameter | 302 mm |
| Push Buttons | 17 with 700 gf Tactile Switches |
| 7-Way Switches | 2 |
| Center Encoders | 3 Custom Encoders with Push Buttons |
| Thumb Encoders | 2 Dual-Action Custom Thumb Encoders |
| Thumb Encoder Inputs | Up to 8 Inputs |
| RGB Illumination | Fully Customizable |
| Additional Configurable LEDs | 16 |
| LED Light Bars | Customizable |
| Weight | 1200 g Without Rear Hub |
| Grips | 50A Overmold Silicone |
| Structure | 6061 Anodized Aluminum |
| Center Plate | Carbon Fiber |
| Button Caps & LED Diffusers | PMMA |
| Stickers | Textured PVC Film |
| Shifters | Ball-Bearing Magnetic Shifters |
| Shifter Magnets | Black N52 Magnets |
| Clutches | Ball-Bearing Dual Clutches |
| Clutch Sensors | Hall Sensors |
| Settings Control | Dedicated Settings Button |
| Rear Hub | 42 mm |
| Rear Hub Mounting Pattern | 70 mm, 6-Hole |
In The Box
SPECTRA LT PACKAGE CONTENTS
1
Spectra LT Steering Wheel with Dual Clutches and Carbon Fiber Paddles
2
42 mm Color-Coordinated Rear Hub
3
4-Pin Spiral Cable with Circular Connector
4
Internal USB Cable for Quick Release Connection
5
Extra Polyester Film Sticker Sheet for Button Caps and Encoders
6
Additional Magnets for Adjusting the Shifter Force
7
6 × M5 × 12 mm Captive Screws for Mounting
8
T10 Torx Key
9
4 mm Allen Key
10
1.3 mm Allen Key
11
Tweezers
12
SOELPEC Sticker Sheet
13
Quick Start Guide
WHEEL BASE & SOFTWARE SUPPORT
DESIGNED FOR MOST DIRECT-DRIVE WHEEL BASES
SOELPEC states that its steering wheels are compatible with most direct-drive wheel bases on the market. The included rear hub uses a 70 mm 6-hole mounting pattern.
70 mm Mounting
The included 42 mm rear hub supports a 70 mm 6-hole mounting pattern.
SimHub
SimHub is recommended for utilizing the wheel's illumination functions.
Powered USB Hub
Recommended when using higher brightness levels.
