Windows PC
Compatible with Windows PC when combined with a compatible Fanatec steering wheel.
FANATEC CSL DD QR2 (8 NM)
$549.98
FANATEC CSL DD QR2 (8 NM)
$549.98
CSL DD. NOW WITH QR2.

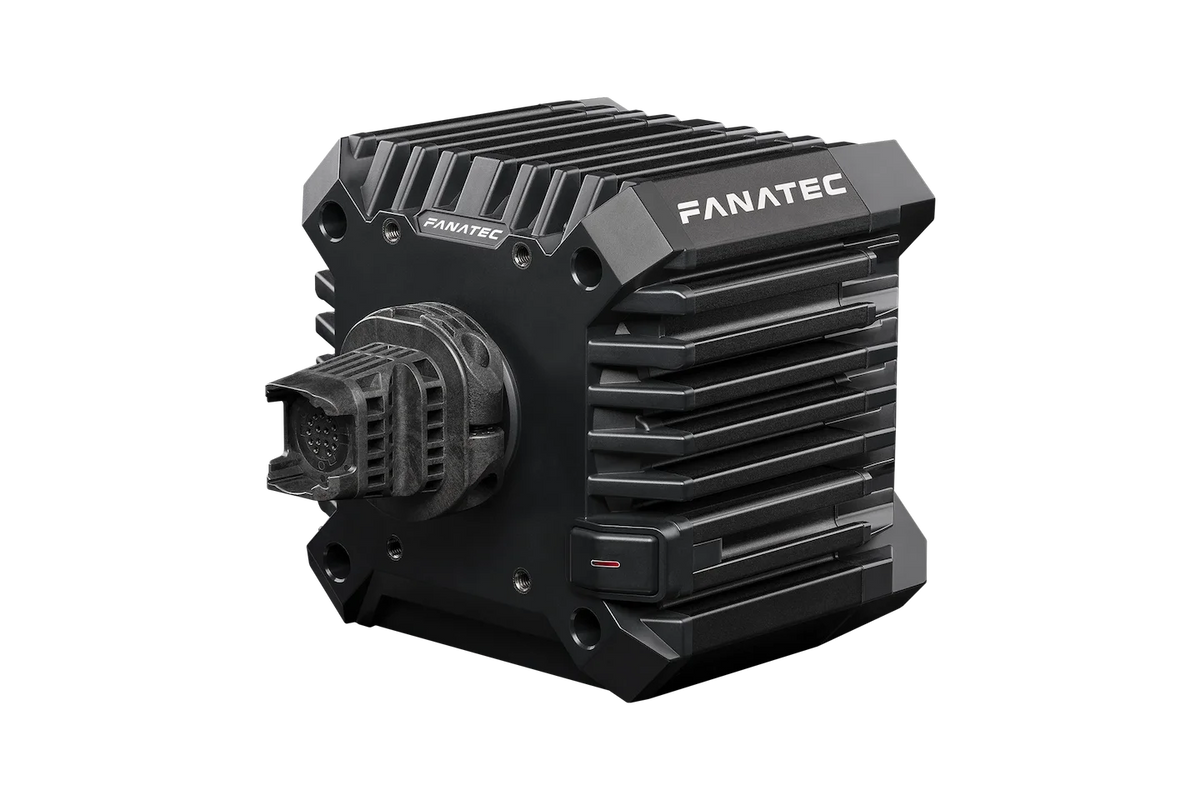

8 Nm Direct Drive Performance with QR2
Push the limits with the CSL DD QR2, a compact Direct Drive Wheel Base built for precise, detailed force feedback. This 8 Nm package includes the Boost Kit 180, unlocking the full performance of the direct drive motor while maintaining linear and consistent feedback.
Fanatec’s patented FluxBarrier technology improves motor efficiency and smoothness, while the carbon fibre-enhanced steering axis reduces rotational mass for greater responsiveness and acceleration. The aluminium housing provides passive cooling, allowing the wheel base to sustain its performance without active cooling.
The preinstalled QR2 Lite Base-Side brings Fanatec’s motorsport-derived quick release system to the CSL DD, providing a secure connection and fast steering wheel changes across compatible QR2 Wheel-Side systems.
Fanatec’s patented FluxBarrier technology improves motor efficiency and smoothness, while the carbon fibre-enhanced steering axis reduces rotational mass for greater responsiveness and acceleration. The aluminium housing provides passive cooling, allowing the wheel base to sustain its performance without active cooling.
The preinstalled QR2 Lite Base-Side brings Fanatec’s motorsport-derived quick release system to the CSL DD, providing a secure connection and fast steering wheel changes across compatible QR2 Wheel-Side systems.
8 Nm Direct Drive
The included Boost Kit 180 unlocks 8 Nm peak torque for stronger, more detailed force feedback.
FluxBarrier Technology
Fanatec's patented FluxBarrier technology improves motor efficiency and smoothness for clear and responsive force feedback.
Fanless Cooling
The aluminium housing acts as both the structural chassis and passive heatsink, allowing sustained performance without active cooling.
Motorsport-Derived QR2
The QR2 quick release uses a tapered coupling design derived from real-world motorsport for a tight and secure connection.
Standard & Advanced Tuning
Use the Standard Tuning Menu for quick setup or the Advanced Tuning Menu to fine-tune force feedback characteristics.
Carbon Fibre-Enhanced Steering Axis
The lightweight steering axis reduces rotational mass to improve responsiveness and acceleration.
DIRECT DRIVE SYSTEM

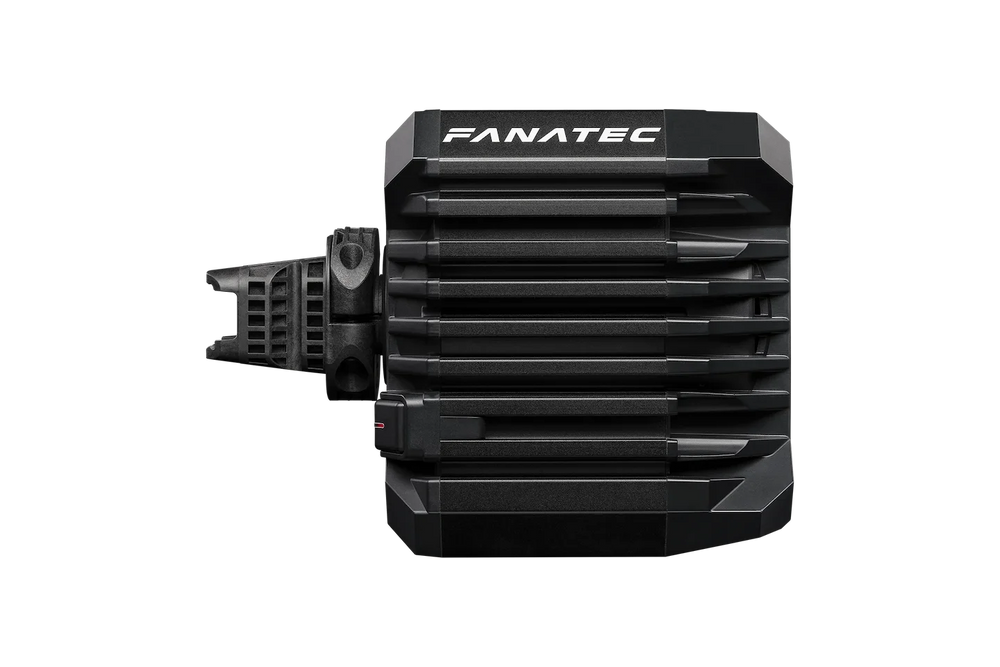

CSL DD QR2 8 Nm Specifications
| Product Type | Direct Drive Wheel Base |
|---|---|
| Peak Torque | 8 Nm |
| Power Supply | Boost Kit 180, included |
| Drive System | Direct Drive |
| Motor Technology | Patented FluxBarrier technology |
| Force Feedback | Linear and consistent Direct Drive force feedback |
| Position Sensor | High-resolution contactless Hall-position sensor |
| Steering Axis | Carbon fibre-enhanced composite |
| Cooling | Fanless passive cooling |
| Housing | Aluminium housing with composite end caps |
| Maximum Rotation | 2520 degrees, electronically limited and adjustable |
| Quick Release System | QR2 |
| QR2 Base-Side | QR2 Lite Base-Side Type-C, preinstalled |
| QR2 Construction | Carbon fibre-reinforced polyamide |
| Tuning Modes | Standard Tuning Menu and Advanced Tuning Menu |
| Slip Ring System | Cable-free delivery of power and data to steering wheels |
| Mounting | T-nut rail system on sides and bottom |
| Optional Table Clamp | Supports 5 to 60 mm table thickness |
| PC / Console Connection | USB-C |
| Additional Data Connection | Fanatec DataPort-C |
| Shifter Ports | Shifter 1 and Shifter 2 |
| Shifter 2 | Sequential only |
| Pedal Port | Yes |
| Handbrake Port | Yes |
In The Box
Ready for Full 8 Nm Performance
This CSL DD QR2 package includes the Boost Kit 180 power supply required to unlock the wheel base’s full 8 Nm peak torque.
1
CSL DD Wheel Base
2
QR2 Lite Base-Side Type-C, preinstalled
3
Boost Kit 180 Power Supply, regional
4
4x T-Nuts for Rail Mount System
5
USB Cable, Type-C to Type-A
6
Quick Guide
FANATEC ECOSYSTEM
Built for PC, Xbox-Compatible Setups, and Fanatec Hardware
The CSL DD QR2 works with a wide range of Fanatec steering wheels, pedals, shifters, handbrakes, cockpits, and mounting solutions. Xbox compatibility is enabled when paired with a Fanatec Xbox-licensed steering wheel. PlayStation consoles are not supported.
Xbox One® & Xbox Series X
S
PlayStation®
Not compatible with PlayStation consoles and cannot be upgraded to add PlayStation compatibility.
Fanatec Steering Wheels
Supports Fanatec steering wheels equipped with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side.
Fanatec Pedals
Compatible with all Fanatec pedals. Adapter cables may be required for pedals without an RJ12 connection.
ClubSport Shifter
Compatible with the ClubSport Shifter, including ClubSport Static Shifter Paddles.
ClubSport Handbrake
Compatible with all versions of the ClubSport Handbrake.
Fanatec Cockpits
Compatible with all Fanatec cockpits.
Table Mounting
Compatible with CSL DD Table Clamp, ClubSport DD Table Clamp, and ClubSport Table Clamp V2.
Podium Mounting Brackets
Compatible using the CSL DD's M6 T-nuts. M6 bolts and washers are required.
QR2 Wheel-Side Systems
The included QR2 Lite Base-Side Type-C supports QR2 Lite, QR2, and QR2 Pro Wheel-Side without restricting the 8 Nm output.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
CSL DD. NOW WITH QR2.
Push the limits using an exceptional Direct Drive Wheel Base in a compact design. Now including QR2, you'll enjoy even more precision and detailed force feedback.
FANATEC® DIRECT-DRIVE TECHNOLOGY.
When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.
PLUG AND PLAY.
Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.
MAXIMUM STRENGTH.
The CSL DD QR2 (8 Nm) package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.
EFFICIENT AND RESPONSIVE.
The efficiency of the CSL DD motor technology means dynamic force-feedback performance is contained in a small footprint. This is also the first industrial motor to feature a carbon fibre composite motor shaft, which increases responsiveness and acceleration significantly due to low rotational masses.
8 NM PEAK TORQUE.
Using the included Boost Kit 180, the CSL DD operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too. This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.
MOTORSPORT-DERIVED QUICK RELEASE SYSTEM.
The new QR2 quick release delivers rock-solid performance at the highest level. The shape of the coupling was developed for use in real-world motorsport, originally used in the 2022 BMW M4 GT3 race car.
EVERYTHING JUST CLICKS.
Steering Wheel attachment has never been easier. Simply bring the wheel towards the base and push to fit - no need to touch the quick release.
HOT-SWAP.
The carbon fibre-reinforced polyamide construction allows for fast and secure switching of steering wheels. Hot-swap between different wheel designs without needing to restart the sim or your Wheel Base.
