PlayStation®5
Officially licensed and compatible with PS5® consoles.
FANATEC GRAN TURISMO® DD PRO WHEEL BASE (8 NM)
$599.99
FANATEC GRAN TURISMO® DD PRO WHEEL BASE (8 NM)
$599.99
OFFICIAL GRAN TURISMO® DIRECT DRIVE

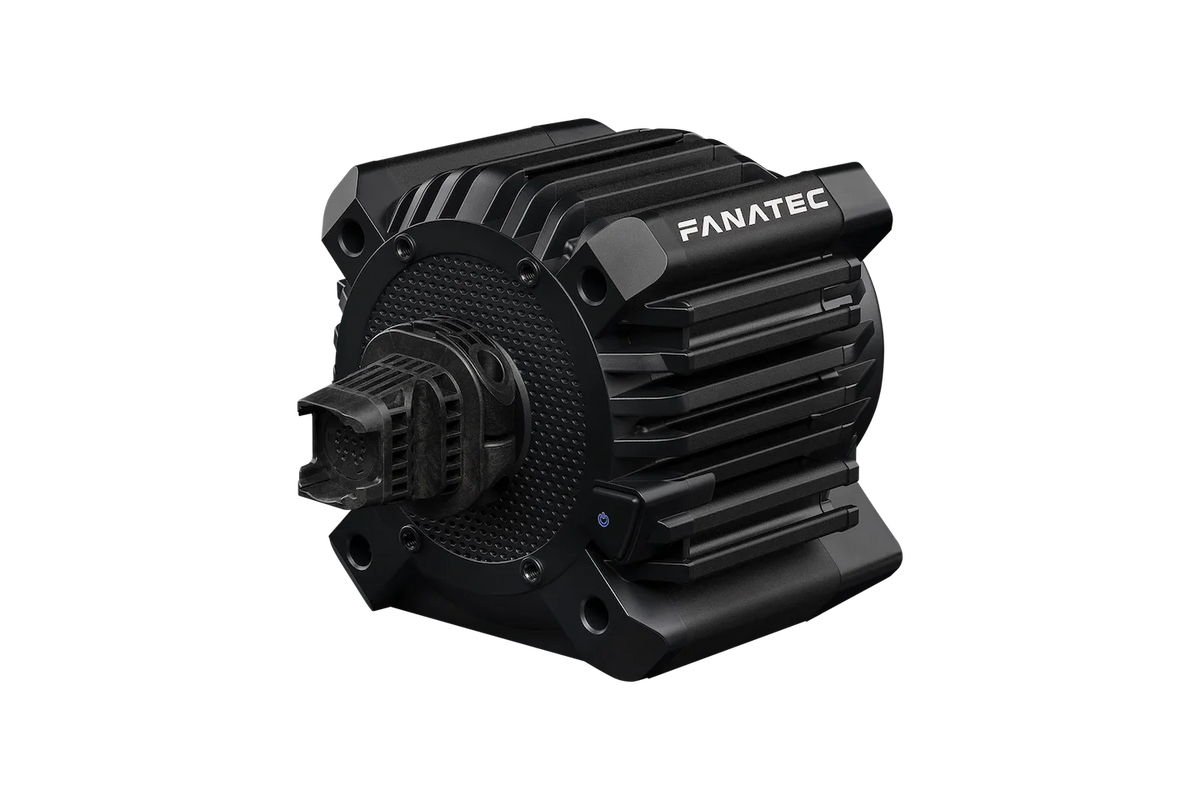

Feel Every Detail with 8 Nm Direct Drive Performance
The Gran Turismo® DD Pro is the official Direct Drive Wheel Base for Gran Turismo®, combining PlayStation®5 and PlayStation®4 compatibility with Fanatec Direct Drive technology for smooth, detailed, and responsive force feedback.
With the included Boost Kit 180, the wheel base delivers up to 8 Nm peak torque. Its custom motor was developed specifically for sim racing and uses Fanatec’s patented FluxBarrier technology to improve motor efficiency and smoothness. Because the steering wheel connects directly to the motor shaft, force feedback reaches your hands without a belt or gear drive between you and the motor.
The compact aluminum housing also functions as a passive heatsink, while the carbon fiber-enhanced steering axis keeps rotational mass low for responsive acceleration. The preinstalled QR2 Lite Base-Side provides the motorsport-derived QR2 connection system for compatible Fanatec steering wheels.
With the included Boost Kit 180, the wheel base delivers up to 8 Nm peak torque. Its custom motor was developed specifically for sim racing and uses Fanatec’s patented FluxBarrier technology to improve motor efficiency and smoothness. Because the steering wheel connects directly to the motor shaft, force feedback reaches your hands without a belt or gear drive between you and the motor.
The compact aluminum housing also functions as a passive heatsink, while the carbon fiber-enhanced steering axis keeps rotational mass low for responsive acceleration. The preinstalled QR2 Lite Base-Side provides the motorsport-derived QR2 connection system for compatible Fanatec steering wheels.
8 Nm Direct Drive
The included Boost Kit 180 unlocks the wheel base's maximum 8 Nm peak torque for stronger and more detailed force feedback.
Passive Cooling
The aluminium housing acts as both the structural chassis and passive heatsink, allowing sustained performance without active cooling.
FluxBarrier Technology
Fanatec's patented FluxBarrier technology improves motor efficiency and smoothness for clear force feedback response.
Advanced Tuning
Choose the Standard Tuning Menu for straightforward setup or use the Advanced Tuning Menu to fine-tune force feedback characteristics.
QR2 Quick Release
The preinstalled QR2 Lite Base-Side uses Fanatec's motorsport-derived quick release system for a tight connection to compatible steering wheels.
PlayStation® and PC Ready
Officially licensed for PS5® and PS4® consoles and compatible with PC on major racing games.
GRAN TURISMO® DD PRO

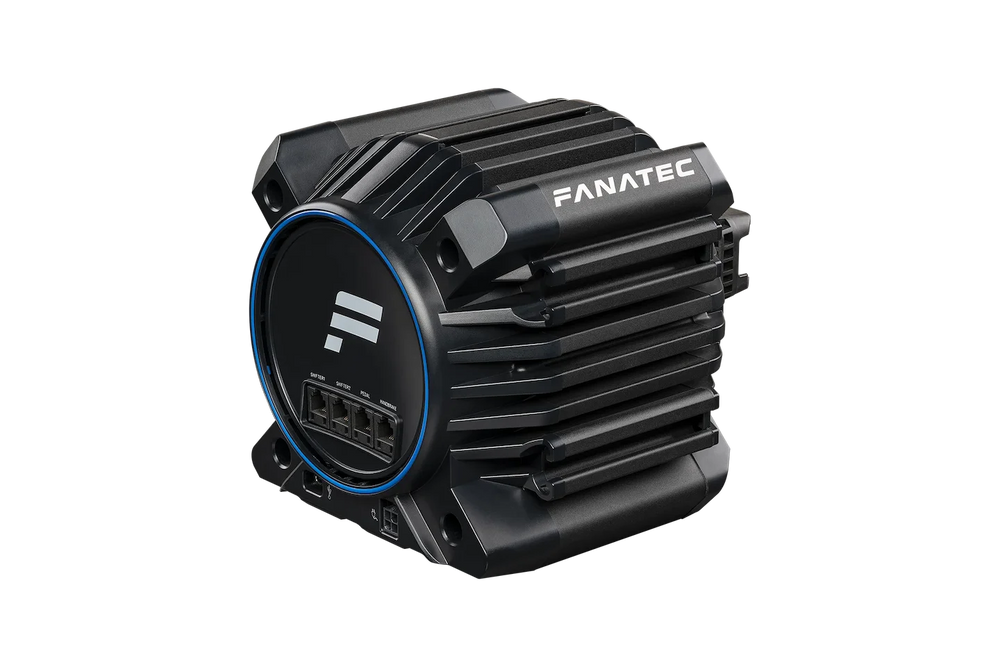

Direct Drive Wheel Base Specifications
| Product Type | Direct Drive Wheel Base |
|---|---|
| Official Licensing | Official Direct Drive Wheel Base for Gran Turismo® |
| Console Licensing | Officially licensed for PS5® and PS4® consoles |
| Peak Torque | 8 Nm with included Boost Kit 180 |
| Power Supply | Boost Kit 180, 180W |
| Drive System | Direct Drive |
| Motor | Custom motor developed in Germany specifically for sim racing |
| Motor Technology | Patented FluxBarrier technology |
| Force Feedback | Instant, detailed Direct Drive force feedback |
| Position Sensor | High-resolution contactless Hall-position sensor |
| Steering Axis | Carbon fiber-enhanced composite |
| Cooling | Fanless passive cooling |
| Housing | Aluminium housing with composite end caps |
| Maximum Rotation | 2520 degrees, electronically limited and adjustable |
| Quick Release System | QR2 |
| QR2 Base-Side | QR2 Lite Base-Side Type-C, preinstalled |
| QR2 Construction | Carbon fiber-reinforced polyamide |
| Tuning Modes | Standard Tuning Menu and Advanced Tuning Menu |
| Mounting | T-nut rail system on sides and bottom |
| Table Clamp Compatibility | Optional table clamp supports 5 to 60 mm table thickness |
| Connection | USB-C to console or PC |
| Peripheral Ports | Shifter 1, Shifter 2, Pedals, Handbrake |
| Shifter 2 Port | Sequential only |
| Slip Ring System | Cable-free power and data delivery between steering wheel and wheel base |
| Platforms | PS5®, PS4®, Windows PC |
In The Box
Ready for 8 Nm Direct Drive Performance
The Gran Turismo® DD Pro Wheel Base package includes the Boost Kit 180 and QR2 Lite Base-Side, giving you the hardware required to access its maximum 8 Nm performance.
1
Gran Turismo DD Pro Direct Drive Wheel Base
2
QR2 Lite Base-Side Type-C, preinstalled
3
Boost Kit 180 Power Supply, regional
4
4x T-nuts for rail mounting system
5
PlayStation® Button Caps
6
USB Cable, Type-C to Type-A
7
Quick Guide
FANATEC ECOSYSTEM
Built for PlayStation®, PC, and the Fanatec Ecosystem
The Gran Turismo® DD Pro integrates with Fanatec steering wheels, pedals, shifters, handbrakes, cockpits, and mounting accessories, with steering wheel compatibility depending on the installed quick release.
PlayStation®4
Officially licensed and compatible with PS4® consoles.
Windows PC
Compatible with PC on major racing games.
Fanatec Podium Steering Wheels
Supports Fanatec Podium steering wheels depending on the installed quick release.
Fanatec ClubSport Steering Wheels
Supports Fanatec ClubSport steering wheels depending on the installed quick release.
Fanatec CSL Steering Wheels
Supports Fanatec CSL steering wheels depending on the installed quick release.
Fanatec Pedals
Compatible with all Fanatec pedals. Adapter cables may be required for pedals without an RJ12 connection.
Fanatec Shifters
Compatible with all Fanatec shifters.
Fanatec Handbrakes
Compatible with all Fanatec handbrakes.
Fanatec Cockpits
Compatible with all Fanatec cockpits.
Table Mounting
Compatible with the CSL DD Table Clamp and ClubSport Table Clamp V2.
Podium Mounting Brackets
Compatible with Podium Mounting Brackets using the included M6 T-nuts. M6 bolts and washers are required.
Other Platforms
Compatibility with other platforms depends on the steering wheel being used.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
FEEL EVERYTHING
Introducing the official Direct Drive Wheel Base for Gran Turismo®. Combining PlayStation®5 console performance with FANATEC® Direct Drive technology for the smoothest and most dynamic force feedback sensations.
Precision force feedback. Now with QR2.
Built for serious sim racers, the Gran Turismo® DD Pro continues to set the standard for Direct Drive performance on PS5®, PS4®, and PC. Now preinstalled with the QR2 quick release system, it delivers a tighter connection to the wheel for even more detailed force feedback.
Once You Feel It, There's No Going Back.
When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Direct Drive is the clear choice of all professional drivers and enthusiast sim racers, and it’s now available to a broader audience.
MAXIMUM STRENGTH.
The Gran Turismo DD Pro Wheel Base package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.
8 NM PEAK TORQUE.
Using the included Boost Kit 180, the Gran Turismo DD Pro Wheel Base operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too.
SMALL SIZE. HUGE PERFORMANCE.
This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink..
TORQUE TO THE HANDS.
The 100% custom motor was developed in Germany specifically for sim racing. It delivers sensational performance thanks to patented FluxBarrier technology, communicating the nuances of force feedback detail to your hands with remarkable clarity.
ADVANCED FILTERS
Enjoy balanced force feedback with the Standard Tuning Menu without worrying about settings. The Advanced Tuning Menu unlocks all the filters, so you can fine-tune the strength, smoothness, and mechanical feel of the force feedback, even while driving.
EFFICIENT AND RESPONSIVE
Our patented FluxBarrier technology means incredible force-feedback performance is contained in a small footprint. Low rotational mass of the internal components, including a carbon fibre-reinforced steering axis, results in optimal responsiveness and acceleration.
