Front Mount - Included
MiGe 130ST; Simucube SC2 Sport; Simucube SC2 Pro; Simucube SC2 Ultimate; VRS Force Pro.
DYN X Professional Racing Simulator Cockpit
$2,799.00
DYN X Professional Racing Simulator Cockpit
$2,799.00
Cooler Master DYN X

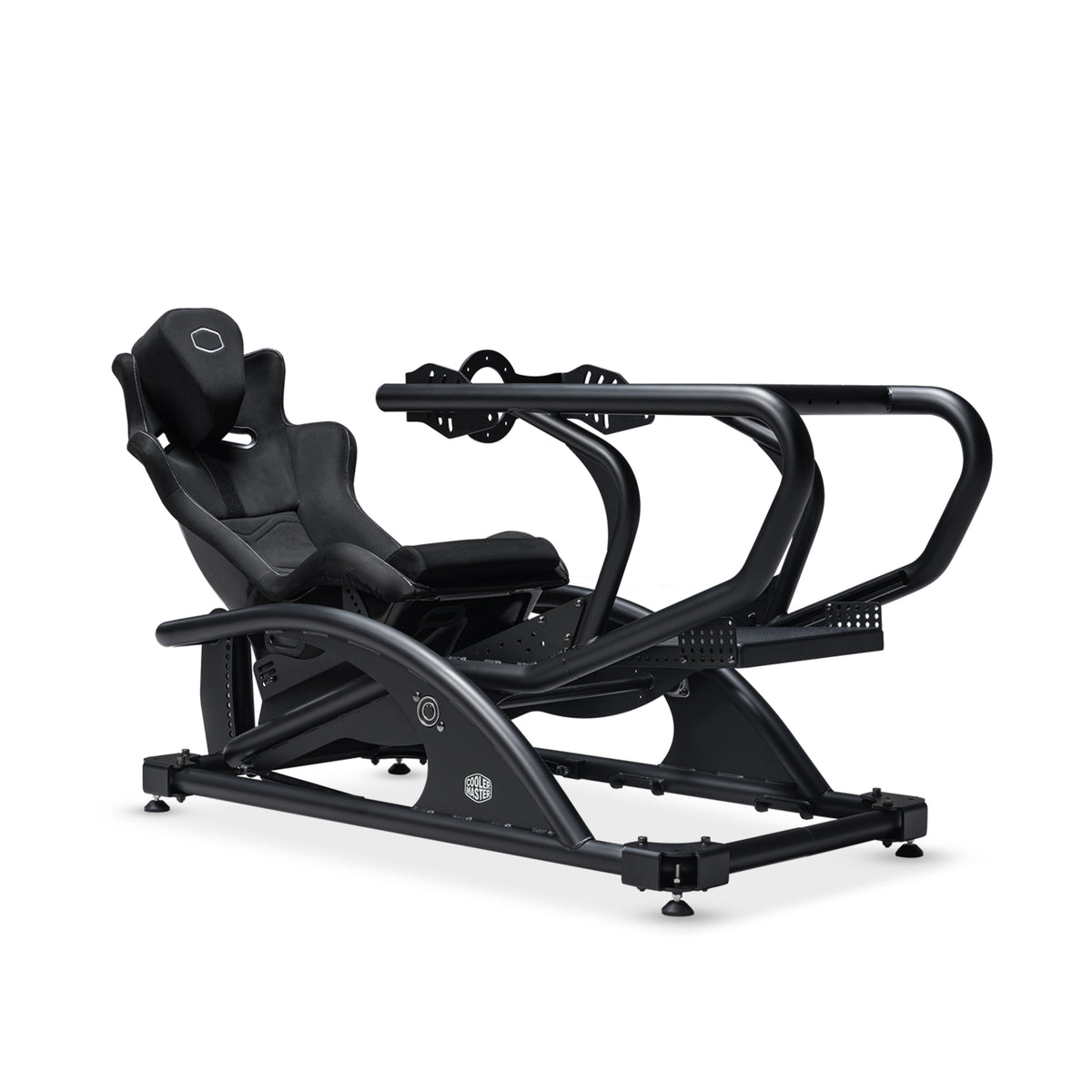

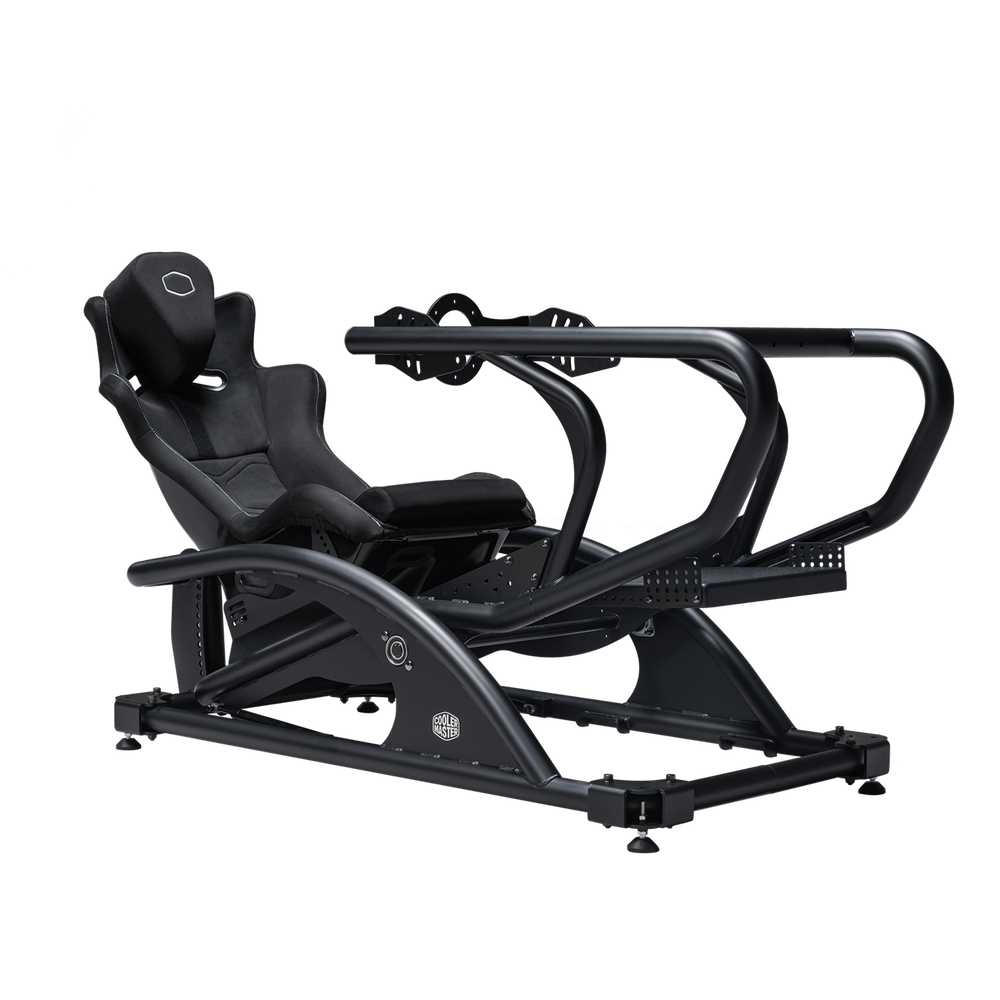

DYN X Professional Racing Simulator Cockpit
Embrace a new dimension of sim racing with the Cooler Master DYN X, a professional racing simulator cockpit designed for enthusiasts seeking a highly adjustable simulation environment.
A single adjustment system provides 14 different driving positions, allowing the cockpit to adapt to Formula, GT, Rally, NASCAR, Trophy Truck, Semi Truck, and other driving configurations.
The DYN X uses a steel frame built from JIS STKM 13A tubing and provides extensive adjustment across the steering wheel, pedal tray, seat, and frame. The cockpit is also ready for a motion actuator system and includes a Buttkicker mount.
The included Front Mount provides steering-wheel mounting and adjustment, while an optional Tray Mount expands compatibility with additional wheelbase systems. The cockpit can also be configured with the DYN X Racing Seat, which uses a fiberglass reinforced plastic shell.
A single adjustment system provides 14 different driving positions, allowing the cockpit to adapt to Formula, GT, Rally, NASCAR, Trophy Truck, Semi Truck, and other driving configurations.
The DYN X uses a steel frame built from JIS STKM 13A tubing and provides extensive adjustment across the steering wheel, pedal tray, seat, and frame. The cockpit is also ready for a motion actuator system and includes a Buttkicker mount.
The included Front Mount provides steering-wheel mounting and adjustment, while an optional Tray Mount expands compatibility with additional wheelbase systems. The cockpit can also be configured with the DYN X Racing Seat, which uses a fiberglass reinforced plastic shell.
14 Driving Positions
One adjustment system provides 14 driving positions to accommodate different simulation configurations.
Motion Actuator Ready
The DYN X is specified as ready for a motion actuator system.
Steel Frame Construction
Frame tubing is made from JIS STKM 13A steel with a 50.8 mm diameter and 2 mm wall thickness.
Included Front Mount
The DYN X includes a Front Mount with six mounting positions and steering-wheel angle and height adjustment.
Adjustable Pedal Tray
The aluminum pedal tray provides 400 mm forward and backward travel, ±45° tilt, and ±100 mm lift adjustment.
Adjustable Seat Position
Seat adjustment includes 150 mm forward and backward travel, 3° to 27° tilt, and 30 mm lift.
Adjustable Frame Geometry
The frame provides 14 tilt positions with a 3° to 22° frame tilt range and 6° to 49° combined frame and seat tilt.
Rigid Racing Structure
The DYN X is built around a rigid structure designed to maintain ergonomics during prolonged racing sessions.
Product Details
Technical Specifications
| Assembled Dimensions - Upmost Position | 1707 × 756 × 1044 mm (L × W × H) |
|---|---|
| Assembled Dimensions - Downmost Position | 1591 × 756 × 998 mm (L × W × H) |
| Motion Actuator System Ready | Yes |
| Buttkicker Mount | Yes |
| Included Steering Wheel Mount | Front Mount |
| Number of Driving Positions | 14 |
| Frame Tubing Material | Steel (JIS STKM 13A) |
| Frame Tubing Diameter | 50.8 mm |
| Frame Tubing Wall Thickness | 2 mm |
| Gusset Thickness | 5 mm |
| Steering Wheel Mount Material | Steel |
| Steering Wheel Mount Material Thickness | 6 mm |
| Pedal Tray Material | Aluminum (5052) |
| Pedal Tray Material Thickness | 5 mm |
| Seat Mount Material | Steel |
| Seat Mount Material Thickness | 3 mm |
| Steering Wheel Slide | 300 mm forward / back |
| Front & Side Mount Positions | 6, consisting of 3 regular + 3 with mount inverted |
| Front & Side Mount Angle Adjustment | Position 1: 50°; Position 2: 47°; Position 3: 44°; Total: 80° regular + inverted |
| Front & Side Mount Height Adjustment | 81 mm across 6 positions |
| Tray Mount Positions | 4, consisting of 2 regular + 2 with mount inverted |
| Tray Mount Angle Adjustment | Position 1: 26°; Position 2: 24°; Total: 60° regular + inverted |
| Tray Mount Height Adjustment | 140 mm across 4 positions |
| Pedal Tray Slide | 400 mm forward / back |
| Pedal Tray Tilt | ±45° |
| Pedal Tray Lift | ±100 mm |
| Seat Slide | 150 mm forward / backward |
| Seat Tilt | 3° to 27° |
| Seat Lift | 30 mm |
| Number of Frame Tilt Positions | 14 |
| Frame Tilt | 3° to 22° |
| Combined Frame / Seat Tilt | 6° to 49° |
| Racing Seat | DYN X Racing Seat |
| Seat Shell Material | Fiberglass Reinforced Plastic (FRP) |
Wheel & Pedal Support
Compatible Racing Hardware
The DYN X supports multiple steering-wheel and pedal systems. Wheel compatibility depends on the steering mount used. The Front Mount is included with the DYN X, while the Tray Mount is a separate accessory.
Tray Mount - Separate Accessory
Fanatec Clubsport; Fanatec Clubsport V2; Fanatec Clubsport V2.5; Fanatec CSL DD; Fanatec CSL Elite; Fanatec GT DD Pro; Fanatec Podium DD1; Fanatec Podium DD2; Logitech G PRO; Logitech G25; Logitech G27; Logitech G29; Logitech G920; Logitech G923; MOZA R9; MOZA R16; MOZA R21; SIMAGIC Alpha; SIMAGIC Alpha Mini; SIMAGIC Alpha U; Simucube SC2 Pro using Simucube mount; Simucube SC2 Sport using Simucube mount; Simucube SC2 Ultimate using Simucube mount; Thrustmaster 248; Thrustmaster T-GT; Thrustmaster T-GT II; Thrustmaster T150; Thrustmaster T150 Pro; Thrustmaster T300; Thrustmaster T500; Thrustmaster T80; Thrustmaster TMX; Thrustmaster TMX Pro; Thrustmaster TS-PC; Thrustmaster TS-XW; Thrustmaster TX.
Pedal Compatibility
DC Sim Racing DC2; DC Sim Racing DC3; Fanatec ClubSport V1; Fanatec ClubSport V2; Fanatec ClubSport V3; Fanatec ClubSport V3 Inverted; Fanatec CSL Elite Pedals; Heusinkveld Pro; Heusinkveld Sprint; Heusinkveld Ultimate; Heusinkveld Ultimate+; HPP JBV 2/3; ImSim Talento; Logitech G Pro; Logitech G25; Logitech G27; Logitech G29; Logitech G920; Logitech G923; Meca Cup1; Meca EVO1 Hydraulic; Meca EVO1 LC; MOZA CRP; Ricmotech GTpro3; Simagic P1000; Simagic P2000; Simworx Pro V3.1; SRP Formula; SRP Formula-R; SRP GT; SRP GT-R; Thrustmaster 2; Thrustmaster T-LCM; Thrustmaster T150; Thrustmaster T300; Thrustmaster T3PA; Thrustmaster T3PA PRO add-on; Thrustmaster T3PGT; Thrustmaster T500; Venym Atrax; Wave Italy Wave Force; Wave Italy Wave Impetus.
PROFESSIONAL RACING EXPERIENCE
Professional drivers have put our accurate driving positions to the test, providing you with an unmatched, high-end racing simulation that delivers an intensely lifelike experience.
UNRIVALED FLEXIBILITY
One single adjustment offers 14 diverse driving positions: Formula, GT, Rally, NASCAR, Trophy Truck, Semi Truck, and more.
The Dyn X adapts to your personal simulation needs.
LONG-LASTING COMFORT
Built with a rigid structure that doesn't compromise ergonomics, the Dyn X keeps you focused and comfortable, even during prolonged racing sessions.
Racing DNA
The modern, race-inspired aesthetics encapsulate the Cooler Master tech lifestyle, adding a professional look to your space.
