R12 Wheel Base (V2)
Moza Racing R12 Wheel Base (V2)
Moza Racing R12 Wheel Base (V2)

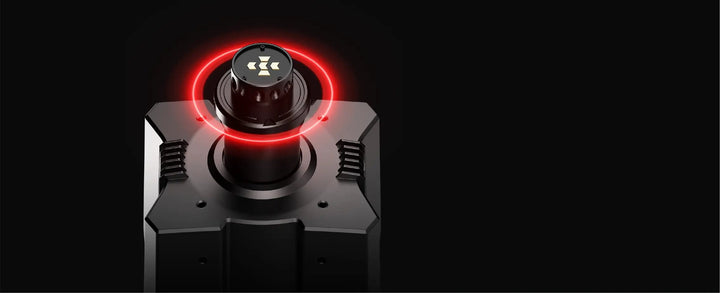

The MOZA R12 V2 is a 12Nm direct drive wheel base for professional sim racing. Featuring a high-torque servo motor, low-cogging skewed-pole design, and the NexGen 4.0 force feedback algorithm, it delivers smooth, precise, and immersive driving. Built from aerospace-grade aluminum alloy with active cooling and full software integration, the R12 V2 offers top-tier performance and reliability for competitive racers.
- MOZA R12 DD Wheel Base * 1
- Power Adapter
- Data Cable
- Tool Kit
- User Manual
- Warranty Card
- MOZA Stickers
Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Housing Material: Aviation Grade Aluminum Alloy
Housing Color: Black
Peak Torque: 12 N·m
Peak Power: 216W
Input voltage: 110V~220V AC —>36V DC
USB Refresh Rate: 1000Hz
App Functions: Supported
Quick Release: Supported
Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-Stop
Accessories: User manual, power adapter, cable, tool kit
Fixing Method: 4-hole bottom mount.
Desk Clamp: Optional
E-stop: Optional
Online Firmware Update: Supported
Weight: 7.5 kg
Dimensions(mm): 225.87 x 156.68 x 123.99
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
12Nm DD Power

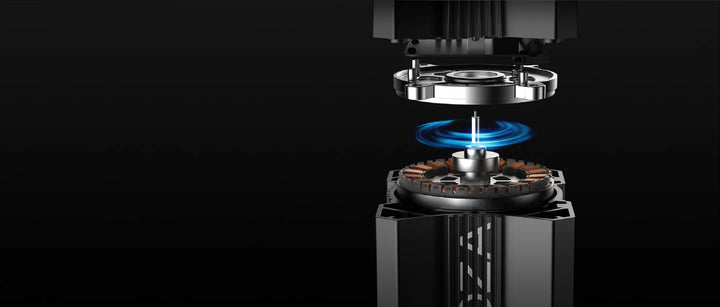

21-bit Magnetic Encoder

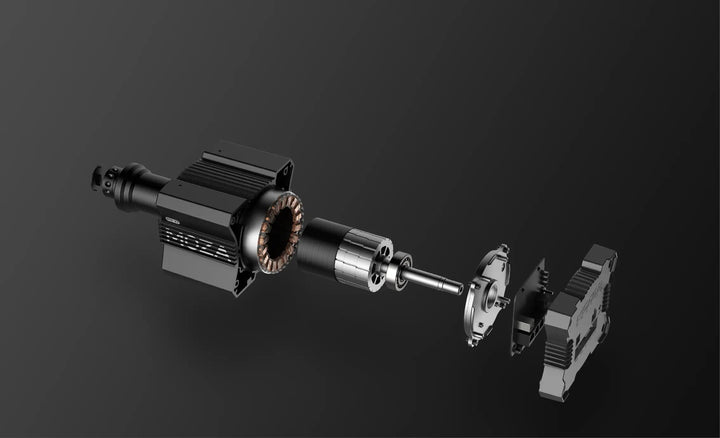

High-Performance Slanted Pole Servo Motor
Carbon Fiber Wrapped Rotor

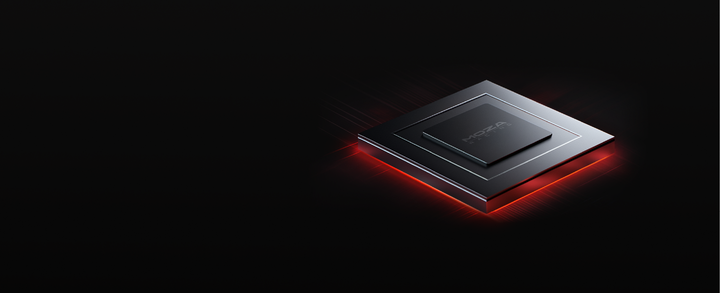

21-Bit Magnetic Encoder With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps. Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response. Reproduces exceptionally detailed force feedback.
NexGen 4.0 Force Feedback Algorithm
Intelligent Temperature Control System
Aviation-grade Aluminum
Cloud-based Mobile App Control
12Nm DD Power
The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

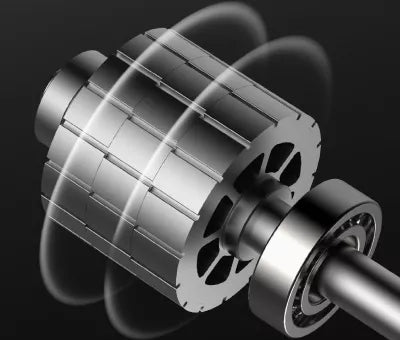

Innovative Segmented Rotor Design
Asymmetric segmented skew design. Significantly reduces cogging torque & EM vibration. Near-silent operation at all speeds.

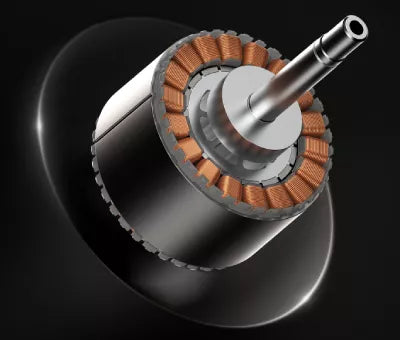

High Torque Density
Optimized slot-fill copper windings.
High-permeability silicon steel core.
NdFeB permanent magnets for maximum output.

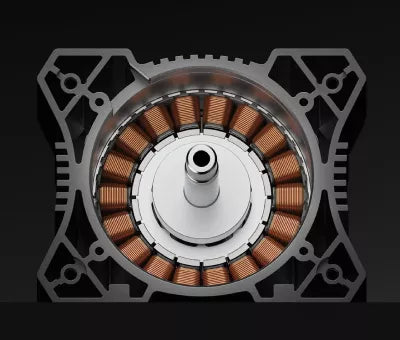

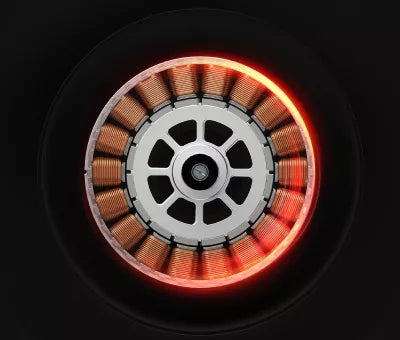

18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response.
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off.

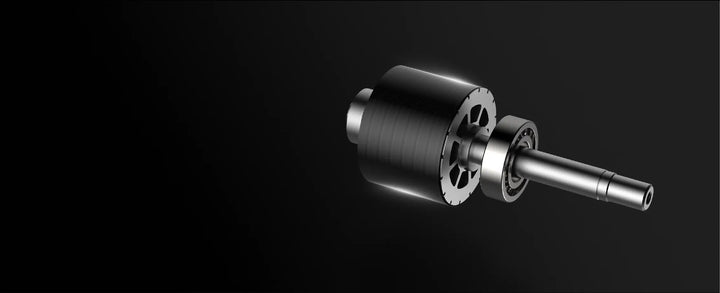

Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses. Superior thermal management for sustained performance.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses. Superior thermal management for sustained performance.
iRacing 360HZ Mode
Deliver richer and more responsive force feedback. Heightens immersion and driving precision. Available via MOZA Pit House after the May iRacing Update.

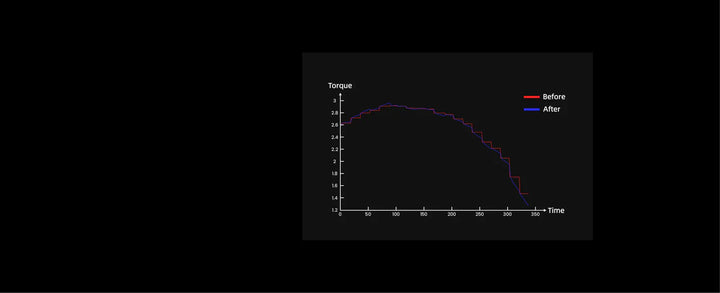

FFB Interpolation Algorithm
Smooths out abrupt torque spikes and dips. Ensures a more natural progressive force curve under all conditions.

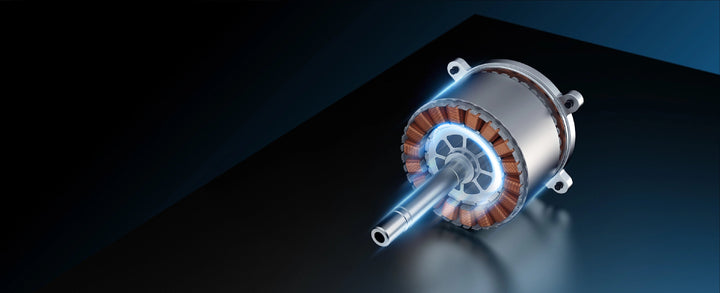

Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

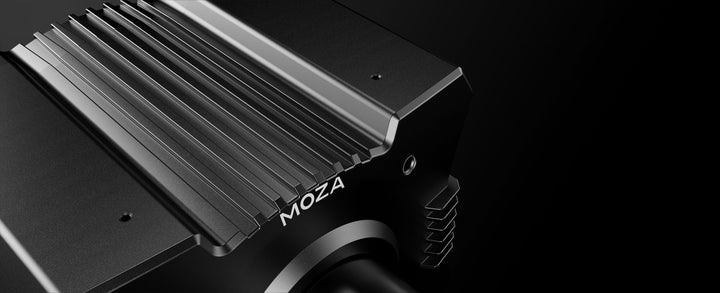

Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.
Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.

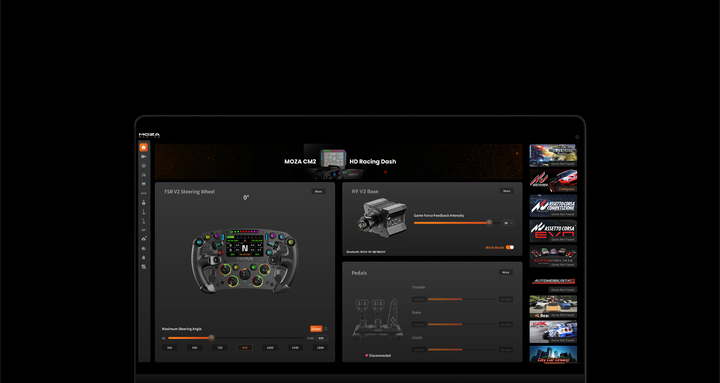

Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
Unified Ecosystem Tuning
From wheelbase to pedals and everything in between, Pit House offers a unified interface for configuring your entire rig. With just one click, you can launch your favorite game with optimized device presets, saving time and eliminating setup hassles.
Effortless for Beginners, Powerful for Pros
New to sim racing? MOZA Pit House makes it easy with preloaded, game specific profiles for popular titles. You will also find official MOZA recommended setups and pro driver configurations, allowing you to get race-ready instantly no technical knowledge required. For experienced drivers, the software provides deep customization capabilities to push performance boundaries.

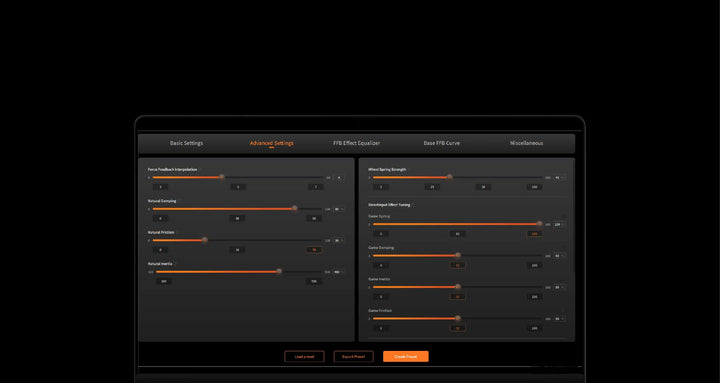

Deep Force Feedback Customization
Pit House offers a robust 19-point force feedback tuning system. You can adjust parameters such as mechanical friction, road sensitivity, and dynamic damping to match your preferred driving feel. These advanced controls enable intuitive experimentation, allowing you to learn how different settings impact car behavior on the track.

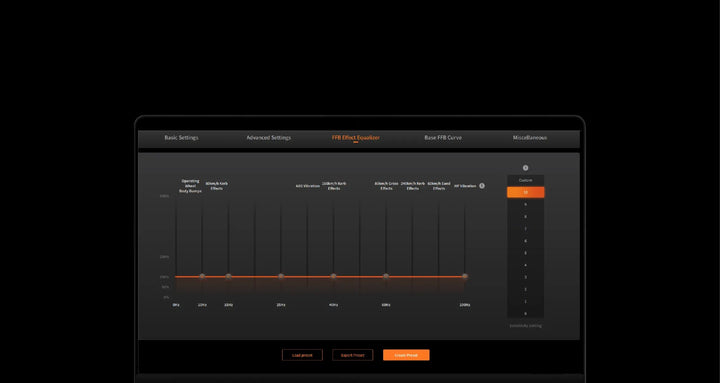

Smart Road Feel Equalizer
With the smart road feel equalizer, the software intelligently filters out our distracting high-frequency vibrations while preserving critical traction cues. This makes it easier to sense understeer, oversteer, and surface changes.

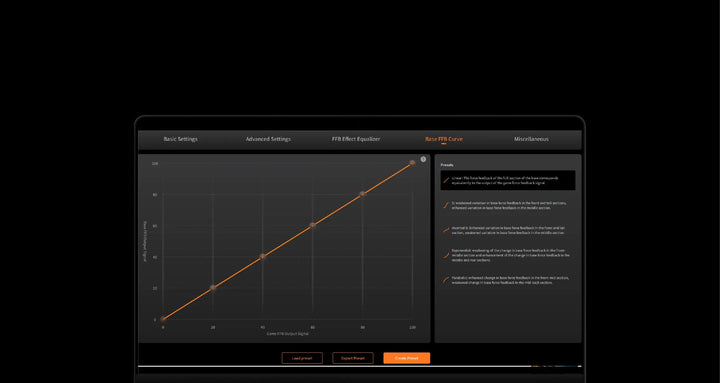

Dynamic FFB Curves
Paired with Dynamic FFB Curve Adjustment, you can shape the force response to be linear or nonlinear, amplifying key feedback zones and expanding the catchable slip angle for enhanced control during limit driving.

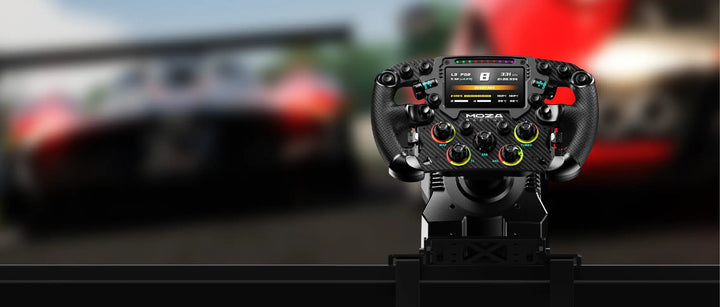

Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.
Hand-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel. The NextGen3.0 also introduces Hand-off Protection Mode 2, providing protection without disrupting drifting. Additionally, it enhances force feedback response speed and overall driving sensations.
Assetto Corsa
Assetto Corsa Competizione
Forza Horizon 4 (This game is currently not compatible with Steam)
Forza Horizon 5 (Win 10)
Euro Truck Simulator 2
American Truck Simulator
RaceRoom Racing Experience
Automobilista 2
F1 2018
F1 2019
F1 2020
F1 2021
F1 22
F1 23
rFactor 2
iRacing
WRC G
WRC 9
WRC 10
Dirt Rally
Dirt Rally 2.0
Dirt 4
Wreakfest
KartKarft
Car X Drift Racing Online
MudRunner
BeamNG.Drive
Project CARS 1
Project CARS 2
Project CARS 3
Richard Burns Rally
Life For Speed
Drive Type: Direct Drive
Max Wheel Rotation: 90 – 2700°
Housing Material: Aluminum
Housing Color: Black
Peak Torque: 12 Nm
Peak Power: 216W
Input Voltage: 110V~220V AC —> 36V DC
Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
USB Refresh Rate: 1000Hz
App Functions: Supported
Quick Release: Supported
Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Box Contents: R12 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Fixing Method: 4-hole bottom mount
Desk Clamp: Optional
E-stop: Optional
Online Firmware Update: Supported
Dimensions (mm): 225.87 x 156.68 x 123.99
