Fanatec CSL Wheel Bases
Compatible with all CSL Elite Wheel Bases, CSL DD, and Gran Turismo DD Pro.
FANATEC PORSCHE VISION GT
$349.99
FANATEC PORSCHE VISION GT
$349.99
COMPACT PERFORMANCE COCKPIT
Remarkably Compact. Engineered for Strength and Consistency.
The CSL Cockpit combines a compact footprint with a strong aluminum and steel construction engineered to minimize flex and provide consistent control. Its lightweight trapeze chassis uses angled uprights to distribute loads effectively, supporting Fanatec Direct Drive systems and the forces generated by load cell brake pedals.
Designed around a classic GT driving position, the cockpit offers extensive adjustment for the wheel base, pedals, and seating position. The base mounting brackets can also be inverted to create a lower, more tilted karting-style steering position. Support for Fanatec hardware, many third-party wheel bases, standard racing seats, and optional cockpit accessories makes the CSL Cockpit a flexible foundation for a complete sim racing setup.
Designed around a classic GT driving position, the cockpit offers extensive adjustment for the wheel base, pedals, and seating position. The base mounting brackets can also be inverted to create a lower, more tilted karting-style steering position. Support for Fanatec hardware, many third-party wheel bases, standard racing seats, and optional cockpit accessories makes the CSL Cockpit a flexible foundation for a complete sim racing setup.
Strong Trapeze Chassis
Aluminum tubing, steel brackets, and angled uprights create a lightweight structure optimized for stiffness and strength.
Direct Drive Ready
Designed to handle Fanatec Direct Drive systems with dedicated side mounting and an adjustable base mounting system.
Adjustable Wheel Position
Three height positions, a stepless 0° to 30° angle range, and 80 mm of distance adjustment help tailor the wheel position to the driver.
Strong Pedal Mounting
The pedal mounting assembly is designed for consistent control under the high forces generated by load cell brakes.
GT or Karting Position
Use the classic GT driving position or invert the base mounting brackets for a lower and more tilted karting-style wheel position.
Broad Hardware Support
Supports Fanatec hardware, many third-party wheel bases, standard racing seats, and optional cockpit accessories.
Integrated Cable Management
Hollow frame tubing and included open tube caps provide routing options for cleaner cable management.
Floor Protection
Includes both rubber and felt foot pads for use on hard flooring or carpet.
COCKPIT DETAILS
CSL Cockpit Specifications
| Chassis Design | Lightweight trapeze chassis |
|---|---|
| Frame Construction | Aluminum tubing with steel brackets |
| Finish | Black and yellow powder coating |
| Wheel Base Mounting | Side mounting for Fanatec Direct Drive bases plus adjustable base plate |
| Base Mount Height Adjustment | 3 positions |
| Base Mount Angle Adjustment | Stepless from 0° to 30° |
| Base Mount Distance Adjustment | 80 mm range |
| Alternative Driving Position | Base mounting brackets can be inverted for a karting-style position |
| Pedal Adjustment | Angle and distance adjustable |
| Pedal Mounting | Designed for high forces from load cell brakes |
| Seat Compatibility | Supports most standard racing seats |
| Cable Management | Hollow tubing with included cable-management tube caps |
| Floor Protection | Rubber pads for hard floors and felt pads for carpet |
| Packaging | Compact packaging |
In The Box
Everything Included With Your CSL Cockpit
The CSL Cockpit includes the chassis hardware, protective floor pads, cable-management caps, assembly tools, and quick-start documentation needed to build the cockpit.
1
CSL Cockpit
2
4x Open tube caps for cable management
3
2x Closed tube caps
4
6x Hard floor foot pads
5
6x Carpet foot pads
6
Bolts and fasteners
7
Tools
8
1x Quick Guide
HARDWARE COMPATIBILITY
Build Your CSL Cockpit Around Your Racing Setup
The CSL Cockpit supports a wide range of Fanatec wheel bases and pedals, along with compatible shifters, handbrakes, displays, standard racing seats, and many third-party wheel bases.
Fanatec ClubSport Wheel Bases
Compatible with ClubSport Wheel Base V1, V2, V2.5, ClubSport DD, and ClubSport DD+.
Fanatec Podium Wheel Bases
Compatible with Podium DD1, DD2, and DD1 PS4.
Fanatec Pedals
Compatible with CSL Pedals, CSL Elite Pedals, CSL Elite Pedals V2, and all versions of ClubSport Pedals.
Third-Party Wheel Bases
The adjustable base plate is pre-drilled for bottom mounting many third-party wheel bases and also supports legacy Fanatec belt-drive bases.
Shifters & Handbrakes
Supports all ClubSport Shifters with the CSL Cockpit Shifter Mount, sold separately. ClubSport Handbrakes can be mounted to the side of a ClubSport Shifter.
Racing Seats
Supports most standard racing seats. The CSL Cockpit Seat and Seat Sliders are available separately.
Displays
Supports most VESA 100x100 or 75x75 widescreen displays up to 34 inches, or ultrawide displays up to 49 inches, when used with the CSL Cockpit Monitor Mount sold separately.
Cockpit Accessories
Optional accessories include the Seat, Seat Sliders, Monitor Holder, freestanding Monitor Stand, Shifter Holder, Keyboard Holder, and Shelf.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
YOU DREAM IT. YOU DRIVE IT.

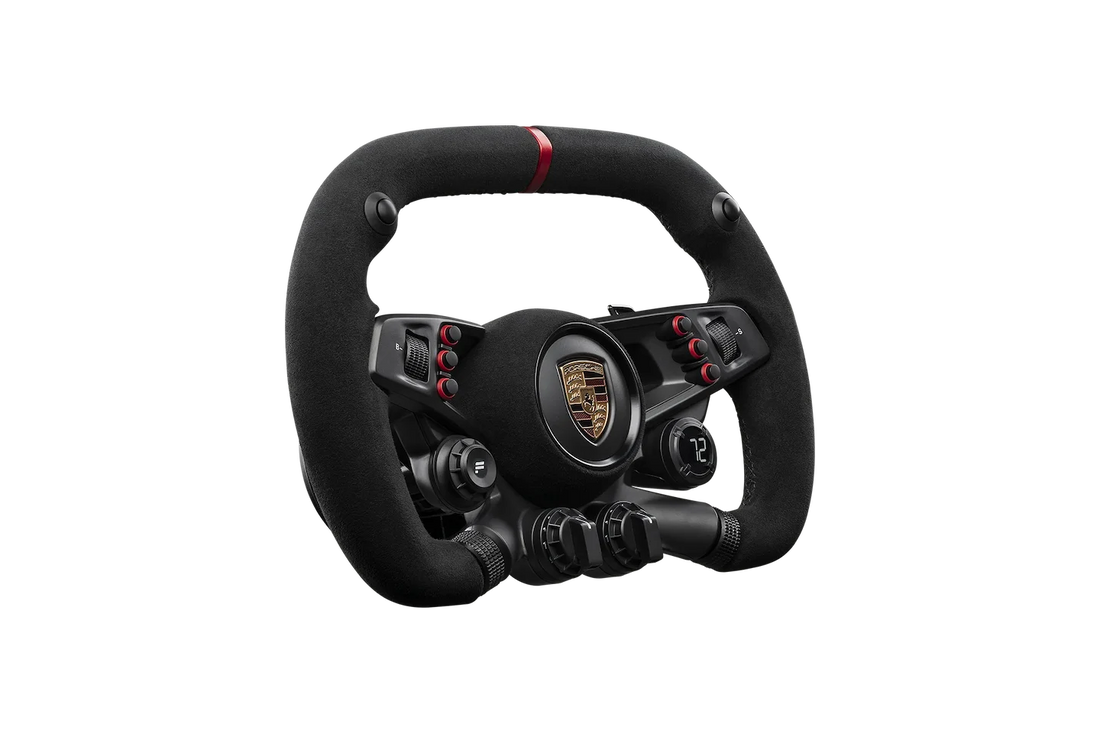

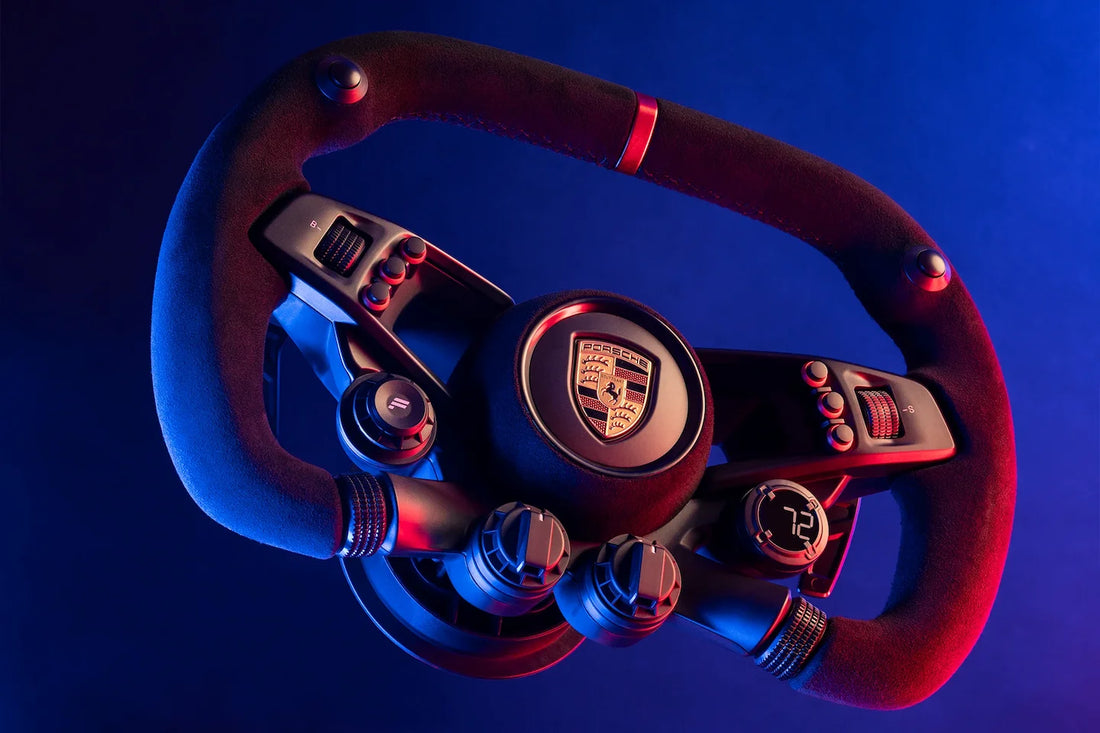

The officially licensed Porsche Vision Gran Turismo concept car wheel. Hold the futuristic design of Porsche in your hands.
DESIGNED FOR VIRTUAL WORLDS
Porsche Vision Gran Turismo was the first Porsche concept car study designed exclusively for a game. Freed from the constraints of production regulations, the designers pushed the boundaries of creativity. The wheel takes familiar cues from modern Porsche design and adds more dynamic proportions.
IDEAL FOR GRAN TURISMO® 7.
The ultimate wheel for Porsche and Gran Turismo® enthusiasts. The wheel’s inputs are a great match for Gran Turismo® 7, with encoders assigned to the rapid-access adjustments for traction control, brake balance, and fuel mapping.
A UNIQUE COMBINATION OF FORM AND FUNCTION

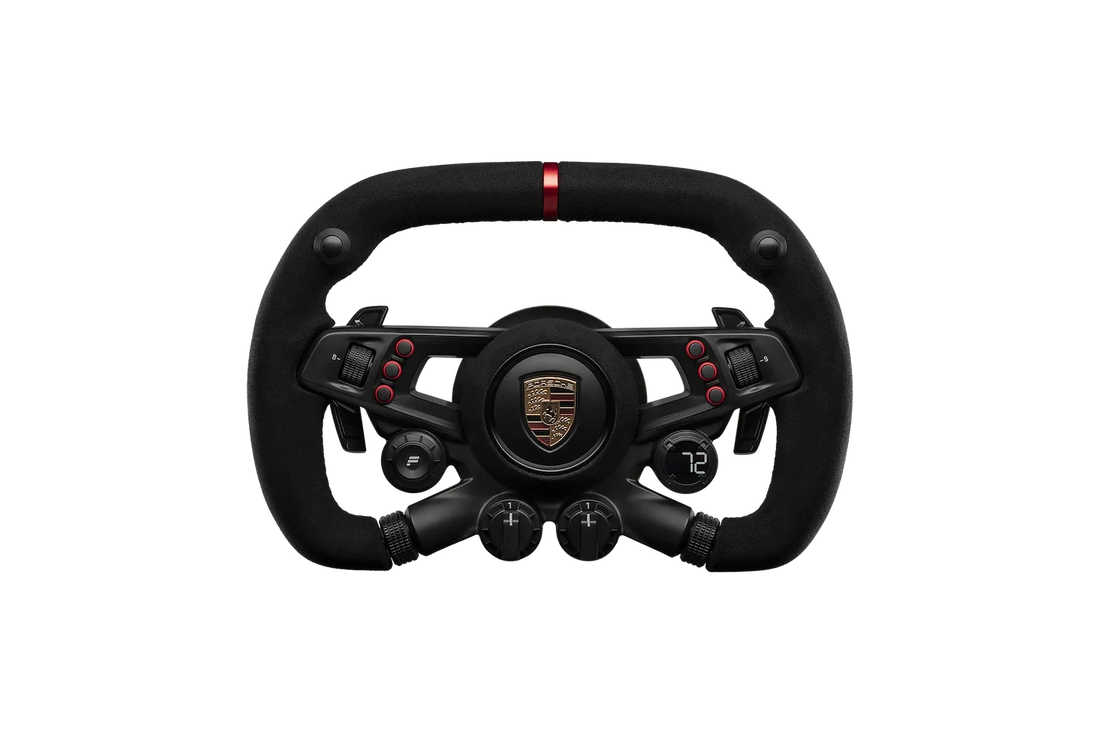

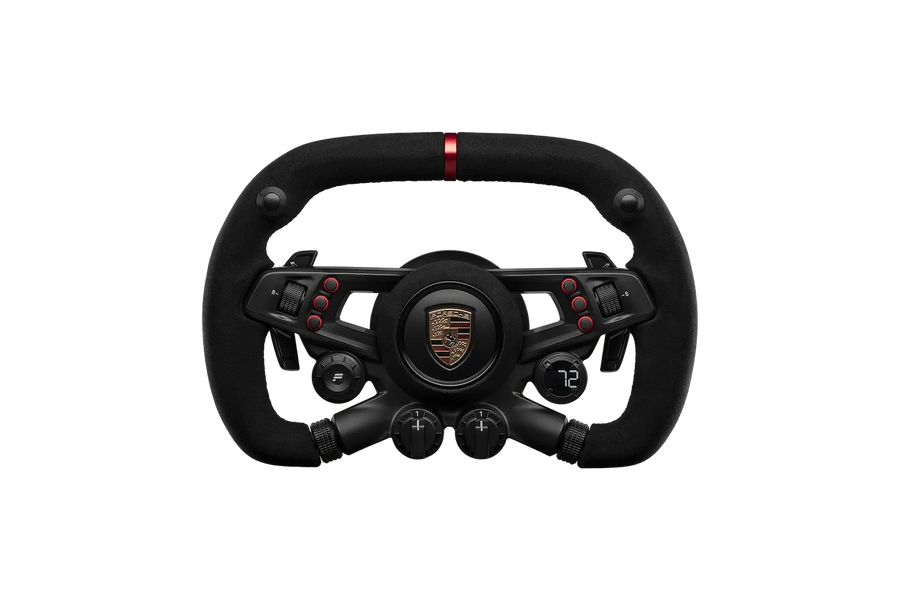

The wheel has been carefully optimized for sim racing, with its comfortable 310 mm diameter, practical button layout, and tactile paddles and rotaries.
CAST ALUMINUM FRAME
The structure of the wheel is diecast aluminum, ensuring lightness and strength, retaining the stunning spoke cutouts of the original concept design. Our new Tactaris synthetic suede material is durable, comfortable, and easy to clean.
INTUITIVE ERGONOMIC LAYOUT
Eight buttons and two encoders are within easy reach of your thumbs without having to take a hand off the wheel. In total there are seven rotary encoders, including two Multi-Position Switches and the 7-way FunkySwitch.

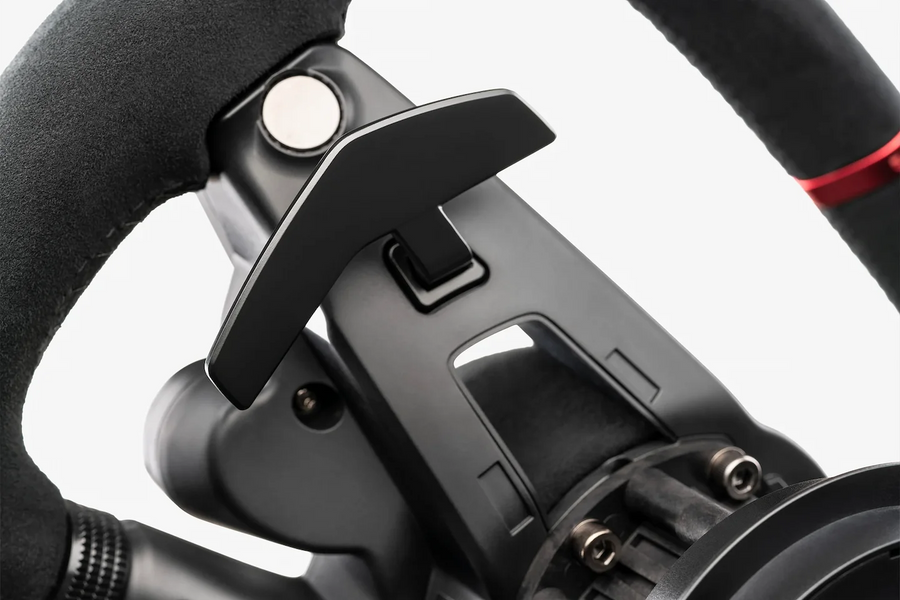

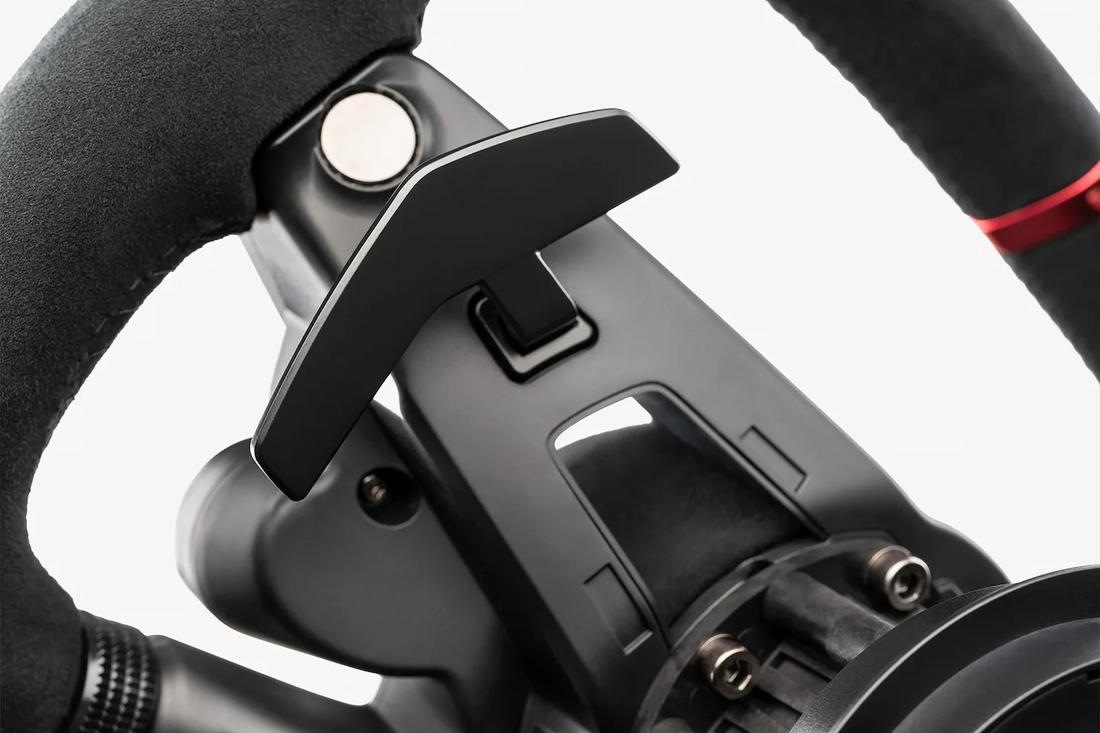

MAGENETIC SHIFTERS
The fully integrated, custom-designed magnetic shifter mechanism and aluminum paddles give this wheel a distinctive tactile sensation when grabbing the next gear.
OLED TUNING MENU ACCESS
Press the Porsche crest to open the Tuning Menu on the OLED display, allowing you to adjust force feedback and other Fanatec hardware settings while you drive.
FANATEC PORSCHE VISION GT
