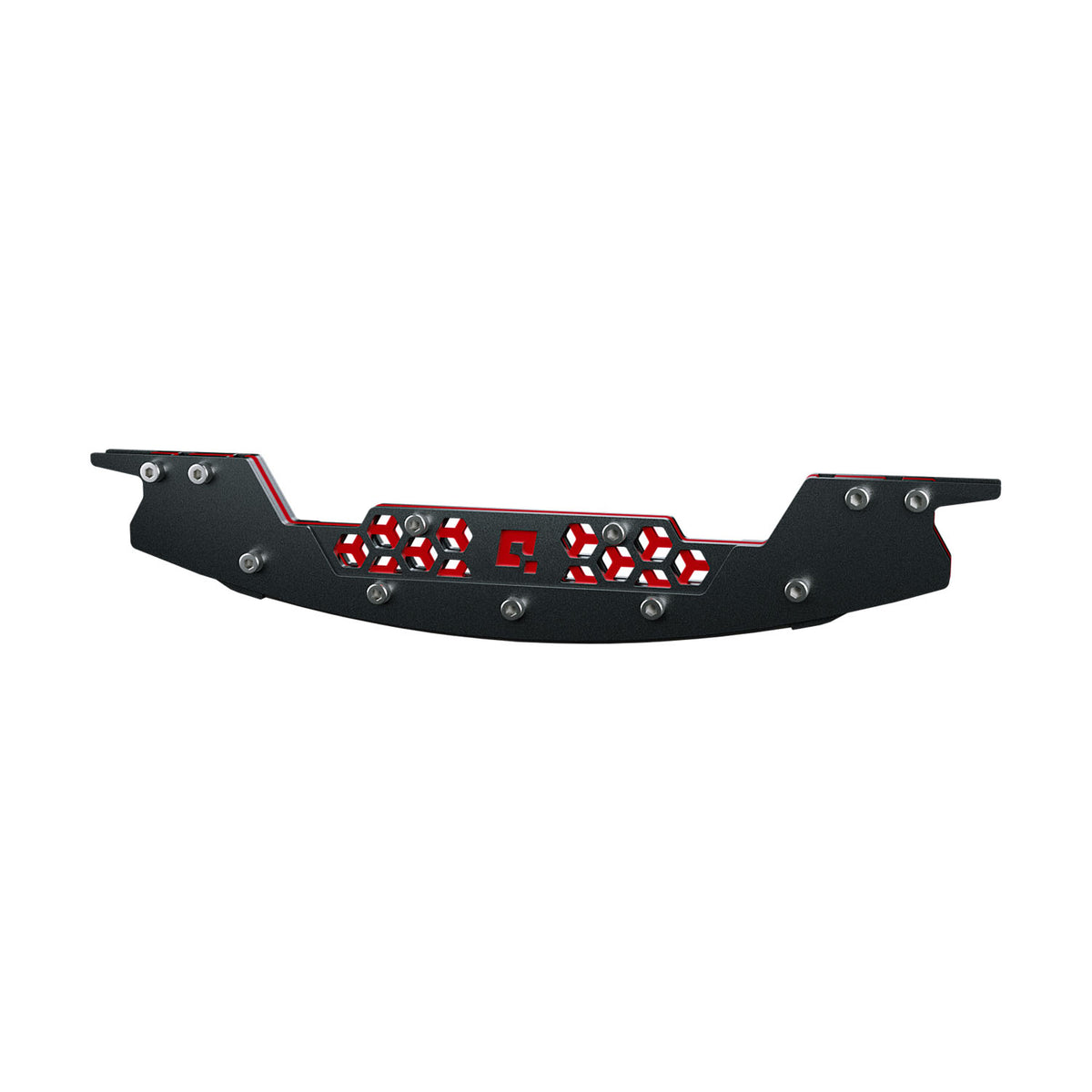

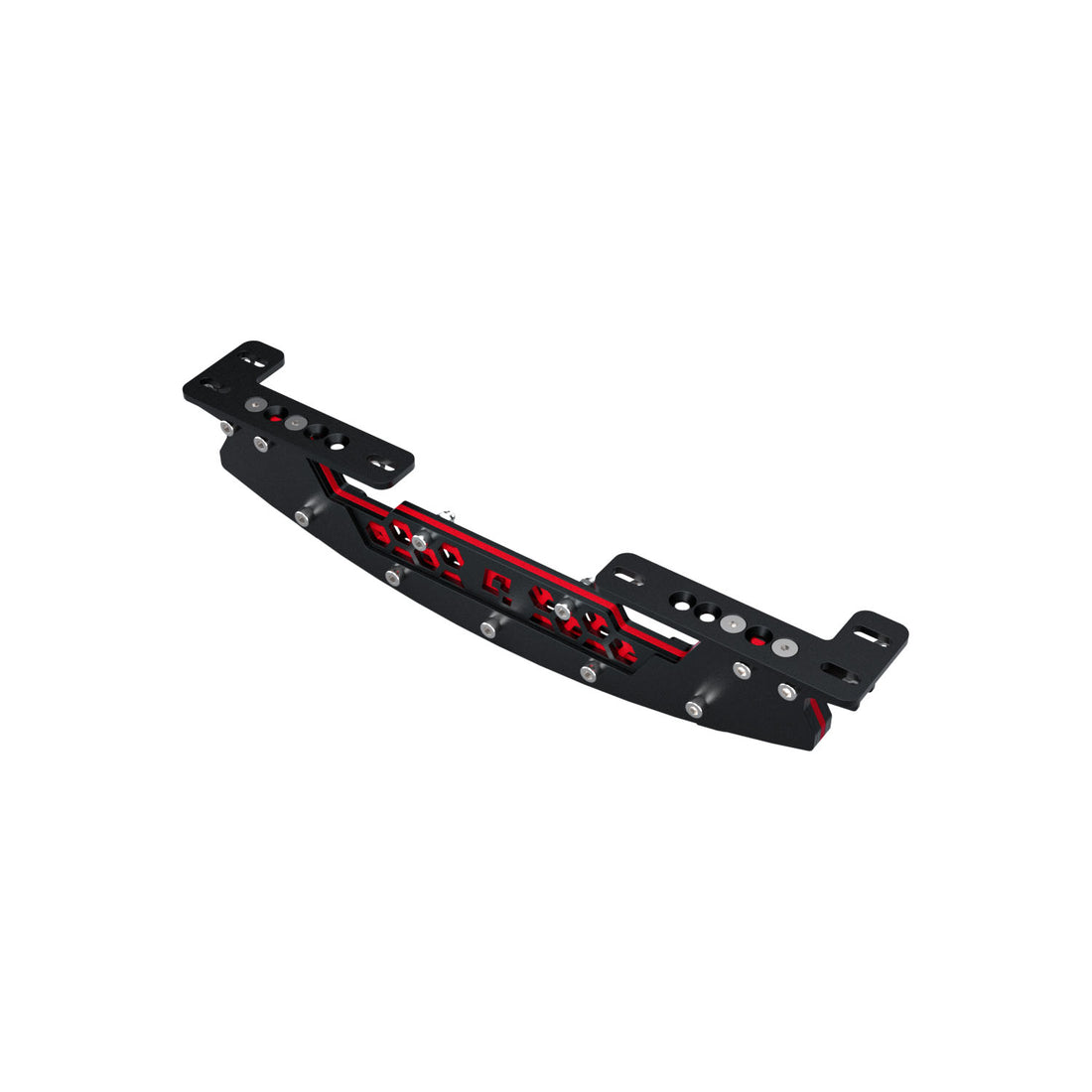

Qubic System QS-Pivot
Qubic System QS-Pivot
Qubic System QS-Pivot
* Heave motion pattern combined from pitch axis.
Qubic System QS-Pivot
Technical Specifications
| DIMENSIONS: | |
|---|---|
| Total height | 54.6-62 cm (21.5-24.41 in) |
| Total width | 80 mm (3.15 in) |
| Total lenght | 546 mm (21.50 in) |
| WIDTH REGULATION: | |
| Min width | 546 mm (21.50 in) |
| Med width | 583 mm (22.95 in) |
| Max width | 620 mm (24.40 in) |
| MOUNTING HOLES WIDTH: | |
| Min | 490 mm (19.29 in) |
| Max | 599 mm (23.58 in) |
QS-Pivot
Key Features
Qubic System QS-Pivot
Shipping Information
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
ENTRY-LEVEL MOTION ACCESSORY
MOTION WITHIN REACH
QS-Pivot is an accessible way to bring high-end motion sensations into your simulator. It’s ideal for users looking to enter the world of motion quickly and efficiently. It’s the fastest way to experience premium motion without the complexity and cost of full-motion platforms.
2.5 DOF*
SIMULATED HEAVE SENSATION
ENTRY LEVEL
INTO THE WORLD OF MOTION
PREMIUM QUALITY
EXPERIENCE QUBIC SYSTEM BRAND
UNIQUE MOTION EXPERIENCE
QS-Pivot combined with actuator set (QS-210 or QS-220) simulate heave sensation that effectively replicates load changes, elevation shifts, and weight transfer – delivering immersive depth without mechanical complexity. That means with just 2 actuators driver is able to perceive vehicle dynamics and road texture – almost like in 3DOF configuration based on 4 actuators.
* Heave motion pattern combined from pitch axis.
YOUR FIRST STEP INTO THE WORLD OF PREMIUM MOTION
It is the perfect starting point for those looking to experience high-end motion without a significant financial strain. It’s an entry into professional-grade simulation, offering an impressive balance between performance and affordability.
ALTERNATIVE SETUP
The pivot is usually installed at the front of the rig, but it can also be mounted at the back with the actuators placed in the front. This setup changes the driving feel in an interesting way.
What you can expect in this configuration:
- feedback from the front axle feels more direct and intuitive,
- effects such as front wheel slip (slip angle) and ABS under braking become easier to sense,
- there is a stronger connection between what happens on screen and what you feel in the cockpit,
- the overall motion is a little softer, with less intensity from the rear.
VR READY
VIRTUAL REALITY WITH MOTION COMPENSATION
Our software is ready to embrace virtual reality. This means that users can enjoy a complete and authentic simulation experience without integration hassles, thanks to perfect compatibility with VR technology. With Qubic System’s Ready software, simulations become more immersive than ever.
QUBIC SYSTEM QS-PIVOT
Frequently Asked Questions
QS-Pivot is a Qubic System accessory. To use it, it is necessary to use it together with a pair of QS-210 or QS-220 actuators.
QS-Pivot is compatible with most aluminum cockpits available on the market. For mounting holes width details, see the User Manual.
The QS-Pivot + QS-210 and QS-220 set is fully integrated with Qubic Manager and offers the same user interface and tuning capabilities as motion platforms.
Yes, installation to typical aluminum based cockpit is pretty simple.
QS-Pivot is designed for sim racing enthusiasts who want to enter the world of premium motion and experience the best hardware Qubic System has to offer — without the need to invest a fortune. It’s the perfect solution for those seeking high-end performance at a more accessible entry point.
When using the QS-Pivot, the available operation mode is limited to Heavy-Duty. This mode ensures optimal stability and performance within the mechanical limits of the system when the pivot mechanism is active.
Other operation modes, such as Performance or Q-MODE, are not supported in this configuration due to load distribution and dynamic constraints.
The QS-Pivot supports two degrees of freedom: roll (rotation around the X-axis), pitch (rotation around the Y-axis) and simulates heave(Z-axis movement), which is why we call it 2.5DOF (heave motion pattern combined from pitch axis).
