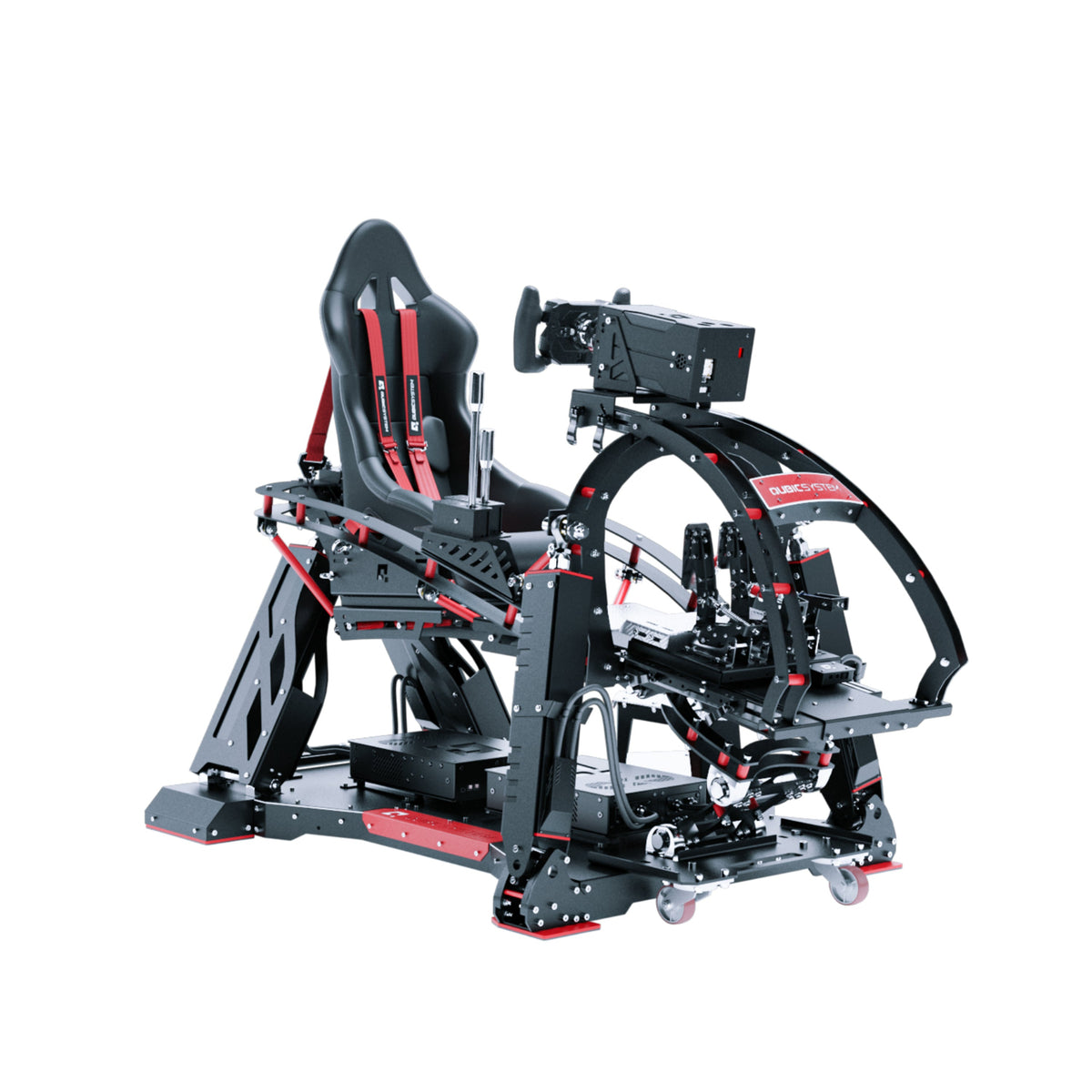

Qubic System QS-V20 4DOF Simulator Cockpit
Qubic System QS-V20 4DOF Simulator Cockpit
Qubic System QS-V20 4DOF Simulator Cockpit
The QS-V20 is an extended 4DoF motion cockpit, designed for pro racing car simulation, dedicated to both drivers training and sim racing enthusiasts. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, GT and F1 simulations, also the small footprint and lightweight design allow to fit the machine to every racing room.
Product Details
Technical Specifications
| MOTION COCKPIT | |
|---|---|
| Architecture | 4DOF with TRACTION LOSS |
| Maximum velocity | 800 mm/s |
| Maximum acceleration | 0.90G |
| Vibrations frequency range | 0-100Hz |
| Maximum control frequency | 1000 Hz |
| Latency | <8ms |
| Max user weight | 150 kg |
| SYSTEM PERFORMANCE | |
| Heave | –51.8mm / +50mm (Range), 800mm/s / 0.90G |
| Roll | ±7.6°, 8.5°, 110°/s / 1400°/s² |
| Pitch | ±5.5°/ +5.5°(Range), 40°/s / 500°/s² |
| Yaw | ±6.1°, 75°/s / 900°/s² |
| Voltage | 230 V |
| Connection | USB |
| Stroke | 100 mm |
| Vibration Range | 0-100 Hz |
| Latency | <8ms |
| Architecture | 4 DOF (with Traction Loss) |
| Noise Level | 57.5-66 dB (home-friendly) |
| Power Supply | 120/230V AC, 1-phase |
| DIMENSIONS | |
| Total Width | 1195 mm |
| Total Length | 1716 mm |
| Min Height | 998 mm |
| Max Height | 1101 mm |
| Product Weight | 280 kg |
| POWER DRAW | |
| Average Power | 0.8 kVA (120V), 1.6 kVA(230V) |
| Peak Power | 1.2 kVA(120V), 3.1 kVA(230V) |
| Average Current | 6A(120V), 7A(230V) |
| Peak Current | 11A(120V), 15A(230V) |
| Avg Power - Stress Test | 0.4kW(120V), 0.6kW(230V) |
| Avg Power - Typical Game | 0.07kW(120V), 0.08kW(230V) |
In The Box
What's Included
The QS-V20 is transported in a specially adapted transport box.
Qubic System QS-V20 4DOF
Key Features
- Acceleration & braking G-forces
- Lateral acceleration in corners
- Heave motion on bumps
- Roll and pitch dynamics
- Oversteering feedback
- Wheel slip sensation
- Weight transfer feeling
- Drift control feedback
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
KEY FEATURES
• Based on world’s fastest Qubic System linear actuators
• Compact and lightweight design
• Suitable for Rally, GT and F1 simulations
• Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
• Traction loss
• Also, available as expansion set from 3DOF to 4DOF of QS-220-PL actuators
• Adjustable seat, pedals and direct drive mounting
• FIA approved seats and seat belts compatibility
• Proudly made in EU: Engineered, •Designed and Manufactured in Poland
WHAT'S INCLUDED?
The QS-V20 is transported in a specially adapted transport box.
Box with QS-V20 included:
QS-V20 Motion PlatformQubicManager software downloadUSB and power cablesNuts and Bolts required for assemblyProduct Manual
