Direct-Drive Wheel Bases
Compatible with most direct-drive wheel bases on the market.

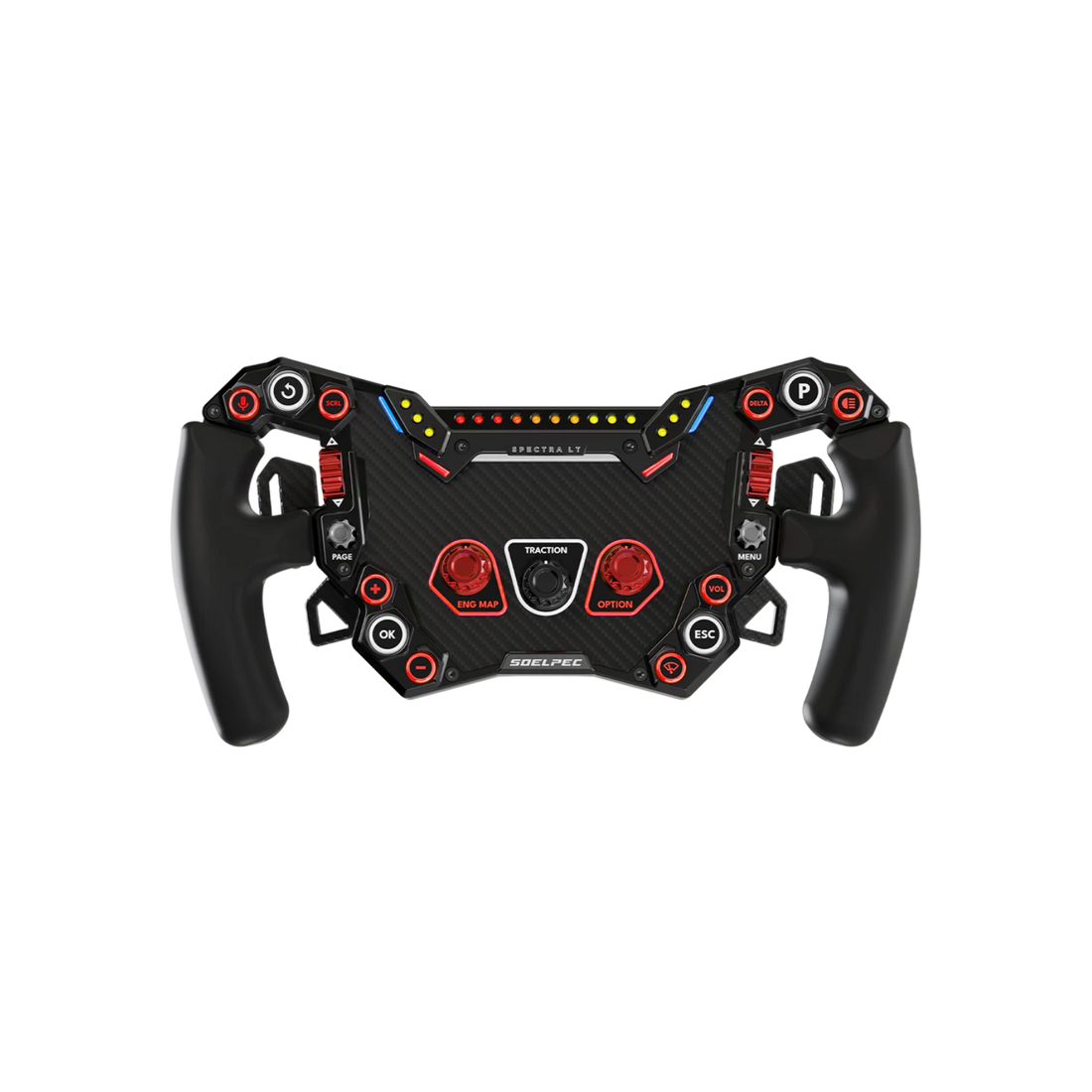

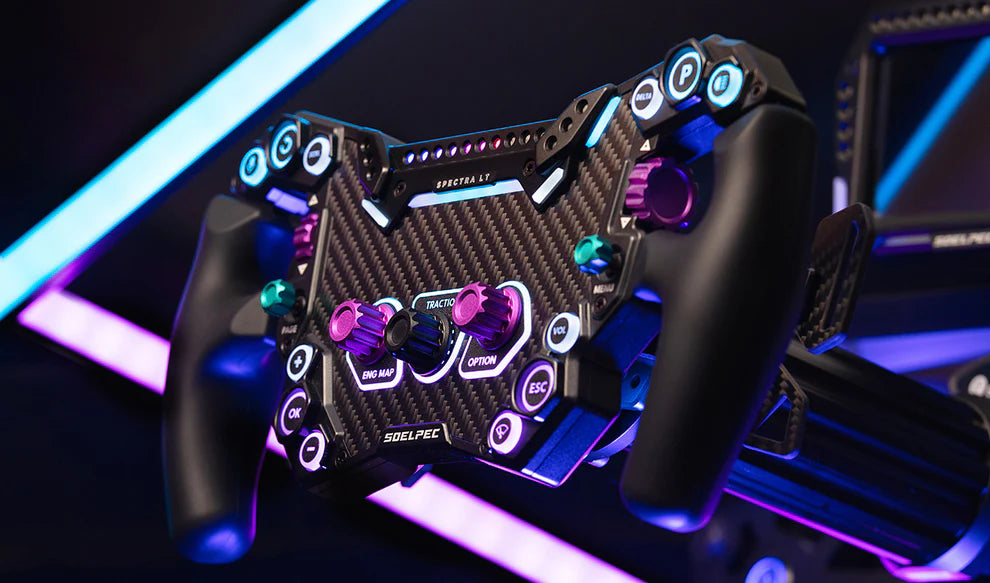

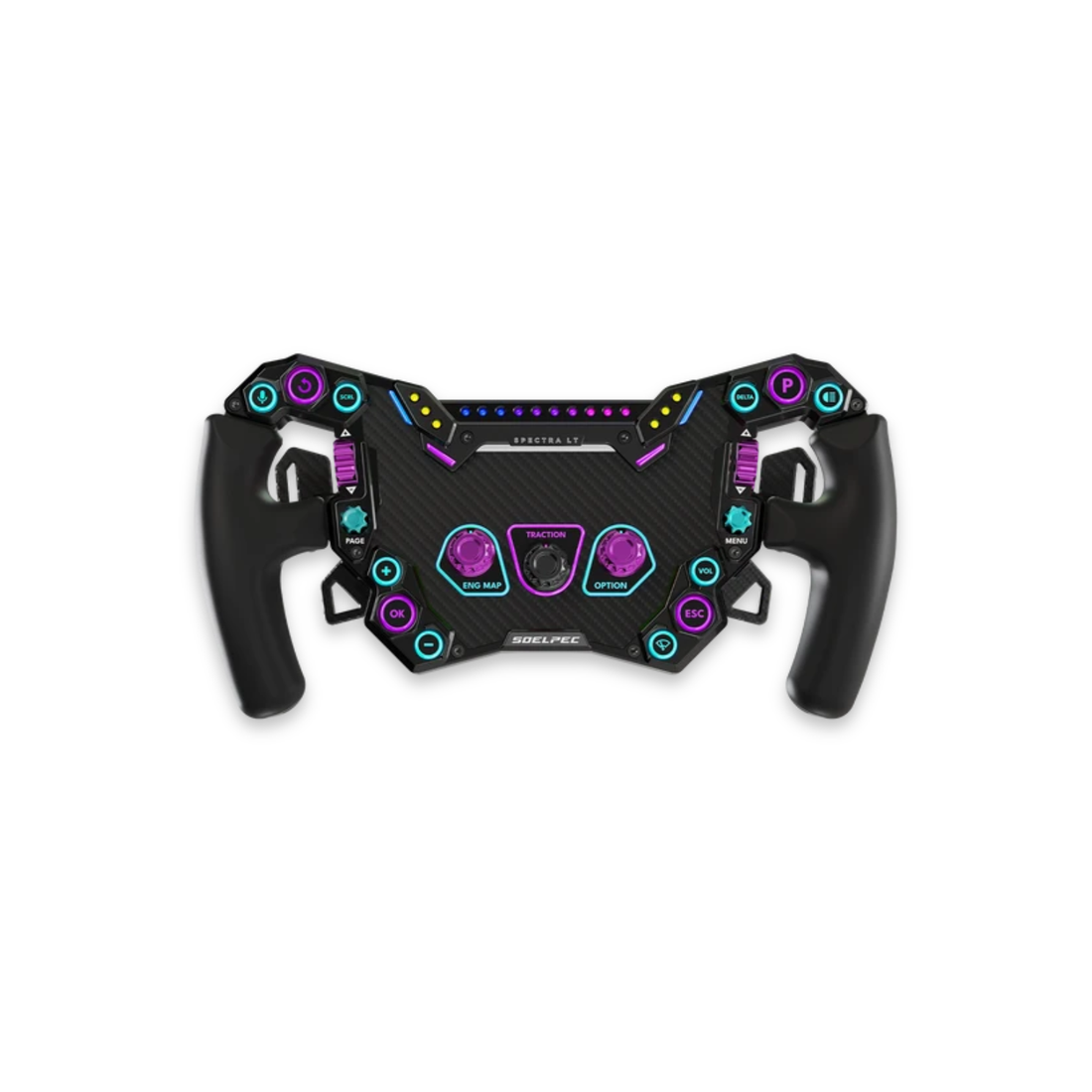

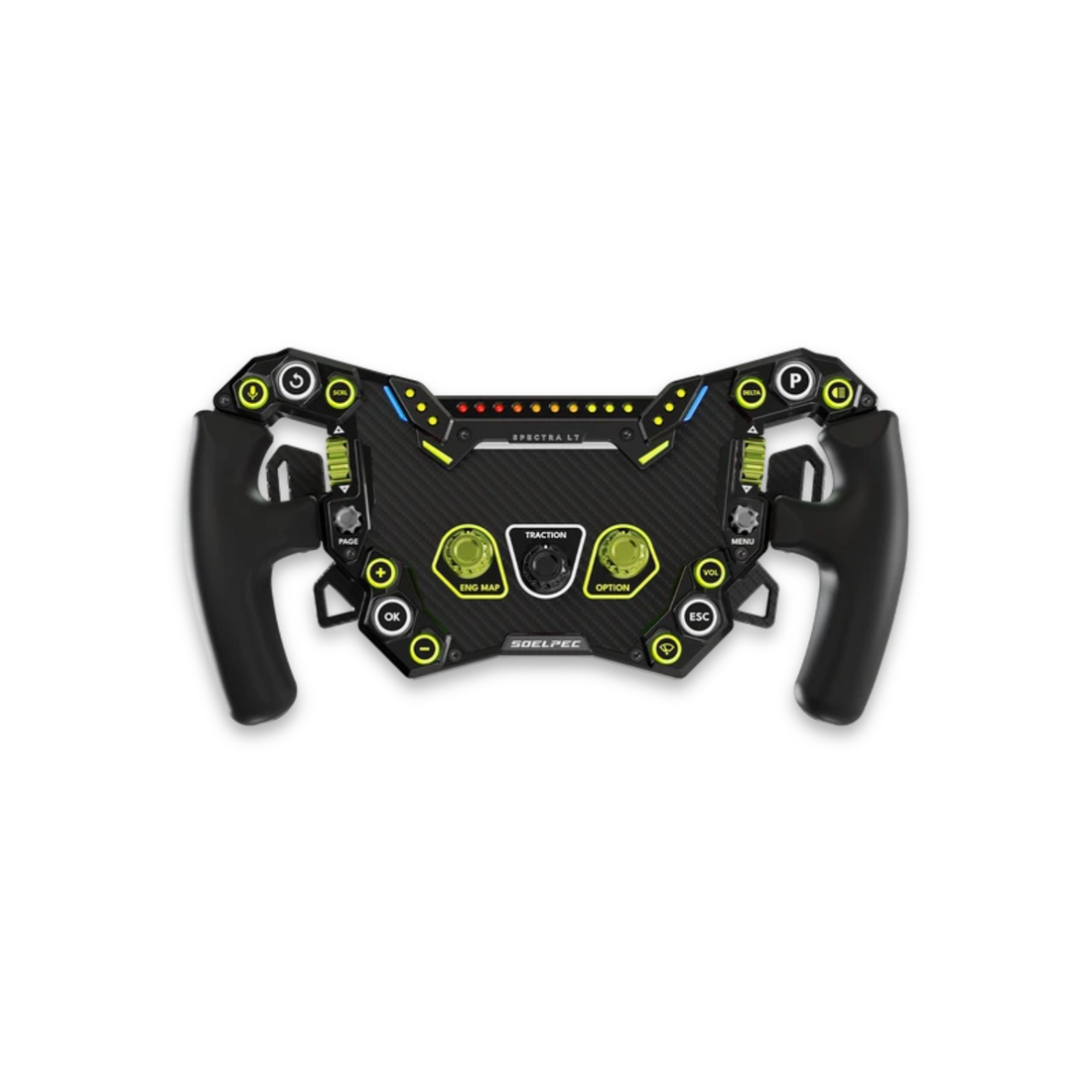

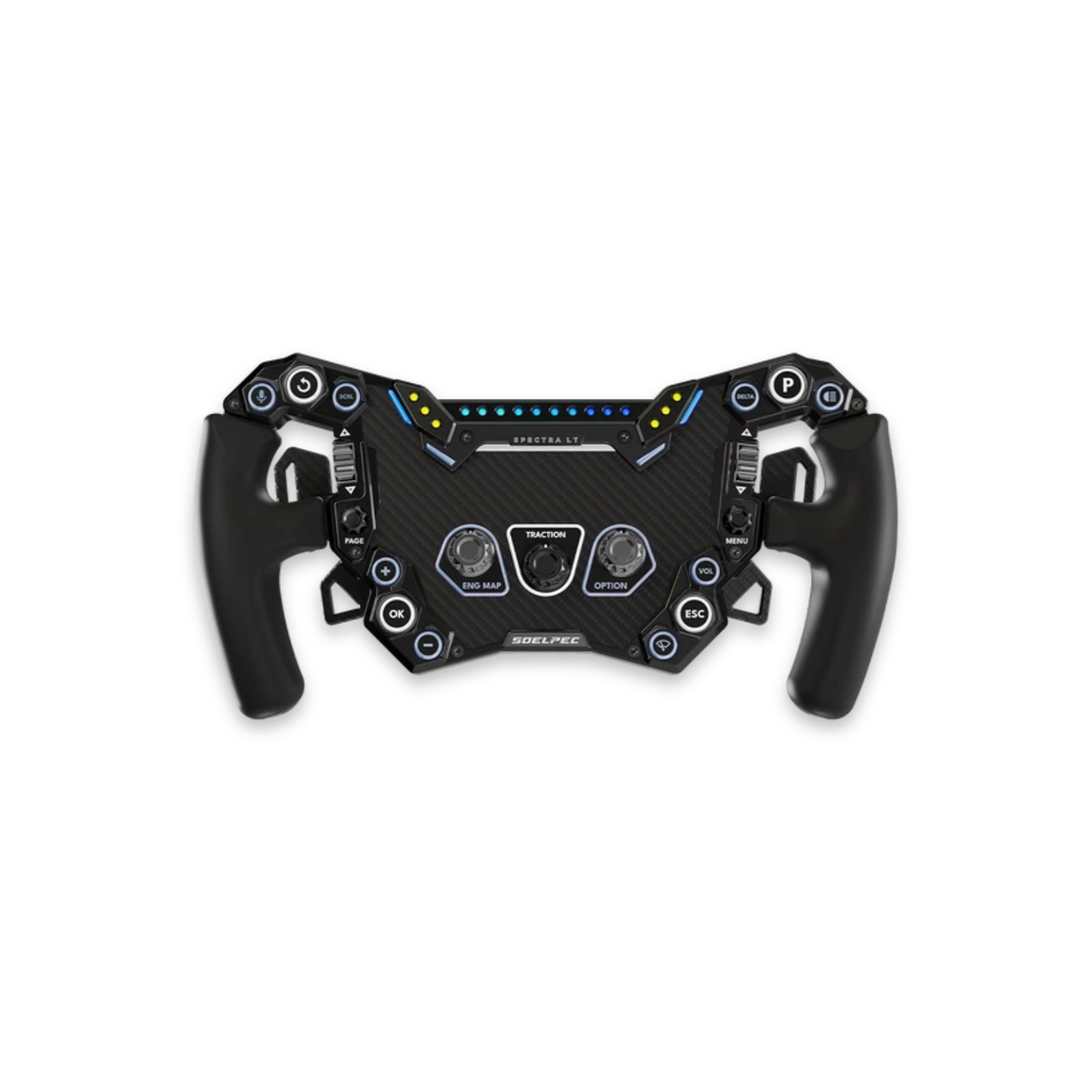

SOELPEC Spectra LT
$1,609.00
SOELPEC Spectra LT
$1,609.00
SOELPEC SIM RACING CONTROL

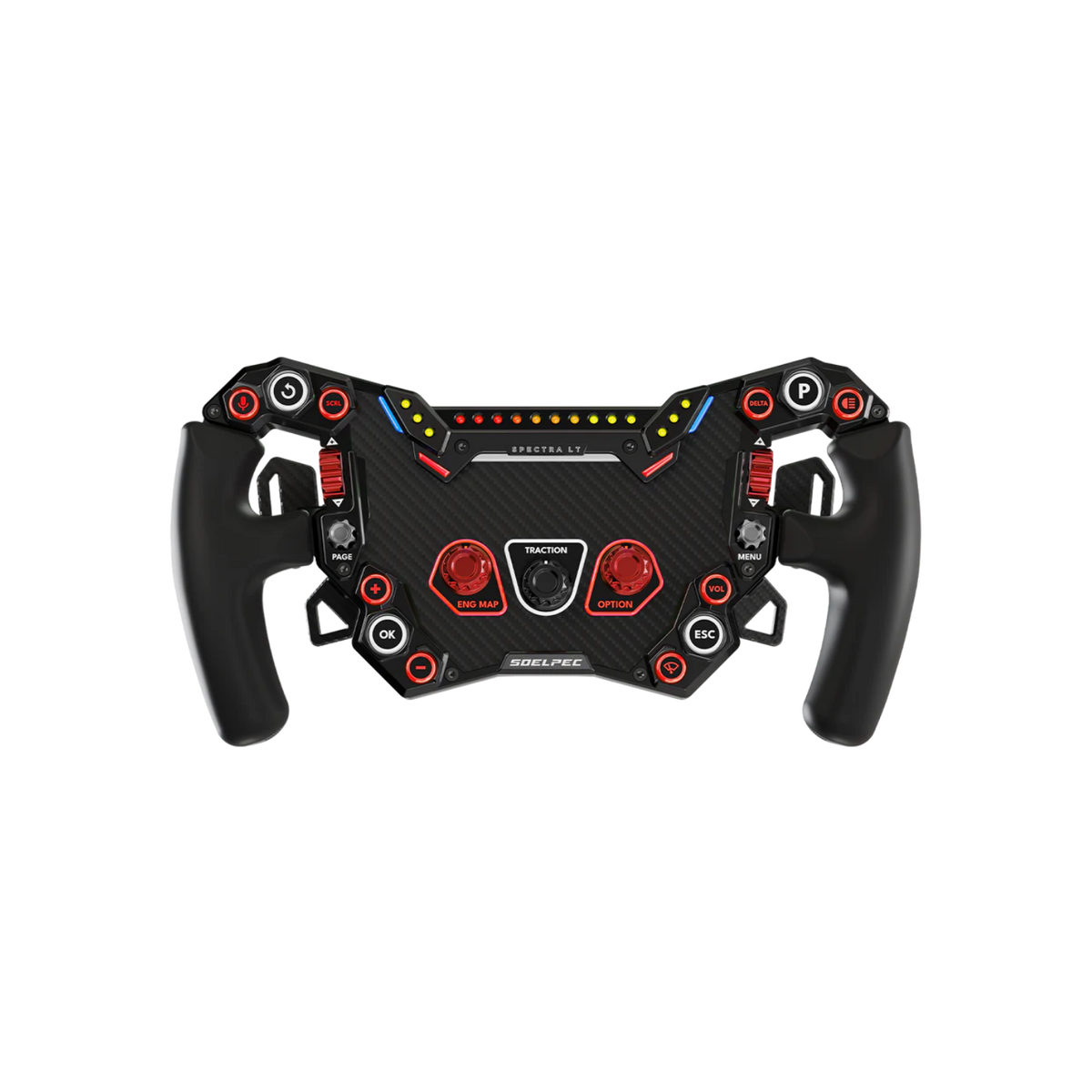

302 MM WHEEL WITH RGB ILLUMINATION & DUAL CLUTCHES
The SOELPEC Spectra LT is a 302 mm sim racing steering wheel built around a 6061 anodized aluminum structure, carbon fiber center plate, and 50A overmold silicone grips.
Its control layout includes 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The Spectra LT features fully customizable RGB illumination, 16 additional configurable LEDs, and customizable LED light bars.
Ball-bearing magnetic shifters use black N52 magnets, while the dual clutches use Hall sensors. A dedicated Settings Button provides direct access to wheel settings.

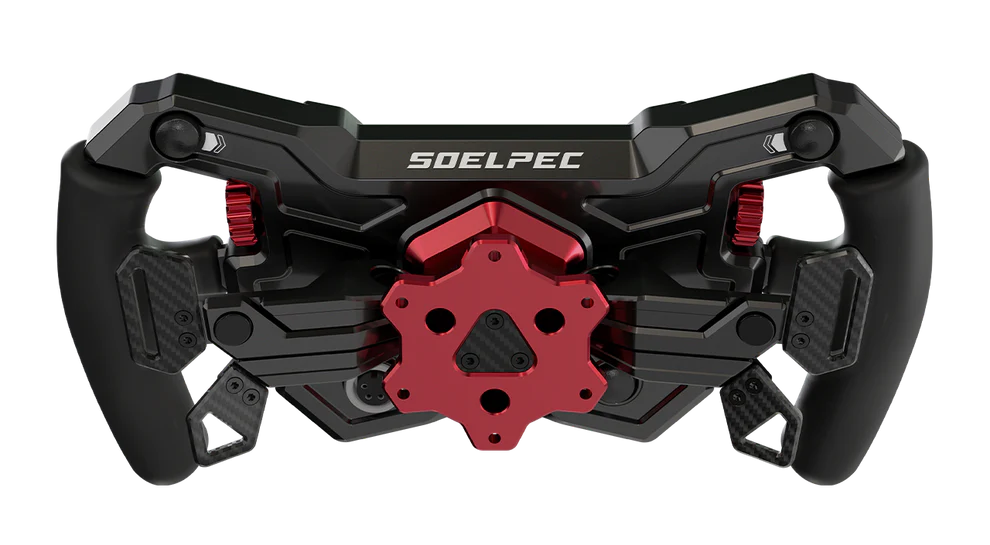

The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern.
Its control layout includes 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The Spectra LT features fully customizable RGB illumination, 16 additional configurable LEDs, and customizable LED light bars.
Ball-bearing magnetic shifters use black N52 magnets, while the dual clutches use Hall sensors. A dedicated Settings Button provides direct access to wheel settings.
The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern.
6061 Aluminum Structure
Built around a 6061 anodized aluminum structure with a carbon fiber center plate.
17 Tactile Push Buttons
Includes 17 push buttons using 700 gf tactile switches.
Dual-Action Thumb Encoders
Two custom thumb encoders provide up to 8 inputs.
Customizable RGB Illumination
Features fully customizable RGB illumination across the wheel.
Configurable LED Lighting
Includes 16 additional configurable LEDs and customizable LED light bars.
Magnetic Shifters & Dual Clutches
Features ball-bearing magnetic shifters with N52 magnets and dual clutches with Hall sensors.
Dedicated Settings Button
Includes a dedicated Settings Button for wheel controls.
42 mm Rear Hub
Included rear hub supports a 70 mm 6-hole mounting pattern.
Product Details
SPECTRA LT SPECIFICATIONS
| Product | SOELPEC Spectra LT Steering Wheel |
|---|---|
| Wheel Diameter | 302 mm |
| Push Buttons | 17 with 700 gf Tactile Switches |
| 7-Way Switches | 2 |
| Center Encoders | 3 Custom Encoders with Push Buttons |
| Thumb Encoders | 2 Dual-Action Custom Thumb Encoders |
| Thumb Encoder Inputs | Up to 8 Inputs |
| RGB Illumination | Fully Customizable |
| Additional Configurable LEDs | 16 |
| LED Light Bars | Customizable |
| Weight | 1200 g Without Rear Hub |
| Grips | 50A Overmold Silicone |
| Structure | 6061 Anodized Aluminum |
| Center Plate | Carbon Fiber |
| Button Caps & LED Diffusers | PMMA |
| Stickers | Textured PVC Film |
| Shifters | Ball-Bearing Magnetic Shifters |
| Shifter Magnets | Black N52 Magnets |
| Clutches | Ball-Bearing Dual Clutches |
| Clutch Sensors | Hall Sensors |
| Settings Control | Dedicated Settings Button |
| Rear Hub | 42 mm |
| Rear Hub Mounting Pattern | 70 mm, 6-Hole |
In The Box
SPECTRA LT PACKAGE CONTENTS
1
Spectra LT Steering Wheel with Dual Clutches and Carbon Fiber Paddles
2
42 mm Color-Coordinated Rear Hub
3
4-Pin Spiral Cable with Circular Connector
4
Internal USB Cable for Quick Release Connection
5
Extra Polyester Film Sticker Sheet for Button Caps and Encoders
6
Additional Magnets for Adjusting the Shifter Force
7
6 × M5 × 12 mm Captive Screws for Mounting
8
T10 Torx Key
9
4 mm Allen Key
10
1.3 mm Allen Key
11
Tweezers
12
SOELPEC Sticker Sheet
13
Quick Start Guide
WHEEL BASE & SOFTWARE SUPPORT
DESIGNED FOR MOST DIRECT-DRIVE WHEEL BASES
SOELPEC states that its steering wheels are compatible with most direct-drive wheel bases on the market. The included rear hub uses a 70 mm 6-hole mounting pattern.
70 mm Mounting
The included 42 mm rear hub supports a 70 mm 6-hole mounting pattern.
SimHub
SimHub is recommended for utilizing the wheel's illumination functions.
Powered USB Hub
Recommended when using higher brightness levels.
