Direct-Drive Wheel Bases
Compatible with most direct-drive wheel bases on the market.
NO COMPROMISE
SPECTRA XR
BE READY TO TAKE A STEP INTO THE FUTURE OF SIM RACING
SOELPEC Spectra XR
$1,999.00
SOELPEC Spectra XR
$1,999.00

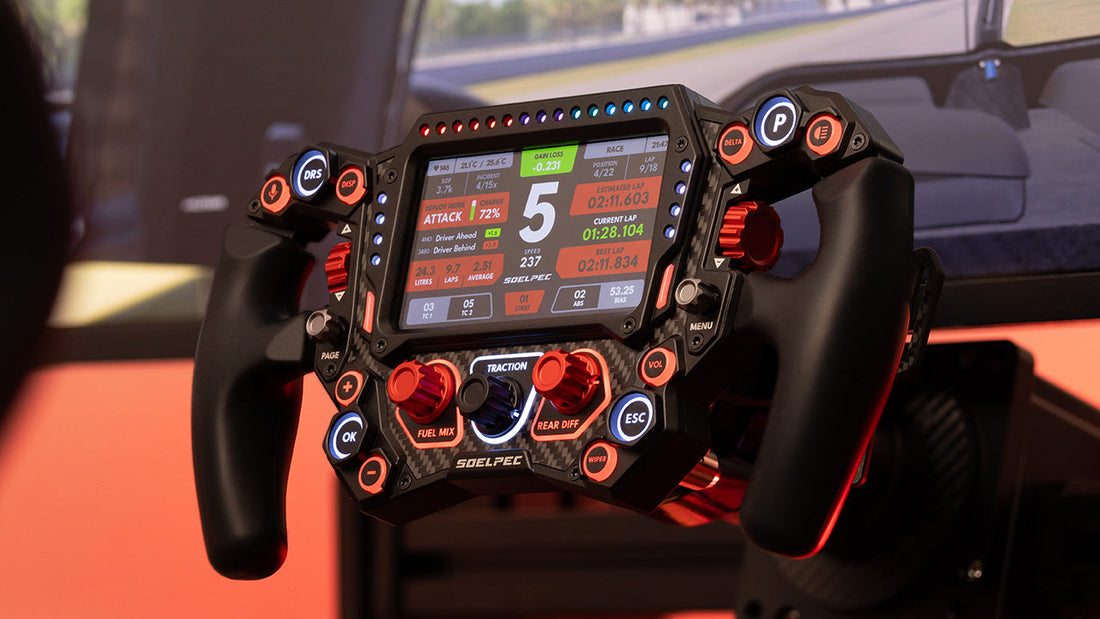

5-INCH TOUCHSCREEN SIM RACING WHEEL

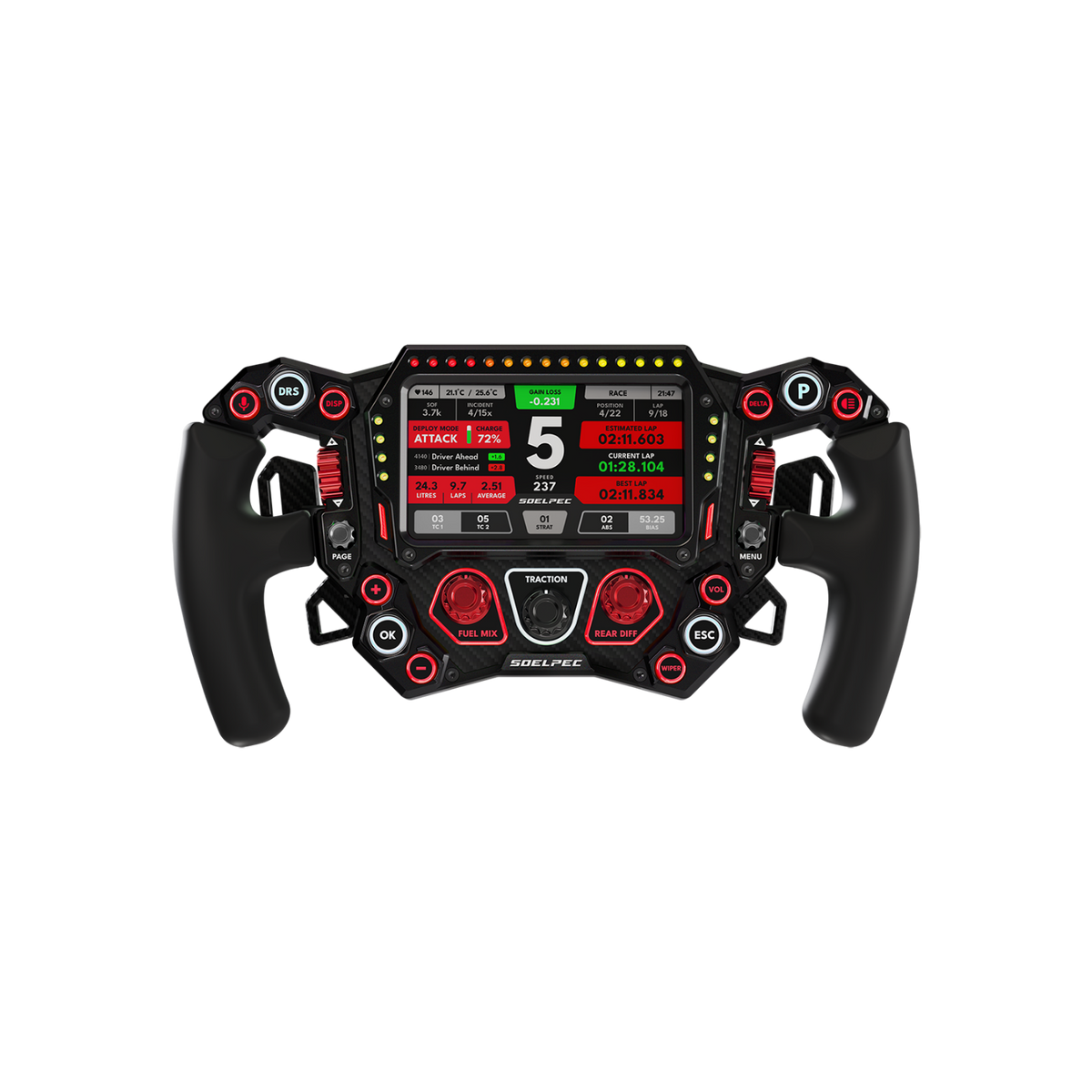

302 MM WHEEL WITH RGB ILLUMINATION & DUAL CLUTCHES
The SOELPEC Spectra XR is a 302 mm sim racing steering wheel built around a 6061 anodized aluminum structure, carbon fiber center plate, and 50A overmold silicone grips.
Its control layout includes a 5-inch touchscreen display, 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The wheel features fully customizable RGB illumination together with 23 additional configurable LEDs around the display. Buttons, encoders, dashboard illumination, and telemetry-based animations can be configured through SimHub.
The Spectra XR includes ball-bearing magnetic shifters with black N52 magnets and ball-bearing dual clutches with Hall sensors. A dedicated bite-point adjustment button provides direct access to clutch bite-point control.
The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern and incorporates the USB connection while providing additional mounting spacing.
Its control layout includes a 5-inch touchscreen display, 17 tactile push buttons, two 7-way switches, three center encoders with push buttons, and two dual-action thumb encoders providing up to 8 inputs.
The wheel features fully customizable RGB illumination together with 23 additional configurable LEDs around the display. Buttons, encoders, dashboard illumination, and telemetry-based animations can be configured through SimHub.
The Spectra XR includes ball-bearing magnetic shifters with black N52 magnets and ball-bearing dual clutches with Hall sensors. A dedicated bite-point adjustment button provides direct access to clutch bite-point control.
The included 42 mm rear hub uses a 70 mm 6-hole mounting pattern and incorporates the USB connection while providing additional mounting spacing.
5-Inch Touchscreen Display
Features a 5-inch touchscreen display for dashboard information and wheel controls.
6061 Aluminum Structure
Built around a 6061 anodized aluminum structure with 50A overmold silicone grips.
Dual-Action Thumb Encoders
Two dual-action thumb encoders provide up to 8 inputs in total.
Customizable RGB Illumination
Buttons, encoders, dashboard lighting, and telemetry animations can be customized through SimHub.
Magnetic Shifters & Dual Clutches
Features ball-bearing magnetic shifters and dual clutches with Hall sensors.
Bite-Point Adjustment
Includes a dedicated button for clutch bite-point adjustment.
Integrated 42 mm Rear Hub
Included rear hub uses a 70 mm 6-hole mounting pattern and incorporates the USB connection.
Additional Controls
Rear-facing tactile buttons and additional display-side buttons provide additional programmable inputs.
Product Details
SPECTRA XR SPECIFICATIONS
| Product | SOELPEC Spectra XR Steering Wheel |
|---|---|
| Wheel Diameter | 302 mm |
| Display | 5-Inch Touchscreen |
| Push Buttons | 17 with 700 gf Tactile Switches |
| 7-Way Switches | 2 |
| Center Encoders | 3 Custom Encoders with Push Buttons |
| Thumb Encoders | 2 Dual-Action Custom Thumb Encoders |
| Thumb Encoder Inputs | Up to 8 Inputs Total |
| RGB Illumination | Fully Customizable |
| Additional Display LEDs | 23 Configurable LEDs |
| Weight | 1350 g Without Rear Hub |
| Grips | 50A Overmold Silicone |
| Structure | 6061 Anodized Aluminum |
| Center Plate | Carbon Fiber |
| Button Caps & LED Diffusers | PMMA |
| Stickers | Textured PVC Film |
| Shifters | Ball-Bearing Magnetic Shifters |
| Shifter Magnets | Black N52 Magnets |
| Clutches | Ball-Bearing Dual Clutches |
| Clutch Sensors | Hall Sensors |
| Bite-Point Control | Dedicated Adjustment Button |
| Rear Hub | 42 mm |
| Rear Hub Mounting Pattern | 70 mm, 6-Hole |
| Software | SimHub Recommended |
In The Box
SPECTRA XR PACKAGE CONTENTS
1
Spectra XR Steering Wheel with Dual Clutches and Carbon Fiber Paddles
2
42 mm Color-Coordinated Rear Hub
3
4-Pin Spiral Cable with Lumberg Connector
4
Internal USB Cable for Quick Release Connection
5
Extra Polyester Film Sticker Sheet for Button Caps and Encoders
6
Additional Magnets for Adjusting the Shifter Force
7
6 × M5 × 12 mm Captive Screws for Mounting
8
T10 Torx Key
9
4 mm Allen Key
10
1.3 mm Allen Key
11
Tweezers
12
SOELPEC Sticker Sheet
13
Quick Start Guide
WHEEL BASE & SOFTWARE SUPPORT
DESIGNED FOR MOST DIRECT-DRIVE WHEEL BASES
SOELPEC states that its steering wheels are compatible with most direct-drive wheel bases on the market. The included rear hub uses a 70 mm 6-hole mounting pattern.
70 mm Mounting
The included 42 mm rear hub supports a 70 mm 6-hole mounting pattern.
SimHub
Recommended for the wheel's illumination and dashboard functions. Select SOELPEC - Spectra XR in the SimHub devices section.
Powered USB Hub
Recommended when using higher brightness levels.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
Outstanding Build Quality
The Spectra XR uses only very high-quality elements, prioritizing a strong structure to create the stiffest wheel of the industry, even though offering open-bottom style handles.Months of development went into combining the best-feeling and performing components together, with unique design elements to create the perfect sim racing steering wheel.
Shifter & Clutch Combo
SOELPEC shifter & clutch assembly utilizes a combined structure for a rigid and light-weight design. Longer paddle arms with short travel distance create a natural feel with less rotation under the fingers.
Dual-Action Inputs
Each thumb encoder offers Dual-Action inputs to act like two independent encoders, and can be switched via the push button. Left & right thumb encoders can create 8 different inputs in total.
Solid Structure
Spectra XR uses 6061 aluminium structure for the optimized weight and stiffness. Silicone grips are molded over this structure for unmatched rigidity and receiving direct feedback from the wheelbase.

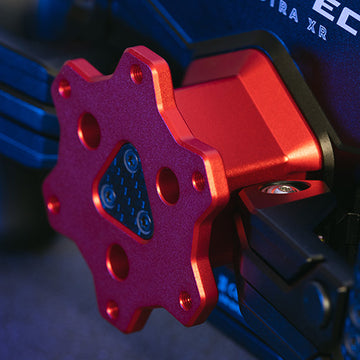

Integrated Rear Hub
The included 42mm Hub accommodates the clutch spring mechanism and integrated USB connection, while giving you additional spacing for mounting. It is also color-coordinated with the rest of the wheel.

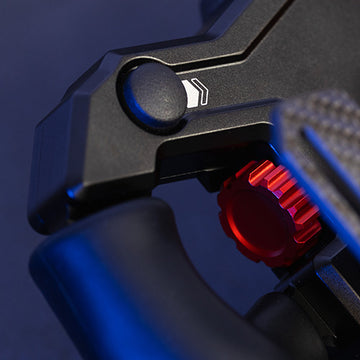

Additional Buttons
Spectra XR also offers additional rear facing tactile buttons for mapping the crucial functions of the racing car, and they are easily accessible.
More Functionality
Two extra buttons on the each side of the display can be programmed to use the actions in the dashboard, or you can map these inputs to any other desired function.
Fully customizable RGB illumination
Spectra XR utilizes RGB illumination, and it's fully adjustable.
Just attach the wheel to your rig and enjoy instant customization options, including the buttons, encoders, and even the dashboard!
The illuminated sections can also be assigned to create animations depending on the telemetry data, compatible with SimHub software.
