Heusinkveld Magshift Mini
Heusinkveld Magshift Mini
An ultra-compact, super solid and heavy-duty sequential shifter! Don’t be fooled by its compact appearance, MagShift Mini can be set to require either buttery smooth or very rigid shifting force.
Don’t be fooled by its compact appearance, MagShift Mini is the perfect small form factor sequential shifter which can be set to deliver both low as well as high, realistic forces. From buttery smooth to very rigid shift force, it’s all there.
All of this fits in the palm of your hand. With dimensions (WxDxH) of 5,75 x 9,15 x 16,9cm (including the U shaped bracket).
MagShift Mini features a patented magnetic shift system with individually adjustable upshift and downshift force. Reliable shift detection with opto-electronic sensors.
Upgrade your simulator with the most versatile compact shifter available.
ADJUSTMENT OPTIONS
The magnetic shift system is 2-way adjustable. The upshift and downshift can both be set individually. This allows you to set a firm upshift and soft downshift for example to simulate a specific car or simply because you drive at your best pace.
Set your preferred peak force anywhere between 4 and 8kg. At the firmest setting you’ll be able to simulate the shifter forces as experienced in real race cars.
MOUNTING OPTIONS
Every MagShift Mini comes with mounting materials and an U-shaped mounting bracket which makes mounting the shifter to your simulator super easy. The U-brackets mounts to your simulator with just 2 bolts, ensuring a narrow profile of the overall installation. Your MagShift Mini is then attached to the bracket. When mounted onto aluminium profiles, the MagShift Mini only requires a single profile slot for mounting.

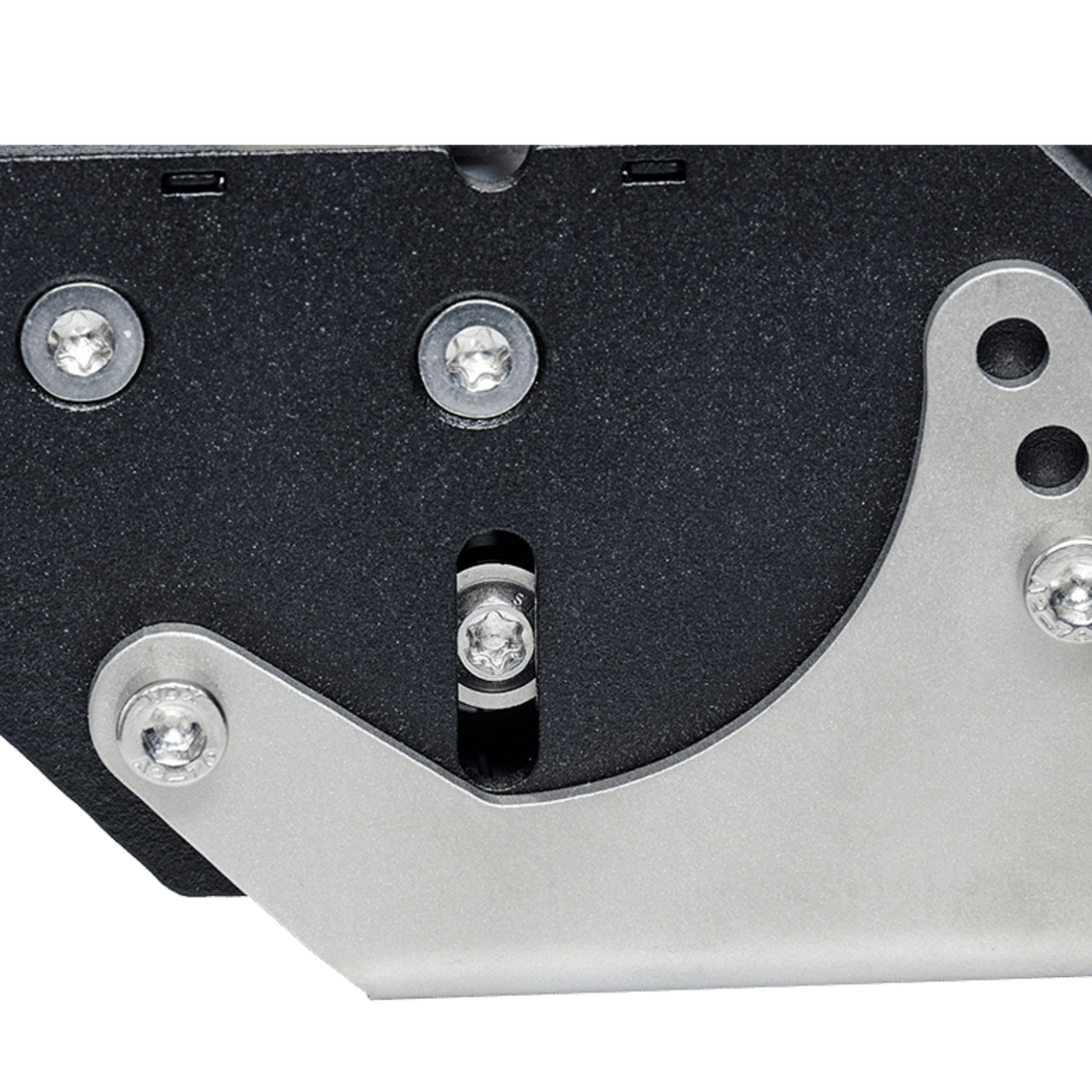

The mounting bracket allows for several adjustments to fine-tune the position of your MagShift:
• Yaw adjustment: by rotating the U-bracket relative to the mounting platform.
• Tilt adjustment: by choosing any diagonal combination of the mounting holes in the U-bracket.
Mounting materials are supplied in order to attach the MagShift Mini to aluminium profiles. 2x M6x12 flanged bolts and 2x 6mm T-nuts are included in the package.
Compatibility: PC (Windows 10 or newer)
Software: SmartControl & SmartControl Live
Controller: Integrated inside the shifter, connection trough USB
Plug and play: Yes
Max force: From 4 up to 8 kg
Dimensions: 169×91.5×57.5mm
Material: Powder coated stainless steel with aluminium shift knob
Weight: 2 kg
Sensor type: Opto-electronic sensors
Packaging: Eco-Friendly Packaging
Certificate: EMC + CE
Type of simracer:
Suitable for professional driver training, Esports, commercial use, home use
Type of cars:
Rally cars, GT’s, touring cars and classic racing
Adjustments & mounting
Adjustments/settings:
Upshift force, downshift force, shifter yaw (with the u-bracket), shifter tilt, 4 customizable outputs for the lever using SmartControl
Mounting:
• Directly on a horizontal mounting plane or profile using the included u-shaped mounting bracket
• On a table with the optional Table Clamp
• To a vertical profile with the optional Vertical Mount
• Angled with the optional Angled Mount
Magshift Mini
USB Cable
Mounting Materials
Installation & Adjustment tools
Manual
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.

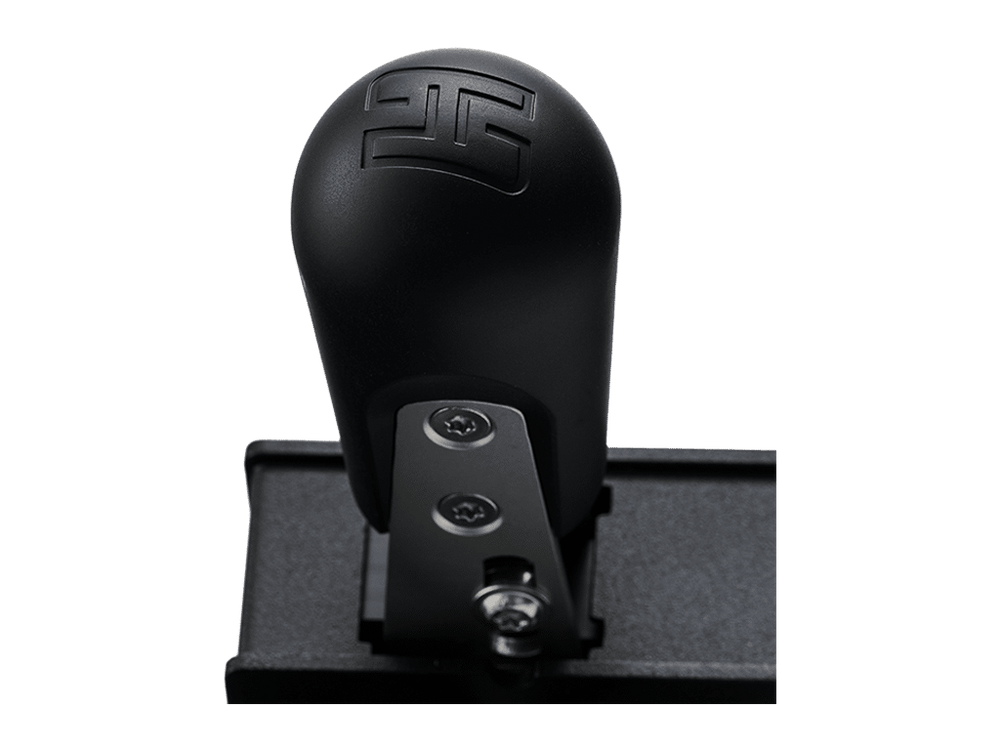

Up to 8 kg of force
It can sit in the palm of your hand but offers a heavy duty shift force
Set it your way, all the way
Patented 2-way adjustable shift system. Set a different force for upshifts and downshifts. Choose from multiple tilt and yaw settings. MagShift Mini delivers true versatility, like no other.

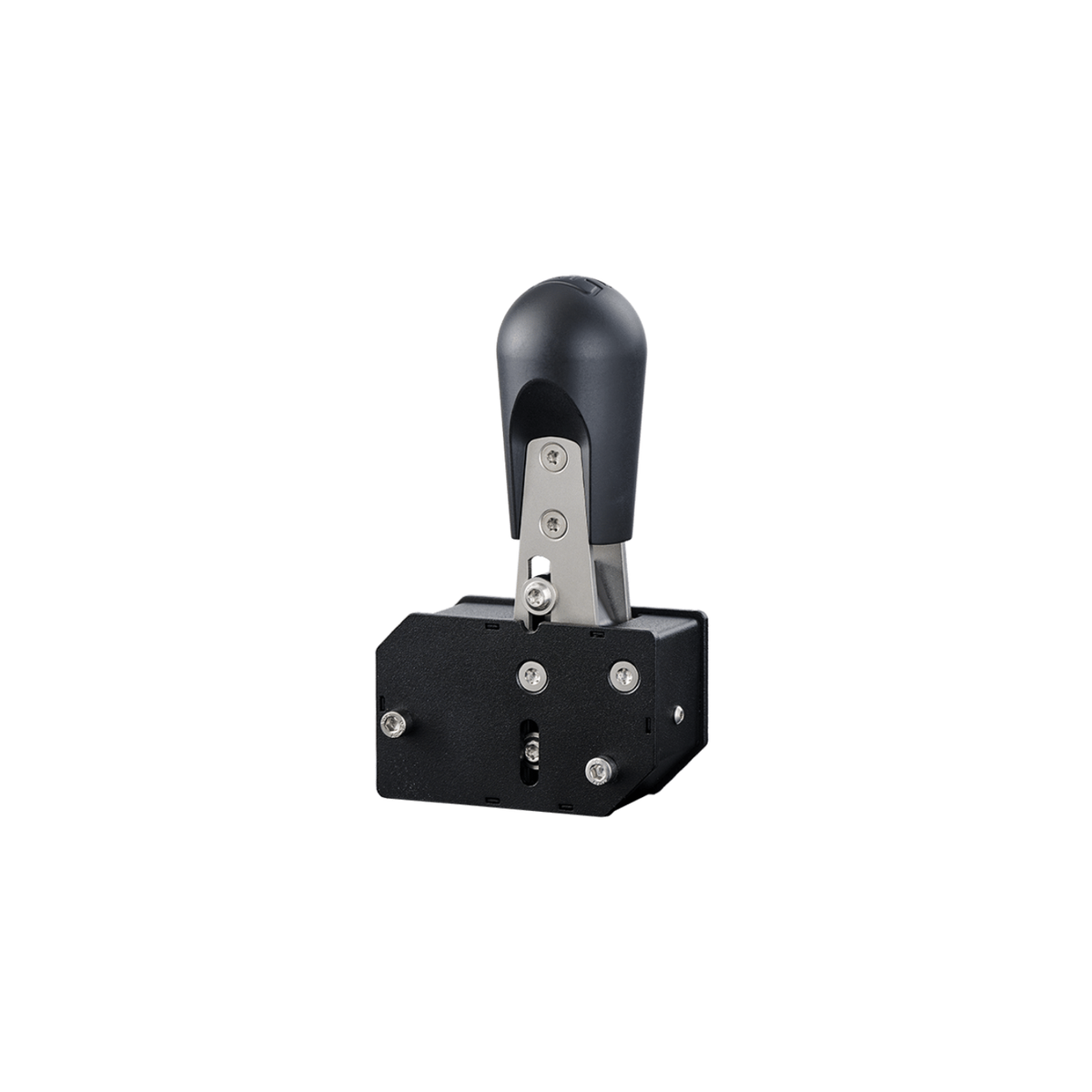

Small Yet Strong
Don’t be deceived by the compact appearance of MagShift Mini. It can sit in the palm of your hand but offers a heavy duty shift force of up to 8 kg.
Compact size, heavy duty, adjustable forces.
Don’t be fooled by its compact appearance: MagShift Mini can be set to require either buttery smooth or very rigid shifting force.
With individually adjustable upshift and downshift force, a patented magnetic shift system and multiple mounting options this is the most versatile compact sequential shifter available.
Maximum Control with SmartControl
Customize multiple outputs from a single input. This means that you can use the lever to trigger up to 4 functions.
Unleash your creativity and create functions for auto-blip or auto-clutch.
FORCE
Adjustable shift force between 4 and 8 kg.
Overall, upshift and downshift force individually adjustable.
OUTPUT
Use SmartControl to customize all outputs.
Trigger multiple outputs based on a single shift or button input.
MOUNTING
Fine-tune height, tilt and yaw of the shifter
With the included the U-shaped mounting bracket.
Mounting Made Easy
MagShift comes with a U-shaped mounting bracket, perfect for aluminium profiles. Fine-tune the height and tiltof MagShift using the adjustment holes.
Enhanced Durability
MagShift Mini features wear free opto-electronic sensors. Succesfully tested up to a million cycles in automated testing. EMC and CE certified, plug & play. Your can count on your MagShift Mini for years to come.
Optimize Any Mounting Position
MagShift Mini comes standard with a mounting bracket suitable for horizontal profiles.
We also offer an optional mounting solution for vertical profiles, a mounting solution to position MagShift Mini under an angle and a table clamp.
