New wheel, new feel! Ultra-light, ergonomically shaped, every button in reach, wireless & long battery life!
A quality steering wheel adapter to convert 50,8mm steering wheel hubs to a 70mm pattern. Only 15mm deep, made of aluminium. Works for Heusinkveld One and other steering wheels with a similar pattern.
With the brake of the Sprint pedals being able to cope with high forces (up to 65kg), a sturdy mount to your simulator rig is an absolute must. Standard pedal mounting plates of rigs often show excessive flex under these loads. This baseplate helps to create a solid platform to mount the pedals on your rig. The slotted mounting grooves allow for easy adjustment of individual pedal positions.
The baseplate assembly consists of multiple elements: A pedal plate on which you mount the pedals, a height adjustable heel plate as well as two brackets which are used to secure the baseplate to an underlying frame.
ADJUSTMENT OPTIONS
The baseplate mounting points for the pedals are slots which allow for lateral adjustment of individual pedals. The lateral slots are 29mm for the brake pedal and 24mm for the throttle and clutch pedal. Every single pedal can also be adjusted 12,5mm backwards and forwards through the slots in the pedal feet themselves.
The included t-nuts allow for convenient fine-tuning of the pedal position by slightly loosening the pedal mounting bolts from the top of the pedal plate, now you are able to change the position without having to remove the whole pedal.
By default the heel plate is 0mm elevation, using the supplied spacers (30mm) you raise the heelplate to a higher position. This height adjustment helps you to achieve optimal pedal ergonomics in your simulator.
MOUNTING
The mounting holes on the brackets are compatible with TM T3PA and T3PA Pro (235mm) pedal sets. Six mounting points on the brackets are provided in total, giving plenty of options mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate to your rig.
Please note that this baseplate does not allow you to install the pedals on a floor without further support, or in a wheel stand where there is no solid connection between the pedals and the seat. A full frame rig/simulator is always required.
Compatibility: Sprint 2-pedal set, Sprint 3-pedal set, Sprint 2-pedal set with Rest Pedal
Dimensions: 362x222x62mm
Material: Powder coated steel, bead blasted stainless steel
Weight: 3.22 kg
Packaging: Eco-Friendly Packaging
Type of simracer:
Suitable for Esports, home use
Adjustments & mounting:
Heel plate height, lateral & longitudinal pedal adjustment on a rig
Baseplate parts
Mounting Materials
Installation Tools
Manual
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
MAKE IT FIT

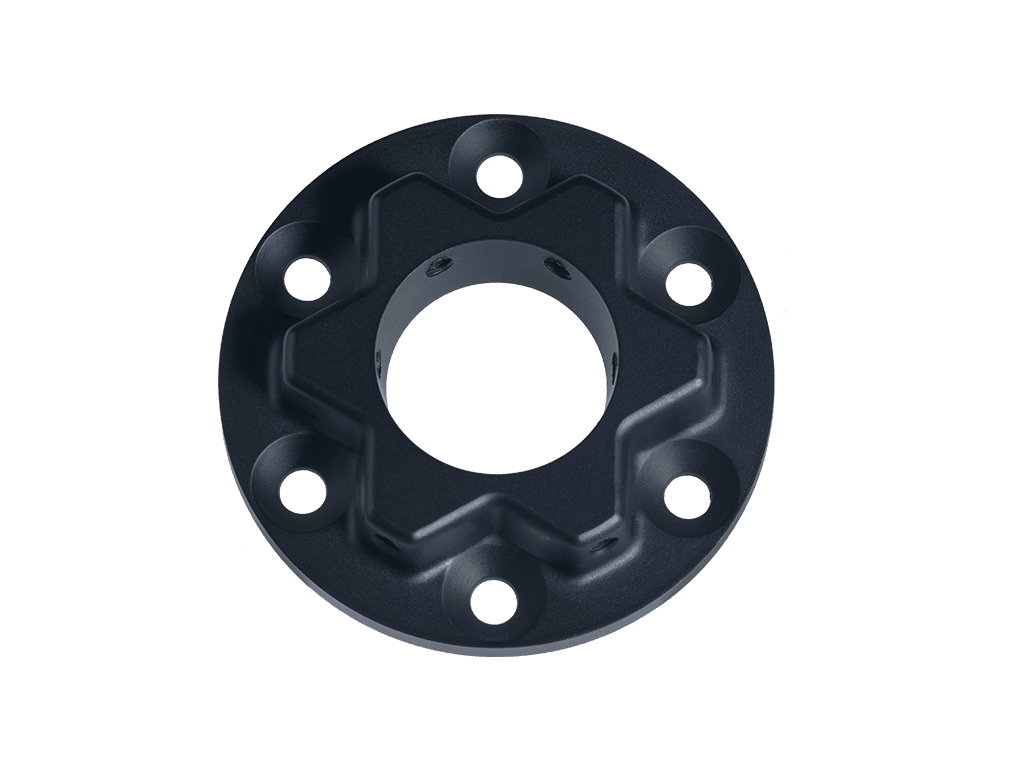

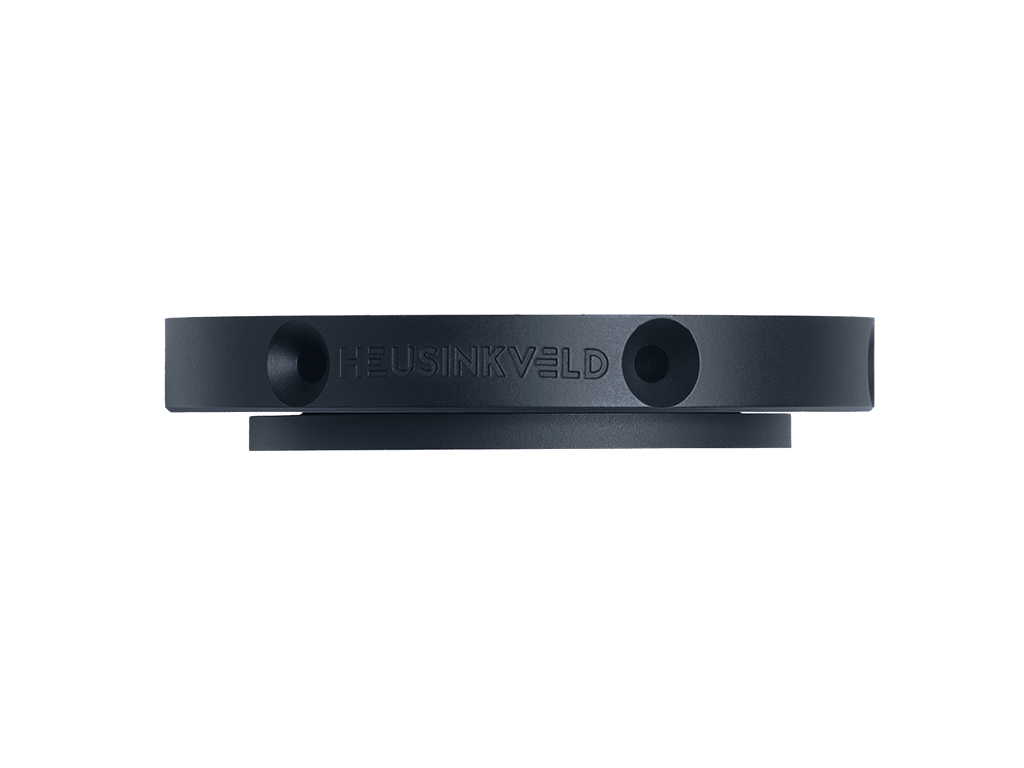

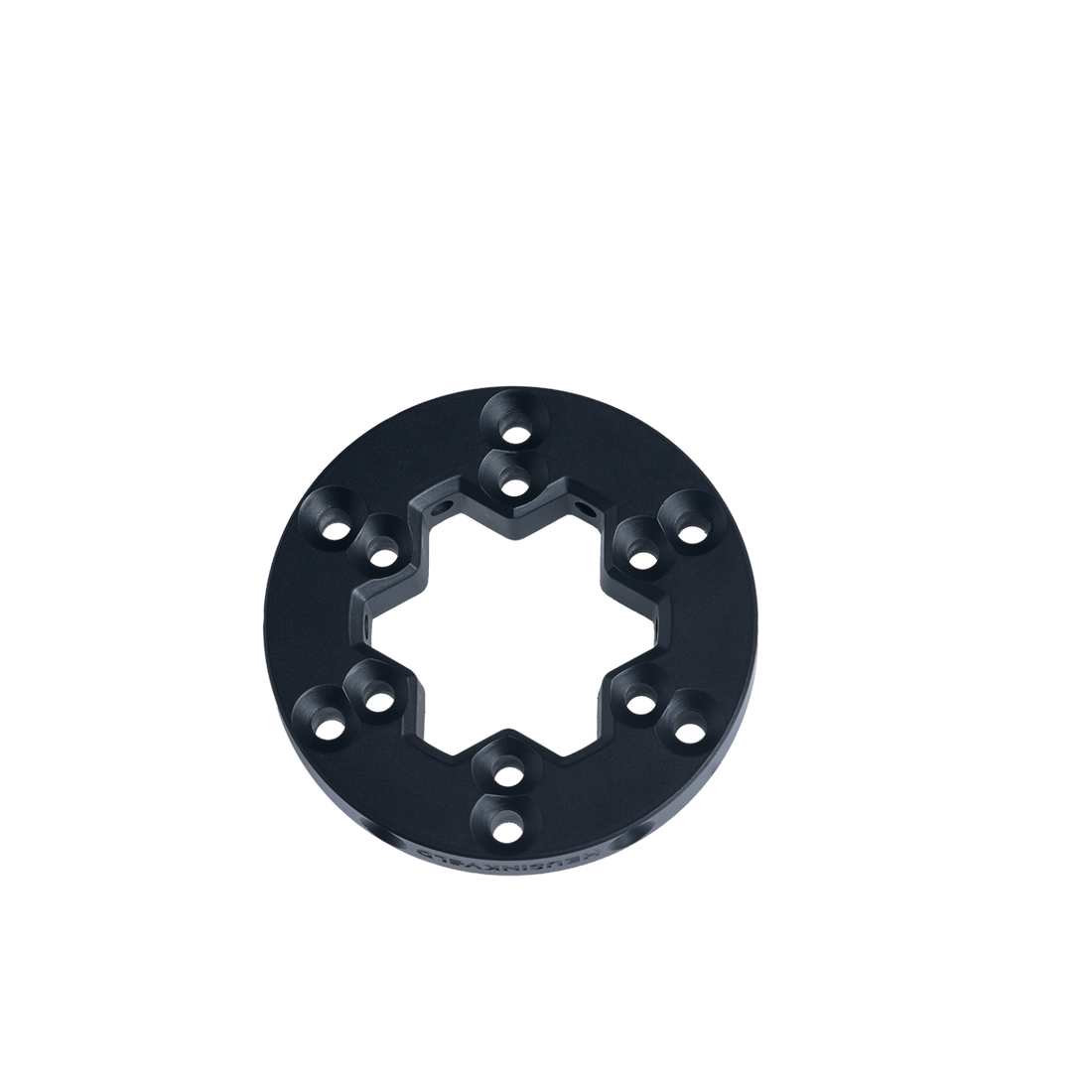

The Heusinkveld Steering Wheel Adapter converts a 50,8mm threaded hub pattern (with 6 inserts) to a 70mm pattern (with 6 inserts). The adapter has depth of only 15mm.

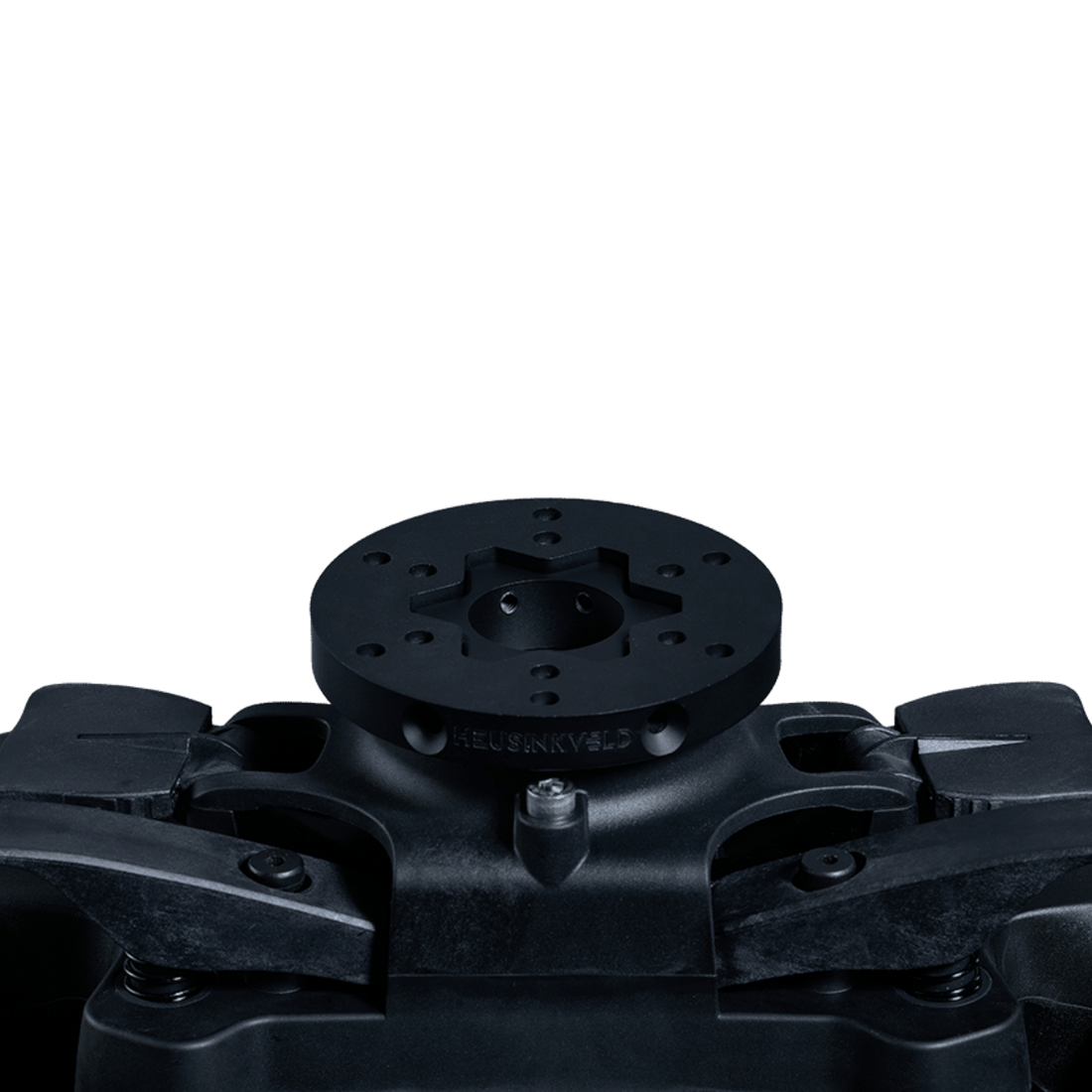

This adapter will let you fit the Heusinkveld One steering wheel to wheelbases which have a 70mm quick release system.
FITS ANY STEERING WHEEL

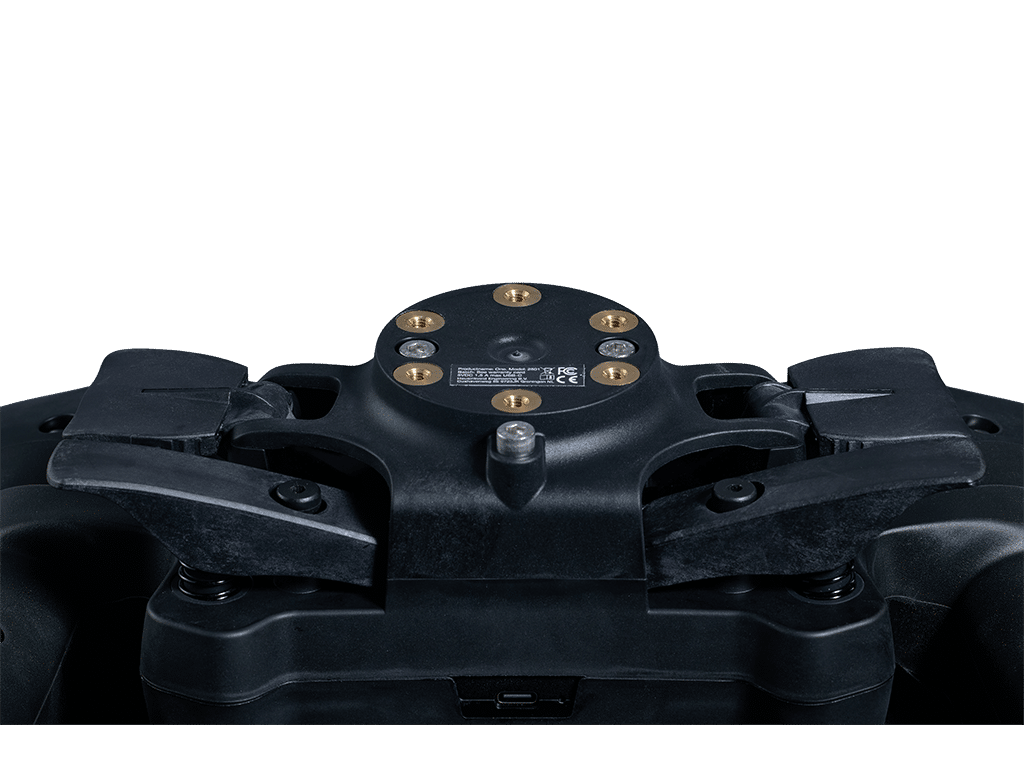

Do you have a different brand steering wheel for which you wants to convert the hub pattern? This adapter fits any steering wheel with a 50,8mm threaded hub pattern with 6 inserts.
Mounting materials and tools to connect the adapter to a Heusinkveld One steering wheel (M5), to connect the adapter to a 70mm threaded QR (M5) and to connect both pieces of the adapter are included.
