Throttle Travel
Pedal throw can be adjusted using a dedicated knob on the throttle main shaft.
Cube Controls SPO1 Core Pedals
$859.00
Cube Controls SPO1 Core Pedals
$859.00
Precise. Customizable. Compact.

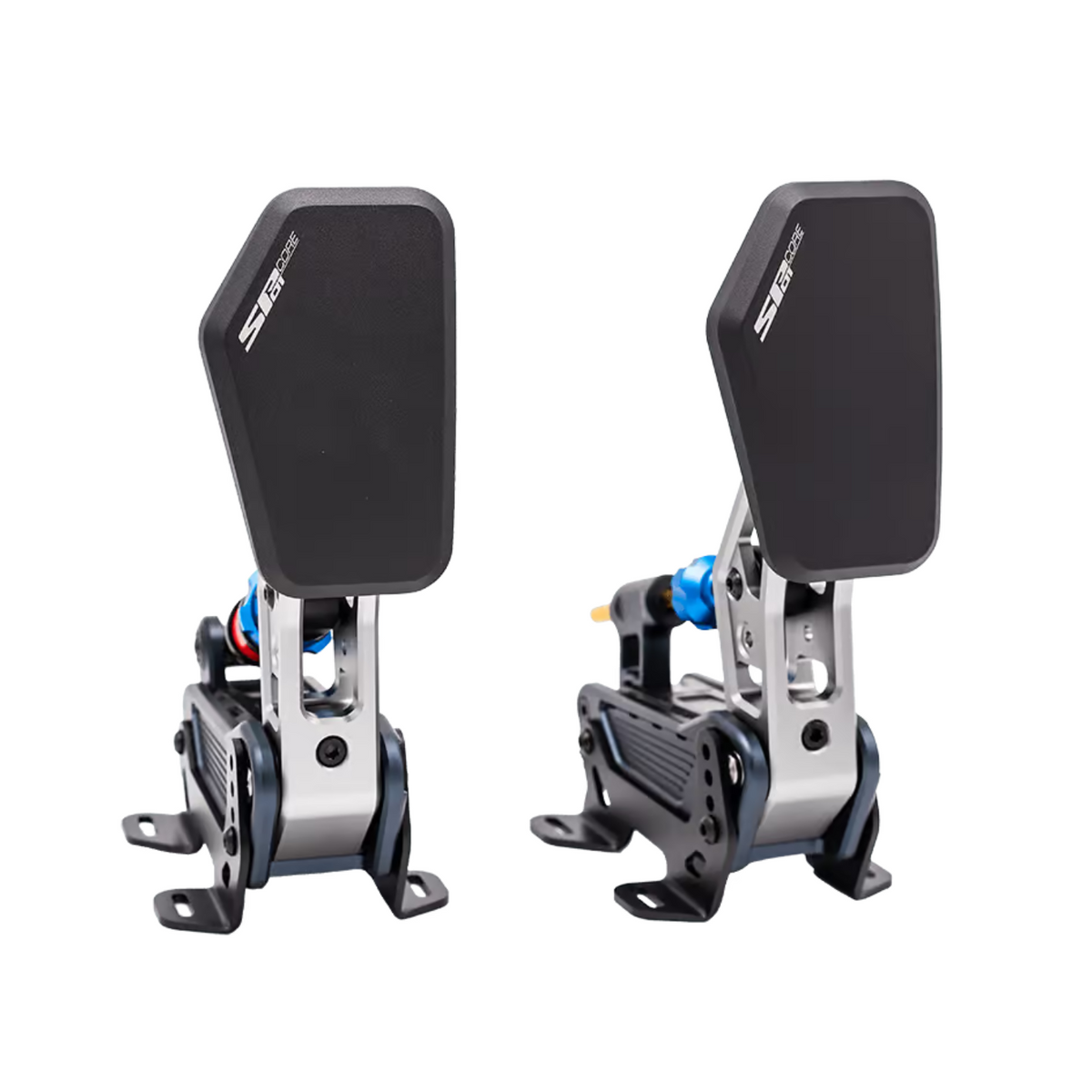

Cube Controls SP01 Core Pedals
The Cube Controls SP01 Core is designed as an entry point into the Cube Controls pedal range while retaining precision-focused construction and extensive adjustability.
The main structure is CNC-machined from a single block of aluminum and uses precision press-fit ball bearings with Seegers. Its compact, lightweight architecture is supported by an optimized FEM design intended to create a flex-free structure.
The brake uses a 200 kg precision load cell with 16-bit resolution, while the throttle uses a 16-bit Hall sensor. Travel, load, and preload can be adjusted to tune the pedals to different driving preferences.
The SP01 Core is also compatible with Cube Controls' previous Performance Kit, allowing springs, dampers, and elastomers to be changed for additional tuning. An integrated PCB and USB-C connection keep the electronic system contained within the pedal assembly. The product includes a 5-year warranty.
The main structure is CNC-machined from a single block of aluminum and uses precision press-fit ball bearings with Seegers. Its compact, lightweight architecture is supported by an optimized FEM design intended to create a flex-free structure.
The brake uses a 200 kg precision load cell with 16-bit resolution, while the throttle uses a 16-bit Hall sensor. Travel, load, and preload can be adjusted to tune the pedals to different driving preferences.
The SP01 Core is also compatible with Cube Controls' previous Performance Kit, allowing springs, dampers, and elastomers to be changed for additional tuning. An integrated PCB and USB-C connection keep the electronic system contained within the pedal assembly. The product includes a 5-year warranty.
CNC-Machined Aluminum Structure
The main structure is CNC-machined from a single block of aluminum for a compact and rigid pedal assembly.
200 kg Load Cell Brake
The brake uses a 200 kg precision load cell with directly applied force and 16-bit resolution.
Fully Adjustable Pedal Feel
Travel, load, and preload can be adjusted to tune the pedal response to different driving preferences.
Performance Kit Compatible
Compatible with the previous Cube Controls Performance Kit for changing dampers, springs, and elastomers.
Optimized FEM Structure
The pedal structure uses an optimized FEM design intended to provide a flex-free platform.
16-Bit Throttle Sensing
The throttle uses a 16-bit Hall sensor with improved readings.
Integrated USB-C Electronics
The main control electronics use a USB-C connection and are integrated into the pedal system.
Adjustable Pedal Angle
Custom brackets allow the main pedal body angle to be adjusted in 5° increments.
Product Details
Technical Specifications
| Main Structure | CNC-machined aluminum from a single block |
|---|---|
| Main Bearings | Precision press-fit ball bearings with Seegers |
| Structural Design | Optimized FEM design for a flex-free structure |
| Pedal Body Angle | Adjustable in 5° increments |
| Main Spring | Redesigned mainspring with improved geometry |
| Mounting Brackets | Stainless steel brackets designed for easier mounting |
| Throttle Travel | Adjustable through a dedicated knob on the main shaft |
| Throttle Spring Preload | Adjustable |
| Throttle Main Shaft | Precision machined with high-wear-resistance plating |
| Throttle Sleeve | Tolerance-machined self-lubricating nylon sleeve |
| Throttle Sensor | 16-bit Hall sensor |
| Electronics Connection | USB-C |

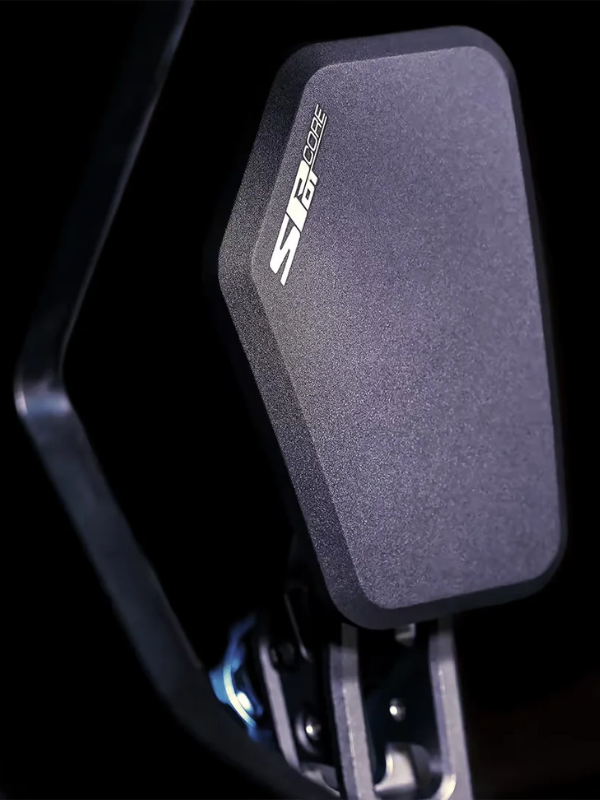

| Brake Pedal Faceplate | Lightweight die-cast faceplate with textured grip |
| Brake Spring Preload | Fine-tuning preload adjustment on the main pedal |
| Brake Compression Preload | Adjustable preload ring with counter knob |
| Brake Main Shaft | Precision machined with high-wear-resistance plating |
| Brake Compression Elements | Multiple springs and rubber dampers available |
| Brake Washers | Self-centering spring and damper washers |
| Brake Load Cell | 200 kg precision load cell |
| Brake Resolution | 16-bit |
| Warranty | 5 years |
Configure Your Pedal Feel
Adjustable for Different Driving Styles
The SP01 Core is designed around mechanical adjustability and compact installation. Travel, load, preload, springs, dampers, and elastomers can be tuned to change pedal response, while compatibility with the previous Cube Controls Performance Kit expands the available adjustment options. Its compact design is intended to fit most sim-racing rigs without requiring external electronics.
Spring Preload
The throttle provides an accessible spring preload adjustment.
Brake Preload
Fine-tune brake spring preload on the pedal and preload on the compression elements.
Springs & Dampers
Multiple spring and rubber damper compression elements are available for brake tuning.
Previous Performance Kit
The SP01 Core is compatible with the previous Cube Controls Performance Kit.
Most Sim-Racing Rigs
Its compact and lightweight design is intended to improve compatibility with most racing rigs.
Integrated Electronics
The electronics are integrated into the pedal assembly, avoiding the need for an external electronics unit.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
Precise, customizable, compact, durable, intuitive
The pedal set features a 200 kg load cell with adjustable travel, load, and preload for precise customization. A redesigned brake arm improves load distribution and braking accuracy. Its compact, lightweight design enhances cockpit compatibility, while the integrated PCB and intuitive software ensure ease of use. Includes a 5-year warranty.
Race. Refine. Dominate
Compared to the previous model, the pedal set’s mechanics have been completely redesigned to ensure maximum performance and reliability. Every component has been optimized for precise load distribution and improved braking accuracy, making it more responsive and durable, providing drivers with an enhanced and consistent sim racing experience
The SP01 Core pedals are fully customizable in weight, travel, and preload, adapting to any driving style and car. Compatible with our previous performance kit, they allow you to swap dampers, springs, and elastomers for precise tuning. Lightweight and compact, they fit most rigs without external electronics.
