USB Mode
Supports wired operation through the Q-CONN magnetic connection cable.
Cube Controls F-CORE EVO GT Black - Hub & Paddles
$629.00
Cube Controls F-CORE EVO GT Black - Hub & Paddles
$629.00
The Core, Evolved

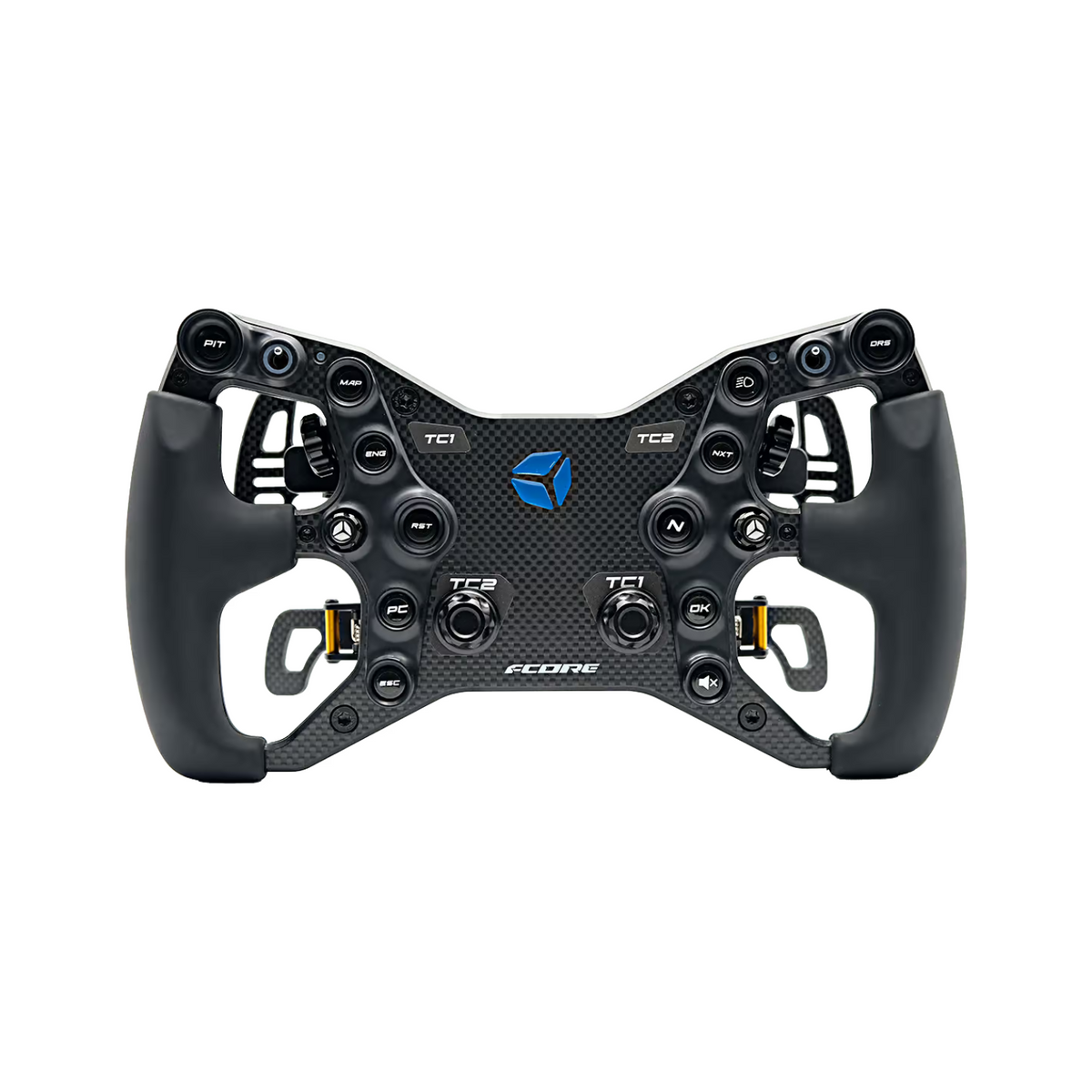

Cube Controls F-CORE EVO GT
The Cube Controls F-CORE EVO is designed to provide a refined racing experience through upgraded components, improved tactile control, and a clean, modern design.
The EVO generation introduces new full-metal encoders for enhanced feel and precision. Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body, while improved silicone and rubber handgrips and redesigned button guards support comfortable operation.
This GT version uses Cube Controls' standard motorsport shifters, described as the same type used in real racing cars. The wheel also features 12 momentary buttons, front and thumb rotary encoders, toggle switches, a multidirectional joystick with integrated encoder, and software-configurable clutch and shifter functions.
USB + Bluetooth Dual Mode provides wired or wireless operation, while the Q-CONN magnetic cable handles the physical USB connection.
The EVO generation introduces new full-metal encoders for enhanced feel and precision. Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body, while improved silicone and rubber handgrips and redesigned button guards support comfortable operation.
This GT version uses Cube Controls' standard motorsport shifters, described as the same type used in real racing cars. The wheel also features 12 momentary buttons, front and thumb rotary encoders, toggle switches, a multidirectional joystick with integrated encoder, and software-configurable clutch and shifter functions.
USB + Bluetooth Dual Mode provides wired or wireless operation, while the Q-CONN magnetic cable handles the physical USB connection.
Full-Metal Encoders
The F-CORE EVO introduces full-metal encoders for improved tactile feedback and precision.
4 mm Carbon Fiber Front Plate
Uses a 4 mm pure carbon-fiber front plate paired with a die-cast aluminum main body.
Improved Handgrips
Silicone and rubber handgrips are paired with redesigned button guards for improved ergonomics and feel.
GT Motorsport Shifters
The GT version uses Cube Controls' standard motorsport shifters, described as being used in real racing cars.
Comprehensive Driver Controls
Features 12 momentary buttons, two front rotary encoders, two thumb rotary encoders, two toggle switches, and a multidirectional joystick with integrated encoder.
USB + Bluetooth Dual Mode
Supports both USB and Bluetooth operation for flexible PC connectivity.
Q-CONN Magnetic Connection
Uses Cube Controls' Q-CONN magnetic connection cable for wired operation and charging.
VR Friendly
The F-CORE EVO is specifically listed as VR friendly.
Product Details

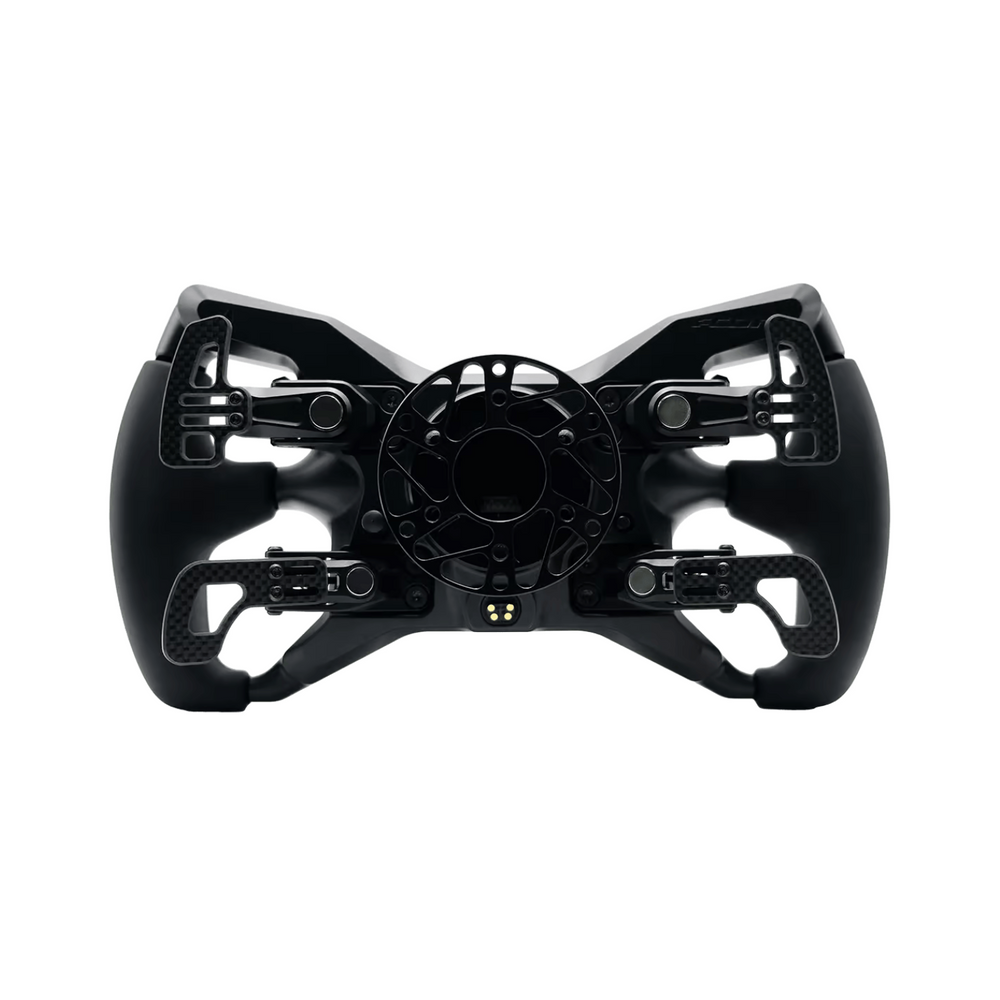

Technical Specifications
| Front Plate | Pure carbon fiber, 4 mm |
|---|---|
| Main Body | Die-cast aluminum |
| Handgrips | Silicone and rubber |
| Grip-to-Grip Length | 29.00 cm |
| Maximum Grip Diameter | 43.00 mm |
| Button Assembly | Proprietary custom-made tactile button assembly |
| Button Guards | Improved ergonomic button guards |
| Momentary Buttons | 12 |
| Toggle Switches | 2 on/off switches with status LEDs |
| Front Rotary Encoders | 2 |
| Thumb Rotary Encoders | 2 |
| Joystick | Multidirectional joystick with integrated encoder |
| PRO Clutch Compatibility | Full-aluminum PRO Clutches compatible, sold separately |
| Launch Control Clutch System | Yes |
| Rear Pushbutton | On/off pushbutton |
| Connection | USB + Bluetooth Dual Mode |
| Cable | Q-CONN magnetic connection cable |
| Charging Connector | Straight-back charging connector |
| Battery | 2000 mAh LiPo |
| Battery Life | Up to 6 hours |
| Charging Electronics | Integrated |
| Battery / Connection Status LEDs | Green when charged, red while charging, yellow when out of power |
| Weight | 895 g |
| VR Support | VR Friendly |
| Clutch / Shifter Configuration | In-software configuration supported |
Precision Driver Control

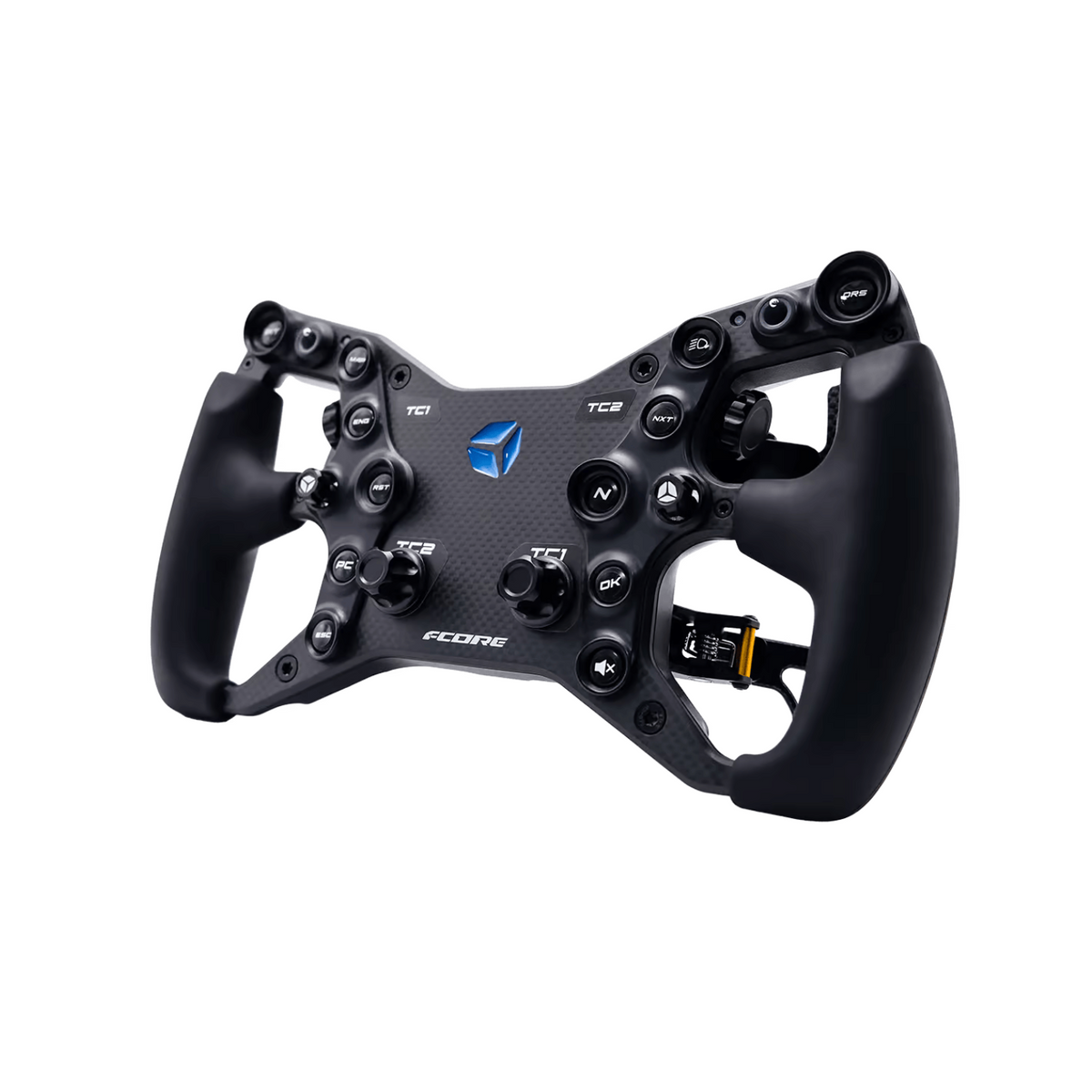

Updated Controls, GT Motorsport Shifting
The F-CORE EVO updates the original F-CORE with new full-metal encoders and revised shifter options. This GT configuration uses Cube Controls' standard motorsport shifters, while the wheel's buttons, encoders, switches, joystick, and software-configurable functions provide additional on-wheel control.
1
Full-Metal Encoders | New full-metal encoders are designed to improve tactile feedback, immersion, and precision.
2
GT Motorsport Shifters | The GT variant uses Cube Controls' standard motorsport shifters, described as being used in real racing cars.
3
12 Momentary Buttons | Twelve momentary buttons form the main push-button control layout.
4
Front Rotary Encoders | Two front rotary encoders provide additional adjustment controls.
5
Thumb Rotary Encoders | Two thumb rotary encoders provide controls positioned for thumb operation.
6
Multidirectional Joystick | A multidirectional joystick includes an integrated encoder for additional input functionality.
7
Launch Control Clutch System | The F-CORE EVO specifications include support for a launch control clutch system.
8
Software Configuration | Clutch and shifter functions can be configured through software.
Connection & Mounting
Dual-Mode & Quick Release Compatibility
The F-CORE EVO supports USB + Bluetooth Dual Mode connectivity. Its wheel hub is specified as compatible with Formula-style quick-release hubs using the listed mounting configurations. The quick-release hub itself is sold separately.
Bluetooth Mode
Supports Bluetooth operation as part of the USB + Bluetooth Dual-Mode system.
Formula-Style Quick Release Hubs
The wheel hub is specified as compatible with formula-style quick release hubs.
3-Bolt / 1-Inch
Supports the specified 3-bolt, 1-inch quick release hub configuration.
70 mm PCD
Supports the specified 70 mm PCD quick release hub configuration.
Full-Aluminum PRO Clutches
Compatible with Cube Controls Full-Aluminum PRO Clutches, sold separately.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
The Next-Gen Steering Wheel
The F-Core Evo combines cutting-edge technology, precision mechanics, and refined design to deliver a top-tier racing experience, now accessible to everyone.
The Core, Evolved
We know that in racing every detail matters. Every millisecond can make the difference between winning and losing, that’s why we made the F-Core Evo. Taking everything that the F-Core did and making it even better, the F-Core Evo brings new full metal encoders for an improved feeling, immersion and precision, giving you unmatched performance on track.
Two Shifters, Your Choice
With the F-Core Evo you can choose between two motorsport grade shifters. The Formula version comes with our R-Spec, super fast and adjustable, the same you find on our CSX-3. The GT variant brings you our standard motorsport shifters, used in real racing cars, for the best realism possible.
