USB Mode
Supports wired operation through the Q-CONN magnetic connection cable.

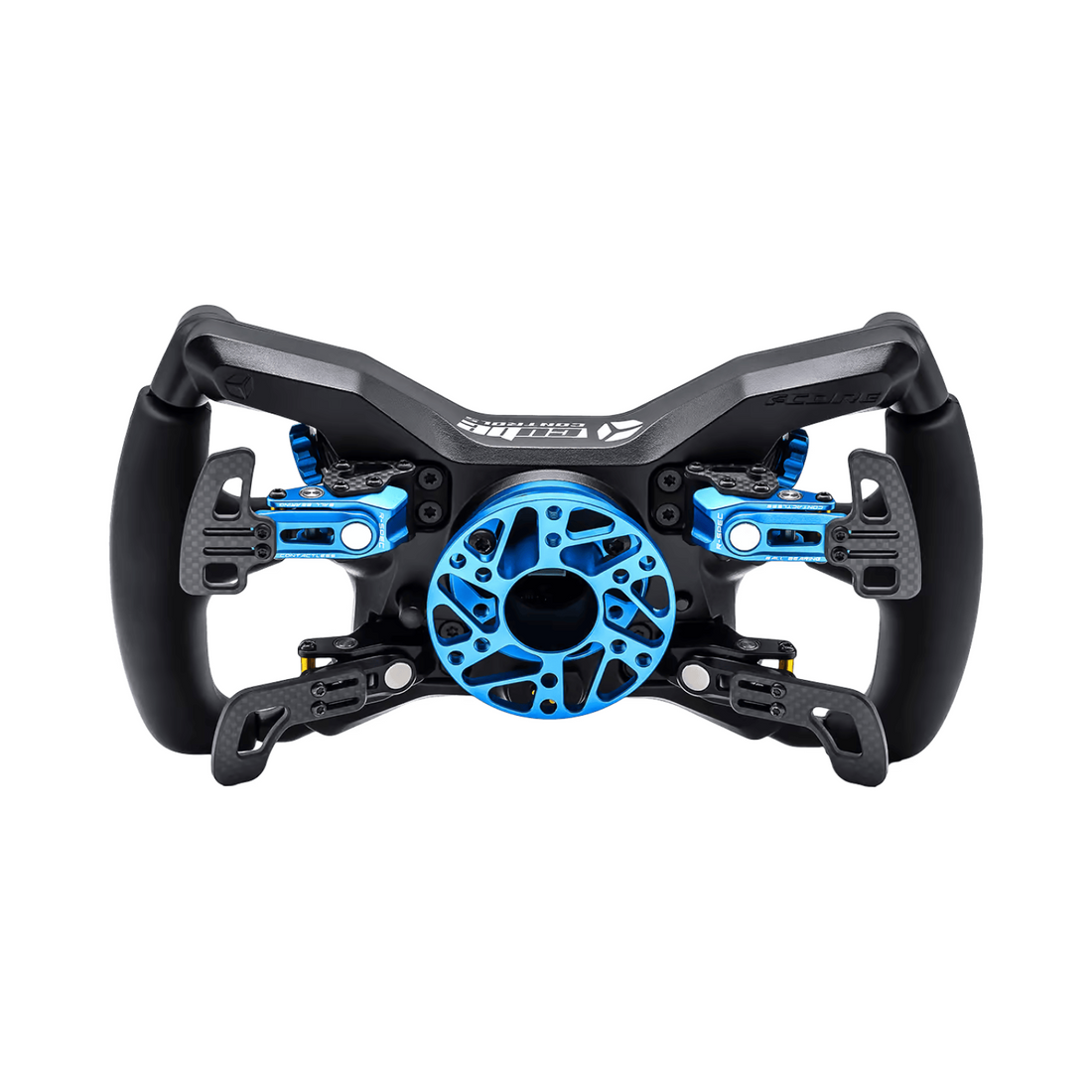

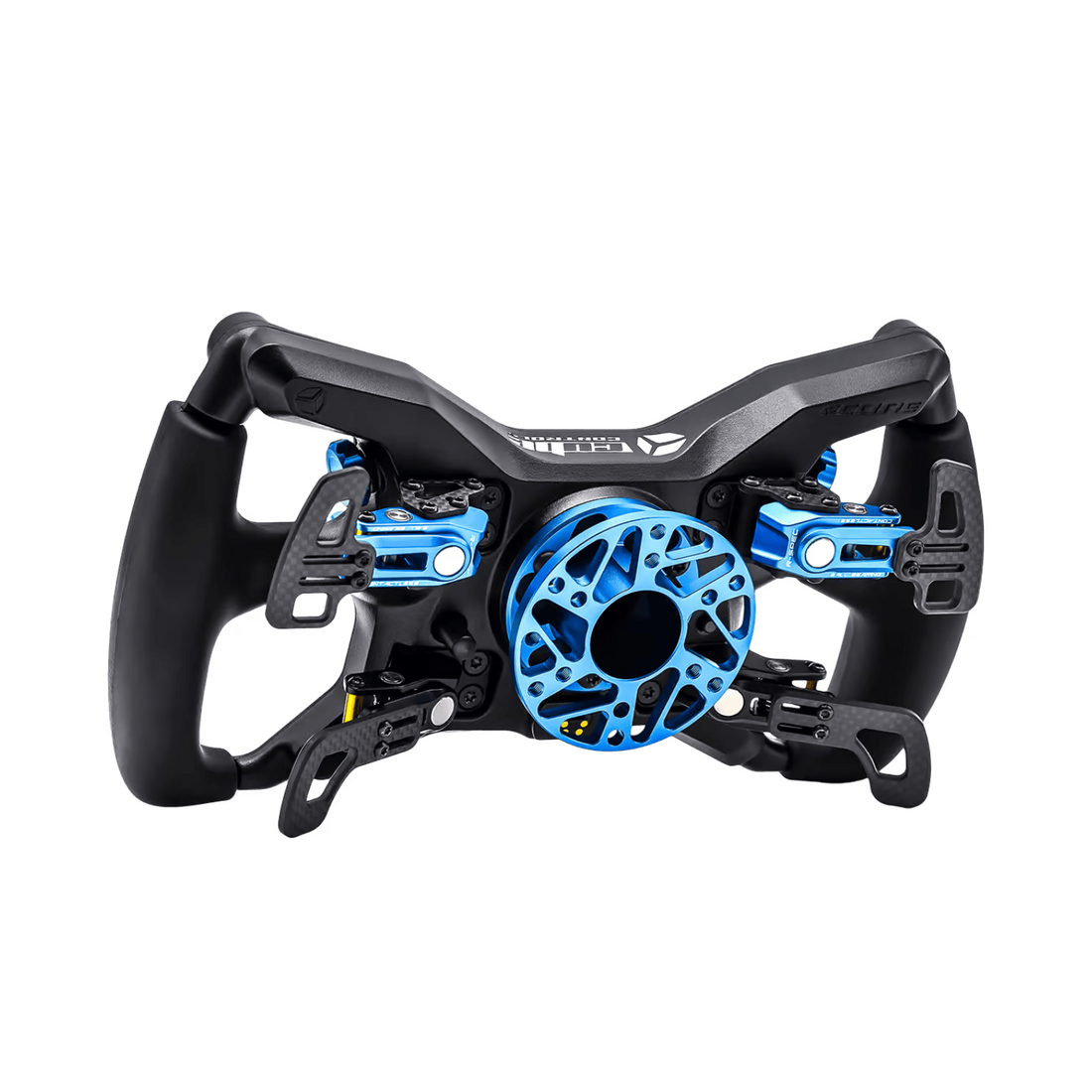

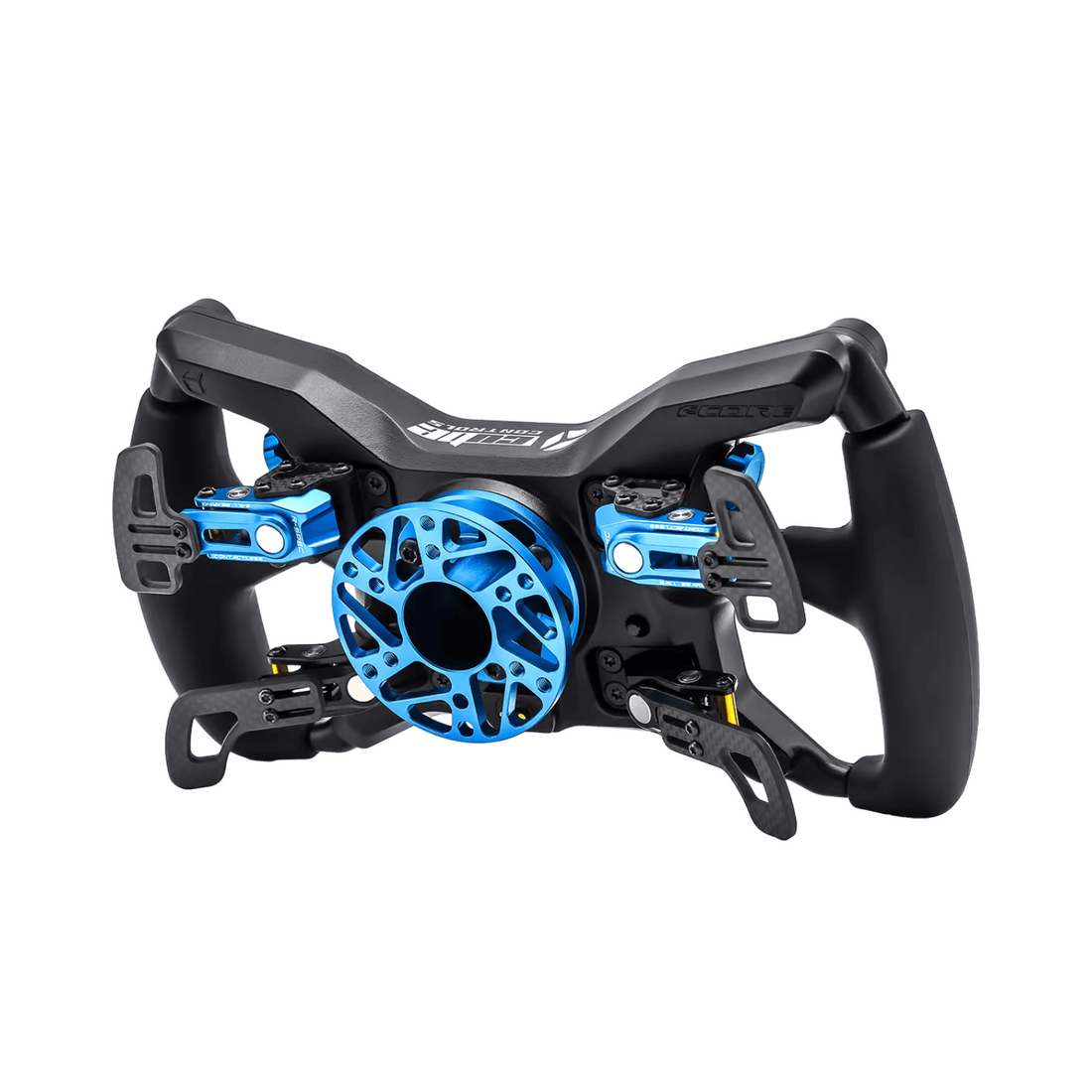

Cube Controls F-CORE EVO Formula Blue - Hub & Paddles
$639.00
Cube Controls F-CORE EVO Formula Blue - Hub & Paddles
$639.00
The Core, Evolved

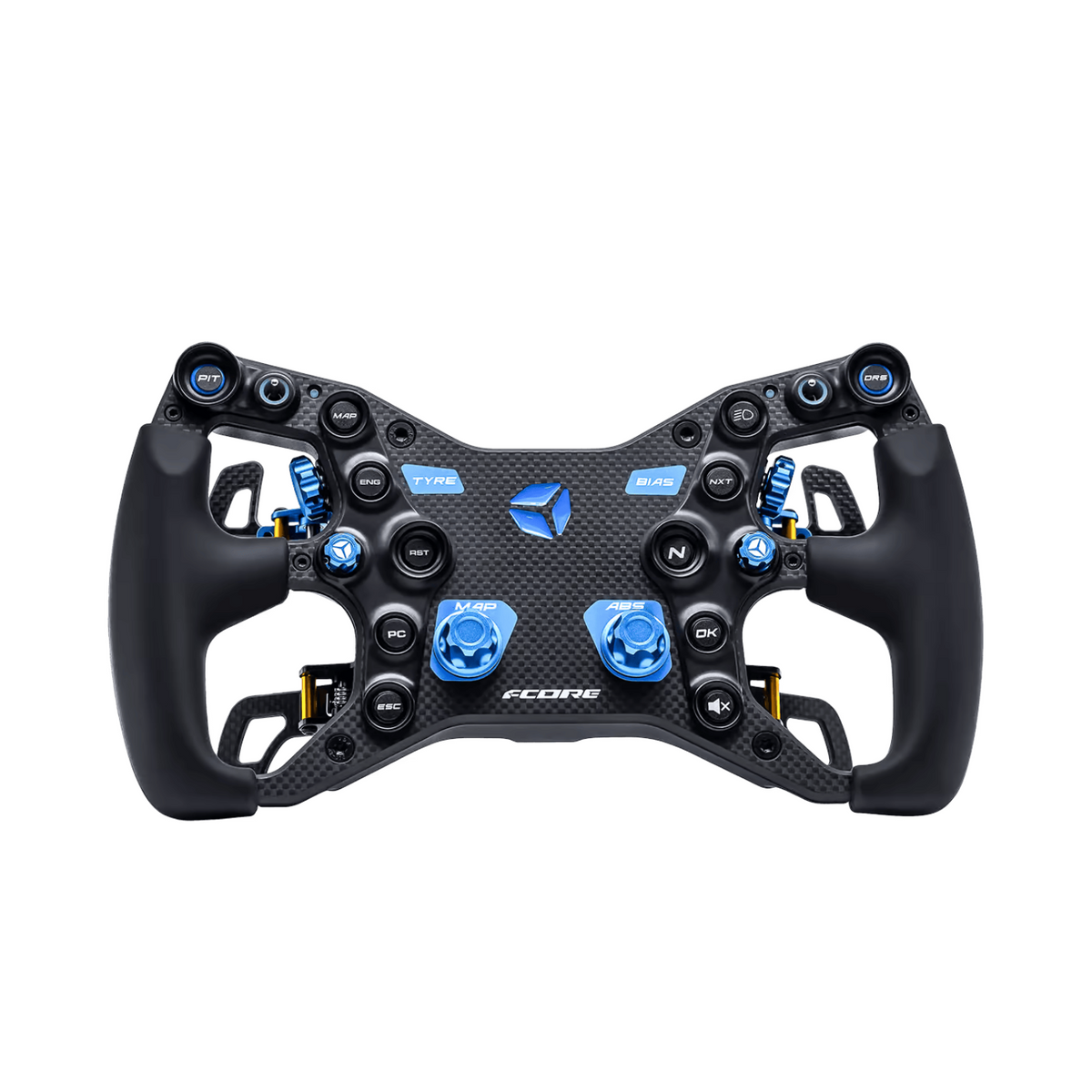

F-CORE EVO Formula Blue
The Cube Controls F-CORE EVO combines precision mechanics, updated controls, and a refined Formula-style design.
The EVO generation introduces new full-metal encoders for improved tactile feedback and precision. Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body, while improved silicone and rubber handgrips and redesigned button guards support comfortable control.
This Formula version is equipped with Cube Controls' R-Spec shifters, described as fast and adjustable and the same shifter design used on the CSX-3.
The F-CORE EVO also features 12 momentary buttons, two front rotary encoders, two thumb rotary encoders, two toggle switches, a multidirectional joystick with integrated encoder, and software-configurable clutch and shifter functions. USB + Bluetooth Dual Mode provides wired or wireless operation, with the Q-CONN magnetic cable used for wired connection and charging.
The EVO generation introduces new full-metal encoders for improved tactile feedback and precision. Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body, while improved silicone and rubber handgrips and redesigned button guards support comfortable control.
This Formula version is equipped with Cube Controls' R-Spec shifters, described as fast and adjustable and the same shifter design used on the CSX-3.
The F-CORE EVO also features 12 momentary buttons, two front rotary encoders, two thumb rotary encoders, two toggle switches, a multidirectional joystick with integrated encoder, and software-configurable clutch and shifter functions. USB + Bluetooth Dual Mode provides wired or wireless operation, with the Q-CONN magnetic cable used for wired connection and charging.
Full-Metal Encoders
The F-CORE EVO introduces full-metal encoders for improved tactile feedback and precision.
4 mm Carbon Fiber Front Plate
Built with a 4 mm pure carbon-fiber front plate and a die-cast aluminum main body.
Improved Handgrips
Features updated silicone and rubber handgrips with improved button guards for better ergonomics and feel.

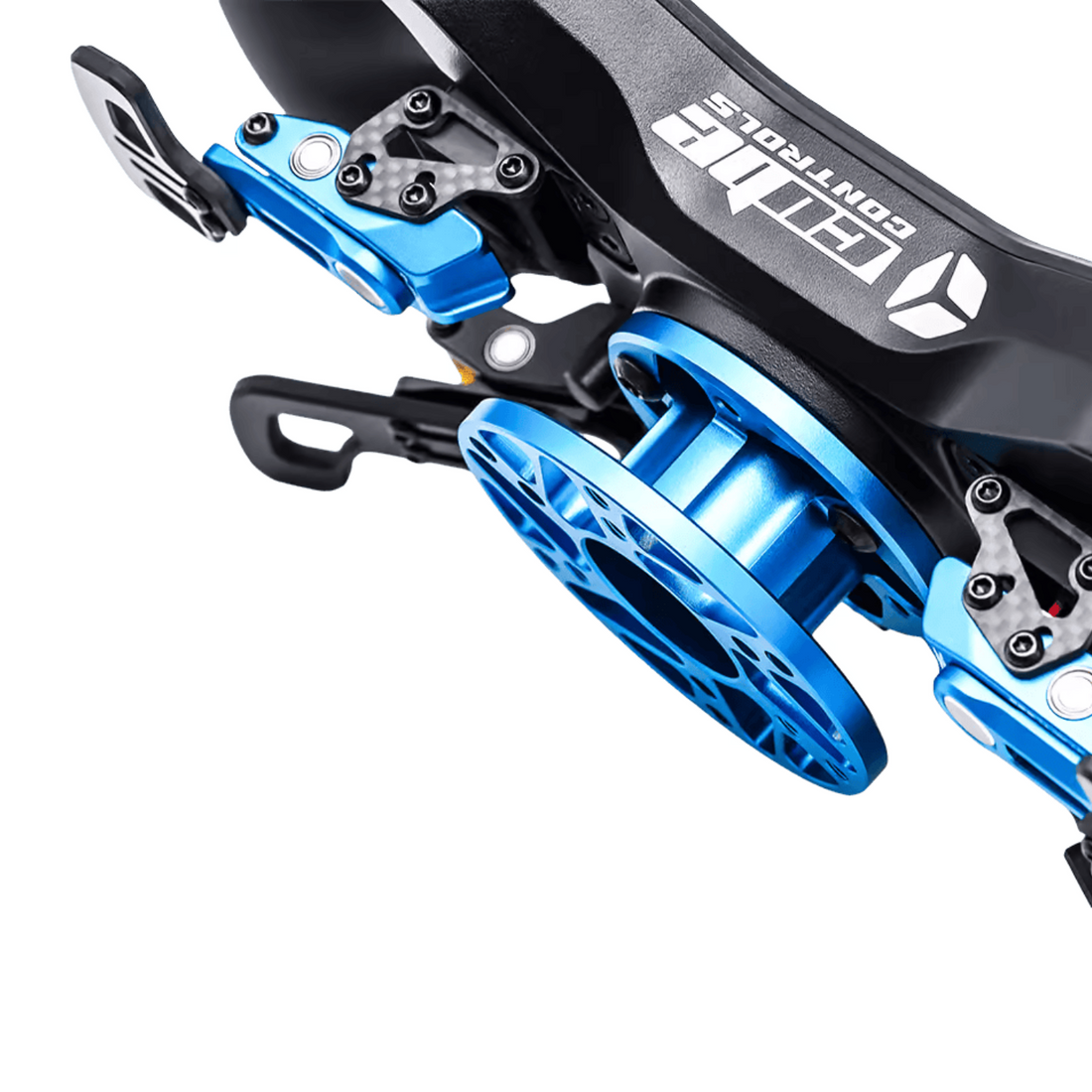

R-Spec Formula Shifters
The Formula version uses Cube Controls R-Spec shifters, described as fast and adjustable and the same design used on the CSX-3.
Comprehensive Driver Controls
Features 12 momentary buttons, front rotary encoders, thumb rotary encoders, toggle switches, and a multidirectional joystick with integrated encoder.
USB + Bluetooth Dual Mode
Supports both USB and Bluetooth operating modes.
Q-CONN Magnetic Connection
Uses Cube Controls' Q-CONN magnetic connection cable for wired operation and charging.
VR Friendly
The F-CORE EVO is specifically listed as VR friendly.
Product Details
Technical Specifications
| Front Plate | Pure carbon fiber, 4 mm |
|---|---|
| Main Body | Die-cast aluminum |
| Handgrips | Silicone and rubber |
| Grip-to-Grip Length | 29.00 cm |
| Maximum Grip Diameter | 43.00 mm |
| Button Assembly | Proprietary custom-made tactile button assembly |
| Button Guards | Improved button guards with enhanced ergonomics and feel |
| Momentary Buttons | 12 |
| Toggle Switches | 2 on/off switches with status LEDs |
| Front Rotary Encoders | 2 |
| Thumb Rotary Encoders | 2 |
| Joystick | Multidirectional joystick with integrated encoder |
| PRO Clutch Compatibility | Full-aluminum PRO Clutches compatible, sold separately |
| Launch Control Clutch System | Yes |
| Rear Pushbutton | On/off pushbutton |
| Connection | USB + Bluetooth Dual Mode |
| Cable | Q-CONN magnetic connection cable |
| Charging Connector | Straight-back charging connector |
| Battery | 2000 mAh LiPo |
| Battery Life | Up to 6 hours |
| Charging Electronics | Integrated |
| Battery / Connection Status LEDs | Green when charged, red while charging, yellow when out of power |
| Weight | 895 g |
| VR Support | VR Friendly |
| Clutch / Shifter Configuration | In-software configuration supported |
Formula Driver Control

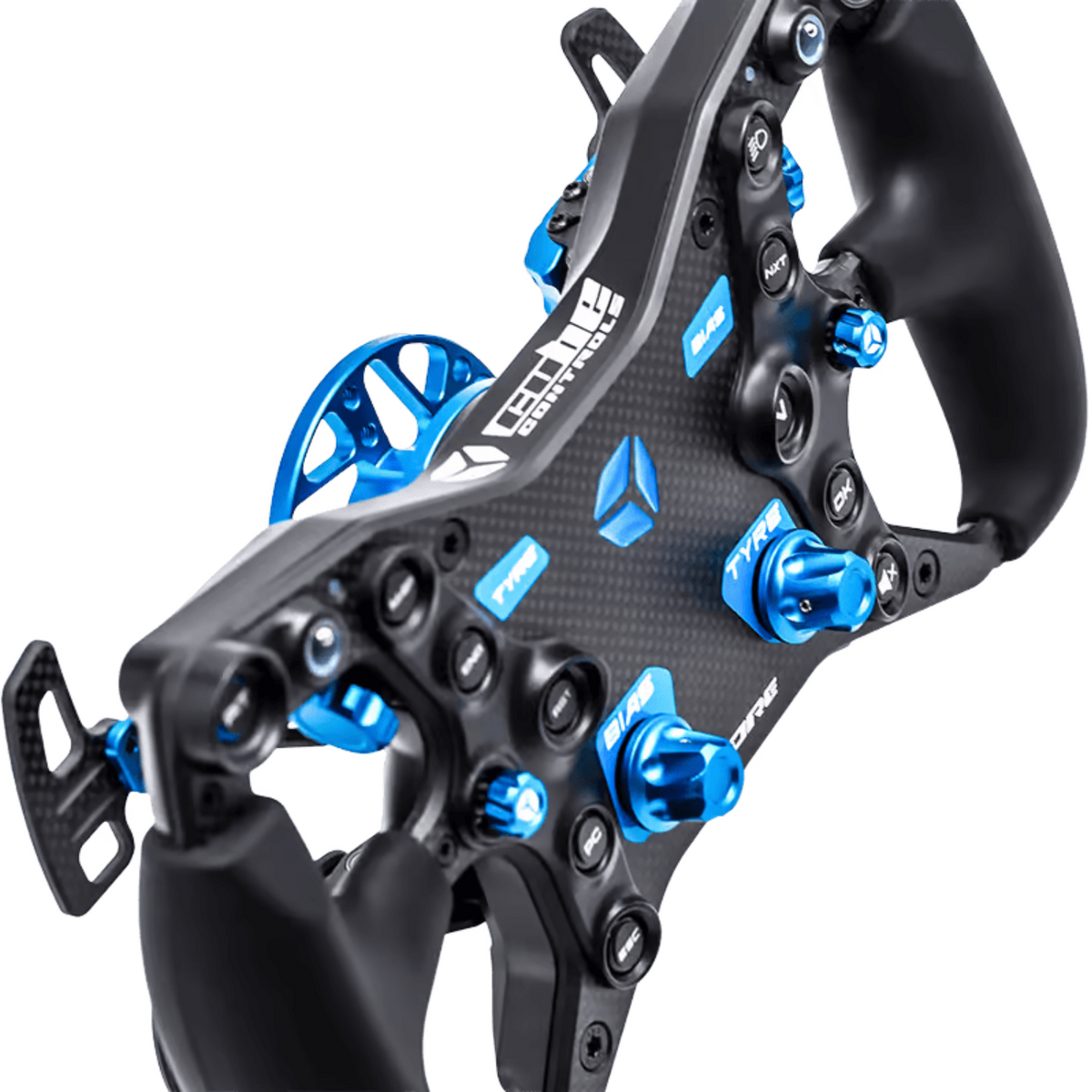

R-Spec Shifting & Updated Controls
The Formula version of the F-CORE EVO combines Cube Controls' R-Spec shifters with new full-metal encoders and a configurable control layout. The wheel also supports software-based clutch and shifter configuration.
1
R-Spec Formula Shifters | The Formula version uses Cube Controls R-Spec shifters, described as fast and adjustable and the same design used on the CSX-3.
2
Full-Metal Encoders | New full-metal encoders provide improved tactile feedback and precision.
3
12 Momentary Buttons | Twelve momentary buttons form the main push-button control layout.
4
Front Rotary Encoders | Two front rotary encoders provide additional adjustment controls.
5
Thumb Rotary Encoders | Two thumb rotary encoders provide controls within thumb reach.
6
Multidirectional Joystick | A multidirectional joystick includes an integrated encoder for additional input functionality.
7
Launch Control Clutch System | The F-CORE EVO specifications include a launch control clutch system.
8
Software Configuration | Clutch and shifter functions can be configured through software.
Connection & Mounting
Dual-Mode & Quick Release Compatibility
The F-CORE EVO supports USB + Bluetooth Dual Mode. Its wheel hub is specified as compatible with Formula-style quick-release hubs using the listed mounting configurations. The quick-release hub is sold separately.
Bluetooth Mode
Supports Bluetooth operation as part of the USB + Bluetooth Dual-Mode system.
Formula-Style Quick Release Hubs
The wheel hub is specified as compatible with formula-style quick release hubs.
3-Bolt / 1-Inch
Supports the specified 3-bolt, 1-inch quick release hub configuration.
70 mm PCD
Supports the specified 70 mm PCD quick release hub configuration.
Full-Aluminum PRO Clutches
Compatible with Cube Controls Full-Aluminum PRO Clutches, sold separately.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
The Next-Gen Steering Wheel
The F-Core Evo combines cutting-edge technology, precision mechanics, and refined design to deliver a top-tier racing experience, now accessible to everyone.
The Core, Evolved
We know that in racing every detail matters. Every millisecond can make the difference between winning and losing, that’s why we made the F-Core Evo. Taking everything that the F-Core did and making it even better, the F-Core Evo brings new full metal encoders for an improved feeling, immersion and precision, giving you unmatched performance on track.
Two Shifters, Your Choice
With the F-Core Evo you can choose between two motorsport grade shifters. The Formula version comes with our R-Spec, super fast and adjustable, the same you find on our CSX-3. The GT variant brings you our standard motorsport shifters, used in real racing cars, for the best realism possible.
Built for Serious Sim Racers
Engineered for performance. Built to last.
