USB Mode
Supports wired USB operation through the Q-CONN magnetic connection cable.
Cube Controls F-PRO Sim Racing Steering Wheel (USB/Bluetooth)
$1,069.00
Cube Controls F-PRO Sim Racing Steering Wheel (USB/Bluetooth)
$1,069.00
The Next-Gen Steering Wheel
Cube Controls F-PRO

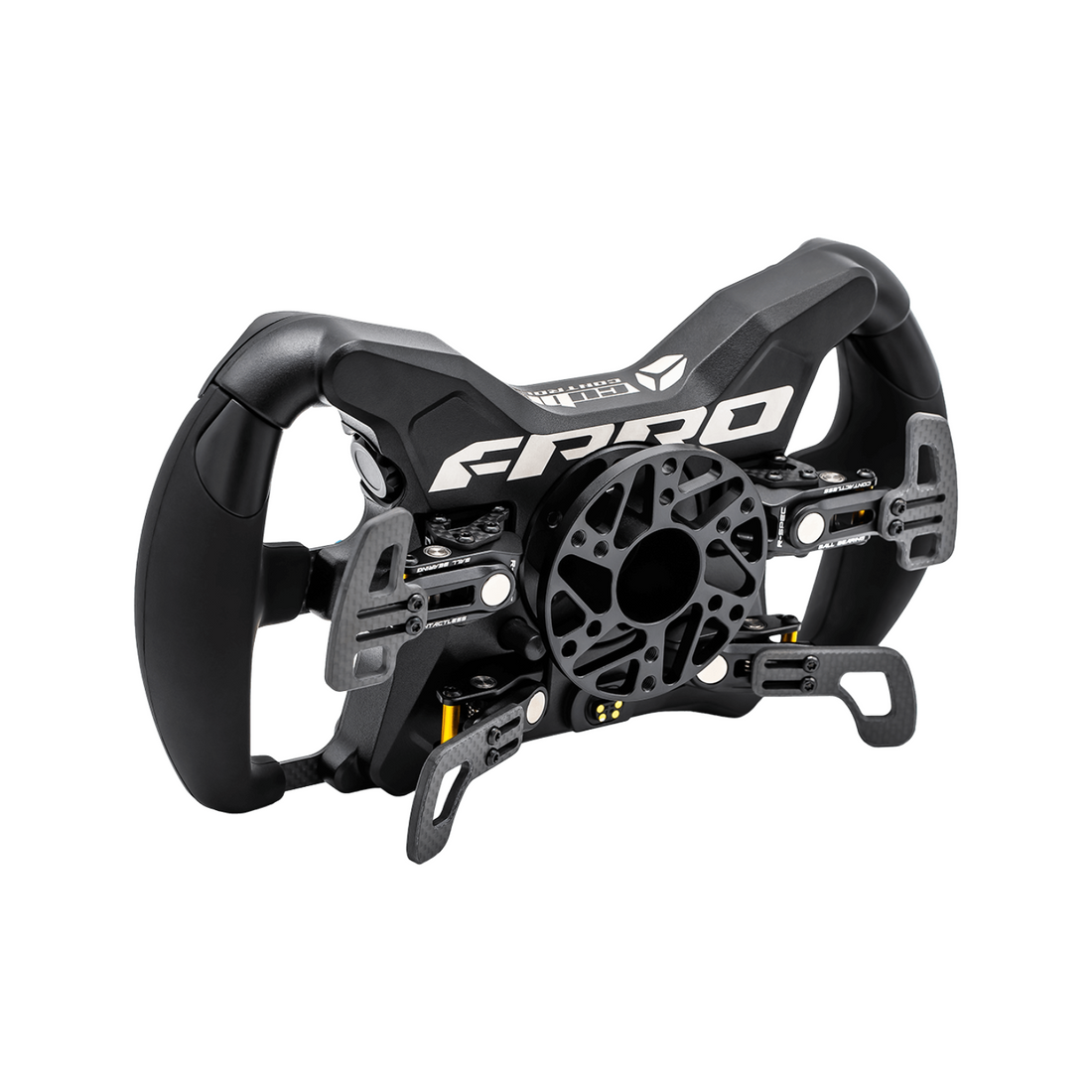

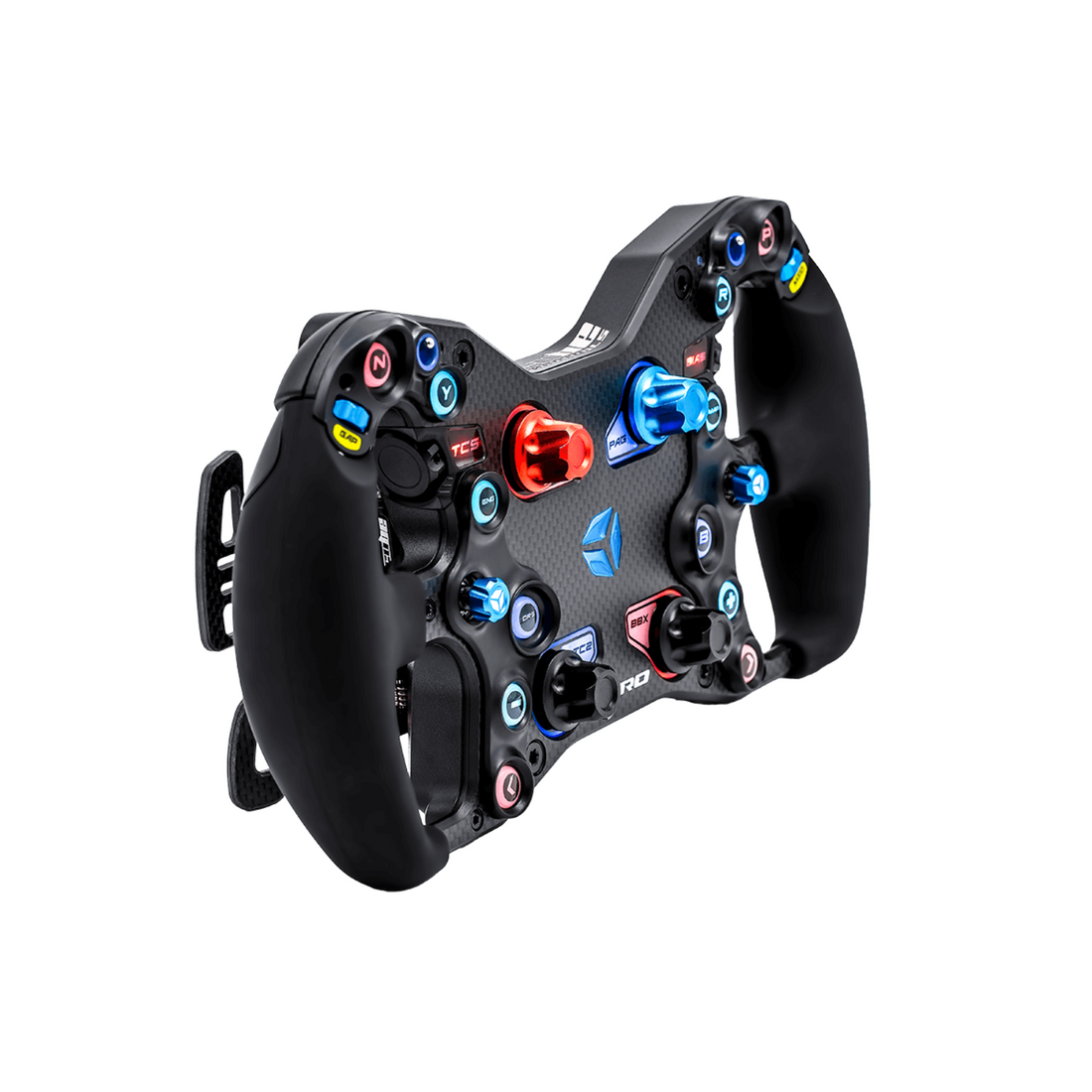

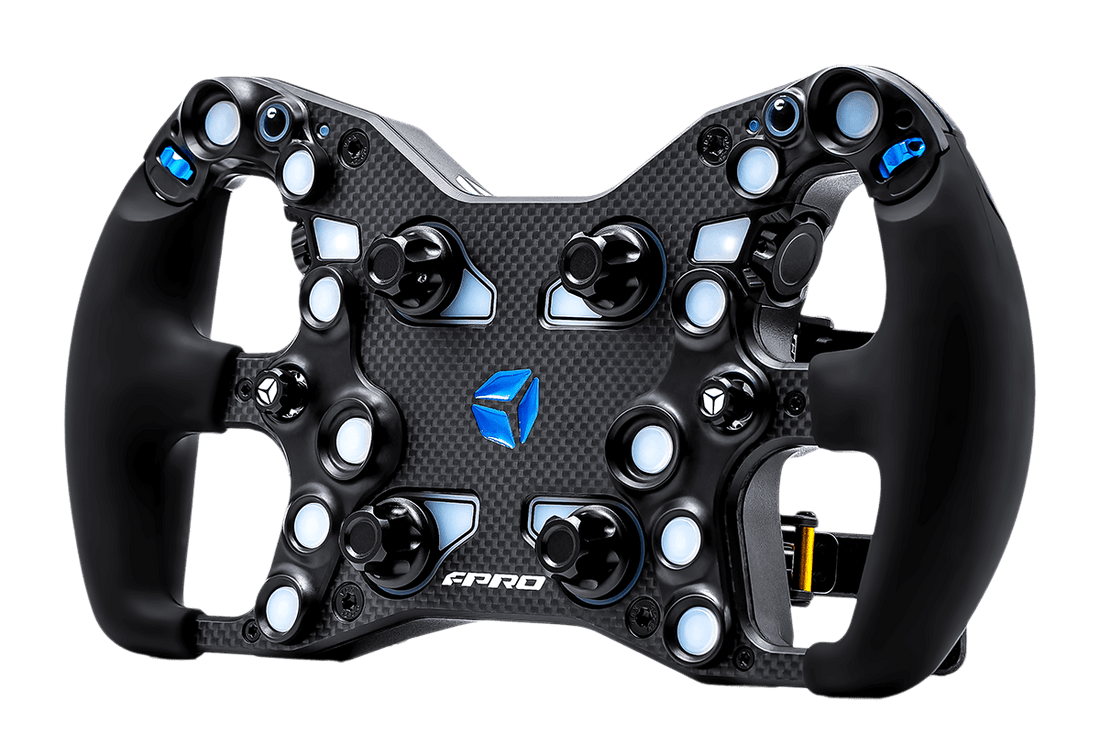

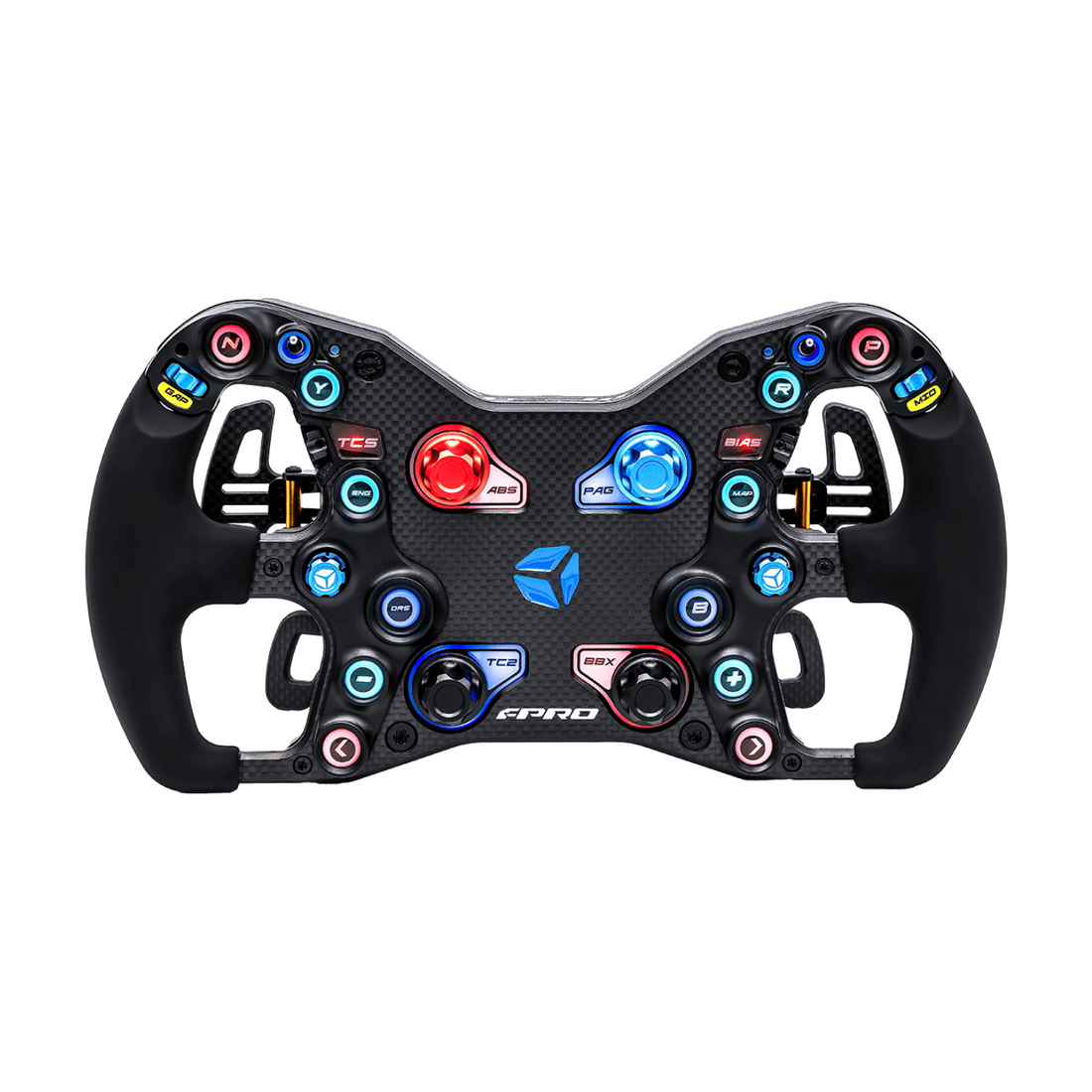

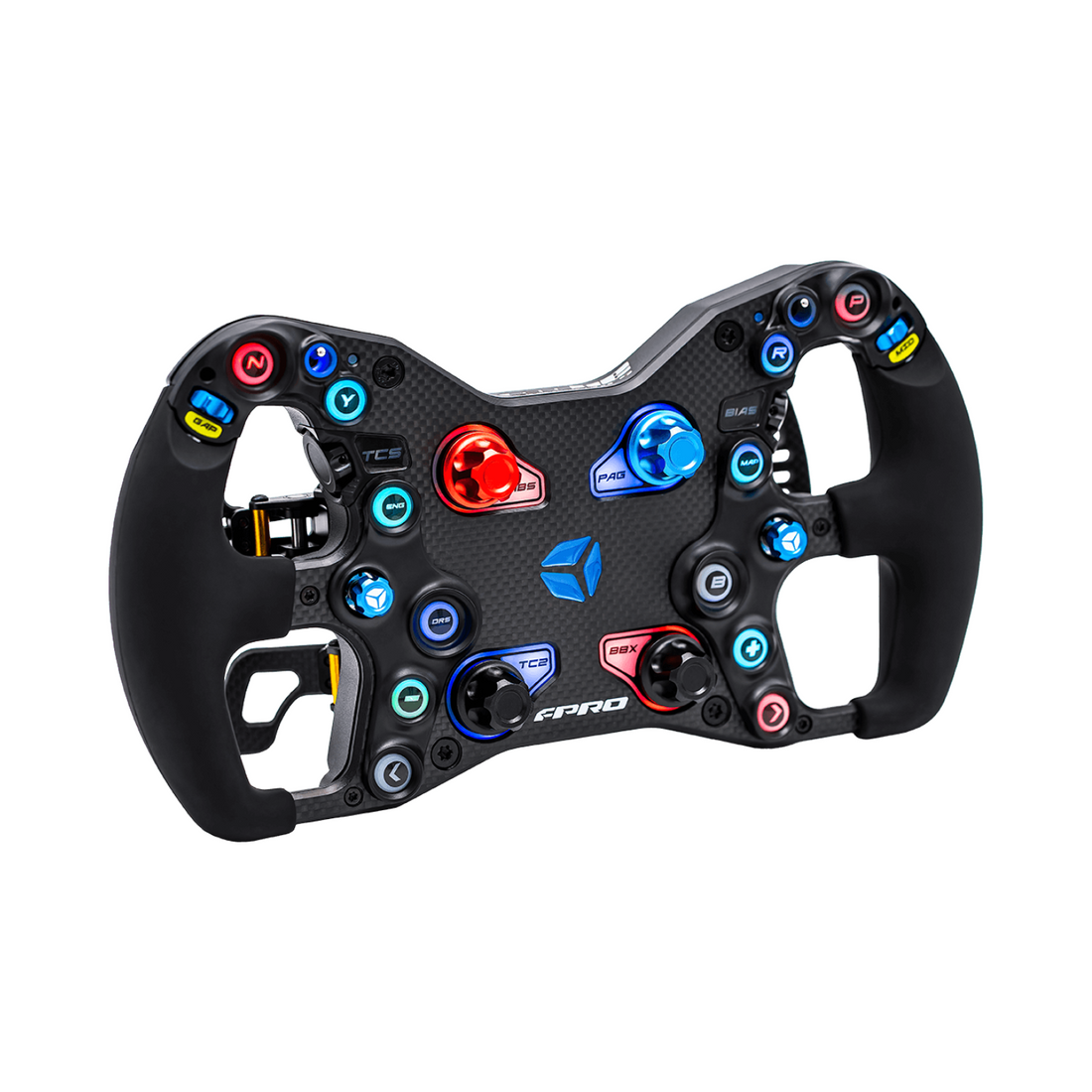

The Cube Controls F-PRO is a Formula-style steering wheel built around a USB + Bluetooth Dual-Mode connection, individually configurable RGB backlit buttons, and a lightweight carbon fiber and aluminum structure.
Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body. Updated silicone and rubber handgrips, improved button guards, tactile controls, dual joysticks, rotary encoders, and magnetic switchless shifter paddles provide an ergonomic and configurable control layout.
The F-PRO also uses Cube Controls' Q-CONN magnetic connection system, designed to protect the power cable from excessive stress during USB operation and charging. A rechargeable 2000 mAh LiPo battery supports wireless use, while integrated charging electronics and status LEDs provide battery and connection feedback.
Its construction combines a 4 mm pure carbon-fiber front plate with a die-cast aluminum main body. Updated silicone and rubber handgrips, improved button guards, tactile controls, dual joysticks, rotary encoders, and magnetic switchless shifter paddles provide an ergonomic and configurable control layout.
The F-PRO also uses Cube Controls' Q-CONN magnetic connection system, designed to protect the power cable from excessive stress during USB operation and charging. A rechargeable 2000 mAh LiPo battery supports wireless use, while integrated charging electronics and status LEDs provide battery and connection feedback.
4 mm Carbon Fiber Front Plate
Built with a 4 mm pure carbon-fiber front plate paired with a die-cast aluminum main body.
USB + Bluetooth Dual-Mode
Supports both USB and Bluetooth operating modes for flexible PC connectivity.
Customizable RGB Buttons
Twelve momentary buttons feature individually configurable RGB backlighting.
Improved Handgrips
Updated silicone and rubber grips are paired with improved button guards for better ergonomics and feel.
Formula Control Layout
Features front encoders, thumb encoders, toggle switches, a multidirectional joystick, and a rear pushbutton.

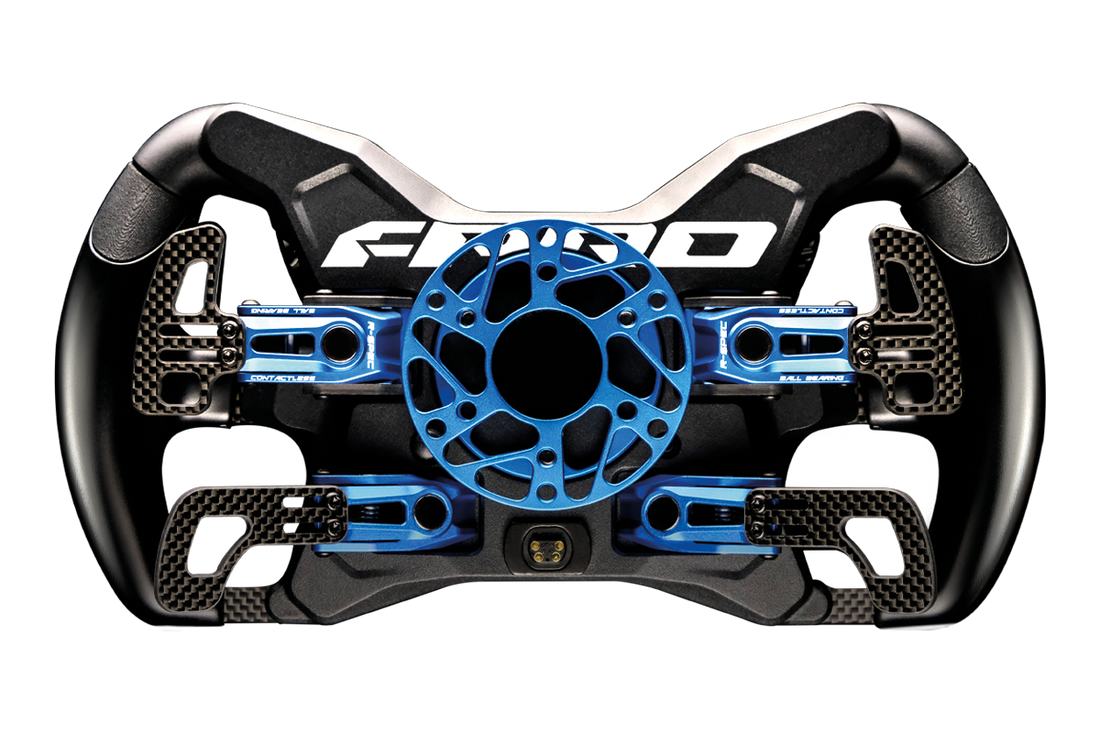

Magnetic Shifter Paddles
Uses custom-designed magnetic switchless shifter paddles with adjustable stop ends, ball bearings, and improved tactile feedback.
Q-CONN Magnetic Connection
Magnetic Q-CONN cable connection helps protect the wheel and cable during charging and USB operation.
VR Friendly
The F-PRO is specifically listed as VR friendly.
Product Details
Technical Specifications
| Front Plate | Pure carbon fiber, 4 mm |
|---|---|
| Main Body | Die-cast aluminum |
| Handgrips | Silicone and rubber |
| Grip-to-Grip Length | 29.00 cm |
| Maximum Grip Diameter | 43.00 mm |
| Momentary Buttons | 12 |
| Toggle Switches | 2 on/off switches with status LED |
| Front Rotary Encoders | 2 |
| Thumb Rotary Encoders | 2 |
| Joystick | Multidirectional joystick with integrated encoder |
| Shifter Paddles | Composite Nylon-Carbon Fiber injected Core Shifter Paddles |
| PRO Clutches | Full-aluminum PRO Clutches compatible, sold separately |
| Launch Control Clutch System | Supported |
| Rear Pushbutton | Yes |
| Battery | 2000 mAh LiPo, up to 60 hours of use |
| Charging Electronics | Integrated |
| Battery / Connection LEDs | Green when charged, red while charging, yellow when out of power |
| Connection | USB + Bluetooth Dual-Mode |
| Cable | Q-CONN magnetic connection cable |
| Weight | 895 g |
| VR Support | VR Friendly |
| Clutch / Shifter Configuration | In-software configuration supported |
| Shifter Upgrade | Sold separately |
Driver Configuration
Built for Configurable Formula Control
The F-PRO combines tactile controls, individually configurable RGB lighting, software-adjustable clutch and shifter functions, and both wired and wireless operation in a compact Formula-style layout.
1
RGB Backlit Buttons | Twelve momentary buttons feature individually configurable RGB backlighting with extensive color combinations.
2
Front Encoders | Two front rotary encoders provide additional on-wheel adjustment controls.
3
Thumb Encoders | Two thumb rotary encoders provide additional controls within thumb reach.
4
Multidirectional Joystick | Integrated joystick functionality includes an encoder for additional control input.
5
Toggle Switches | Two on/off toggle switches include status LEDs.
6
Shifter Configuration | Clutch and shifter functions can be configured through software.
7
Launch Control | The F-PRO includes support for a launch control clutch system.
8
Rear Pushbutton | An additional on/off pushbutton is positioned on the backside of the wheel.
Formula Hub & Connection Support
Flexible Formula-Style Integration
The F-PRO supports USB + Bluetooth Dual-Mode operation and uses Cube Controls' Q-CONN magnetic connection system. Its wheel hub is specified as compatible with Formula-style quick-release hubs using the listed mounting patterns. Quick-release hardware is sold separately.
Bluetooth Mode
Supports Bluetooth operation as part of the F-PRO's Dual-Mode connection system.
1-Inch Pattern
Compatible with Formula-style quick-release hubs using the specified 3-bolt, 1-inch mounting pattern.
70 mm PCD
Compatible with Formula-style quick-release hubs using the specified 3-bolt, 70 mm PCD mounting pattern.
Quick Release
Formula-style quick-release hub hardware is sold separately.
Full-Aluminum PRO Clutches
Compatible with Cube Controls Full-Aluminum PRO Clutches, sold separately.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
The best starter pack
F-CORE is the ideal choice to take your setup to a new level and experience the benefits of superior hardware. Despite its entry-level nature, the steering wheel boasts a unique design and provide you a flexible platform to explore top performances. The F-CORE won't give up on superior reliability and features a 2000mAh LiPo rechargeable battery, with a duration of up to 40 hours, suitable for long driving sessions without sacrificing comfort.
Ultimate Precision, Uncompromising Performance
The F-Pro sets a new standard in sim racing, delivering cutting-edge technology and premium craftsmanship. Built from CNC-machined aluminum and carbon fiber, it offers an ultra-light yet robust structure. With advanced wireless connectivity, customizable inputs, and a refined ergonomic grip, the F-Pro ensures total control and responsiveness for the most demanding drivers.
D: How can I calibrate the shifter paddles?
A: F-CORE allows you to easily calibrate the shifter paddles, adjust the bite-point of the clutches and customize the light of the buttons through its proprietary software. You can find it in the DOWNLOAD section.
D: How can I get the software?
A: In the download section, you can find the latest version of the software. New firmware versions will be periodically released to improve the system stability and bring new options.
D: Is the magnetic connector strong enough?
A: Absolutely. It’s specifically designed to ensure a secure connection while keeping safe the product in case too many strong forces will be applied to the connector.
D: How long does the battery last?
A: From 40 up to 50 hours. You can customize them through the F-CORE software.
D: Is the Bluetooth connection reliable?
A: F-CORE will pair instantly to your PC as any other Bluetooth device, bypassing the wheelbase. Input lag is close to zero. However, we recommend using a good Bluetooth Receiver adapter on your comput
