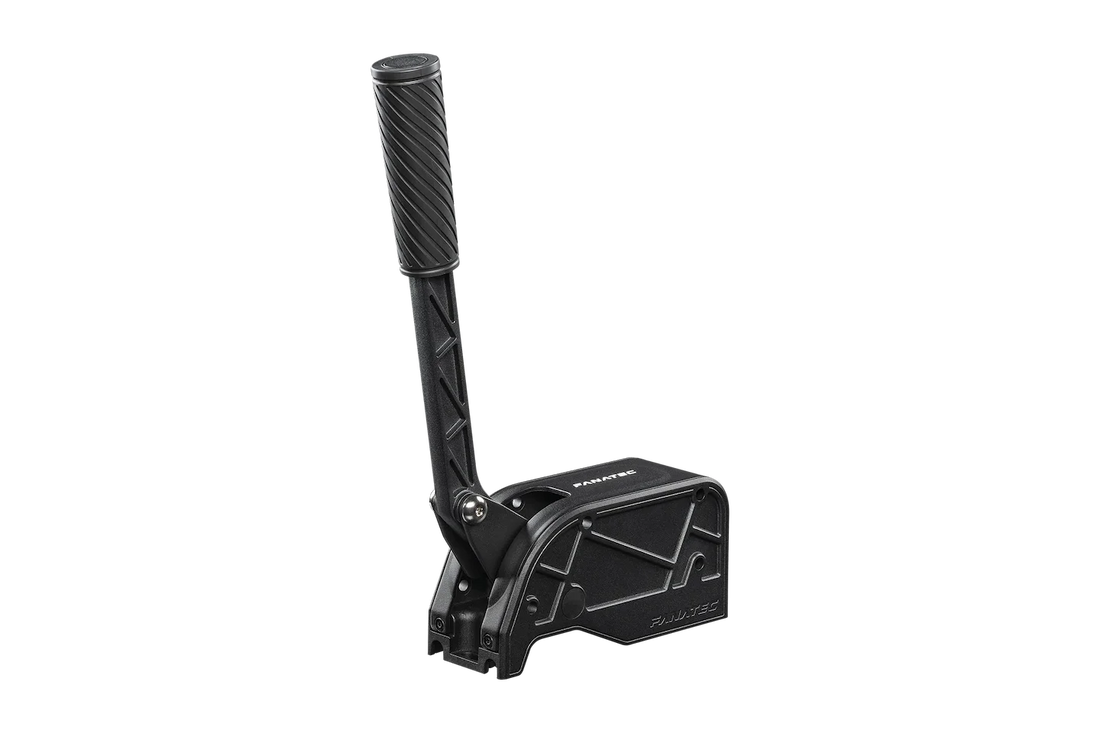

PRECISION RALLY & DRIFT CONTROL
Steel and aluminum construction with a powder-coated black aluminum casing and lever provides a durable foundation for rally and drift racing.
A load cell sensor delivers smooth, consistent analogue input, while ball bearings create a smoother lever action.
Access the preload adjustment disc inside the casing to increase or decrease the initial resistance of the lever.
Choose between 60 mm, 70 mm, and 80 mm of travel using the removable spacer.

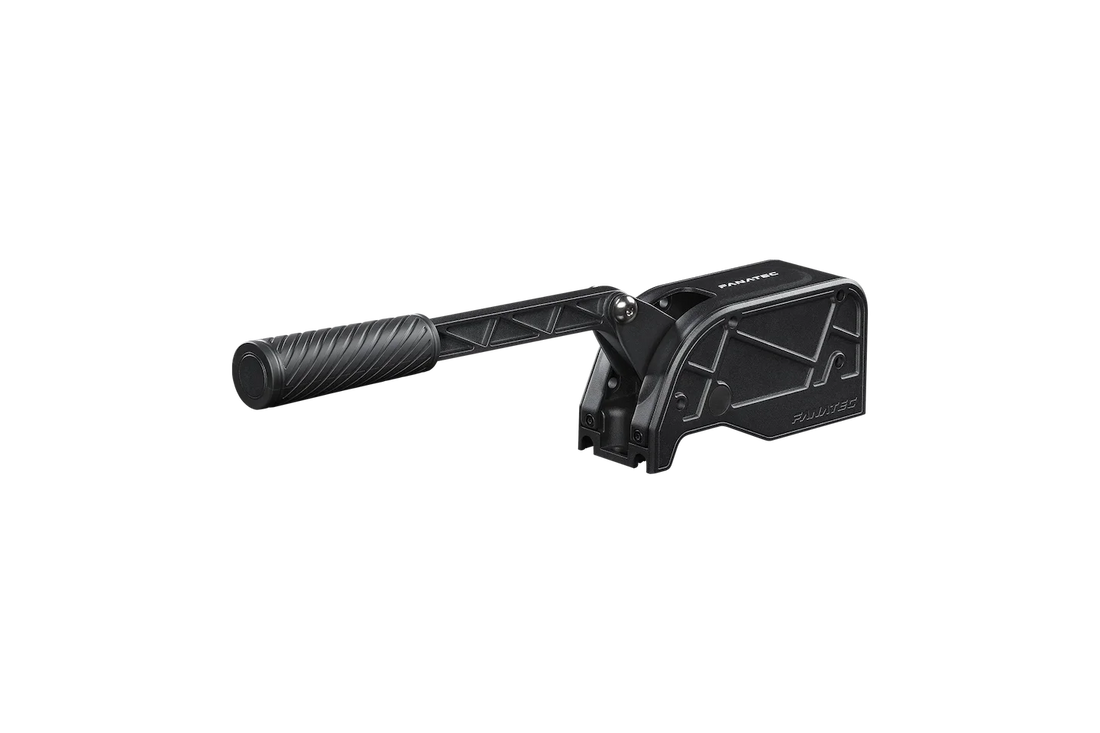

Mount the handbrake vertically or horizontally, attach it to aluminum profile, or install it beside a ClubSport Shifter using the included spacer.
Connect directly to a supported Fanatec Wheel Base using the RJ12 cable. Standalone USB operation on Windows PC requires the ClubSport USB Adapter, sold separately.
Product Details
| Product | Fanatec ClubSport Handbrake V2 |
|---|---|
| Primary Application | Rally and Drift Simulation |
| Construction | Steel and Aluminum |
| Casing and Lever | Powder-Coated Black Aluminum |
| Grip | Removable Rubber Grip |
| Sensor | Load Cell |
| Input Type | Analogue |
| Lever Mechanism | Ball Bearings |
| Preload | Adjustable |
| Lever Angle | Three Positions |
| Fine-Angle Adjustment | Rear Bolt Assembly |
| Travel Settings | 60 mm / 70 mm / 80 mm |
| Travel Adjustment | Removable Spacer |
| Mounting Orientation | Vertical or Horizontal |
| Aluminum Profile Mounting | Supported |
| ClubSport Shifter Side Mounting | Supported with Included Spacer |
| Connection | RJ12 |
| Standalone PC USB Connection | Requires ClubSport USB Adapter (Sold Separately) |
| Console Operation | Through Compatible Fanatec Hardware |
| Included RJ12 Cable Length | 2 m |
In The Box
Your ClubSport Handbrake V2 comes with the handbrake, connection cable, tools, and quick guide to help you get started. Compatible wheel bases, shifters, and the ClubSport USB Adapter are sold separately.
System Support
Connect your ClubSport Handbrake V2 to a supported Fanatec Wheel Base or pedal set. For standalone operation on Windows PC, use the ClubSport USB Adapter, sold separately. Console compatibility requires the appropriate Fanatec hardware and depends on game support.
Compatible with CSL DD, CSL Elite Wheel Base, CSL Elite Wheel Base V1.1, and CSL Elite Wheel Base + officially licensed for PS4. Belt-driven CSL Elite bases are functional, but their maximum analogue output may not calibrate as intended.
Connect directly to the Gran Turismo DD Pro Wheel Base using the RJ12 connection.
Compatible with ClubSport Wheel Base V2, ClubSport Wheel Base V2.5, ClubSport DD, and ClubSport DD+. The analogue signal on the belt-driven V2 and V2.5 is functional, but maximum output calibration is not currently optimized.
Compatible with Podium Wheel Base DD1, Podium Wheel Base DD1 PS4, and Podium Wheel Base DD2.
Connect through the handbrake port on the CSL Elite Pedals Load Cell Kit, CSL Elite Pedals V2, ClubSport Pedals V3, or ClubSport Pedals V3 Inverted.
Connect through a supported Fanatec Wheel Base or pedal set. For standalone USB operation, use the ClubSport USB Adapter, sold separately. Functionality depends on the game.
S
Compatible when connected through a supported PlayStation-licensed Fanatec Wheel Base. Functionality depends on the game.
Mount the handbrake to the side of a ClubSport Shifter using the included spacer. The shifter is sold separately.
Mount the handbrake to aluminum profile using its mounting slots. Vertical and horizontal installation options allow you to configure the handbrake around your driving position.
Order Fulfillment
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
SIDEWAYS FUN
Ideal for rally and drifting, the all-new ClubSport Handbrake V2 is a huge step forward in performance and durability with stronger components and improved electronics.
The cast and CNC-finished metal construction has been totally redesigned to be stronger and more robust. Ball bearings on the pivot point create a smooth and consistent feel.

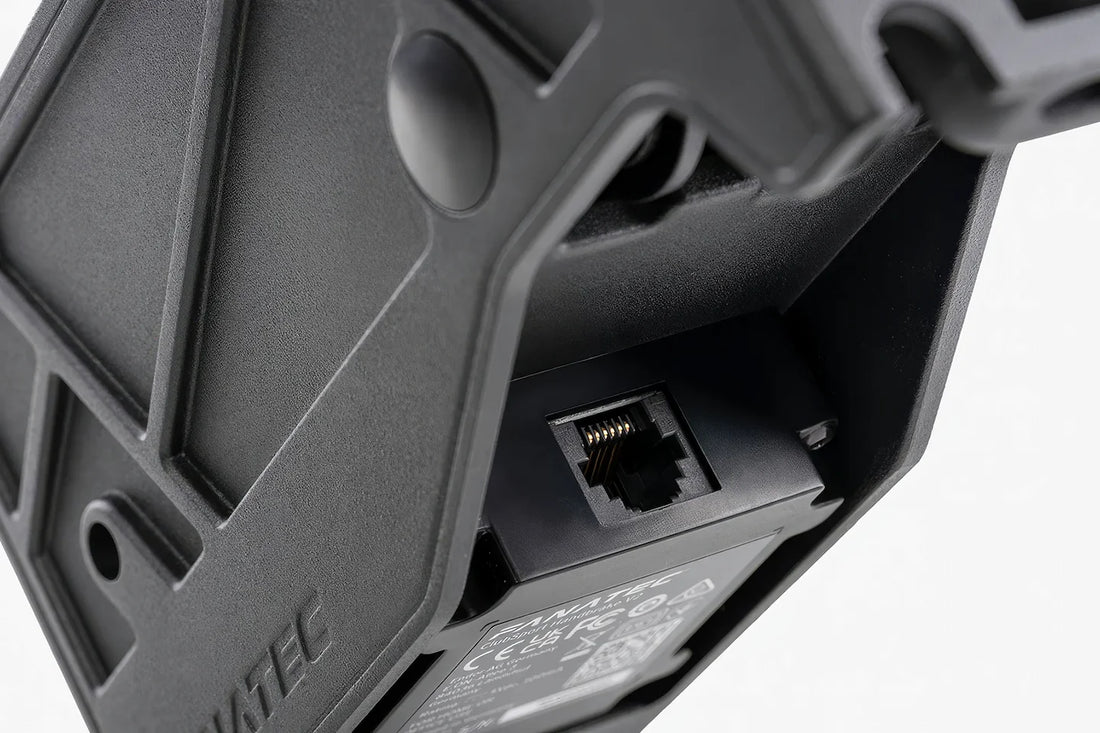

Equipped with a precision load cell sensor, the ClubSport Handbrake V2 delivers smooth, consistent analogue input. The RJ12 connection always ensures a stable signal.
PLENTY OF ADJUSTMENTS
The ClubSport Handbrake V2 offers much more adjustability than its predecessor, meaning you can set the preload, angle, and travel to suit your driving style.

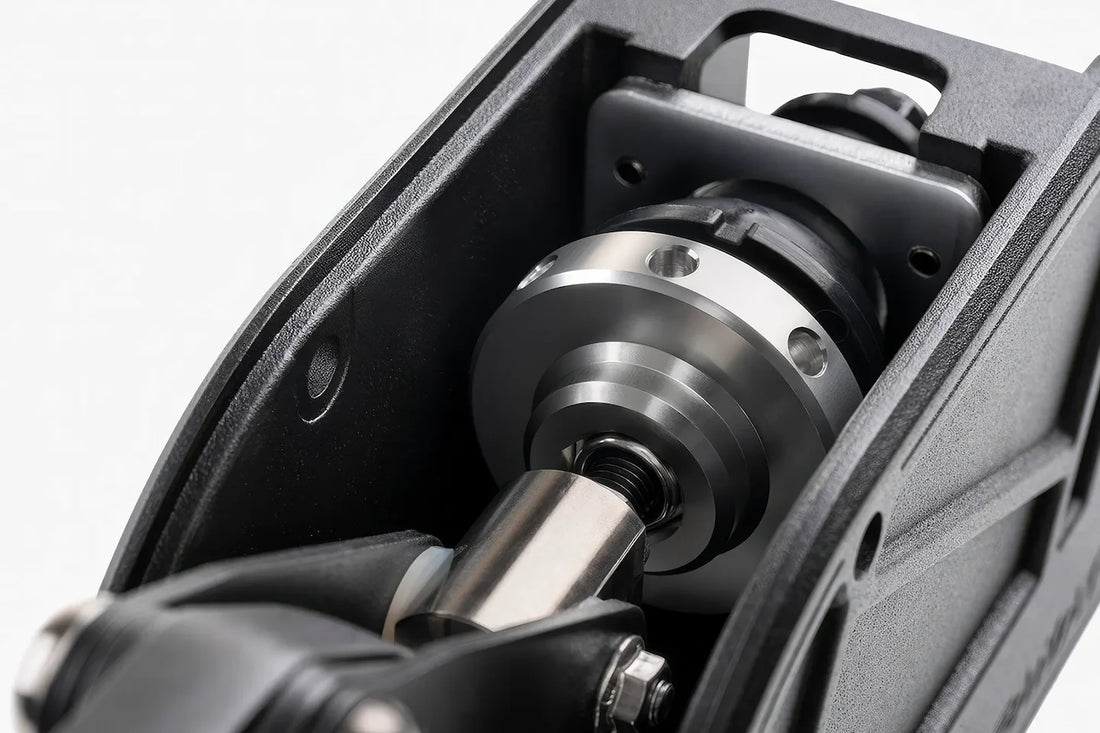

Simply open the casing for quick access to the preload adjustment disc. By adding more preload, you create more tension on the elastomer and load cell stack, increasing the initial resistance on the lever.
Three mounting positions on the lever allow for large angle changes, along with a rear bolt assembly for fine-tuning. The hand-removable spacer can be placed in two orientations, allowing a quick change between three travel settings.
MOUNTING ADJUSTMENT
Hard-mount the ClubSport Handbrake V2 to a rig with various mounting holes, or to the side of a ClubSport Shifter (sold separately).
The ClubSport Handbrake V2 is designed to mount to the side of a ClubSport Shifter (sold separately) with the included spacer.
Mounting slots instead of holes allows the handbrake to be angled slightly towards the driver, which can be more comfortable.
ClubSport Handbrake V2
INSTALLATION GUIDE
Engineered for performance. Built to last.
