ClubSport Pedals V3
Upgrade your ClubSport Pedals V3 brake pedal with adjustable resistance and travel using the included elastomer and PU spring combinations.
FANATEC CLUBSPORT PEDALS V3 BRAKE PERFORMANCE KIT
$39.95
FANATEC CLUBSPORT PEDALS V3 BRAKE PERFORMANCE KIT
$39.95
GAIN THE MAXIMUM ADVANTAGE
SHORTER TRAVEL. MORE PRESSURE-BASED BRAKING.
Tune your ClubSport Pedals V3 brake pedal for a firmer, more pressure-focused braking experience with the Fanatec ClubSport Pedals V3 Brake Performance Kit.
Rather than relying primarily on pedal travel, the kit lets you configure brake resistance so your braking input is based more on muscle tension and pressure, similar to the braking principle used in real race cars.
Red and green Eladur elastomer springs in two diameters can be mixed and matched to adjust pedal resistance and travel. Eight primary configurations are available using the elastomers, while adding the included PU foam spring expands the number of possible configurations to 16 and allows for a lighter initial force.
The green elastomers use the harder material configuration, while the red elastomers provide a slightly softer option. Designed for durability, the elastomers are rated for well over one million cycles and can be lubricated using the included lithium grease.
Rather than relying primarily on pedal travel, the kit lets you configure brake resistance so your braking input is based more on muscle tension and pressure, similar to the braking principle used in real race cars.
Red and green Eladur elastomer springs in two diameters can be mixed and matched to adjust pedal resistance and travel. Eight primary configurations are available using the elastomers, while adding the included PU foam spring expands the number of possible configurations to 16 and allows for a lighter initial force.
The green elastomers use the harder material configuration, while the red elastomers provide a slightly softer option. Designed for durability, the elastomers are rated for well over one million cycles and can be lubricated using the included lithium grease.
Pressure-Focused Brake Feel
Reduce brake pedal travel and increase brake pressure resistance for a more race-inspired braking experience.
Multiple Resistance Configurations
Mix and match red and green elastomer springs in different diameters to tune pedal travel and resistance.
Up to 16 Setup Options
Eight elastomer configurations can be expanded to 16 possible combinations by incorporating the included PU foam spring.
Durable Eladur Elastomers
High-end Eladur elastomer springs are made in Germany and designed for well over one million cycles.
Harder and Softer Elastomers
Green elastomers provide the harder material option, while red elastomers offer a slightly softer configuration.
Installed at the Brake Preload Screw
The elastomer and polyurethane springs are installed at the brake unit's preload screw.
Product Details
FINE-TUNE YOUR BRAKE PEDAL FEEL
| Product | Fanatec ClubSport Pedals V3 Brake Performance Kit |
|---|---|
| Product Type | Brake Pedal Resistance and Travel Upgrade Kit |
| Compatible Pedals | ClubSport Pedals V3, ClubSport Pedals V3 Inverted |
| Adjustment Method | Interchangeable Elastomer and PU Spring Combinations |
| Elastomer Material | Eladur |
| Elastomer Origin | Made in Germany |
| Green Elastomer Characteristic | Harder Material Version |
| Red Elastomer Characteristic | Slightly Softer Material Version |
| Green Elastomers Included | 2x Ø13 × 20 mm, 1x Ø12 × 20 mm |
| Red Elastomers Included | 2x Ø13 × 20 mm, 1x Ø12 × 20 mm |
| PU Spring | Ø13.5 × 15 mm Polyurethane Foam |
| Base Resistance and Travel Options | 8 |
| Possible Configurations with PU Foam Spring | Up to 16 |
| Durability | Well Over 1 Million Cycles |
| Installation Position | Brake Unit Preload Screw |
| Lubrication | Included Lithium Grease for Elastomer Springs |
| Installation Requirement | Partial Pedal Disassembly Required |
In The Box
YOUR BRAKE PERFORMANCE TUNING KIT

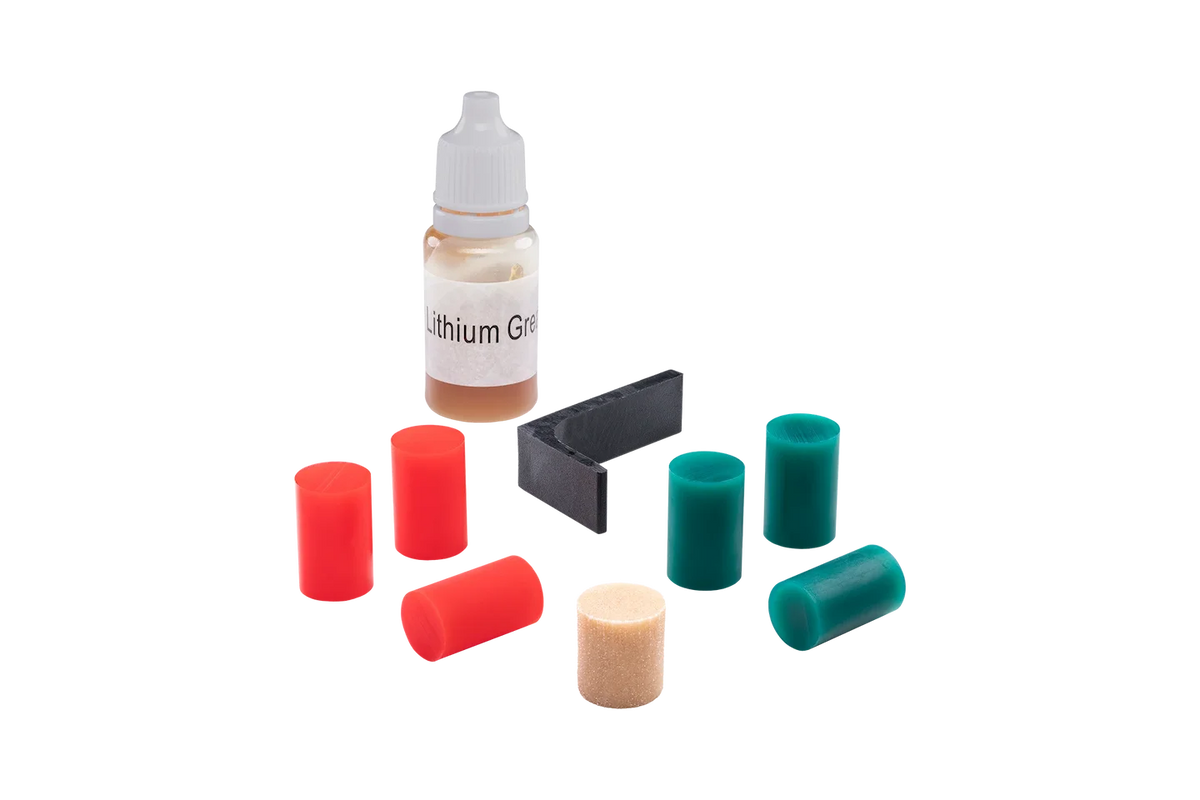

Your ClubSport Pedals V3 Brake Performance Kit includes six Eladur elastomer springs in two hardness levels and diameters, a polyurethane foam spring, lubricant, an installation tool, and a Quick Guide.
1
2x Red Elastomer Springs Ø13 × 20 mm
2
1x Red Elastomer Spring Ø12 × 20 mm
3
2x Green Elastomer Springs Ø13 × 20 mm
4
1x Green Elastomer Spring Ø12 × 20 mm
5
1x Polyurethane Spring (PU Foam) Ø13.5 × 15 mm
6
1x Lithium Grease Bottle for Elastomer Springs
7
1x Installation Tool (Fix-1) (G)
8
1x Quick Guide
CLUBSPORT PEDALS V3
DESIGNED FOR YOUR V3 BRAKE PEDAL
The ClubSport Pedals V3 Brake Performance Kit is designed for the brake pedal of the ClubSport Pedals V3 and ClubSport Pedals V3 Inverted. The compatible pedal set is required and is not included. Installation requires partial disassembly of the pedals and a certain level of technical skill. Review the Quick Guide and manual before installation.
ClubSport Pedals V3 Inverted
Compatible with the brake unit of the ClubSport Pedals V3 Inverted.
Brake Preload Screw
Install the elastomer and polyurethane spring configuration at the brake unit's preload screw.
Preload Adjustment Limitation
With the kit installed, the preload screw cannot be used to its maximum range and should be limited to eliminating mechanical play.
Technical Installation
Installation requires partial pedal disassembly. Review the supplied Quick Guide and manual before fitting the kit.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
GAIN THE MAXIMUM ADVANTAGE
The human body memorizes muscle tension much better than foot position. This is why all car brakes measure the pressure and not the travel. Race and F1 cars have almost no travel at all.
COMPATIBLE WITH CLUBSPORT PEDALS V3
This Brake Performance Kit is the perfect upgrade for your ClubSport Pedals V3 (inverted), increasing the brake pressure point feeling by reducing the brake pedal travel and providing a higher brake pressure capability.
INSTALLED AT THE PRELOAD SCREW
The red and/or green Elastomer springs and the short Polyurethane spring will be installed to the preload screw of the brake unit.
MIX AND MATCH!
There are 8 resistance and travel options with the combinations of the red and green Elastomer springs and their two diameters. The PU foam spring is an optional component to set up a lighter start force which will double the amount of possible configurations to 16.
GREEN ELASTOMER SPRING
The green Elastomer spring is the harder material version. For fine-tuning, two thicker and harder ones (Ø 13mm) as well as a thinner and softer one (Ø 12mm) are included, both 20mm in length
RED ELASTOMER SPRING
The red Elastomer spring is the slightly softer material version. Also, two thicker and harder ones (Ø 13mm) as well as a thinner and softer one (Ø 12mm) are included, both 20mm in length.
