Podium Wheel Base DD1
Use the ClubSport Universal Hub V2 for Xbox with your compatible Podium DD1 to enable supported Xbox functionality.
Fanatec ClubSport Universal Hub V2 for Xbox
$399.99
Fanatec ClubSport Universal Hub V2 for Xbox
$399.99
ONE HUB. COUNTLESS POSSIBILITIES
BUILD YOUR WHEEL. BRING IT TO XBOX.
Build your preferred steering wheel configuration with the Fanatec ClubSport Universal Hub V2 for Xbox.
Designed for wheel rims using 6 × 70 mm or 3 × 50 mm mounting patterns, the hub supports Fanatec rims and compatible third-party options from brands such as Sparco, MOMO, and OMP.
The integrated Xbox electronics enable Xbox One and Xbox Series X|S compatibility when the hub is connected to a supported Fanatec Wheel Base.
A pre-installed ClubSport Magnetic Paddle Module delivers crisp, rapid shifting with strong magnetic resistance and a positive click. Small and large paddle sets are included, together with spacers for adapting the paddle position to different wheel rim sizes.
Four adjustable three-button clusters, 16 integrated buttons, a 7-way FunkySwitch™, Tuning Menu access, and a configurable three-digit LED display provide extensive control. The paddle modules, button clusters, and FunkySwitch™ can also be removed when you want a cleaner or lighter configuration.
The DataPort-C connector supports the optional Podium Button Module Endurance, while the separately packaged QR2 Wheel-Side completes the included quick-release setup.
Designed for wheel rims using 6 × 70 mm or 3 × 50 mm mounting patterns, the hub supports Fanatec rims and compatible third-party options from brands such as Sparco, MOMO, and OMP.
The integrated Xbox electronics enable Xbox One and Xbox Series X|S compatibility when the hub is connected to a supported Fanatec Wheel Base.
A pre-installed ClubSport Magnetic Paddle Module delivers crisp, rapid shifting with strong magnetic resistance and a positive click. Small and large paddle sets are included, together with spacers for adapting the paddle position to different wheel rim sizes.
Four adjustable three-button clusters, 16 integrated buttons, a 7-way FunkySwitch™, Tuning Menu access, and a configurable three-digit LED display provide extensive control. The paddle modules, button clusters, and FunkySwitch™ can also be removed when you want a cleaner or lighter configuration.
The DataPort-C connector supports the optional Podium Button Module Endurance, while the separately packaged QR2 Wheel-Side completes the included quick-release setup.
Wide Wheel Rim Compatibility
Attach Fanatec and compatible third-party wheel rims using 6 × 70 mm or 3 × 50 mm mounting patterns.
Magnetic Paddle Shifters
The pre-installed ClubSport Magnetic Paddle Module provides strong magnetic resistance and a crisp, positive shifting feel.
Adjustable Button Clusters
Position the four detachable three-button clusters to suit your wheel rim or remove them for a cleaner setup.
Flexible Paddle Configuration
Small and large paddle sets with included spacers let you adapt the shifter position to different wheel sizes.

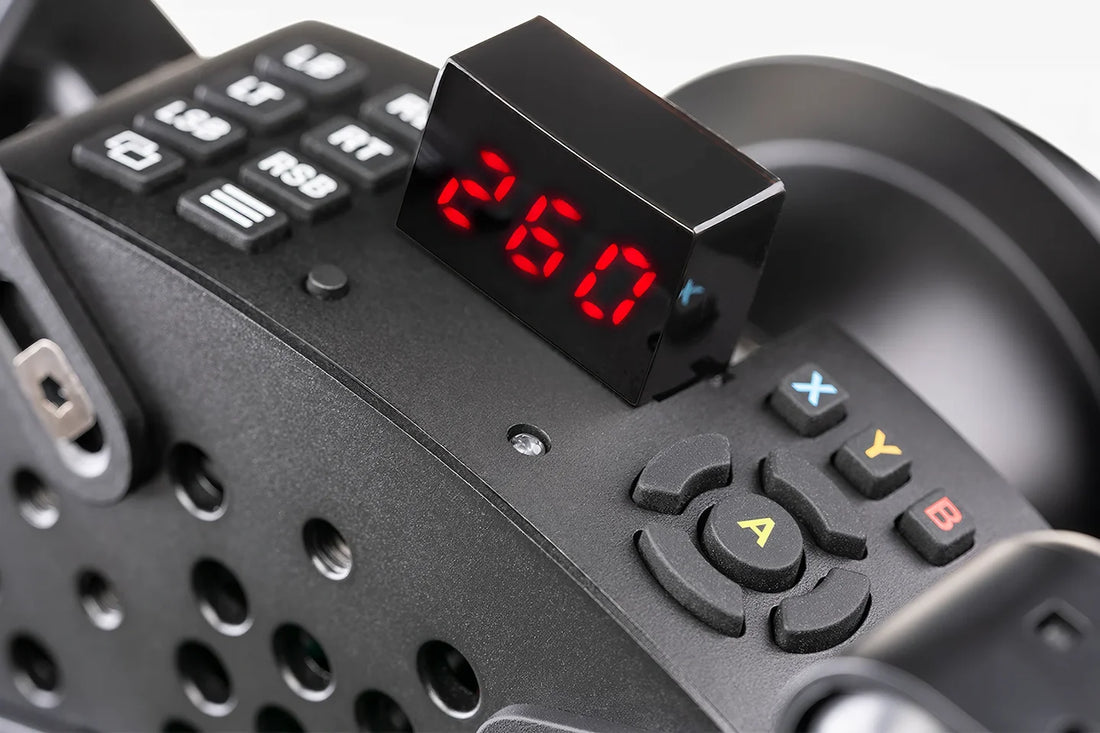

Integrated LED Display
View Tuning Menu functions and supported telemetry data on the three-digit display in upright or flat orientation.
DataPort-C Expansion
Connect the optional Podium Button Module Endurance through the integrated DataPort-C connector.
Product Details
XBOX-READY CONTROL. MODULAR FANATEC DESIGN.
| Product | Fanatec ClubSport Universal Hub V2 for Xbox |
|---|---|
| Product Type | Universal Steering Wheel Hub |
| Xbox Compatibility | Xbox One and Xbox Series X |
| Supported Wheel Rim Patterns | 6 × 70 mm and 3 × 50 mm |
| Fanatec Wheel Rim Support | Compatible Fanatec Wheel Rims |
| Third-Party Rim Support | Compatible 6 × 70 mm and 3 × 50 mm Rims |
| Magnetic Paddle Module | ClubSport Magnetic Paddle Module, Pre-Installed |
| Paddle Plate Material | 3 mm Black-Anodised Aluminium |
| Paddle Module Cage | CNC-Machined Aluminium |
| Paddle Magnets | Neodymium |
| Paddle Sizes Included | Small and Large |
| Paddle Adjustment | Spacers for Wheel Diameter and Paddle Distance |
| Integrated Buttons | 16 |
| Button Clusters | 4 × Three-Button Clusters |
| Optional Additional Button Cluster | Supported, Not Included |
| FunkySwitch™ | 7-Way with Directional, Push-Button and Rotary Encoder Functions |
| Tuning Menu Button | Yes |
| Display | Three-Digit LED |
| Display Positions | Upright or Flat |
| Display Functions | Tuning Menu and Supported Telemetry Data |
| Button Caps | Xbox Symbol Caps and Racing-Style Caps |
| Firmware | Updatable |
| Data Connector | DataPort-C |
| Podium Button Module Endurance Support | Yes |
| Removable Components | Paddle Units, Button Clusters and FunkySwitch™ |
| Included Quick Release | QR2 Wheel-Side, Packaged Separately |
In The Box
YOUR CLUBSPORT UNIVERSAL HUB V2 FOR XBOX PACKAGE
Your ClubSport Universal Hub V2 for Xbox includes the hub, adjustable button controls, FunkySwitch™, LED display, pre-installed ClubSport Magnetic Paddle Module, multiple paddle sizes and spacers, QR2 Wheel-Side, mounting hardware, button caps, and Quick Guide. A compatible Fanatec Wheel Base is required for operation and is not included.
1
ClubSport Universal Hub V2 for Xbox
2
4x Button Clusters with Three Buttons Each
3
2x Small Levers
4
2x Long Levers
5
1x FunkySwitch™
6
LED Display Unit
7
ClubSport Magnetic Paddle Module with Aluminium Paddle Plates, Pre-Installed
8
Large and Small Paddles
9
Paddle Bolts and Spacers
10
QR2 Wheel-Side, Packaged Separately
11
Safety Pin for Long-Term Storage
12
Safety Screw for Permanent Wheel Base Mounting
13
Set of Bolts
14
Racing-Style Button Caps
15
'F' FunkySwitch™ Sticker
16
Quick Guide
FANATEC XBOX ECOSYSTEM
CONNECT YOUR FANATEC SETUP TO XBOX
The ClubSport Universal Hub V2 for Xbox is compatible with the listed Fanatec Wheel Bases and enables Xbox One and Xbox Series X|S compatibility when connected through a supported Fanatec setup. It supports compatible Fanatec and third-party wheel rims using 6 × 70 mm or 3 × 50 mm mounting patterns. A compatible Fanatec Wheel Base is mandatory for operation. Some functions on Xbox may depend on console capabilities, firmware, operating system, game support, and implementation of the Fanatec SDK.
Podium Wheel Base DD2
Compatible with the ClubSport Universal Hub V2 for Xbox.
Podium Wheel Base DD1 PS4™
Compatible with the ClubSport Universal Hub V2 for Xbox.
ClubSport Wheel Base V2
Compatible with the ClubSport Universal Hub V2 for Xbox.
ClubSport Wheel Base V2.5
Compatible with the ClubSport Universal Hub V2 for Xbox.
CSL Elite Wheel Base
Compatible with the ClubSport Universal Hub V2 for Xbox.
CSL Elite Wheel Base V1.1
Compatible with the ClubSport Universal Hub V2 for Xbox.
CSL Elite Wheel Base +
Compatible with the officially PlayStation-licensed CSL Elite Wheel Base +.
CSL DD Wheel Base
Pair your CSL DD with the ClubSport Universal Hub V2 for Xbox using the appropriate quick-release configuration.
Gran Turismo DD Pro Wheel Base
Compatible with the ClubSport Universal Hub V2 for Xbox.
Xbox One and Xbox Series X
S
Podium Button Module Endurance
Connect the optional Podium Button Module Endurance through the Hub's DataPort-C connector.
Podium Advanced Paddle Module
Upgrade the pre-installed paddle system with the optional Podium Advanced Paddle Module.
ClubSport Magnetic Paddle Module
Supported and pre-installed with the ClubSport Universal Hub V2 for Xbox.
ClubSport Button Cluster Pack
Add a compatible additional button cluster to expand your control layout.
Fanatec Wheel Rims
Compatible Fanatec rims can be mounted using supported 6 × 70 mm or 3 × 50 mm mounting patterns.
Third-Party Wheel Rims
Supports compatible rims from brands such as Sparco, MOMO, and OMP using 6 × 70 mm or 3 × 50 mm mounting patterns.
Third-Party USB Steering Wheels
Third-party USB steering wheels can be mechanically mounted for use with compatible Fanatec bases, but direct USB connectivity through the hub is not supported.
PC and Other Platforms
Platform capabilities remain dependent on the specifications of the connected compatible Fanatec Wheel Base.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
ONE HUB. COUNTLESS POSSIBILITIES
Attach any wheel rim with a 6 x 70 mm or 3 x 50 mm mounting pattern to this hub for use with a FANATEC® wheel base.
XBOX COMPATIBLE
The ClubSport Universal Hub for Xbox returns in ‘V2’ form, now with improved electronics, magnetic shifters, and an exchangeable quick release system. Use this hub on any compatible Fanatec wheel base to enable Xbox One and Xbox Series X|S compatibility.
ATTACH ANY RIM YOU WANT
Threaded holes for wheel rims with a 6 x 70 mm or 3 x 50 mm pattern means that all current Fanatec wheel rims can be attached to the ClubSport Universal Hub V2. It is also compatible with many wheel rims from brands such as MOMO, Sparco, or OMP.
MAGNETIC SHIFTER PADDLES
The preinstalled ClubSport Magnetic Paddle Module provides exceptionally crisp and rapid shifting. The strong magnetic resistance and ‘click’, means a solid, positive feel to every shift. Both small and large paddles are included to suit different wheel sizes.
PACKED WITH FEATURES
Magnetic shifters, adjustable button boxes, and a comprehensive array of buttons integrated into the hub itself means you’ll feel totally in control with any wheel rim.
TUNING WITH THE FUNKY SWITCH™
The 7-way FunkySwitch™ is a multi-purpose input device, with d-pad, push-button, and rotary encoder. Press the Tuning Button to bring up the Tuning Menu on the integrated display, and adjust settings with the FunkySwitch™.
ADJUSTABLE BUTTON CLUSTERS
Position the button clusters wherever you want them, or remove them entirely for a clean, compact appearance, using the integrated buttons on top of the Hub instead.

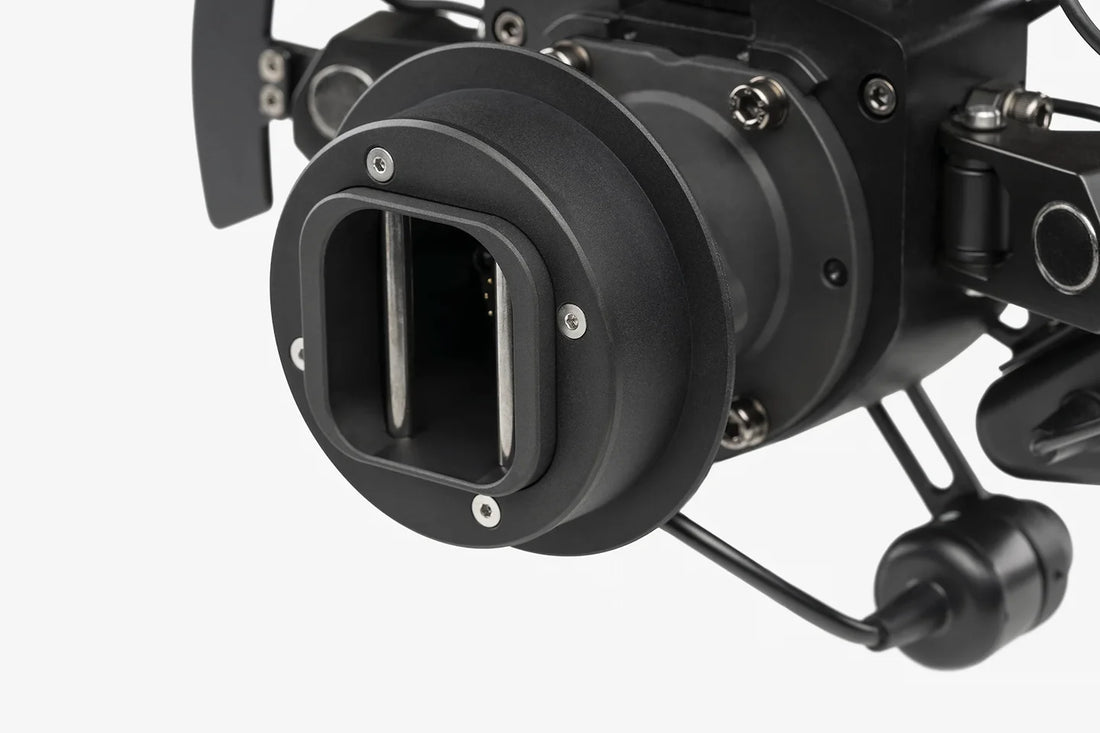

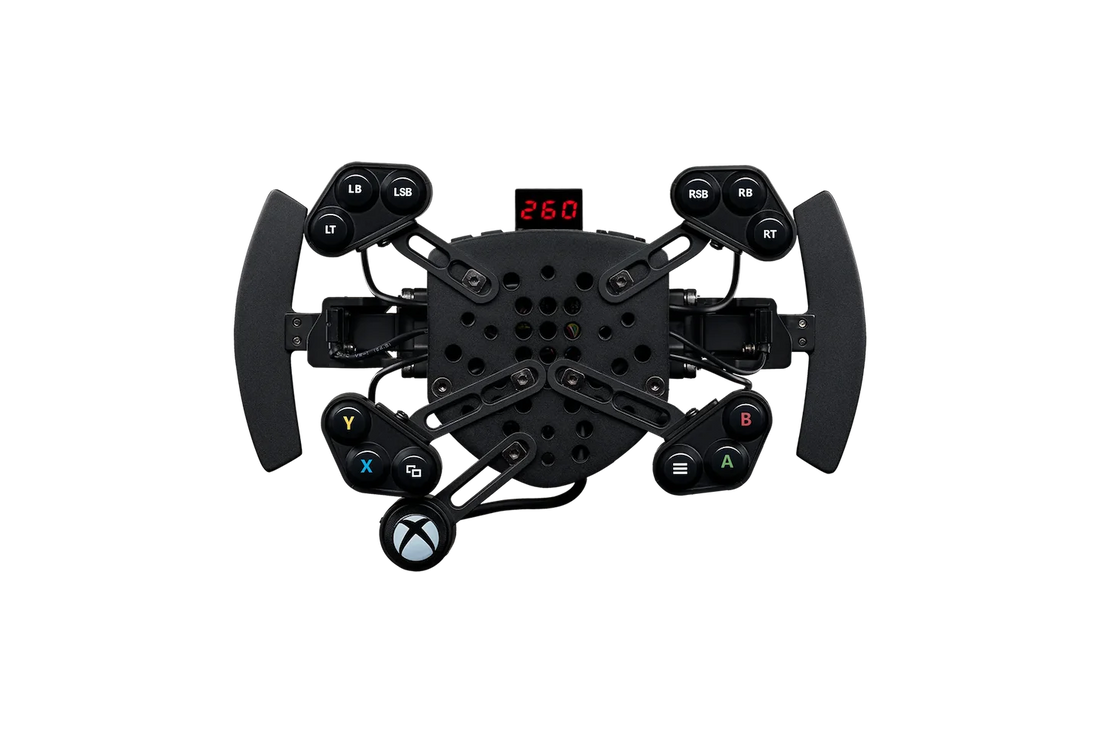

CLUBSPORT STEERING WHEEL UNIVERSAL HUB FOR XBOX ONE
