High-end, precision pedal set built for control and consistency

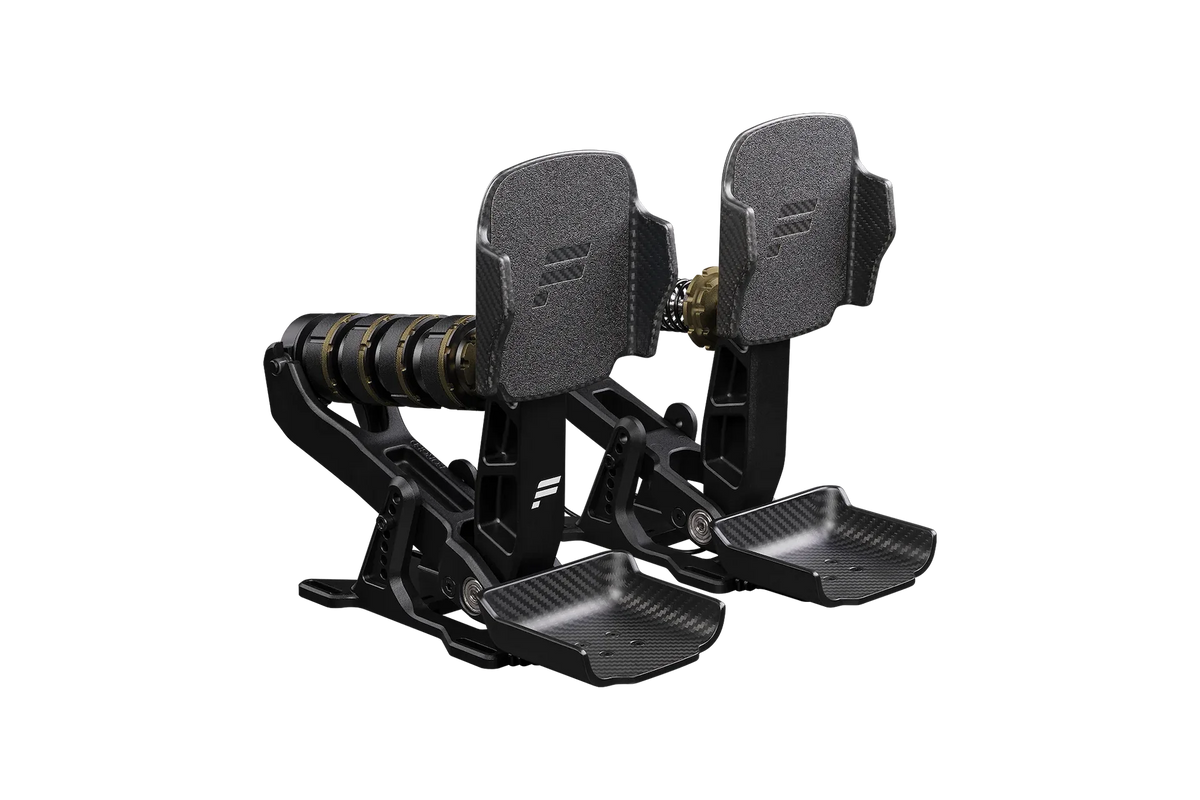

FANATEC PODIUM PEDALS FORMULA
| Product Dimensions | 227 (L) x 95 (W) x 288 (H) mm / 8.95 (L) x 3.74 (W) x 11.32 (H) inches |
|---|---|
| Product Weight | 5.05 kg / 11.12 lbs. |
FANATEC PODIUM PEDALS FORMULA
FANATEC PODIUM PEDALS FORMULA
WHEELBASES
FANATEC PODIUM PEDALS FORMULA
• High-end sim racing pedals designed by Fanatec in Germany
• Tool-free adjustments on all axes
• Forged aluminum brake pedal
• 200+ kg custom load cell sensor
• Compression Control System for precise brake adjustment
• Diecast and CNC-machined aluminum throttle and clutch
• Custom Hall sensors precision-calibrated at factory
• Adjustable pedal curves and dead zones via Fanatec App
• Selectable curves via Tuning Menu
• Compact control box connects via RJ12 or USB
• Individual pedal mounting points follow industry standard
• Compatible with Podium Pedals Clutch Module (sold separately)
Decades of experience in pedal design distilled into a pure mechanical system. Pedal resistance feels natural throughout the travel, across every input. The forged aluminum brake pedal arm and mid arm provide exceptional strength under heavy load, paired with a custom 200+ kg load cell sensor.
The Compression Control System allows tool-free adjustment of travel and resistance. The threaded cups can be fully closed to eliminate travel entirely, creating the firm, ‘brick wall’ resistance of some race car brake pedals. Alternative spring sets allow for softer travel and further ways to change the pedal characteristics.
By setting staggered cup positions, each spring reaches its limit at a different point in the pedal stroke. As individual springs stop compressing, the remaining springs carry the load, increasing resistance in distinct stages. This allows you to tune the response from linear to a progressive ramp in stiffness as you approach maximum braking force.
The system ensures consistent performance throughout the travel range. The threaded cups act as mechanical limiters, keeping the elastomers within their rated range to preserve feel and long-term durability.
FANATEC PODIUM PEDAL FORMULA
EVERY DETAIL INTENTIONAL
Developed from the ground up by Fanatec in Germany with input from professional drivers and sim racers. Every component, material choice, and adjustment mechanism is engineered for consistent performance.
The throttle pedal features independent preload and travel adjustment. An industrial-grade bearing at the pivot and a precision-calibrated Hall sensor ensure smooth, high-resolution input. Resistance is intentionally firm, improving driver control.
Strength is built into the geometry, with material placed precisely where it is needed. A rich black finish is paired with anodized gold accents to highlight key adjustments. Podium Pedals delivers a level of refinement rarely seen in real car pedals.
FANATEC PODIUM PEDAL FORMULA
TOOL-FREE ADJUSTMENTS
Every adjustment affecting travel and resistance is tool-free across all pedals, allowing quick changes between sessions. Industrial-grade ball bearings ensure smooth pedal movement and long-term reliability. The compact control box keeps cable management tidy while supporting both RJ12 and USB connections.
Formula-style carbon fiber pedal plates and heel cups keep your feet securely positioned for greater control. Integrated side supports help prevent lateral foot movement, while the curved heel cups keep your heels planted while allowing smooth rotation at the pivot point. Adjustable pedal plate height and heel cup positioning let you fine-tune the fit, with optional grip tape included for added traction.
Select from preset curves or create your own using the Fanatec App to replicate the behavior of different cars or to enhance control at specific thresholds. Curves and dead zones are saved to the internal memory of the pedals, remaining active even on console platforms.
Fanatec Podium Pedals Formula
The Fanatec Podium Pedals Formula are premium two-pedal sim racing pedals featuring a throttle and brake. Designed for precision and consistency, they combine a forged aluminum brake arm, carbon fiber components, and advanced pedal adjustment features for a realistic Formula-style racing experience.
Yes. The pedals work with Windows PC via USB or a compatible Fanatec wheelbase. PlayStation 4 and PlayStation 5 compatibility requires a supported, PlayStation-licensed Fanatec wheelbase. Xbox compatibility requires a supported Fanatec wheelbase and an Xbox-licensed steering wheel.
The brake pedal features a custom load cell sensor rated for over 200 kg and a Compression Control System. These technologies allow drivers to fine-tune brake travel, resistance, and mechanical progression for more consistent braking and better control during competitive sim racing.
Yes. The Podium Pedals Formula offer tool-free mechanical adjustments, including pedal angle, throttle travel, throttle preload, and brake resistance. You can also customize pedal curves and dead zones through the Fanatec App to match your preferred driving feel.
No. The Formula version comes with two pedal modules: a throttle and a brake. A compatible Podium Pedals clutch module is available separately, allowing you to expand your setup when the additional module is available.
The package includes two pedal modules, a connection box, RJ12 and USB cables, brake elastomers and springs, grip stickers, Allen keys, cup assist tools, and mounting hardware. These components provide the essentials for installation, connection, and pedal customization.
Engineered for performance. Built to last.
