ClubSport DD Wheel Base
Securely mount your ClubSport DD to a compatible table with adjustable upright or inverted positioning.
FANATEC CS DD TABLE CLAMP
$134.99
FANATEC CS DD TABLE CLAMP
$134.99
STRENGTH AND STABILITY
SECURE YOUR WHEEL BASE. FIND YOUR IDEAL DRIVING ANGLE.

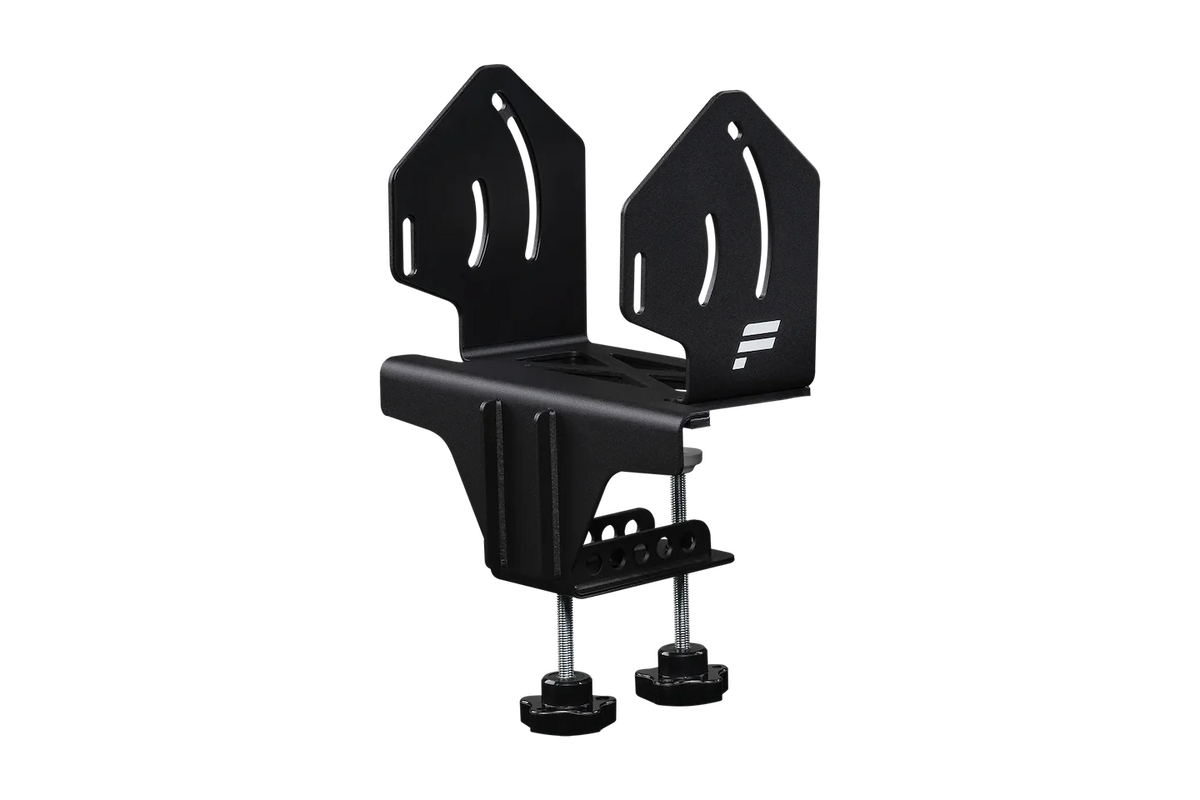

Create a secure and adjustable sim racing setup with the Fanatec ClubSport DD Table Clamp.
Built with strong metal construction, this table clamp provides a stable mounting solution for the ClubSport DD, ClubSport DD+, CSL DD, and Gran Turismo DD Pro Wheel Bases.
Adjust your wheel base between 0° and 20° in the upright position to find a comfortable driving angle. For a different driving configuration, inverted mounting offers up to 40° of angle adjustment, making it particularly suitable for truck simulation.
Designed for tables measuring 5 to 60 mm thick, the clamp can be installed using one clamping screw or two for additional stability.
Polymer panels protect your Wheel Base surface during installation, while the durable metal construction provides a solid foundation for your racing setup.
Built with strong metal construction, this table clamp provides a stable mounting solution for the ClubSport DD, ClubSport DD+, CSL DD, and Gran Turismo DD Pro Wheel Bases.
Adjust your wheel base between 0° and 20° in the upright position to find a comfortable driving angle. For a different driving configuration, inverted mounting offers up to 40° of angle adjustment, making it particularly suitable for truck simulation.
Designed for tables measuring 5 to 60 mm thick, the clamp can be installed using one clamping screw or two for additional stability.
Polymer panels protect your Wheel Base surface during installation, while the durable metal construction provides a solid foundation for your racing setup.
Strong Metal Construction
Secure your Wheel Base with a stable table clamp built from durable metal.
Adjustable Driving Angle
Find your preferred steering position with upright angle adjustment from 0° to 20°.
Inverted Mounting Mode
Switch to inverted mounting for up to 40° of angle adjustment, ideal for truck simulation.
Flexible Table Fit
Mount your Wheel Base to compatible tables measuring 5 to 60 mm thick.
Optional Dual-Screw Clamping
Use one clamping screw or two clamping screws for additional stability.
Wheel Base Surface Protection
Integrated polymer panels protect your Wheel Base surface during installation.
Product Details

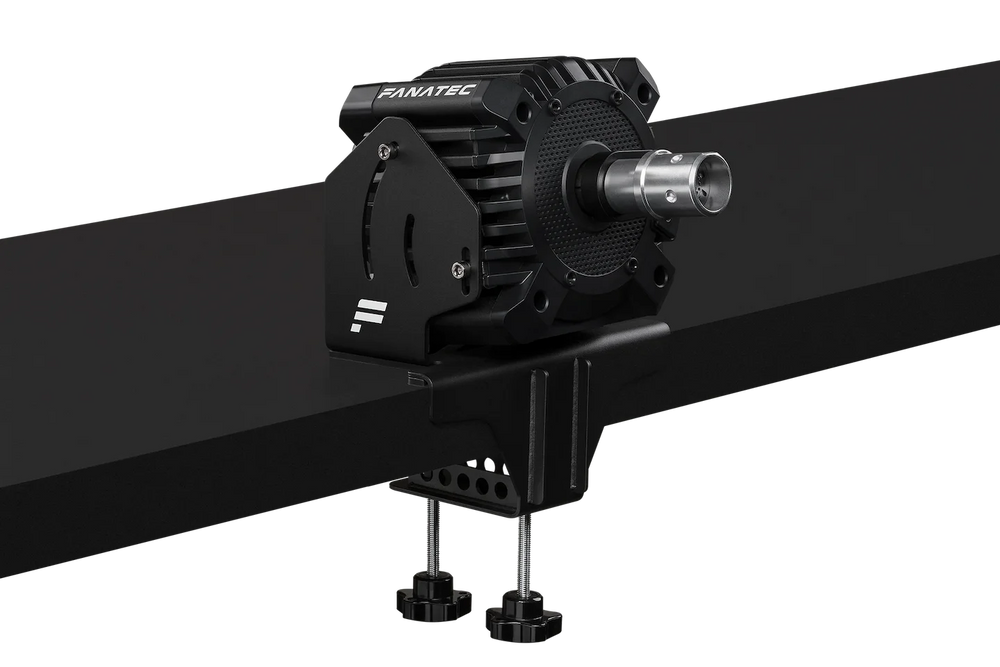

STRONG, ADJUSTABLE TABLE MOUNTING
| Product | Fanatec ClubSport DD Table Clamp |
|---|---|
| Product Type | Wheel Base Table Clamp |
| Construction | Metal |
| Protective Panels | Polymer |
| Supported Table Thickness | 5 to 60 mm |
| Upright Angle Adjustment | 0° to 20° |
| Inverted Angle Adjustment | 0° to 40° |
| Mounting Configurations | Upright and Inverted |
| Clamping Configuration | One or Two Clamping Screws |
| Compatible Wheel Bases | ClubSport DD, ClubSport DD+, CSL DD, Gran Turismo DD Pro |
| Glass Table Compatibility | Not Suitable |
In The Box
YOUR CLUBSPORT DD TABLE CLAMP PACKAGE
Your ClubSport DD Table Clamp includes the clamp base, fastening hardware, installation tools, rubber stops, and Fanatec signet stickers.
1
1x Table Clamp Base
2
2x Star Grip Bolts
3
2x Torx Bolts
4
4x M6 Bolts
5
2x Rubber Stops
6
1x Torx Key
7
1x Allen Key
8
'F' Signet Stickers
FANATEC WHEEL BASE COMPATIBILITY
BUILT FOR FOUR FANATEC DIRECT DRIVE WHEEL BASES
Secure your compatible Fanatec Wheel Base to a table measuring 5 to 60 mm thick. The ClubSport DD Table Clamp supports upright mounting with 0° to 20° adjustment and inverted mounting with 0° to 40° adjustment. At the maximum 40° inverted angle, some steering wheels may encounter clearance issues with the star grip bolts. This table clamp must not be used on glass tables.
ClubSport DD+ Wheel Base
Mount your ClubSport DD+ using the metal table clamp and adjust the steering angle to suit your driving position.
CSL DD Wheel Base
Compatible with your CSL DD Wheel Base for adjustable desk or table mounting.
Gran Turismo DD Pro Wheel Base
Attach your Gran Turismo DD Pro Wheel Base to a compatible table using the ClubSport DD Table Clamp.
Compatible Tables
Supports table thicknesses from 5 to 60 mm. Do not use on glass tables.
Inverted Mounting Clearance
Inverted mounting offers up to 40° of adjustment. At the maximum angle, star grip bolt clearance may vary depending on your steering wheel.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
STRENGTH AND STABILITY
Thanks to its metal construction, the ClubSport DD Table Clamp is super strong and stable.
ROCK SOLID
The next best thing to hard-mounting. If you want an easily-removable mounting solution that feels virtually identical to bolting the Wheel Base to your desk, this is it.
FITS CLUBSPORT DD, CSL DD, AND GRAN TURISMO DD PRO
This clamp is designed specifically for the side mount rail system of the ClubSport DD, CSL DD, and Gran Turismo DD Pro Wheel Bases.
ADJUSTABLE
Allowing adjustment between fully horizontal and 20 degrees, you’ll find a comfortable driving position for most desks and tables.
INVERTED MODE
The ClubSport DD Table Clamp can also be used inverted, which allows for up to 40 degrees of angle adjustment – perfect for truck sims!
