Compatible with the CSL Universal Hub V2 depending on the installed quick release.
FANATEC CSL UNIVERSAL HUB V2
$219.99
FANATEC CSL UNIVERSAL HUB V2
$219.99
PERFORMANCE AND VALUE

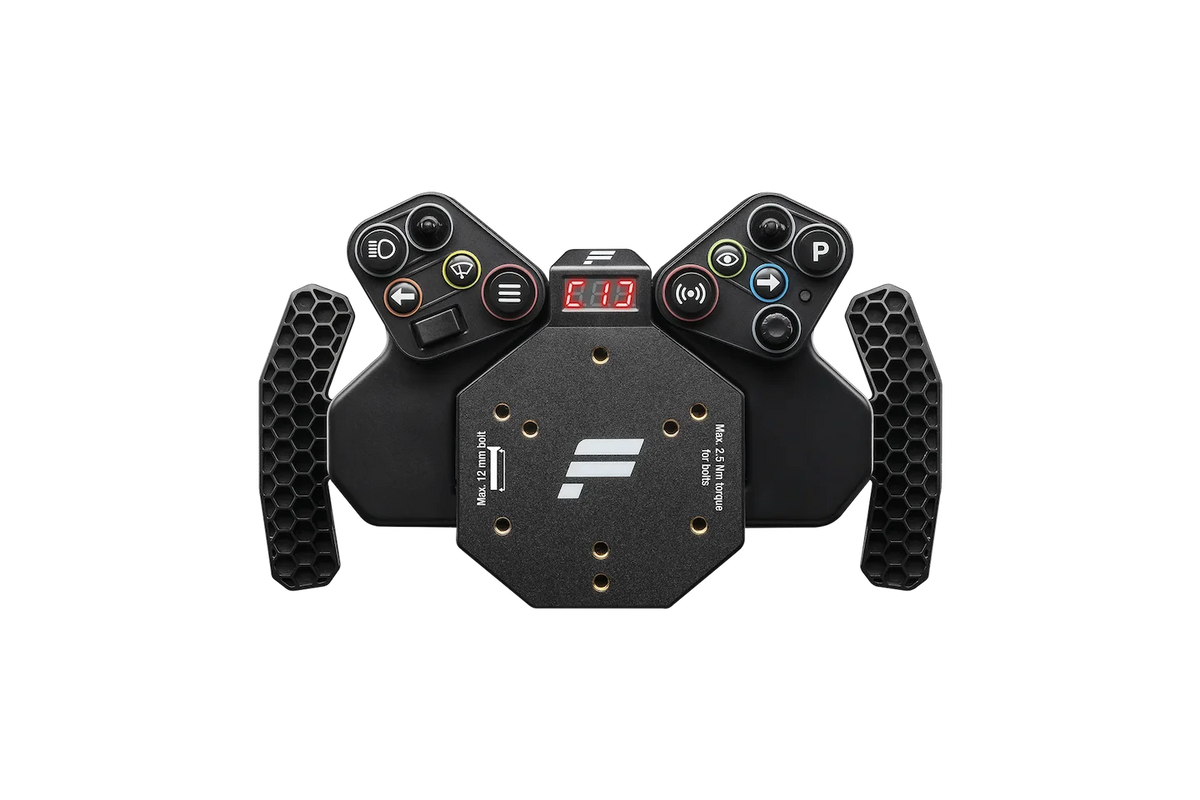

BUILD YOUR WHEEL. ADJUST IT YOUR WAY.

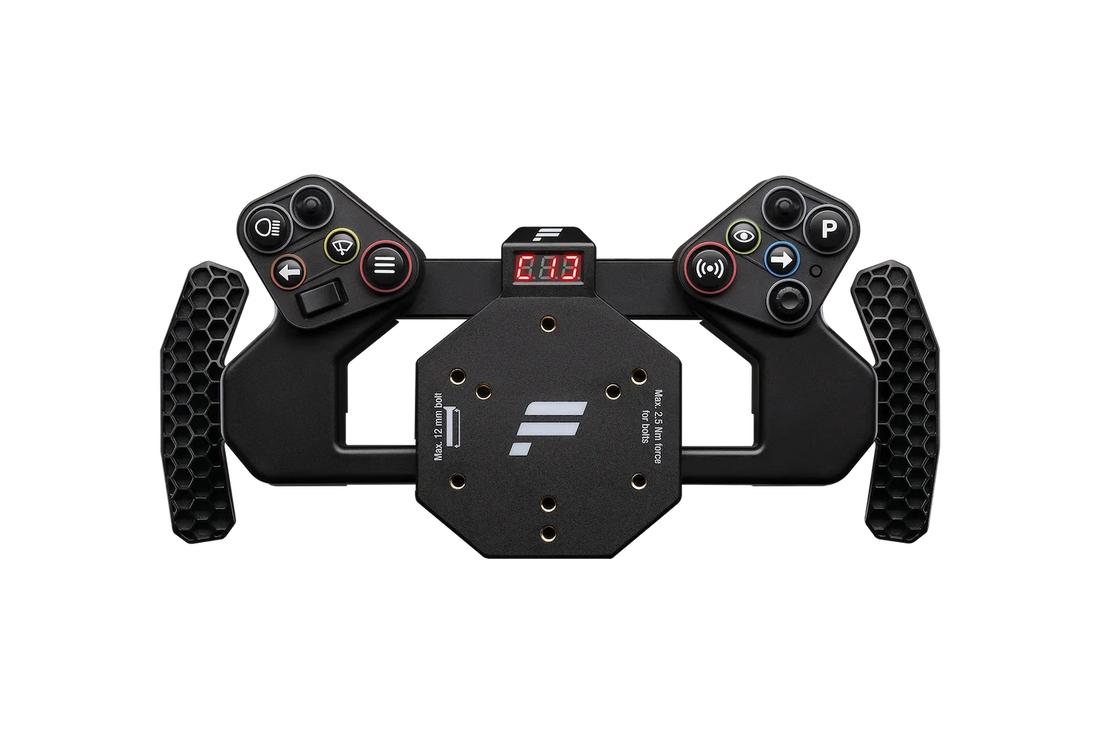

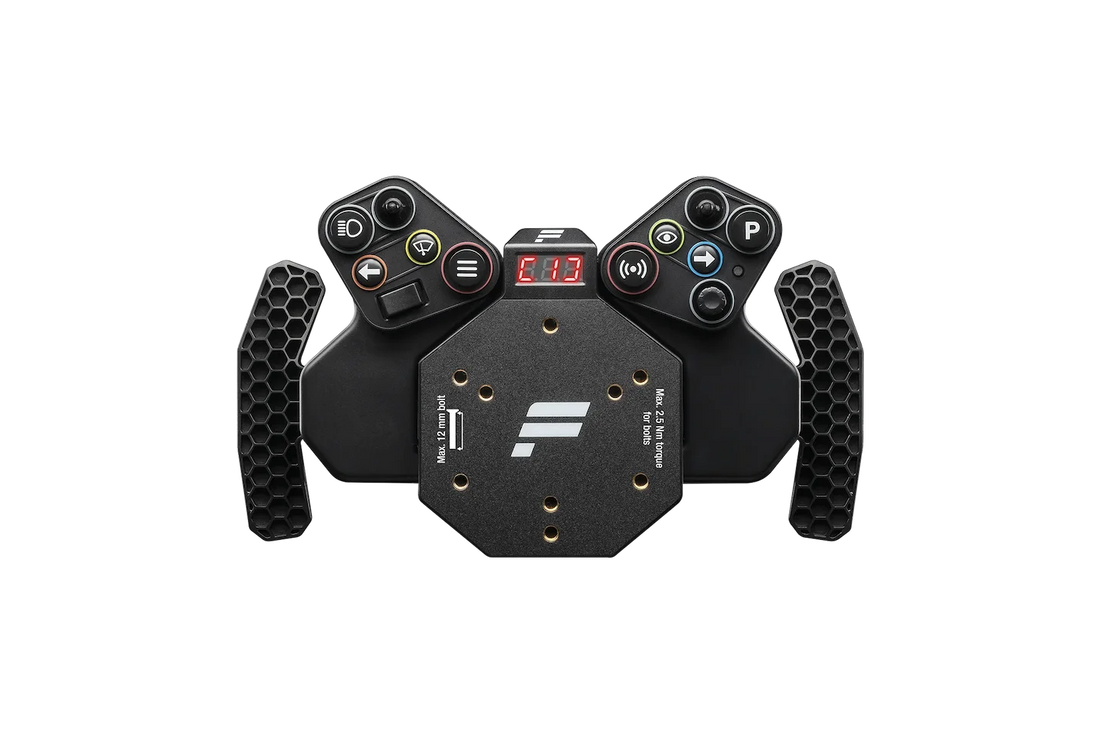

Build a versatile steering wheel setup with the Fanatec CSL Universal Hub V2.
Designed to support a wide variety of wheel rims, the CSL Universal Hub V2 combines many advanced features of the ClubSport Universal Hub with an innovative expanding design.
Its lightweight, stepless slider mechanism expands by 60 mm, allowing you to position the integrated button islands and shifter paddles to suit different wheel sizes. Shifter paddle width adjusts from 214 mm to 274 mm at the widest point.
Eight standard buttons, a 2-way rocker switch, two 2-way toggle switches, and a 7-way FunkySwitch™ provide extensive control. Press the dedicated Tuning Menu button to access force feedback and other Fanatec hardware settings directly through the integrated three-digit display.
Additional metal bracing improves rigidity by up to 23% compared with V1, while redesigned shifter paddles feature a honeycomb-reinforced structure, revised shape, and new spring mechanism for improved comfort.
The pre-installed QR2 Lite Wheel-Side completes the package with a carbon fibre-reinforced composite quick release featuring spring-loaded locking pins and a tapered connection for a secure fit.
Designed to support a wide variety of wheel rims, the CSL Universal Hub V2 combines many advanced features of the ClubSport Universal Hub with an innovative expanding design.
Its lightweight, stepless slider mechanism expands by 60 mm, allowing you to position the integrated button islands and shifter paddles to suit different wheel sizes. Shifter paddle width adjusts from 214 mm to 274 mm at the widest point.
Eight standard buttons, a 2-way rocker switch, two 2-way toggle switches, and a 7-way FunkySwitch™ provide extensive control. Press the dedicated Tuning Menu button to access force feedback and other Fanatec hardware settings directly through the integrated three-digit display.
Additional metal bracing improves rigidity by up to 23% compared with V1, while redesigned shifter paddles feature a honeycomb-reinforced structure, revised shape, and new spring mechanism for improved comfort.
The pre-installed QR2 Lite Wheel-Side completes the package with a carbon fibre-reinforced composite quick release featuring spring-loaded locking pins and a tapered connection for a secure fit.
60 mm Width Adjustment
Use the lightweight stepless slider to position the button islands and shifter paddles for different wheel rim sizes.
Wide Wheel Rim Support
Attach Fanatec and compatible third-party rims using 6 × 70 mm or 3 × 50 mm mounting patterns.
Extensive Integrated Controls
Eight buttons, a 2-way rocker switch, two toggle switches, and a 7-way FunkySwitch™ put essential controls within reach.
Integrated Tuning Display
Access the Fanatec Tuning Menu and supported telemetry data through the three-digit LED display.
Increased V2 Rigidity
Additional metal bracing improves rigidity by up to 23% compared with the first-generation hub.
Pre-Installed QR2 Lite
The included QR2 Lite Wheel-Side uses a carbon fibre-reinforced composite body, spring-loaded locking pins, and a tapered connection.
Product Details

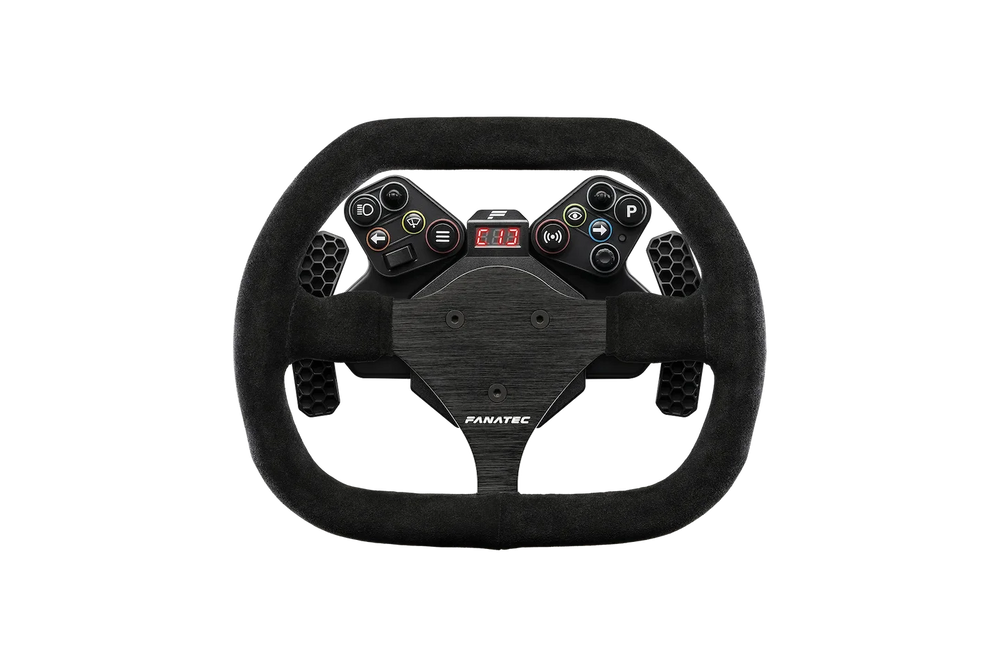

FLEXIBLE CONTROL. REFINED CONSTRUCTION.
| Product | Fanatec CSL Universal Hub V2 |
|---|---|
| Product Type | Universal Steering Wheel Hub |
| Hub Expansion Range | 60 mm |
| Width Adjustment | Lightweight Stepless Slider Mechanism |
| Shifter Paddle Width | 214 mm to 274 mm at Widest Point |
| Rigidity Improvement | Up to 23% Compared with V1 |
| Shifter Paddles | Ergonomic, Honeycomb-Reinforced |
| Button Islands | Integrated, Non-Removable |
| Standard Buttons | 8 with Snap-Dome Activation |
| Rocker Switch | 1 × 2-Way |
| Toggle Switches | 2 × 2-Way |
| FunkySwitch™ | 7-Way with Directional, Push-Button and Rotary Encoder Functions |
| Tuning Menu Button | Yes |
| Display | Three-Digit LED |
| Display Functions | Tuning Menu and Supported Telemetry Data |
| Quick Release | Exchangeable |
| Included Quick Release | QR2 Lite Wheel-Side, Pre-Installed |
| QR2 Lite Material | Carbon Fibre-Reinforced Composite |
| QR2 Lite Locking Mechanism | Spring-Loaded Locking Pins |
| QR2 Lite Connection | Tapered Mechanical Fit |
| Data Connector | DataPort-C |
| Supported Wheel Rim Patterns | 6 × 70 mm and 3 × 50 mm |
| Third-Party Rim Support | Compatible Patterns Including Sparco, MOMO and OMP |
| Torque Limitation | None Stated |
In The Box
YOUR CSL UNIVERSAL HUB V2 PACKAGE
Your CSL Universal Hub V2 includes the hub with a pre-installed QR2 Lite Wheel-Side quick release, installation tools, and a Quick Guide. A compatible Fanatec Wheel Base is required for operation and is not included.
1
CSL Universal Hub V2
2
QR2 Lite Wheel-Side Quick Release, Pre-Installed
3
1x Allen Screwdriver (3 mm)
4
1x Wrench (8 mm)
5
Quick Guide
FANATEC ECOSYSTEM
BUILD A STEERING WHEEL AROUND YOUR STYLE
The CSL Universal Hub V2 is compatible with the listed Fanatec Wheel Bases depending on the installed quick release. It supports Fanatec wheel rims and compatible third-party rims using 6 × 70 mm or 3 × 50 mm mounting patterns. Larger or deeply dished rims can make the integrated buttons and paddle shifters harder to reach. The CSL Universal Hub V2 is not compatible with the Podium Button Module Endurance.
Podium Wheel Base DD2
Compatible with the CSL Universal Hub V2 depending on the installed quick release.
Podium Wheel Base DD1 PS4™
Compatible depending on the installed quick release.
ClubSport DD Wheel Base
Compatible with the CSL Universal Hub V2 and supported quick-release configuration.
ClubSport DD+ Wheel Base
Compatible with the CSL Universal Hub V2 and supported quick-release configuration.
ClubSport Wheel Base V2
Compatible with the CSL Universal Hub V2.
ClubSport Wheel Base V2.5
Compatible with the CSL Universal Hub V2.
CSL Elite Wheel Base
Compatible with the CSL Universal Hub V2.
CSL Elite Wheel Base V1.1
Compatible with the CSL Universal Hub V2.
CSL Elite Wheel Base +
Compatible with the officially PlayStation-licensed CSL Elite Wheel Base +.
CSL DD Wheel Base
Compatible depending on the installed quick release.
Gran Turismo DD Pro Wheel Base
Compatible with the CSL Universal Hub V2 depending on the installed quick release.
Fanatec Wheel Rims
Attach current Fanatec wheel rims using supported 6 × 70 mm or 3 × 50 mm mounting patterns.
Third-Party Wheel Rims
Supports compatible 6 × 70 mm or 3 × 50 mm rims from brands such as Sparco, MOMO, and OMP.
Third-Party USB Steering Wheels
Third-party steering wheels with USB cables can be mounted on compatible Fanatec bases, but direct USB connectivity through the hub is not supported.
Windows PC
Compatible with Windows PC.
Xbox
The CSL Universal Hub V2 is not compatible with Xbox systems.
PlayStation
Functionality depends on the connected PlayStation-compatible Wheel Base, console capabilities, firmware, OS, game support, and developer support.
Podium Button Module Endurance
Not compatible with the CSL Universal Hub V2.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
PERFORMANCE AND VALUE
The CSL Universal Hub V2 supports a wide variety of wheel rims, combining many of the advanced features of the ClubSport Universal Hub at a lower price.

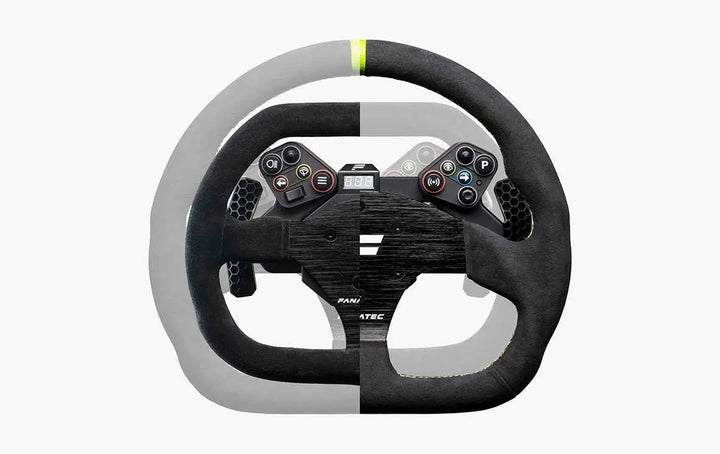

EASY WIDTH ADJUSTMENT
An innovative slider mechanism allows effortless positioning of the button islands and shifter paddles to suit different wheel sizes. Stepless slider for precise adjustment.

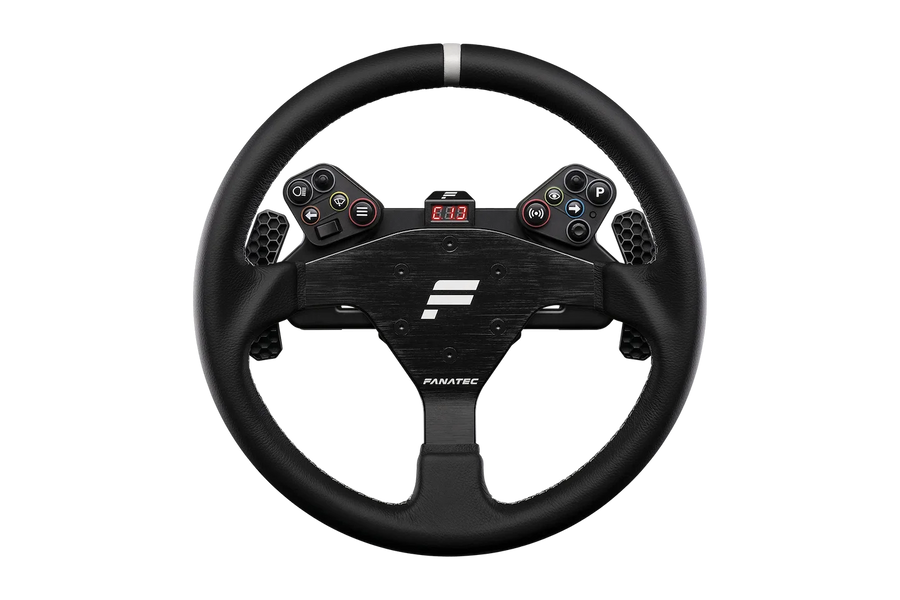

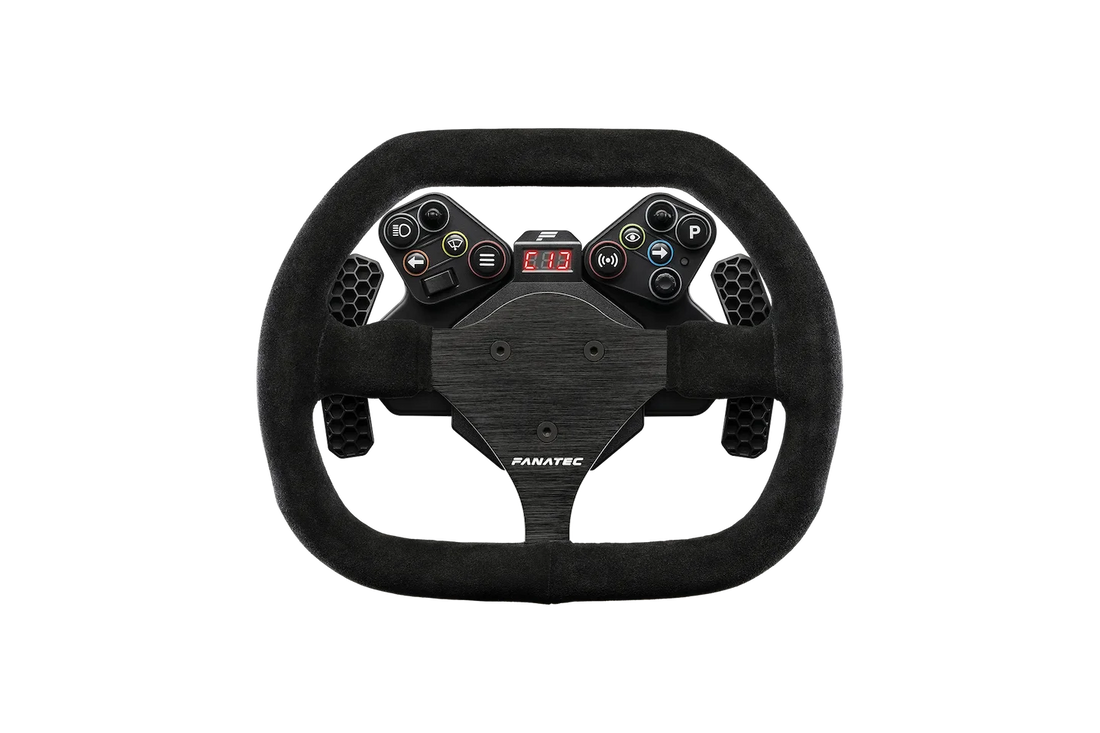

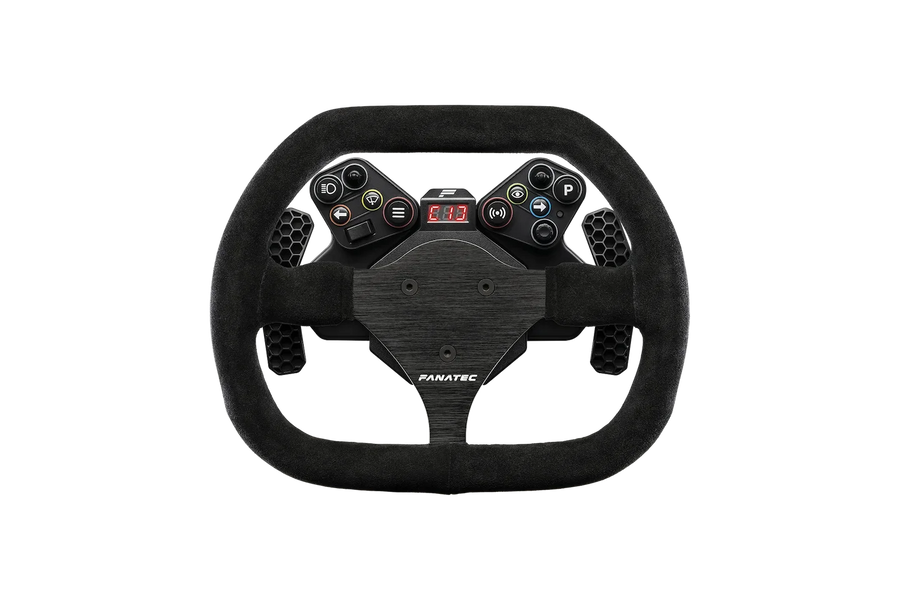

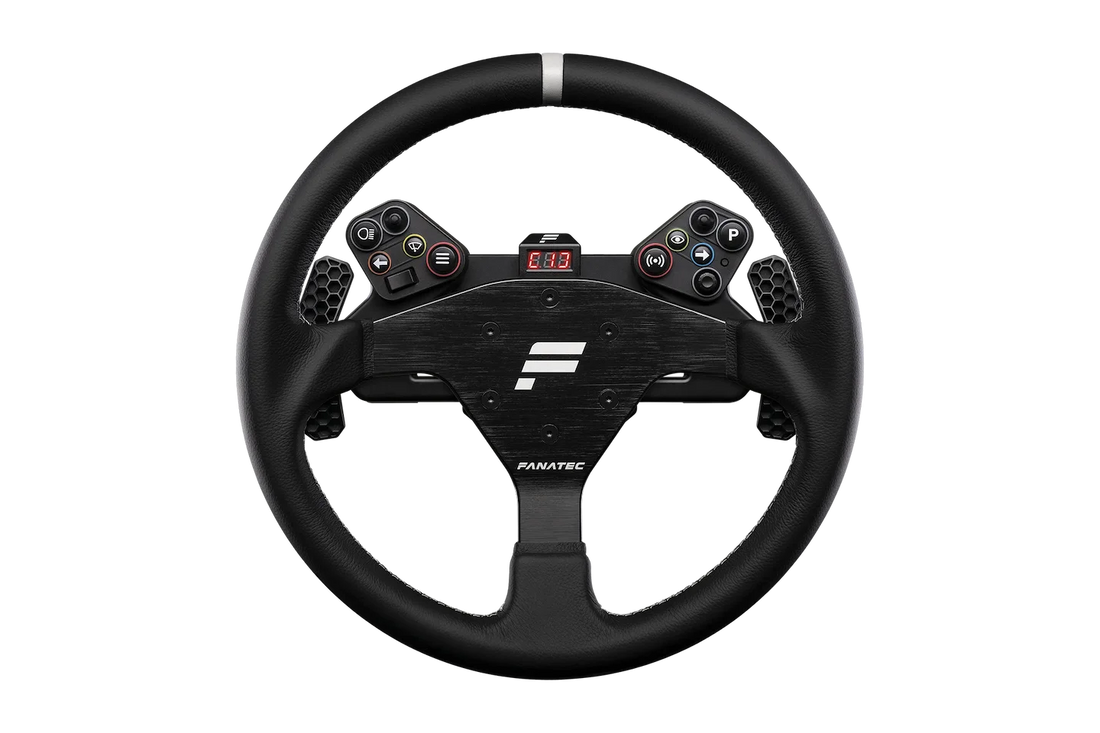

ATTACH ANY RIM YOU WANT
Threaded holes for wheel rims with a 3 x 50 mm or 6 x 70 mm pattern mean that all current Fanatec wheel rims can be attached to the CSL Universal Hub V2. It is also compatible with many wheel rims from brands such as MOMO, Sparco, or OMP.

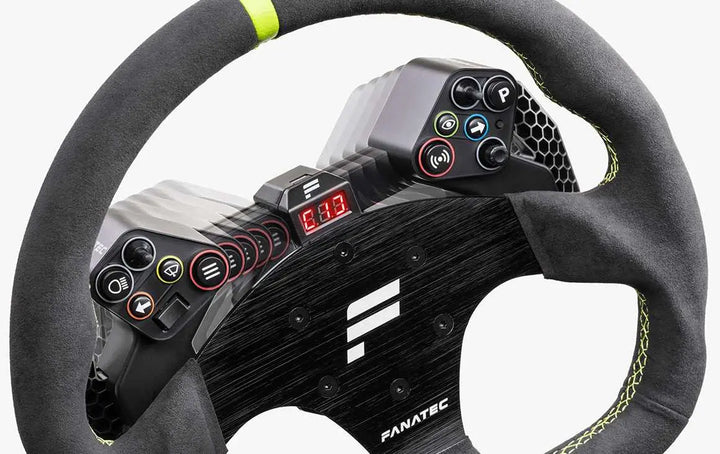

PACKED WITH FEATURES AND REFINEMENTS
The integrated button islands, display, and shifters work neatly with many wheel rim combinations. The V2 has additional metal bracing to improve rigidity up to 23%, and the shifter paddle design has been revised.

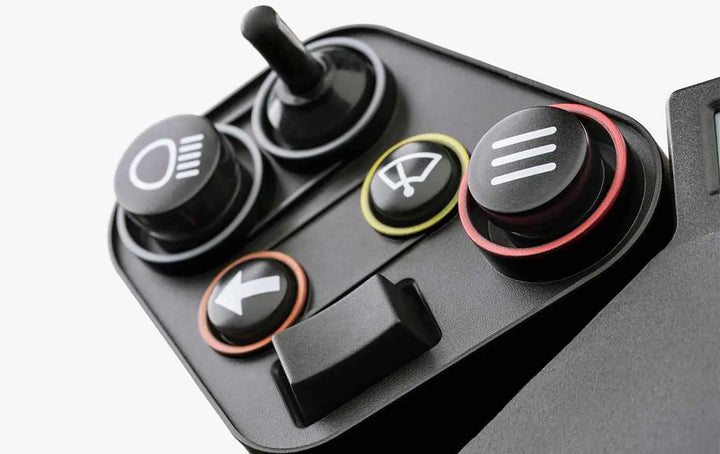

PLENTY OF INPUTS
Alongside eight standard buttons with snap-dome activation, the integrated button islands also feature a 2-way rocker switch, two 2-way toggle switches, and a 7-way FunkySwitch™ with rotary encoder functionality.

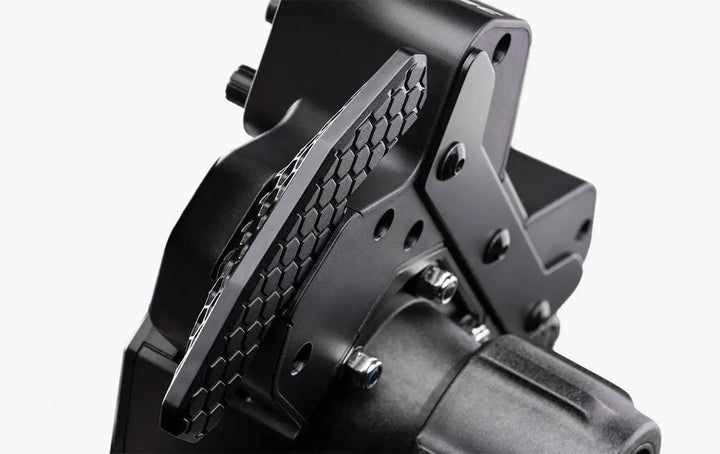

ERGONOMIC SHIFTER PADDLES
Reinforced with a honeycomb structure, the paddles are shaped to fit most wheel rims. They have a revised shape for improved comfort, and a new spring mechanism. The width of the paddle positions is adjusted together with the button islands as part of the slider system.
PACKED WITH FEATURES AND REFINEMENTS
The integrated button islands, display, and shifters work neatly with many wheel rim combinations. The V2 has additional metal bracing to improve rigidity up to 23%, and the shifter paddle design has been revised.

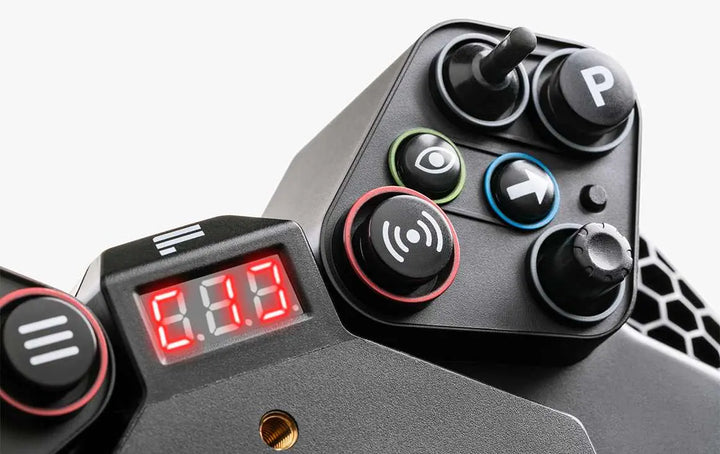

TUNING WITH THE FUNKYSWITCH™
The 7-way FunkySwitch™ is a multi-purpose input device, with d-pad, push-button, and rotary encoder. Press the Tuning Button to bring up the Tuning Menu on the integrated display and adjust settings with the FunkySwitch™.

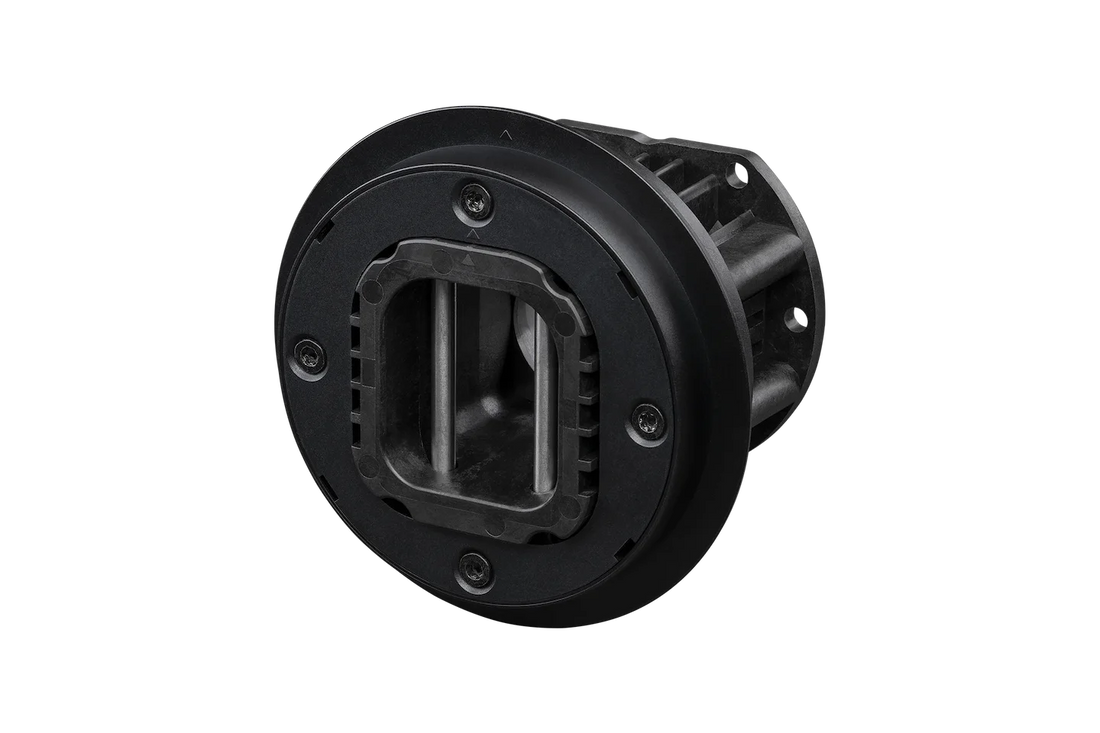

QR2
The motorsport-derived QR2 quick release is optimized for a secure and fast attachment/detachment of steering wheels, with the tapered shape naturally ensuring a tight fit.
CSL UNIVERSAL HUB V2
