Use the GT-MAX32 with a compatible Simucube Wheel Base on Windows PC.
GSI GT-MAX32
$1,572.00
GSI GT-MAX32
$1,572.00
CONTINUOUS CARBON CONSTRUCTION
GT CONTROL. NEXT-LEVEL CARBON ENGINEERING.

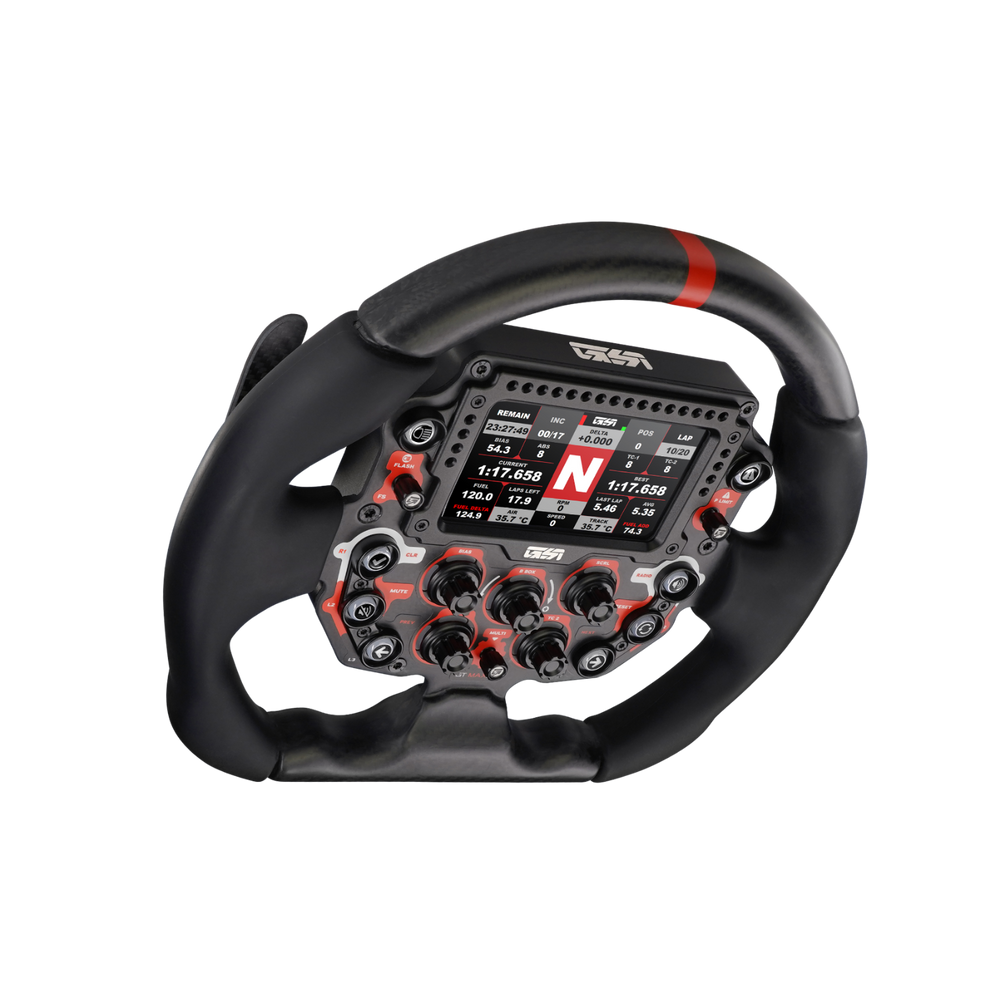

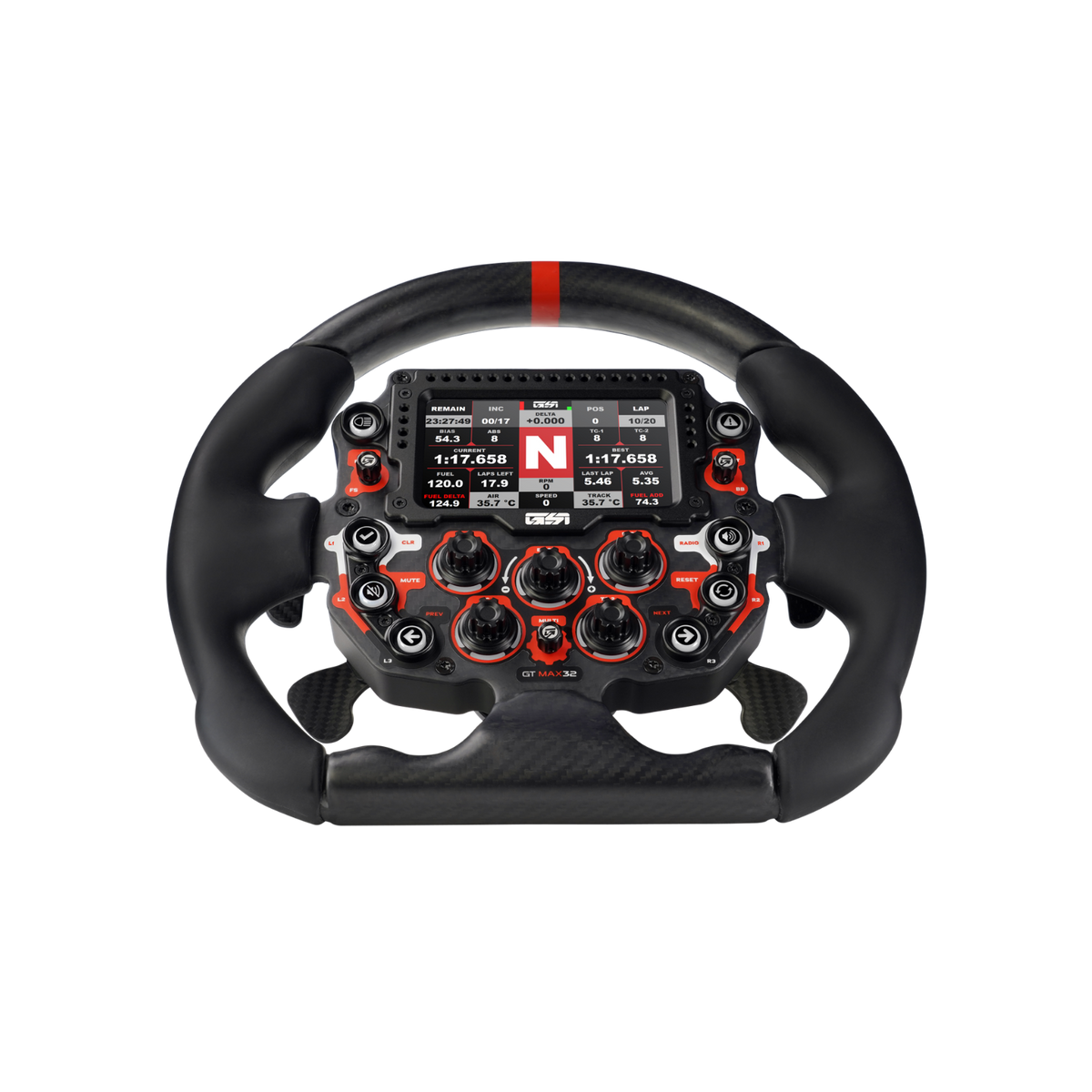

Experience GSI's GT-MAX32, a 320 mm sim racing wheel built around an advanced continuous molded carbon fibre design.
The face and outer circular rim form a single carbon fibre structure, combining the front plate and wheel rim into one continuous unit. Overmolded silicone handles provide a secure gripping surface while complementing the strength and weight-focused construction.
With 56 mappable inputs, the GT-MAX32 provides eight push buttons, five 5-way encoders, and three 7-way switches. Available N52 shifters and HSE clutches let you configure the wheel further.
A 5-inch touchscreen is surrounded by 76 addressable RGB LEDs, including a 4 + 16 + 4 telemetry strip, RGB buttons, and illuminated 5-way encoders.
Each GT-MAX32 uses hand-laid carbon fibre. Natural variations in the carbon weave and small areas of carbon filler may be present, giving each wheel its own individual character.
The face and outer circular rim form a single carbon fibre structure, combining the front plate and wheel rim into one continuous unit. Overmolded silicone handles provide a secure gripping surface while complementing the strength and weight-focused construction.
With 56 mappable inputs, the GT-MAX32 provides eight push buttons, five 5-way encoders, and three 7-way switches. Available N52 shifters and HSE clutches let you configure the wheel further.
A 5-inch touchscreen is surrounded by 76 addressable RGB LEDs, including a 4 + 16 + 4 telemetry strip, RGB buttons, and illuminated 5-way encoders.
Each GT-MAX32 uses hand-laid carbon fibre. Natural variations in the carbon weave and small areas of carbon filler may be present, giving each wheel its own individual character.
Continuous Carbon Fibre Structure
The face and outer circular rim form a single carbon fibre unit for a distinctive lightweight and performance-focused construction.
5-Inch Touchscreen
Access supported racing information and controls through the integrated 5-inch touchscreen display.
56 Mappable Inputs
Configure push buttons, 5-way encoders, and 7-way switches around your preferred racing controls.
76 Addressable RGB LEDs
RGB lighting includes illuminated controls and a 4 + 16 + 4 telemetry strip for supported visual feedback.
Overmolded Silicone Handles
Silicone grips are molded directly around the wheel structure for secure and consistent handling.
Hand-Laid Carbon Fibre
Premium hand-laid carbon construction gives each wheel subtle natural variations in weave and finish.
Product Details
ADVANCED GT CONTROL AND CONSTRUCTION
| Product | GSI GT-MAX32 |
|---|---|
| Product Type | GT-Style Sim Racing Steering Wheel |
| Platform | Windows PC |
| Mappable Inputs | 56 |
| Push Buttons | 8 |
| Push Button Activation Force | 500 gf |
| 5-Way Encoders | 5 |
| 5-Way Encoder Torque | 3.5 N·cm |
| 7-Way Switches | 3 |
| Available Shifters | N52 Shifters |
| Available Clutches | HSE Clutches |
| Available Top Paddles | No |
| Display | 5-Inch Touchscreen |
| Addressable RGB LEDs | 76 |
| Telemetry LED Layout | 4 + 16 + 4 |
| RGB Buttons | Yes |
| RGB 5-Way Encoders | Yes |
| Front Plate | Hand-Laid Carbon Fibre |
| Wheel Structure | Continuous Molded Carbon Fibre |
| Body Construction | Aluminium Unibody |
| Handle Material | Overmolded Silicone |
| Button Material | Scratch-Resistant Polycarbonate |
| Label Text and Color Customization | Yes |
| Button Layout Customization | Yes |
| Rotary Knob Customization | Yes |
| Wheel Diameter | 320 mm |
| Mounting Pattern | 70 mm PCD, 6 × M5 |
| Weight | 2.01 kg |
In The Box
YOUR GT-MAX32 PACKAGE
Your GSI GT-MAX32 package includes the steering wheel and GSI "Spec 3" coiled USB cable. Wheel Base-specific quick releases, adapters, and hubs are not listed among the supplied package contents.
1
GT-MAX32 Wheel
2
GSI "Spec 3" Coiled USB Cable
MULTI-ECOSYSTEM PC SUPPORT
CONNECT YOUR GT-MAX32 TO YOUR RACING SETUP
The GSI GT-MAX32 is designed for Windows PC and supports a range of high-performance Wheel Base ecosystems. Connection requirements vary by Wheel Base. Fanatec, Asetek, Moza, and Simagic configurations require the corresponding hub or quick-release solution listed below. For USB connectivity, GSI recommends GSI Coiled Cable → Powered USB Hub → PC. USB extension cables are not recommended.
VRS DirectForce Pro
Compatible with the VRS DirectForce Pro for Windows PC sim racing setups.
Fanatec DD Bases
Connect the GT-MAX32 to compatible Fanatec Direct Drive Wheel Bases through an SRM Fanatec Emulator Hub or Fanatec Podium Hub.
Asetek
Connect to a compatible Asetek Wheel Base using the Asetek Invicta Quick Release.
Moza
Connect to a compatible Moza Wheel Base using a Moza Quick Release.
Simagic
Connect to a compatible Simagic Wheel Base using a Simagic Quick Release.
Most 8 Nm+ Wheel Bases
Designed for use with most compatible Wheel Bases rated at 8 Nm or higher.
Windows PC
The GT-MAX32 is specified for Windows PC operation.
Powered USB Hub
Recommended connection is GSI Coiled Cable to Powered USB Hub to PC.
USB Extension Cables
USB extension cables are not recommended for the GT-MAX32.
