Simucube
Use the Interlock Ultra with a compatible Simucube Wheel Base on Windows PC.
INTERLOCK ULTRA
The Modular System. Redefined.
GSI Interlock Ultra
$720.00
GSI Interlock Ultra
$720.00

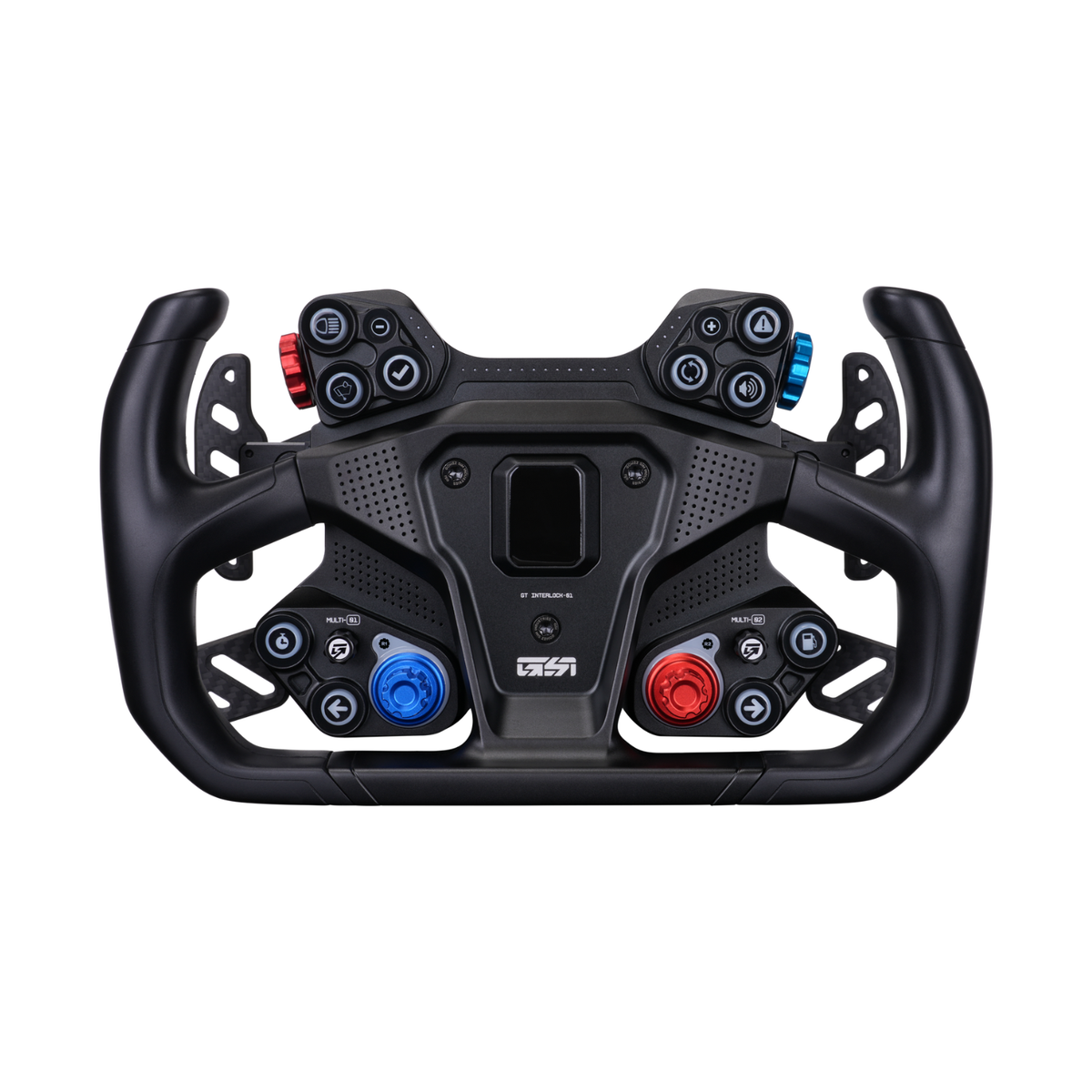

GSI INTERLOCK ULTRA
FLAGSHIP CONTROL. INTEGRATED LED MATRIX.
Meet the GSI Interlock Ultra, the flagship configuration of GSI's modular Interlock system.
Its distinctive 300 mm rim integrates the LED Matrix directly into the design, creating a clean, purpose-built racing interface with dynamic visual feedback for supported gear, flag, and alert animations.
The control layout delivers 42 mappable inputs through 12 RGB push-buttons, two thumb encoders, two tactile 5-way encoders, and two 7-way switches. Available N52 shifters and HSE clutches provide additional configuration options.
Up to 90 addressable RGB LEDs combine illuminated controls with a 4 + 15 + 4 telemetry strip, while the integrated LED Matrix adds another layer of customizable visual information.
A matte brushed aluminium front plate, aluminium unibody, perforated faux leather handles, and scratch-resistant polycarbonate buttons complete the lightweight, performance-focused construction.
The Interlock Ultra is also ready for passthrough USB-C quick-release systems, including the upcoming GSI Powerlink-QR, with dynamic power switching between compatible passthrough QR and coiled-cable connections.
Its distinctive 300 mm rim integrates the LED Matrix directly into the design, creating a clean, purpose-built racing interface with dynamic visual feedback for supported gear, flag, and alert animations.
The control layout delivers 42 mappable inputs through 12 RGB push-buttons, two thumb encoders, two tactile 5-way encoders, and two 7-way switches. Available N52 shifters and HSE clutches provide additional configuration options.
Up to 90 addressable RGB LEDs combine illuminated controls with a 4 + 15 + 4 telemetry strip, while the integrated LED Matrix adds another layer of customizable visual information.
A matte brushed aluminium front plate, aluminium unibody, perforated faux leather handles, and scratch-resistant polycarbonate buttons complete the lightweight, performance-focused construction.
The Interlock Ultra is also ready for passthrough USB-C quick-release systems, including the upcoming GSI Powerlink-QR, with dynamic power switching between compatible passthrough QR and coiled-cable connections.
Integrated LED Matrix
Display customizable gear, flag, and alert animations directly within the Interlock Ultra's integrated visual system.
42 Mappable Inputs
Configure push-buttons, thumb encoders, 5-way encoders, and 7-way switches around your preferred driving controls.
Up to 90 RGB LEDs
Addressable illumination covers buttons, encoders, telemetry indicators, and the integrated visual system.
Aluminium Unibody
A matte brushed aluminium front plate and aluminium unibody provide a premium structural foundation.
Power-Link QR Ready
A conveniently positioned USB-C connection supports compatible passthrough quick-release systems for power and data.
Perforated Faux Leather Handles
The 300 mm rim uses perforated faux leather grips for a dedicated racing feel.
Product Details

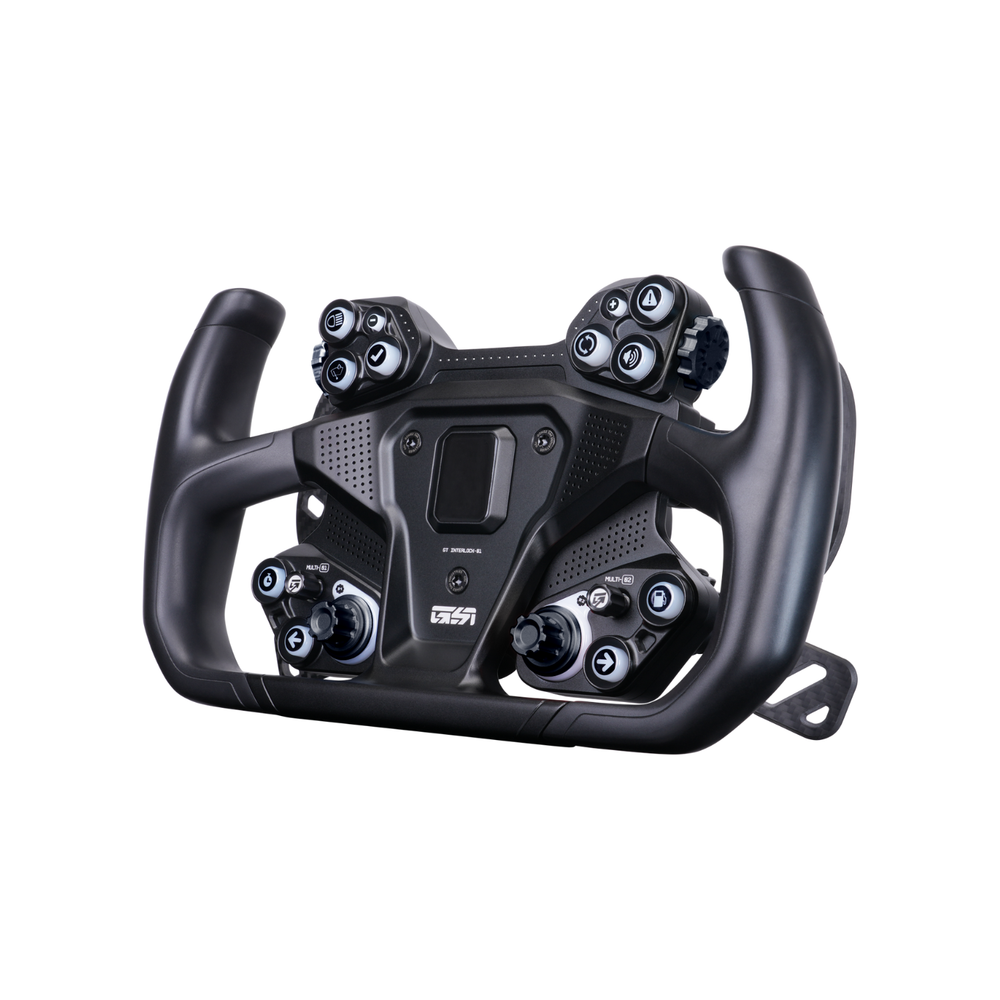

MODULAR CONTROL. ADVANCED TELEMETRY.
| Product | GSI Interlock Ultra |
|---|---|
| Product Type | Modular Sim Racing Steering Wheel |
| Platform | Windows PC |
| Mappable Inputs | 42 |
| Push Buttons | 12 |
| Push Button Activation Force | 500 gf |
| Thumb Encoders | 2 |
| 5-Way Encoders | 2 |
| 5-Way Encoder Torque | 6.5 N·cm |
| 7-Way Switches | 2 |
| Available Shifters | N52 Shifters |
| Available Clutches | HSE Clutches |
| Top Paddles | No |
| Display | Integrated LED Matrix |
| Addressable RGB LEDs | Up to 90 |
| Telemetry LED Layout | 4 + 15 + 4 |
| RGB Buttons | Yes |
| RGB 5-Way Encoders | Yes |
| Front Plate | Matte Brushed Aluminium |
| Body Construction | Aluminium Unibody |
| Handle Material | Perforated Faux Leather |
| Button Material | Scratch-Resistant Polycarbonate |
| Rotary Knob Customization | Yes |
| Label Text and Color Customization | No |
| Button Layout Customization | No |
| Wheel Diameter | 300 mm |
| Mounting Pattern | 70 mm PCD, 6 × M5 |
| Firmware Architecture | GSI simOS |
| Passthrough QR Connection | USB-C |
| Dynamic Power Switching | Supported |
In The Box
YOUR INTERLOCK ULTRA PACKAGE
Your GSI Interlock Ultra package includes the steering wheel and GSI "Spec 3" coiled USB cable. Wheel Base-specific quick releases, adapters, hubs, and passthrough QR systems are not listed among the supplied package contents.
1
Interlock Ultra
2
GSI "Spec 3" Coiled USB Cable
MULTI-ECOSYSTEM PC SUPPORT
CONNECT IT YOUR WAY
The GSI Interlock Ultra is designed for Windows PC and supports a range of high-performance Wheel Base ecosystems. Connection requirements vary by Wheel Base. Fanatec, Asetek, Moza, and Simagic setups require the corresponding hub or quick-release solution listed below. For a conventional wired connection, GSI recommends GSI Coiled Cable → Powered USB Hub → PC. USB extension cables are not recommended. The Interlock platform is also prepared for compatible USB-C passthrough quick-release systems, including the upcoming GSI Powerlink-QR.
VRS DirectForce Pro
Compatible with the VRS DirectForce Pro for Windows PC sim racing setups.
Fanatec DD Bases
Connect to compatible Fanatec Direct Drive Wheel Bases through an SRM Fanatec Emulator Hub or Fanatec Podium Hub.
Asetek
Connect to a compatible Asetek Wheel Base using the Asetek Invicta Quick Release.
Moza
Connect to a compatible Moza Wheel Base using a Moza Quick Release.
Simagic
Connect to a compatible Simagic Wheel Base using a Simagic Quick Release.
Most 8 Nm+ Wheel Bases
Designed for use with most compatible Wheel Bases rated at 8 Nm or higher.
Compatible Third-Party Rims
The Interlock system supports modular configuration with compatible third-party rim options.
Powerlink-QR
Prepared for the upcoming GSI Powerlink-QR passthrough system for combined power and data.
USB-C Passthrough Quick Releases
Supports compatible passthrough quick-release systems using a USB-C connection.
Windows PC
The Interlock Ultra is specified for Windows PC operation.
Powered USB Hub
Recommended wired connection is GSI Coiled Cable to Powered USB Hub to PC.
USB Extension Cables
USB extension cables are not recommended.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
LED MATRIX
Fully customizable for gear, flag, and alert animations, bringing dynamic visual feedback directly into your races.
POWER-LINK QR CAPABLE
Connect and mount your passthrough quick release of choice via USB-C to go fully wireless on your wheelbase.
START ANYWHERE, GO ANYWHERE
No matter where you begin, every interlock can evolve into any other. Go fully custom with a compatible third party rim.
POWER-LINK QR READY
Since the beginning, we’ve pushed boundaries to create the ultimate sim racing products. The Interlock sets a new foundation for the future, built around our latest electronics and modular design.
It’s already prepared for our upcoming GSI Powerlink-QR, our next-generation passthrough QR that provides both power and data, with a conventionally placed USB-C port beneath the hub for effortless connectivity. The Interlock is ready not only for the GSI Powerlink-QR but also for any passthrough QR that uses a USB-C connection—no need to open the wheel to adapt. It also features dynamic power switching, intelligently recognizing whether it’s connected through the passthrough QR or the coiled cable—giving you seamless flexibility and complete freedom in how you connect.
OUR BEST ROTARY ENCODERS
The Interlock uses our best and most tactile rotary encoders to date for the most satisfying and precise feedback.
INTEGRATED THUMB ENCODERS
Standard all across version of interlock, map crucial car and simulator controls for easy access when you need them.
simOS Architecture
GSI wheels run on simOS, our custom firmware optimized specifically for sim racing.
It includes features like predictive algorithms to optimize responsiveness and intelligently manage power and data, as well as a suite of useful features that integrate directly with the simOS app.
GSI INTERLOCK ULTRA
UNIQUE FEATURES
MULTIPLE RIM OPTIONS
Designed for performance and seamless integration. Use your own to make it fully custom.
UP TO 44 TOTAL INPUTS
The Interlock system unlocks an incredible amount of versatility, giving you the freedom to map every control exactly to your driving style.
HIGH-PRECISION ROTARY ENCODERS
Our most tactile encoders yet at 6.5 Ncm. Each adjustment is crisp, responsive, and built for precise and satisfying control.
UP TO 90 RGB LEDS
Illuminated buttons, encoders, and telemetry. Add the LED Matrix for additional telemetry and next-level visuals.
12 RGB LED PUSH-BUTTONS
Tactile and responsive with engagement at 500 gram force and 2 fully addressable RGB LEDs per button.
2 SEVEN-WAY SWITCHES
Multi-function control right at your thumbs for menus, car settings, and black boxes.
2 THUMB ENCODER
Perfectly positioned where your hands naturally rest, allowing seamless adjustments without distraction.
4 + 15 + 4 TELEMETRY LEDS
Customizable telemetry indicators keep RPM, flags, traction, and ABS data directly in your line of sight.
LIGHTWEIGHT BUILD
Engineered to maximize strength while minimizing weight — giving you sharper feedback from your wheelbase.
