PRECISION AND PERFORMANCE
PROFESSIONAL-GRADE CONTROL. BUILT FOR CONSISTENCY.

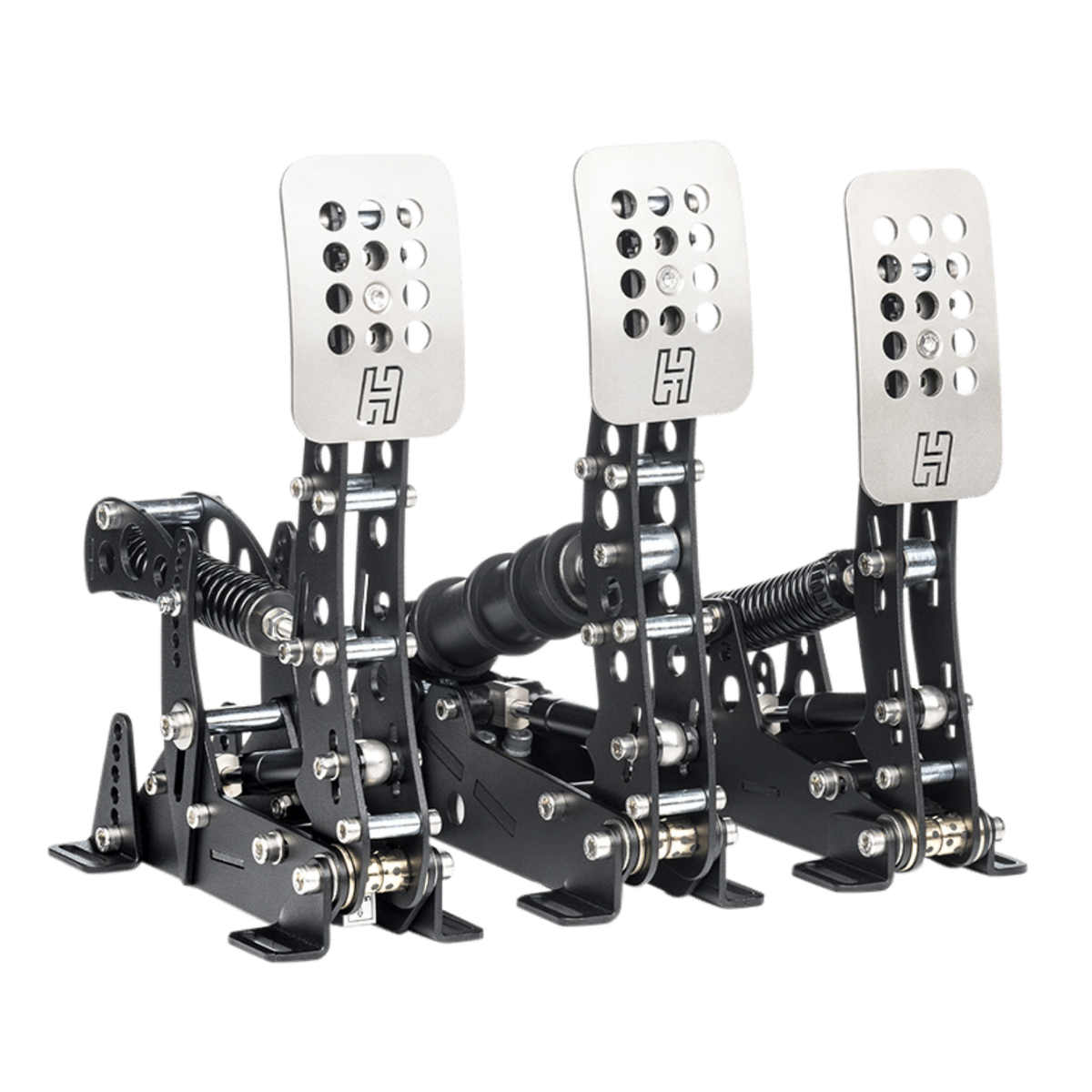

Improve consistency, accuracy, and control with the Heusinkveld Sim Pedals Ultimate+ 3-Pedal Set.
Designed for high-end professional motorsport simulators, the Ultimate+ combines brake, throttle, and clutch pedals in a strong, compact, durable, and highly adjustable system capable of simulating pedal loads comparable to real GT and F1 cars.
The brake uses custom Heusinkveld elastomers to create a progressive pedal feel with nine available resistance settings and supports up to 140 kg of actual braking force. Adjustable two-way hydraulic damping is used on the brake and clutch, while the throttle features adjustable one-way damping.
Force and position-sensitive load cells provide precise pedal input, while carefully optimized mechanical tolerances minimize play. Key pivot points use slide bearings and have undergone automated durability testing for one million duty cycles.
SmartControl and SmartControl Live software let you configure pedal output curves, deadzones, brake force, and other settings to tailor the pedal response to your driving style.
Designed for high-end professional motorsport simulators, the Ultimate+ combines brake, throttle, and clutch pedals in a strong, compact, durable, and highly adjustable system capable of simulating pedal loads comparable to real GT and F1 cars.
The brake uses custom Heusinkveld elastomers to create a progressive pedal feel with nine available resistance settings and supports up to 140 kg of actual braking force. Adjustable two-way hydraulic damping is used on the brake and clutch, while the throttle features adjustable one-way damping.
Force and position-sensitive load cells provide precise pedal input, while carefully optimized mechanical tolerances minimize play. Key pivot points use slide bearings and have undergone automated durability testing for one million duty cycles.
SmartControl and SmartControl Live software let you configure pedal output curves, deadzones, brake force, and other settings to tailor the pedal response to your driving style.
140 kg Brake Force
The brake pedal supports up to 140 kg of actual braking force for high-load GT and Formula-style braking.
9 Brake Resistance Settings
Configure the brake pedal across nine resistance settings to match your preferred pedal feel.
Precision Load Cell Sensors
A 200 kg force-sensitive load cell on the brake and position-sensitive load cells on throttle and clutch provide accurate pedal input.
Adjustable Hydraulic Damping
Two-way damping on brake and clutch plus one-way damping on throttle lets you tune pedal response and movement.
SmartControl Software
Configure output curves, deadzones, brake force, and other pedal behavior through SmartControl and SmartControl Live.
Tested for One Million Cycles
Key pivot points use slide bearings and have undergone automated durability testing for long-term reliability.
Product Details

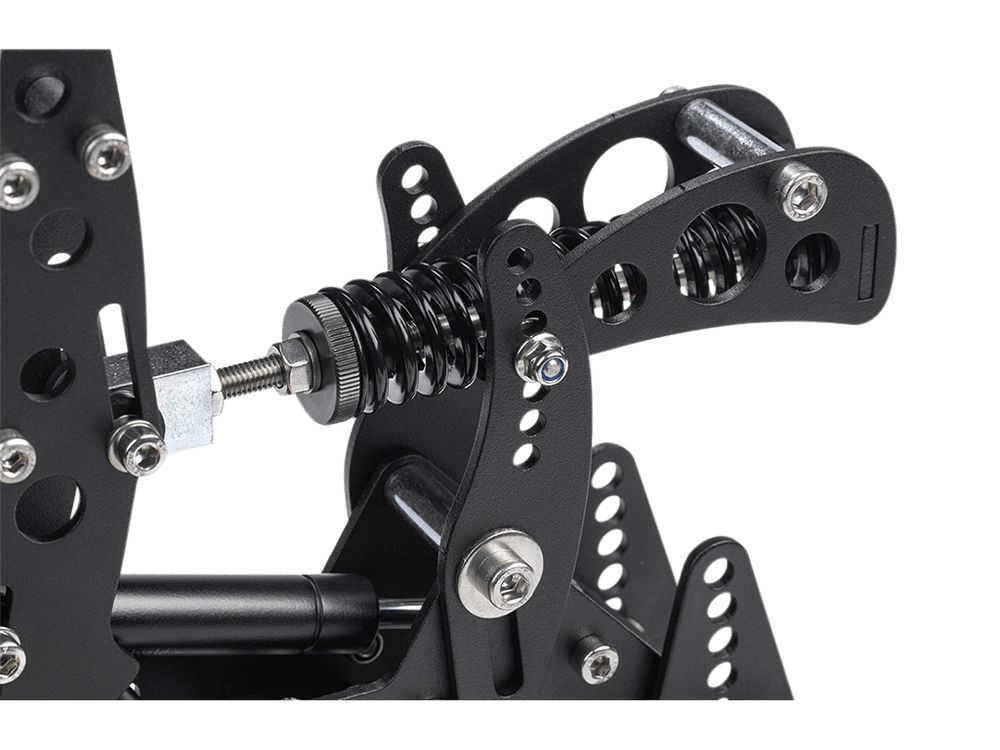

HIGH-LOAD PEDALS. PRECISE ADJUSTMENT.
| Product | Heusinkveld Sim Pedals Ultimate+ 3-Pedal Set |
|---|---|
| Product Type | High-End Sim Racing Pedal Set |
| Pedals | Brake, Throttle and Clutch |
| Platform | Windows PC |
| Operating System | Windows 10 or Newer |
| Software | SmartControl and SmartControl Live |
| Controller | External Controller Box |
| Controller Resolution | 12-Bit USB Controller |
| Plug and Play | Yes |
| Maximum Actual Braking Force | 140 kg |
| Brake Resistance Settings | 9 |
| Brake Sensor | Force-Sensitive 200 kg Load Cell |
| Throttle Sensor | Position-Sensitive Load Cell |
| Clutch Sensor | Position-Sensitive Load Cell |
| Brake Hydraulic Damping | Adjustable 2-Way |
| Clutch Hydraulic Damping | Adjustable 2-Way |
| Throttle Hydraulic Damping | Adjustable 1-Way |
| General Adjustments | Pedal Angle, Pedal Plate Height, Hydraulic Damping |
| Throttle and Clutch Adjustments | Pedal Travel, Overall Pedal Force, Pedal Spring Preload |
| Brake Adjustments | Pedal Resistance, Coil Spring Preload |
| Software Adjustments | Output Curves, Deadzones, Components |
| Material | Powder-Coated and Glass Bead-Blasted Stainless Steel |
| Dimensions | 445 × 310 × 91 mm |
| Weight | 6.64 kg |
| Durability Testing | 1 Million Duty Cycles |
| Recommended Mounting | Full Frame Rig |
| Packaging | Eco-Friendly Packaging |
In The Box
YOUR ULTIMATE+ 3-PEDAL PACKAGE
Your Heusinkveld Ultimate+ package includes the pedal set, external controller box, USB cable, mounting hardware, adjustment tools, and manual.
1
Ultimate+ Brake Pedal
2
Ultimate+ Throttle Pedal
3
Ultimate+ Clutch Pedal
4
Controller Box
5
USB Cable
6
Mounting Materials
7
Installation and Adjustment Tools
8
Manual
System Support
BUILT FOR HIGH-END PC SIMULATORS
The Heusinkveld Ultimate+ 3-Pedal Set is designed for Windows PC systems running Windows 10 or newer. The pedals are suitable for professional driver training, Esports, commercial simulators, and high-end home setups. Because of the pedal forces involved, the Ultimate+ requires a full-frame rig or simulator with a solid connection between the pedals and seat. The pedals should not be installed unsupported on the floor or on a wheel stand without sufficient structural support.
SmartControl
Configure pedal output curves, deadzones, brake force, and other settings through Heusinkveld SmartControl.
SmartControl Live
Adjust supported pedal settings while driving through SmartControl Live.
Professional Driver Training
Suitable for professional motorsport simulator and driver training applications.
Esports and Home Sim Racing
Designed for competitive Esports, commercial simulation, and high-end home use.
F1 and Formula Cars
Capable of reproducing high brake forces suited to Formula-style simulation.
GT and Prototype Cars
Adjustable force, travel, and damping support GT, LMP, and related racing configurations.
Rally and Road Cars
Pedal settings can be adjusted for lower-force and longer-travel driving styles.
Full Frame Rig
A rigid simulator or full-frame rig is required for proper installation and support.
Ultimate+ Baseplate
The optional Ultimate+ Baseplate can be used as part of a compatible mounting setup.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
Capable of handling up to 140kg of force. Capable of simulating pedal loads as high as in real GT and F1 cars.
Brake With Confidence
ENHANCE YOUR EXPERIENCE
The highest quality, most adjustable and most realistic feeling pedals on the market. Trusted by racing professionals worldwide.
TRUSTED AND USE BY REAL RACECAR DRIVERS
Heusinkveld Ultimate+ pedals offer the ultimate control for drivers at the highest level, they deliver the precision needed for peak performance. Trusted and used by many real racecar drivers and professional Esporter drivers. The advanced load cell technology and customizable settings ensure a realistic and responsive driving experience.
Get everything out of your laptimes
Adding the Heusinkveld Ultimate+ pedals to your simulator gives you precision and performance. You’ll drive more consistent, can change many things to match your favorite car and it feels like you are racing in a real race car. Enjoy sim racing with this immersive experience.
BE IN CONTROL
With our SmartControl software you can easily configure dead zones, brake force and customize pedal output curves. You can even change key settings while driving.
UNMATCHED ACCURACY
Not all load cell pedals are equal. Ultimate+ pedals have properly implemented load sensors based on mathematical design models. So you can rely on a true 1-on-1 relation between your driving inputs and the pedal output to the simulator.
ADJUSTABLE HYDRAULICS
Two-way damping on the brake and clutch. One-way damping on the throttle.Our bespoke hydraulic dampers provide that realistic pedal box feeland help smoothen your inputs.
