Simucube ActivePedal
A Simucube ActivePedal is required for this Heusinkveld add-on pedal configuration.
Heusinkveld Ultimate+ Throttle Only
$459.00
Heusinkveld Ultimate+ Throttle Only
$459.00
If you are using a Simucube ActivePedal you might look for an additional throttle or throttle and clutch pedal. We’ve got you covered, using our Ultimate+ Black Throttle and Clutch next to Simucube ActivePedal gives you ultimate control and consistency when it comes to shifting and accelerating.
Note: to use in combination with the Simucube ActivePedal each Heusinkveld pedal requires its own ‘Simucube ActivePedal Connector for Heusinkveld Sim Pedals’. You can purchase this connector in the Simucube webshop.
Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer.
The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose.
BUILT TO COMPLEMENT ACTIVEPEDAL
HEUSINKVELD CONTROL. SIMUCUBE INTEGRATION.

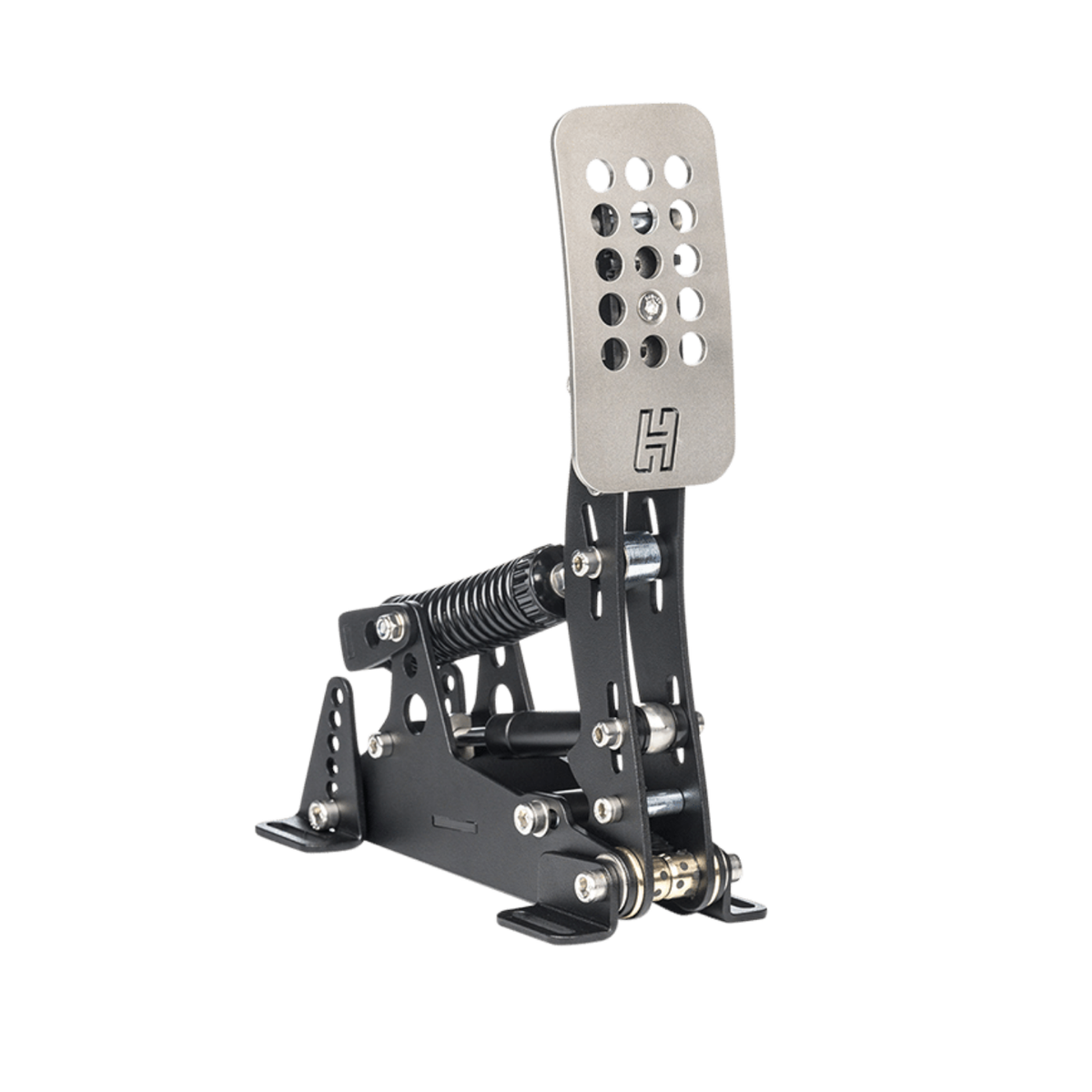

Expand your Simucube ActivePedal setup with a Heusinkveld Ultimate+ add-on pedal.
Designed for drivers who want to pair a Simucube ActivePedal with an additional Heusinkveld throttle or clutch pedal, this solution combines the strong, precise feel of the Ultimate+ platform with Simucube ActivePedal integration.
The pedal features adjustable travel, pedal force, spring preload, pedal angle, pedal plate height, and hydraulic damping. A position-sensitive load cell and carefully engineered mechanical tolerances provide accurate, consistent operation.
For throttle use, the 1-way hydraulic damper resists movement on the ingoing stroke, helping smooth throttle application.
This add-on does not function as a standalone pedal. Each Heusinkveld pedal requires its own Simucube ActivePedal Connector for Heusinkveld Sim Pedals, together with a Simucube ActivePedal and the required Simucube mounting setup.
Designed for drivers who want to pair a Simucube ActivePedal with an additional Heusinkveld throttle or clutch pedal, this solution combines the strong, precise feel of the Ultimate+ platform with Simucube ActivePedal integration.
The pedal features adjustable travel, pedal force, spring preload, pedal angle, pedal plate height, and hydraulic damping. A position-sensitive load cell and carefully engineered mechanical tolerances provide accurate, consistent operation.
For throttle use, the 1-way hydraulic damper resists movement on the ingoing stroke, helping smooth throttle application.
This add-on does not function as a standalone pedal. Each Heusinkveld pedal requires its own Simucube ActivePedal Connector for Heusinkveld Sim Pedals, together with a Simucube ActivePedal and the required Simucube mounting setup.
Designed for ActivePedal Expansion
Add a compatible Heusinkveld pedal alongside your Simucube ActivePedal for throttle or clutch use.
Extensive Pedal Adjustment
Fine-tune preload, pedal angle, travel, pedal plate height, force, and hydraulic damping to suit your driving preference.
Position-Sensitive Load Cell
The pedal uses a position-sensitive load cell for precise and consistent input measurement.
Hydraulic Damping
Adjustable hydraulic damping helps create a controlled and realistic pedal feel.
Durability Tested
Key pivot points use slide bearings and have undergone automated durability testing for one million duty cycles.
Simucube Integration Required
Each Heusinkveld add-on pedal requires its own Simucube ActivePedal Connector and must be used with a Simucube ActivePedal.
Product Details
PROFESSIONAL-GRADE PEDAL ENGINEERING
| Product | Heusinkveld Add-On for Simucube ActivePedal |
|---|---|
| Product Type | Add-On Sim Racing Pedal |
| Platform | Windows PC |
| Operating System | Windows 10 or Newer |
| Standalone Operation | No |
| Simucube ActivePedal Required | Yes |
| Connector Required | 1x Simucube ActivePedal Connector per Heusinkveld Pedal |
| Controller Included | No |
| Software Included | No |
| Heusinkveld SmartControl Support | No |
| Heusinkveld SmartControl Live Support | No |
| Plug and Play | Yes, Within Required Simucube Configuration |
| Sensor Type | Position-Sensitive Load Cell |
| Hydraulic Damping | Yes |
| Throttle Damping | Adjustable 1-Way Hydraulic Damping |
| Adjustments | Pedal Preload, Pedal Angle, Pedal Travel, Pedal Plate Height, Hydraulic Damping |
| Throttle and Clutch Adjustments | Pedal Travel, Overall Pedal Force, Pedal Spring Preload |
| Material | Powder-Coated and Glass Bead-Blasted Stainless Steel |
| Dimensions | 445 × 310 × 91 mm |
| Weight | 1.0 kg |
| Durability Testing | 1 Million Duty Cycles |
| Certification | EMC + CE |
| Packaging | Eco-Friendly Packaging |
| Console Support | No |
| Linux Support | No |
In The Box
YOUR HEUSINKVELD ADD-ON PACKAGE
The supplied product information lists the pedal, mounting materials, and manual as package contents. A Simucube ActivePedal, Simucube ActivePedal Connector, controller, and Simucube mounting hardware are not listed as included.
1
Heusinkveld Add-On Pedal
2
Mounting Materials
3
Manual
System Support
BUILT TO WORK AS PART OF YOUR ACTIVEPEDAL SETUP
This Heusinkveld add-on pedal is designed to operate together with a Simucube ActivePedal. Each Heusinkveld pedal requires its own Simucube ActivePedal Connector for Heusinkveld Sim Pedals. The add-on does not include a controller and cannot operate standalone. Heusinkveld SmartControl and SmartControl Live cannot be used with this configuration. When combining Heusinkveld pedals with Simucube ActivePedal, the supplied information specifies that you must use the Simucube baseplate, as the ActivePedal does not fit on the Heusinkveld baseplate.
Simucube ActivePedal Connector
Each Heusinkveld pedal requires its own Simucube ActivePedal Connector for Heusinkveld Sim Pedals.
Simucube Baseplate
Use the Simucube baseplate when combining this pedal with Simucube ActivePedal. The ActivePedal does not fit the Heusinkveld baseplate.
Windows PC
Supported on Windows 10 or newer.
Standalone Use
This add-on pedal cannot function as a standalone device.
Heusinkveld SmartControl
SmartControl and SmartControl Live cannot be used because this add-on does not include a Heusinkveld controller.
Linux
Not supported.
Xbox and PlayStation
Console platforms are not supported.
Full Frame Rig
A solid simulator or full-frame rig is required for proper pedal installation and support.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
Heusinkveld Add-on for Simucube ActivePedal
FREQUENTLY ASKED QUESTIONS
The following components are required in order to use this Add-on for Simucube ActivePedal:
- A Simucube ActivePedal
- Simucube ActivePedal Connector for Heusinkveld Sim Pedals, one for each Heusinkveld pedal.
You can purchase the ‘Simucube ActivePedal Connector for Heusinkveld Sim Pedals’ here.
Please refer toSimucube documentationon how to calibrate Heusinkveld pedals in combination with Simucube ActivePedal.
You can not use Heusinkveld SmartControl and SmartControl Live, this product does not include a controller.
No, the Heusinkveld pedals in this Add-On only work together with a Simucube ActivePedal + the required Simucube ActivePedal Connector.
