Windows PC
Compatible with Windows 10 or newer for supported PC sim racing applications.
Heusinkveld Handbrake
$329.00
Heusinkveld Handbrake
$329.00
FIND YOUR PERFECT FEEL
FORCE-SENSITIVE CONTROL FOR RALLY AND DRIFTING

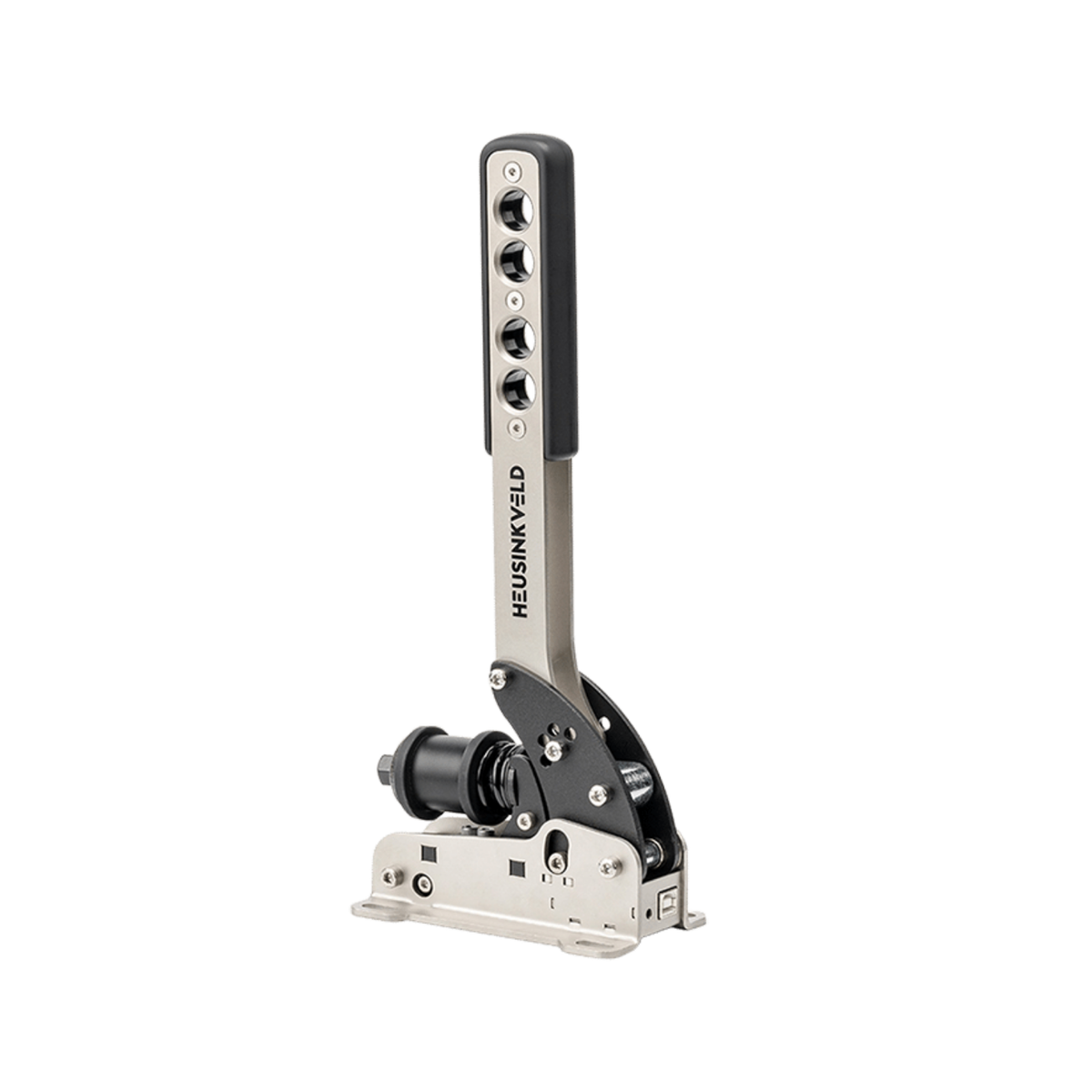

Take greater control through rally stages, hairpins, and drift transitions with the Heusinkveld Handbrake.
Built around a 120 kg force-sensitive load cell, the Handbrake measures up to 22 kg of actual force at the lever for precise and progressive input.
Its dual-stage spring system combines an initial metal coil spring with elastomers to recreate the transition from initial lever movement to progressively increasing resistance. Three supplied elastomers let you configure the handbrake for a soft, medium, or stiff feel.
The lever can be positioned horizontally or vertically, with up to 26 degrees of fine angle adjustment. The included adapter plate also provides up to 22.5 degrees of yaw adjustment for improved ergonomics across different simulator layouts.
Integrated electronics keep the installation compact, while Heusinkveld SmartControl lets you configure force, deadzones, and custom non-linear output curves. SmartControl Live allows you to switch between saved profiles while driving.
Built around a 120 kg force-sensitive load cell, the Handbrake measures up to 22 kg of actual force at the lever for precise and progressive input.
Its dual-stage spring system combines an initial metal coil spring with elastomers to recreate the transition from initial lever movement to progressively increasing resistance. Three supplied elastomers let you configure the handbrake for a soft, medium, or stiff feel.
The lever can be positioned horizontally or vertically, with up to 26 degrees of fine angle adjustment. The included adapter plate also provides up to 22.5 degrees of yaw adjustment for improved ergonomics across different simulator layouts.
Integrated electronics keep the installation compact, while Heusinkveld SmartControl lets you configure force, deadzones, and custom non-linear output curves. SmartControl Live allows you to switch between saved profiles while driving.
120 kg Load Cell
Force-sensitive input provides precise and repeatable handbrake control with up to 22 kg of actual force at the lever.
3 Resistance Settings
Three supplied elastomers let you configure a soft, medium, or stiff handbrake feel.

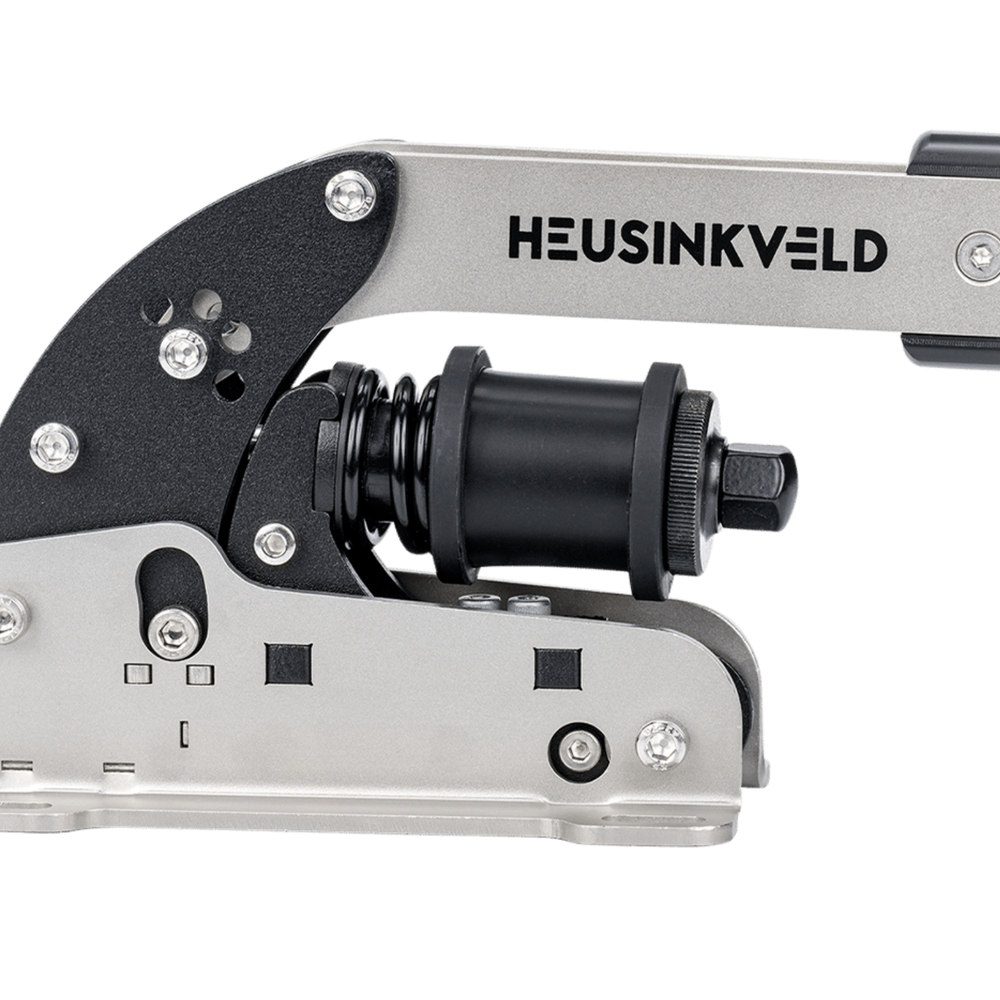

Dual-Stage Spring System
A metal coil spring and progressive elastomer system create a controlled, realistic resistance curve.
Flexible Lever Positioning
Position the lever horizontally or vertically and fine-tune its angle by up to 26 degrees.
Adjustable Yaw Mounting
The included adapter plate provides up to 22.5 degrees of yaw adjustment for improved positioning.
SmartControl Software
Configure force, deadzones, non-linear output curves, and saved profiles through SmartControl and SmartControl Live.
Product Details
HIGH-FORCE INPUT. EXTENSIVE ADJUSTABILITY.
| Product | Heusinkveld Handbrake |
|---|---|
| Product Type | Force-Sensitive Sim Racing Handbrake |
| Platform | Windows PC |
| Operating System | Windows 10 or Newer |
| Software | SmartControl and SmartControl Live |
| Controller | Integrated in Handbrake |
| Plug and Play | Yes |
| Sensor Type | Force-Sensitive 120 kg Load Cell |
| Maximum Actual Lever Force | Up to 22 kg |
| Resistance Settings | 3 |
| Spring System | Dual-Stage Spring System |
| Resistance Components | Metal Coil Spring and Elastomers |
| Lever Positions | Horizontal or Vertical |
| Lever Angle Adjustment | Up to 26 Degrees |
| Yaw Adjustment | Up to 22.5 Degrees with Included Adapter Plate |
| Software Adjustments | Output Curves, Deadzone, Handbrake Force |
| Dimensions | 317 × 162 × 84 mm |
| Material | Powder-Coated Stainless Steel |
| Weight | 2.17 kg |
| Electronics | Integrated in Handbrake Base |
| Certification | EMC + CE |
| Packaging | Eco-Friendly Packaging |
| Recommended Use | Professional Driver Training, Esports, Commercial Use, Home Use |
| Mounting | Direct to Rig or with Included Adapter Plate |
In The Box
YOUR HEUSINKVELD HANDBRAKE PACKAGE
Your Heusinkveld Handbrake package includes the handbrake, USB cable, mounting materials, installation and adjustment tools, and manual. The supplied product information also confirms three elastomers for soft, medium, and stiff resistance settings and an adapter plate for aluminium-profile mounting and yaw adjustment.
1
Heusinkveld Handbrake
2
USB Cable
3
3 Resistance Elastomers
4
Adapter Plate
5
Mounting Materials
6
Installation and Adjustment Tools
7
Manual
RALLY & DRIFT CONTROL
MOUNT IT YOUR WAY. TUNE IT TO YOUR DRIVE.
The Heusinkveld Handbrake is designed for Windows PC systems running Windows 10 or newer. It can be mounted directly to a flat simulator surface using the four mounting holes in its base, or installed on compatible aluminium profiles using the included adapter plate. SmartControl and SmartControl Live provide software-based adjustment for force response, deadzones, non-linear output curves, and saved profiles.
SmartControl
Configure handbrake force, deadzones, and custom non-linear output curves.
SmartControl Live
Switch between saved handbrake profiles while driving, such as different gravel and tarmac setups.
Flat Surface Mounting
Four mounting holes in the handbrake base allow direct installation to a suitable flat simulator surface.
Aluminium Profile Rigs
Use the included adapter plate to mount the handbrake to compatible aluminium profile structures.
Horizontal Lever Position
Configure the lever horizontally with additional fine angle adjustment.
Vertical Lever Position
Configure the lever vertically with additional fine angle adjustment.
Yaw Adjustment
The included adapter plate allows up to 22.5 degrees of yaw adjustment for ergonomic positioning.
Rally Simulation
Force-sensitive operation and adjustable resistance suit rally-style handbrake inputs.
Drifting
Progressive force control and configurable positioning support precise drift initiation and correction.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
FIND YOUR PERFECT FEEL
The adjustable dual stage spring system provides a realistic progressive handbrake feel. Customize spring travel & preload and choose from 3 different force curves.
WORK IT LIKE A PRO
Our Handbrake is force sensitive, which means you may have to give it some stick to get around those hairpin corners. Apply up to 22kg of actual force on the 120kg load cell for a serious rally experience.
A strong, compact and highly adjustable Handbrake.
Change the lever from horizontal to vertical or change the brake feeling using the included elastomers.
These and all other adjustment options ensure it perfectly suits your driving style or the specific car you’re simulating. Perfect if you are looking for a realistic and high-performance handbrake solution.
Heusinkveld Handbrake
FREQUENTLY ASKED QUESTIONS
No, the Heusinkveld Handbrake is only compatible with Windows PCs and does not work with consoles.
While a handbrake is not strictly necessary for all sim racing setups, it can greatly enhance your experience, especially in certain types of racing. Whether you need one depends on the type of simracing you do:
- Drift Racing: A handbrake is essential in drift sims to initiate or maintain drifts.
- Rally or Off-Road Racing: A handbrake is also useful in rally racing games (Dirt Rally, WRC series) for tight cornering and sliding.
- Circuit Racing: In most track racing games (F1, iRacing, Gran Turismo), a handbrake is usually not necessary. The focus is more on precision braking and throttle control. If you plan to race in games that require a handbrake, it can add realism and make it easier to perform certain maneuvers However, for general racing, it may not be a must-have.
