Heusinkveld Sprint Baseplate
$124.00
Heusinkveld Sprint Baseplate
$124.00
TRULY SOLID

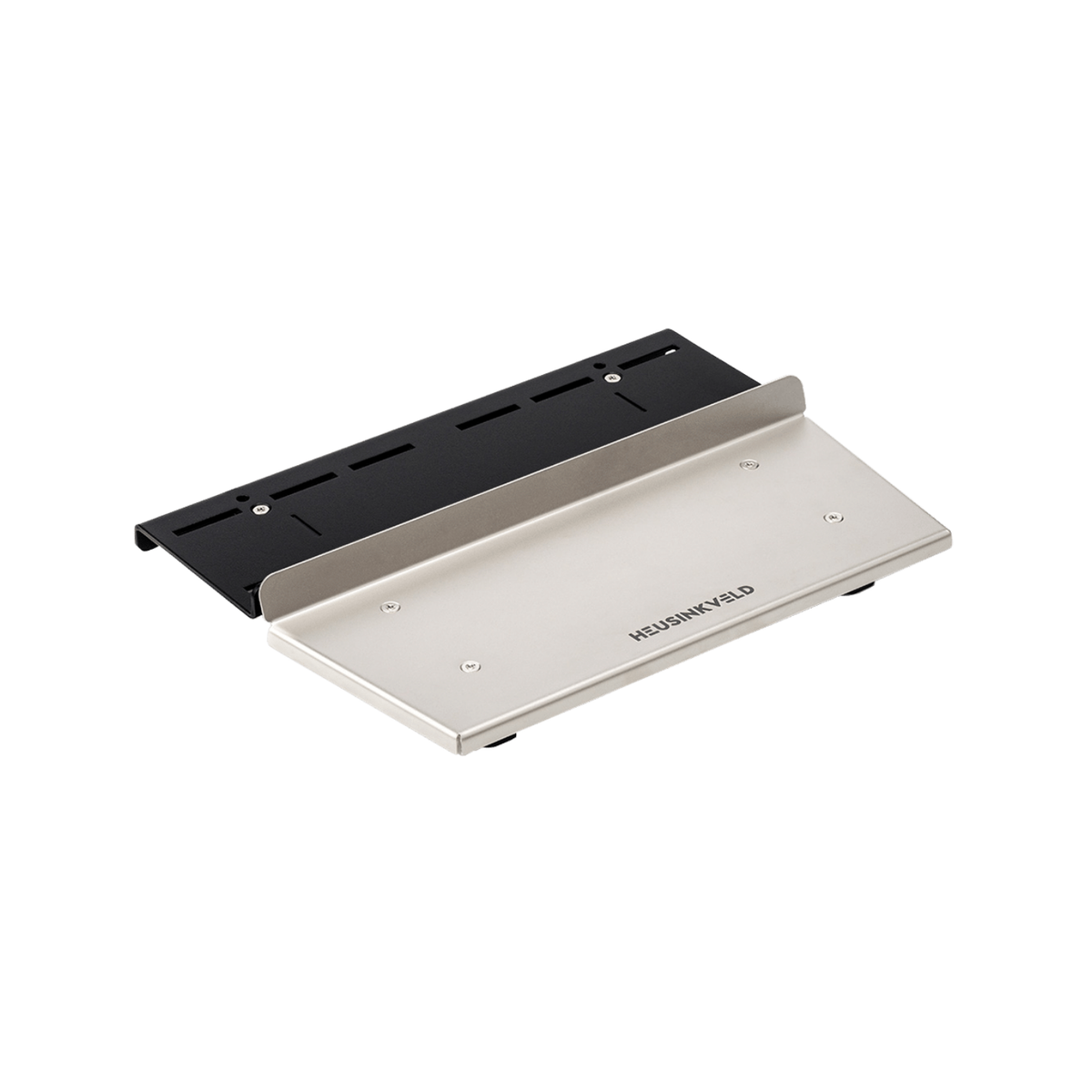

A RIGID FOUNDATION FOR YOUR SPRINT PEDALS
Give your Heusinkveld Sprint pedals the solid foundation they need with the Sprint Baseplate.
Designed to cope with Sprint brake forces of up to 65 kg, the baseplate provides a sturdy mounting platform when you do not want to mount the pedals directly to your simulator rig.
Slotted mounting points allow each pedal to be positioned independently. The brake provides 29 mm of lateral adjustment, while the throttle and clutch provide 24 mm. Pedal-foot slots also allow each pedal to move 12.5 mm forwards or backwards.
The heel plate can be used at its standard 0 mm elevation or raised by 30 mm using the supplied spacers, helping you fine-tune pedal ergonomics around your seating position.
Integrated cable pass-throughs in the pedal plate and mounting brackets help keep wiring organized, while top-side access to the pedal mounting bolts makes fine adjustment easier without removing the entire pedal assembly.
Designed to cope with Sprint brake forces of up to 65 kg, the baseplate provides a sturdy mounting platform when you do not want to mount the pedals directly to your simulator rig.
Slotted mounting points allow each pedal to be positioned independently. The brake provides 29 mm of lateral adjustment, while the throttle and clutch provide 24 mm. Pedal-foot slots also allow each pedal to move 12.5 mm forwards or backwards.
The heel plate can be used at its standard 0 mm elevation or raised by 30 mm using the supplied spacers, helping you fine-tune pedal ergonomics around your seating position.
Integrated cable pass-throughs in the pedal plate and mounting brackets help keep wiring organized, while top-side access to the pedal mounting bolts makes fine adjustment easier without removing the entire pedal assembly.
Built for High Pedal Forces
Creates a rigid mounting platform designed to cope with Sprint brake forces of up to 65 kg.
Independent Pedal Positioning
Slotted mounting points let you fine-tune the lateral position of the brake, throttle, and clutch pedals.
Fore and Aft Adjustment
Each pedal can be moved up to 12.5 mm forwards or backwards using the slots in the pedal feet.
Adjustable Heel Plate Height
Use the heel plate at 0 mm elevation or raise it by 30 mm with the supplied spacers.
Top-Side Adjustment Access
Included T-nuts let you loosen mounting bolts from above and reposition pedals without removing the complete assembly.
Integrated Cable Management
Cable pass-throughs in the brackets and pedal plate help keep pedal wiring organized.
PRODUCT DETAILS

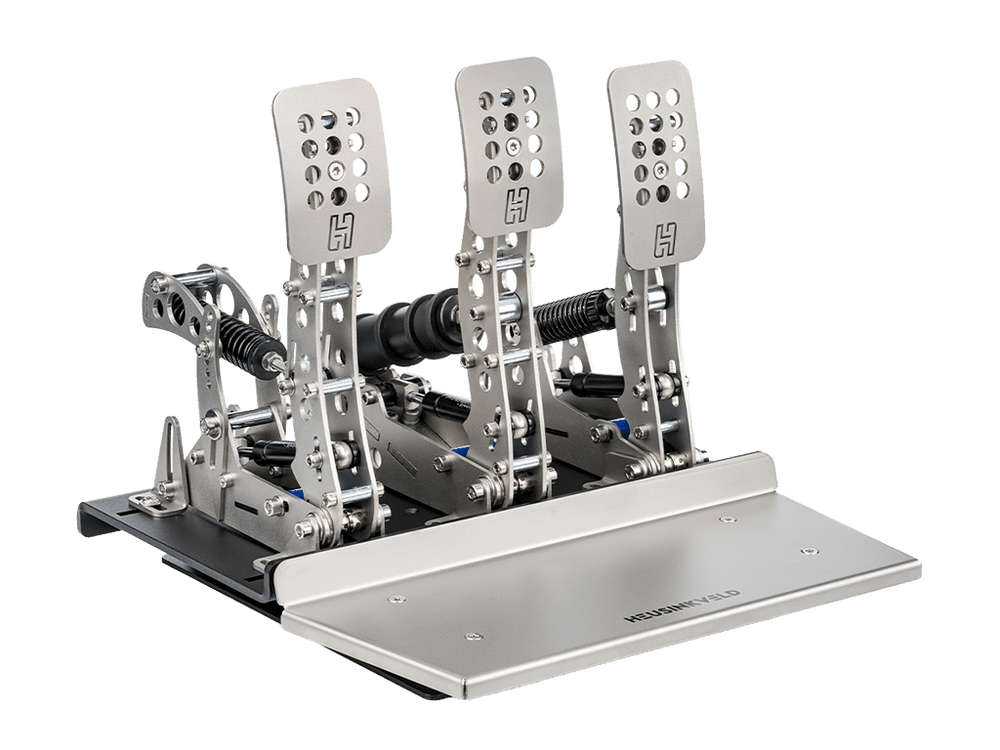

SOLID MOUNTING WITH PRECISE PEDAL ADJUSTMENT
| Product | Heusinkveld Sprint Baseplate Black |
|---|---|
| Product Type | Sim Racing Pedal Baseplate |
| Compatibility | Sprint 2-Pedal Set, Sprint 3-Pedal Set, Sprint 2-Pedal Set with Rest Pedal |
| Maximum Supported Sprint Brake Force | Up to 65 kg |
| Dimensions | 362 × 222 × 62 mm |
| Material | Powder-Coated Steel and Bead-Blasted Stainless Steel |
| Weight | 3.22 kg |
| Brake Lateral Adjustment | 29 mm |
| Throttle Lateral Adjustment | 24 mm |
| Clutch Lateral Adjustment | 24 mm |
| Longitudinal Pedal Adjustment | 12.5 mm Forward and Backward per Pedal |
| Standard Heel Plate Height | 0 mm Elevation |
| Raised Heel Plate Height | 30 mm with Supplied Spacers |
| Pedal Mounting | Slotted Mounting Points |
| Rig Mounting Points | 6 |
| Cable Management | Integrated Cable Pass-Throughs |
| TM Pedal Mounting Hole Spacing | Compatible with TM T3PA and T3PA Pro 235 mm Mounting Pattern |
| Recommended Use | Esports and Home Sim Racing |
| Required Installation | Full Frame Rig or Simulator |
| Packaging | Eco-Friendly Packaging |
In The Box
YOUR SPRINT BASEPLATE PACKAGE
Your Heusinkveld Sprint Baseplate package includes the baseplate components, mounting hardware, installation tools, and manual. The supplied product information also confirms heel-plate spacers and T-nuts for height and pedal-position adjustment.
1
Sprint Baseplate Parts
2
Pedal Plate
3
Height-Adjustable Heel Plate
4
2 Mounting Brackets
5
30 mm Heel Plate Spacers
6
T-Nuts for Pedal Adjustment
7
Mounting Materials
8
Installation Tools
9
Manual
SPRINT PEDAL MOUNTING
BUILT AROUND THE HEUSINKVELD SPRINT ECOSYSTEM
The Heusinkveld Sprint Baseplate is designed for the Sprint 2-pedal set, Sprint 3-pedal set, and Sprint 2-pedal set with Rest Pedal. The baseplate must be secured to a full-frame rig or simulator with a solid connection between the pedals and seat. It is not intended to make Sprint pedals suitable for unsupported floor use or a wheel stand without sufficient structural support. Six mounting points are provided on the brackets for attaching the baseplate to compatible simulator structures or for creating your own drilling template.
Sprint 3-Pedal Set
Compatible with the Heusinkveld Sprint brake, throttle, and clutch configuration.
Sprint 2-Pedal Set with Rest Pedal
Supports the Sprint 2-pedal configuration when used with the compatible Rest Pedal.
Full Frame Rigs
The baseplate must be mounted to a rigid full-frame simulator with a solid connection between the pedals and seat.
Aluminium Profile Rigs
Six bracket mounting points provide installation options for compatible aluminium profile simulator structures.
Custom Rig Mounting
The bracket mounting points can be used as a basis for creating a custom drilling template.
TM T3PA Mounting Pattern
The baseplate brackets use mounting holes compatible with the 235 mm TM T3PA and T3PA Pro mounting pattern.
Unsupported Floor Use
The baseplate is not designed to support Sprint pedals directly on the floor without additional structural support.
Wheel Stands
Not suitable where there is no solid structural connection between the pedal assembly and seat.
