Ultimate+ 2-Pedal Set
Compatible with the Heusinkveld Ultimate+ 2-pedal configuration.
Heusinkveld Ultimate+ Baseplate Black
$124.00
Heusinkveld Ultimate+ Baseplate Black
$124.00
SUPER STRONG`

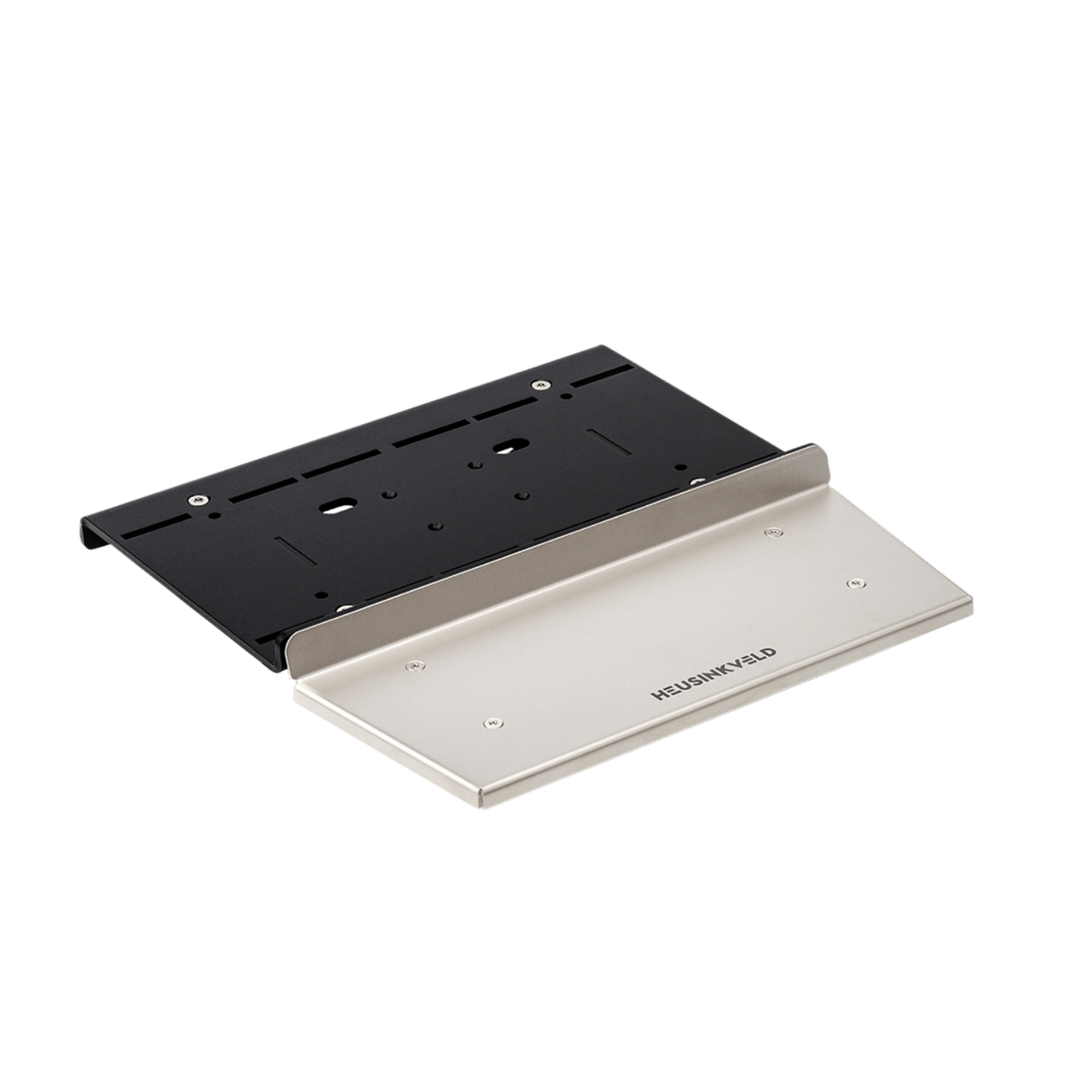

A RIGID FOUNDATION FOR YOUR ULTIMATE+ PEDALS
Give your Heusinkveld Ultimate+ pedals the sturdy mounting foundation required for high-force braking with the Ultimate+ Baseplate.
Designed to cope with brake forces up to 140 kg, the baseplate provides a rigid platform while retaining flexibility for individual pedal positioning.
The assembly consists of a pedal plate, height-adjustable heel plate, and two brackets used to secure the baseplate to your simulator rig.
Slotted mounting points allow each pedal to be adjusted laterally, while the slots in the pedal feet provide forward and backward positioning. Included T-nuts help make fine adjustments easier.
The Ultimate+ controller can be mounted underneath the pedal plate to keep it out of sight, while integrated cable pass-throughs in the pedal plate and brackets help maintain a tidy installation.
Designed to cope with brake forces up to 140 kg, the baseplate provides a rigid platform while retaining flexibility for individual pedal positioning.
The assembly consists of a pedal plate, height-adjustable heel plate, and two brackets used to secure the baseplate to your simulator rig.
Slotted mounting points allow each pedal to be adjusted laterally, while the slots in the pedal feet provide forward and backward positioning. Included T-nuts help make fine adjustments easier.
The Ultimate+ controller can be mounted underneath the pedal plate to keep it out of sight, while integrated cable pass-throughs in the pedal plate and brackets help maintain a tidy installation.
Built for Up to 140 kg Brake Force
Provides a rigid mounting platform for Ultimate+ pedals under high braking loads.
Lateral Pedal Adjustment
Slotted mounting points allow each pedal to be repositioned left or right.
Longitudinal Pedal Adjustment
Pedal-foot slots allow individual pedals to be adjusted forwards and backwards.
Adjustable Heel Plate
Configure the heel plate in a low or elevated position using the supplied heel plate spacers.
Hidden Controller Mounting
The Ultimate+ controller can be mounted underneath the pedal plate for a cleaner installation.
Integrated Cable Management
Cable pass-throughs in the pedal plate and brackets help organize pedal wiring.
Product Details

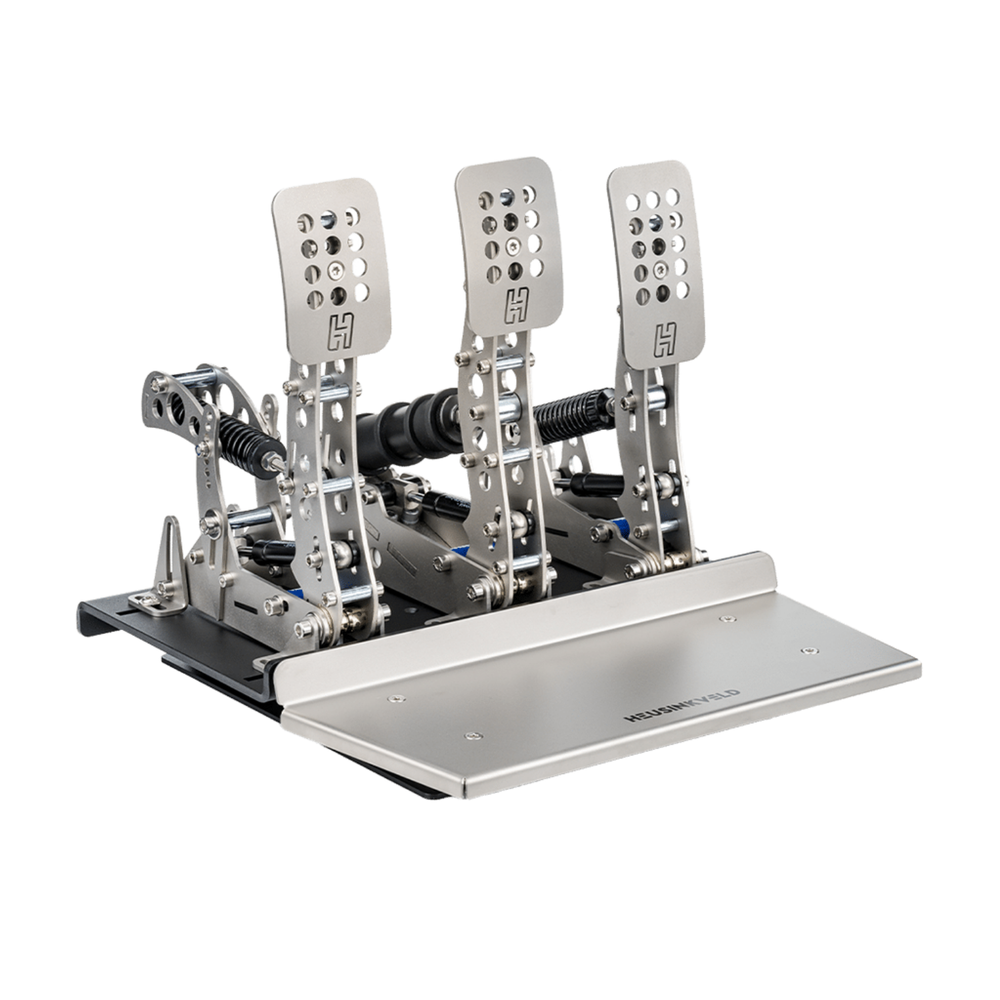

RIGID CONSTRUCTION WITH FLEXIBLE PEDAL POSITIONING
| Product | Heusinkveld Ultimate+ Baseplate Black |
|---|---|
| Product Type | Sim Racing Pedal Baseplate |
| Compatibility | Ultimate+ 2-Pedal Set, Ultimate+ 3-Pedal Set, Ultimate+ 2-Pedal Set with Rest Pedal |
| Supported Brake Force | Up to 140 kg |
| Controller Mounting | Mounting Slot for Ultimate+ Controller on Bottom Side of Baseplate |
| Dimensions | 455 × 310 × 67 mm |
| Material | Powder-Coated Steel and Bead-Blasted Stainless Steel |
| Weight | 5.96 kg |
| Heel Plate Adjustment | Height Adjustable |
| Pedal Adjustment | Lateral and Longitudinal |
| Pedal Mounting | Slotted Mounting Points |
| Cable Management | Integrated Cable Pass-Throughs |
| Recommended Use | Professional Driver Training, Esports, Commercial Use, Home Use |
| Mounting Application | Mounted on a Simulator Rig |
| Packaging | Eco-Friendly Packaging |
In The Box
YOUR ULTIMATE+ BASEPLATE PACKAGE
The supplied package contents list the baseplate parts, mounting materials, installation tools, and manual. The product information also confirms that T-nuts and heel plate spacers are supplied for pedal-position and heel-plate adjustment.
1
Baseplate Parts
2
T-Nuts
3
Heel Plate Spacers
4
Mounting Materials
5
Installation Tools
6
Manual
ULTIMATE+ PEDAL MOUNTING
BUILT FOR THE HEUSINKVELD ULTIMATE+ SYSTEM
The Heusinkveld Ultimate+ Baseplate is specified for the Ultimate+ 2-pedal set, Ultimate+ 3-pedal set, and Ultimate+ 2-pedal set with Rest Pedal. It is designed to be mounted to a simulator rig and provides a dedicated underside mounting location for the Ultimate+ controller.
Ultimate+ 3-Pedal Set
Compatible with the Heusinkveld Ultimate+ 3-pedal configuration.
Ultimate+ 2-Pedal Set with Rest Pedal
Compatible with the Ultimate+ 2-pedal configuration when used with a Rest Pedal.
Ultimate+ Controller
A dedicated mounting slot underneath the baseplate allows the controller to be mounted out of sight.
Simulator Rig Mounting
Designed to be secured to a simulator rig using the baseplate brackets.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
The Ultimate+ Baseplate is made from durable, high-quality materials, offering precision and rigidity under high brake forces.
It provides a rock-solid foundation for your Ultimate+ pedals, comfort while driving andallows for superior feedback from your pedals.
SUPER STRONG
Create a rigid mounting platform for your Ultimate+ pedals.Designed to cope with brake forces up to 140kg.
SUPPORTS A TIDY INSTALLATION
Mount the Ultimate+ controller out of sight at the bottom of the pedal plate. Cable pass throughs in the brackets and pedal plate for clean cable management.
OPTIMIZE YOUR ERGONOMICS
Create a low or elevated heel plate with the supplied heel plate spacers.
ADJUST IT YOUR WAY
Easy lateral adjustment of pedals through the slotted mounting points. Easy top-side access of mounting bolts for fine-tune adjustment.
