Connect the CRP2 Pedals directly to a PC for supported sim racing setups.
MOZA CRP2 Two Pedals (Brake and Throttle)
$369.00
MOZA CRP2 Two Pedals (Brake and Throttle)
$369.00
PROFESSIONAL-GRADE PEDAL CONTROL

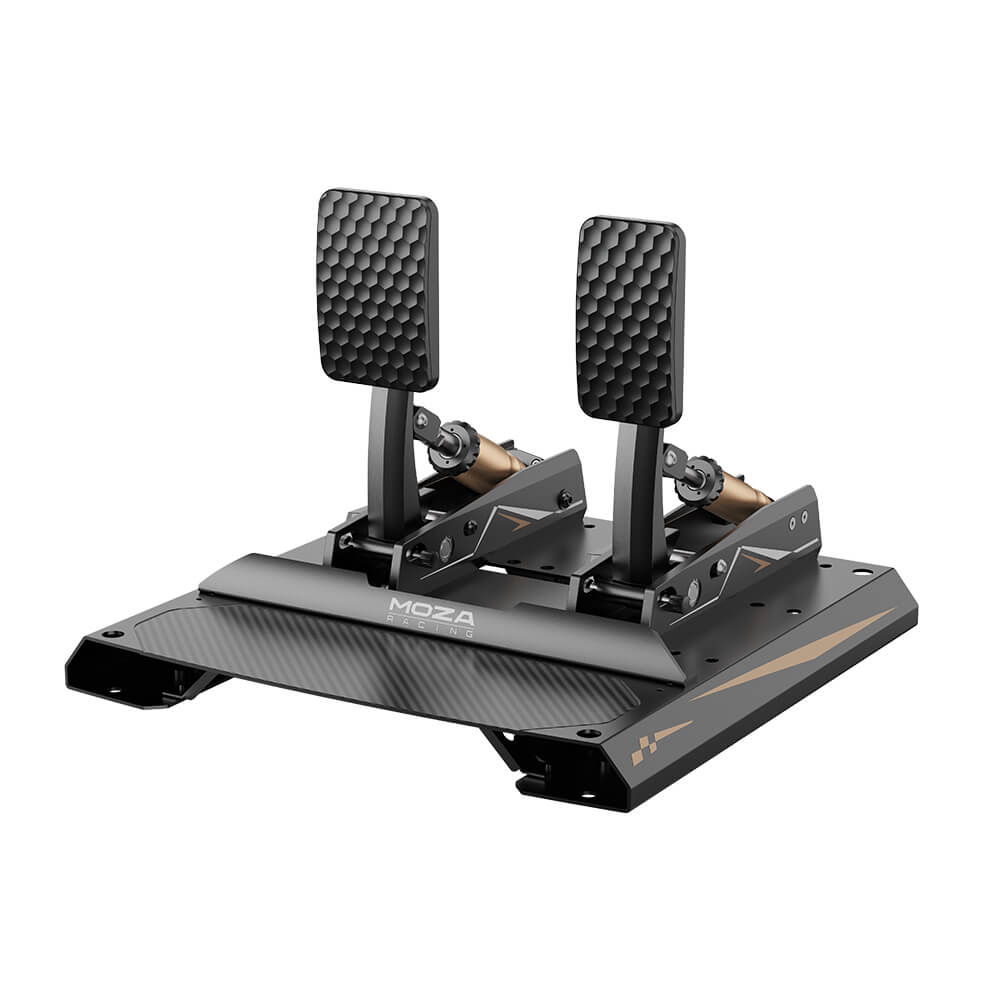

200 KG LOAD CELL PRECISION. BUILT TO ADJUST.
Take precise control of braking and throttle input with the MOZA CRP2 Two-Pedal Set.
The CRP2 combines CNC-machined aerospace-grade aluminium construction, a 3K twill carbon fibre heel plate, and a high-strength steel base for a durable and performance-focused pedal system.
The brake uses a 200 kg load cell sensor together with a 15-bit high-precision angle sensor. MOZA's sensor fusion system combines pressure and pedal-angle data for precise brake control and consistent force application.
Tool-free adjustment makes it easy to change brake feel and throttle resistance without reaching for additional tools. The throttle includes two spring options with continuous force adjustment, while pedal travel, angle, spacing, pedal-face height, and footrest position can all be tuned to your driving position.
For additional brake customization, the optional Performance Kit expands the available combinations to 1,764 pedal-feel configurations.
The CRP2 combines CNC-machined aerospace-grade aluminium construction, a 3K twill carbon fibre heel plate, and a high-strength steel base for a durable and performance-focused pedal system.
The brake uses a 200 kg load cell sensor together with a 15-bit high-precision angle sensor. MOZA's sensor fusion system combines pressure and pedal-angle data for precise brake control and consistent force application.
Tool-free adjustment makes it easy to change brake feel and throttle resistance without reaching for additional tools. The throttle includes two spring options with continuous force adjustment, while pedal travel, angle, spacing, pedal-face height, and footrest position can all be tuned to your driving position.
For additional brake customization, the optional Performance Kit expands the available combinations to 1,764 pedal-feel configurations.
CNC Aerospace-Grade Aluminium
Key pedal components are CNC-machined from aerospace-grade aluminium alloy for strength and durability.
3K Carbon Fibre Heel Plate
The heel plate uses 3K twill carbon fibre with a textured surface for controlled heel positioning.
200 kg Load Cell Brake
The brake uses a 200 kg load cell sensor for pressure-based braking control.
15-Bit Angle Sensor
A high-precision angle sensor works with the brake load cell through MOZA's sensor fusion system.
Tool-Free Adjustment
Quickly tune brake feel, throttle resistance, and supported pedal settings without tools.
Wide-Range Adjustability
Adjust pedal travel, angle, spacing, pedal-face height, footrest position, curves, and engagement point.
Product Details

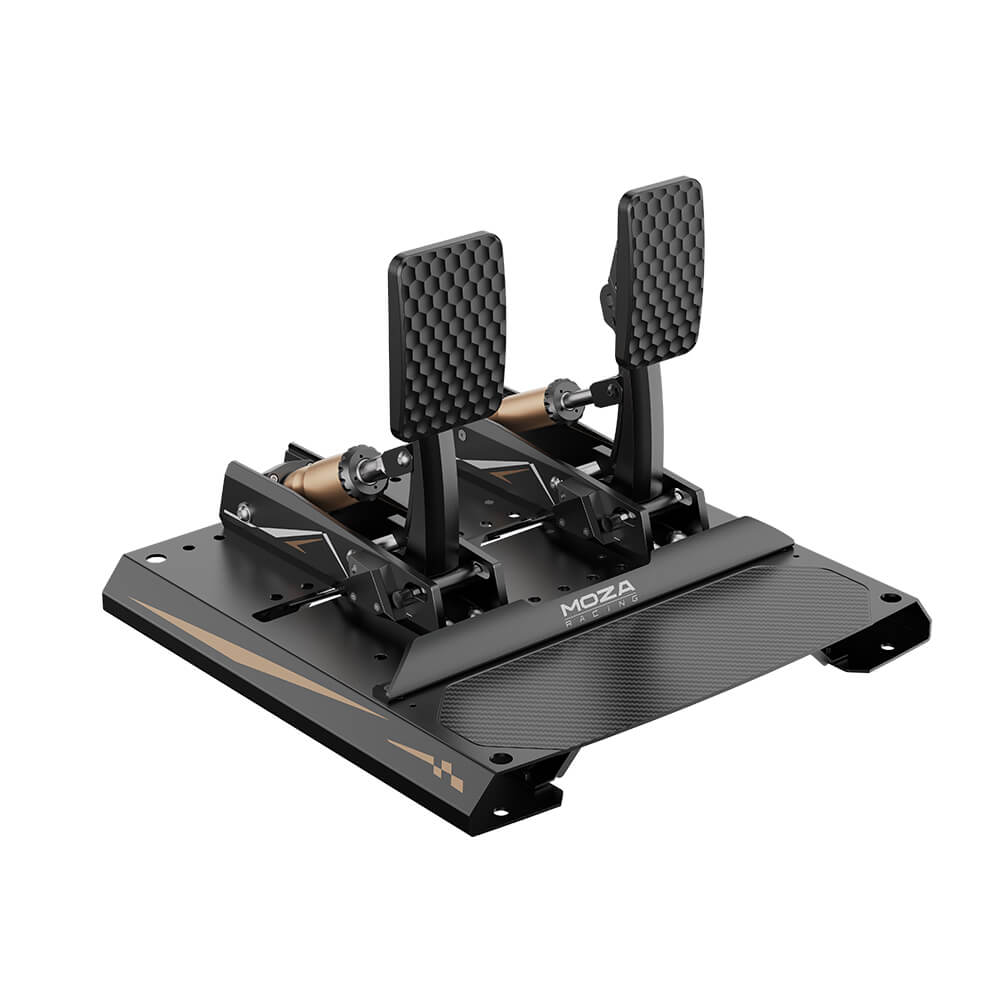

HIGH-PRECISION BRAKE AND THROTTLE PERFORMANCE
| Product | MOZA CRP2 Two-Pedal Set |
|---|---|
| Product Type | Sim Racing Pedal Set |
| Pedals | Brake and Throttle |
| Pedal Body Material | Aerospace-Grade Aluminium Alloy |
| Heel Plate Material | 3K Twill Carbon Fibre |
| Base Material | High-Strength Steel |
| Load Cell Sensor Range | 0–200 kg |
| Brake Sensor | Load Cell Sensor and Angle Sensor |
| Brake Angle Sensor Resolution | 15-Bit, 32,768 PPR |
| Brake Travel Adjustment | 15–20° |
| Throttle Travel Adjustment | 15–23° |
| Throttle Adjustment | Two Spring Options with Continuous Force Adjustment |
| Pedal Angle Adjustment | 0–15° |
| Pedal Face Height Adjustment | Up to 30 mm |
| Footrest Adjustment | Up to 30 mm |
| Pedal Curve Adjustment | Adjustable |
| Pedal Pressure Engagement Point | Adjustable |
| Real-Time Pedal Output Display | Adjustable |
| Pedal Surface | Biomimetic Curved |
| Tool-Free Adjustment | Supported |
| Inverted Mounting | Supported with Optional Inverted Mounting Kit |
| Optional Performance Kit | Up to 1,764 Pedal Feel Configurations |
| Software | MOZA Pit House |
PC & XBOX SETUP OPTIONS
FLEXIBLE CONNECTION FOR CRP2 RACING SETUPS
The CRP2 Pedals can connect directly to a PC or to a compatible Wheel Base. For Xbox setups, the supplied product information specifies support when the CRP2 Pedals are connected through an Xbox-compatible ESX Steering Wheel setup.
MOZA Pit House
Monitor pedal status, adjust travel, configure signal-output curves, and view real-time pedal output.
MOZA Wheel Base Connection
The CRP2 Pedals can also connect directly to a compatible Wheel Base.
Xbox
Xbox operation is supported when the CRP2 Pedals are used through a compatible setup with the Xbox-compatible ESX Steering Wheel.
Inverted Mounting
Supports inverted installation with the optional Inverted Mounting Kit.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.

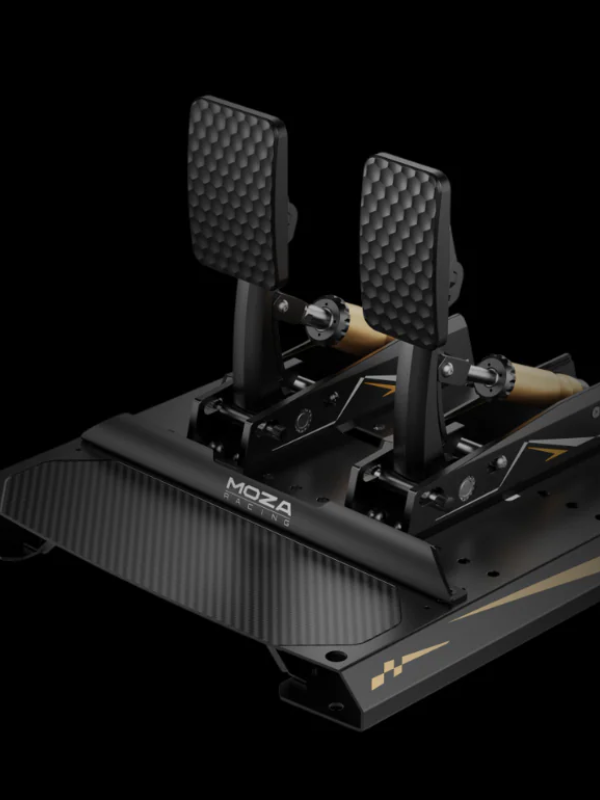

MOZA CRP2 Two Pedals
CNC Aerospace-grade Aluminum Construction
Carbon Fiber Heel Plate
200K Load Cell Sensor
15-bit High-precision Angle Sensor
125 Types of Brake Pedal Feel
Fully Adjustable Throttle and Clutch
Smooth and Quiet Design
Tool-free Adjustment
Wide-range Adjustability
Supports Inverted Mounting
CNC Aerospace-grade
Aluminum Construction
Key components are made from aerospace-grade aluminum alloy, precision CNC-machined for exacting standards, and anodized for a sleek, durable finish. Some parts use precision die-casting and automotive-grade coating to ensure robustness and quality. The base is crafted from high-strength steel, designed to endure and handle intense forces during racing.
Carbon Fiber Heel Plate
The Carbon Fiber Heel Plate features a sleek 3K twill carbon fiber design, adding a sporty touch. Its surface provides moderate friction, ensuring precise control over heel positioning during intense racing sessions.

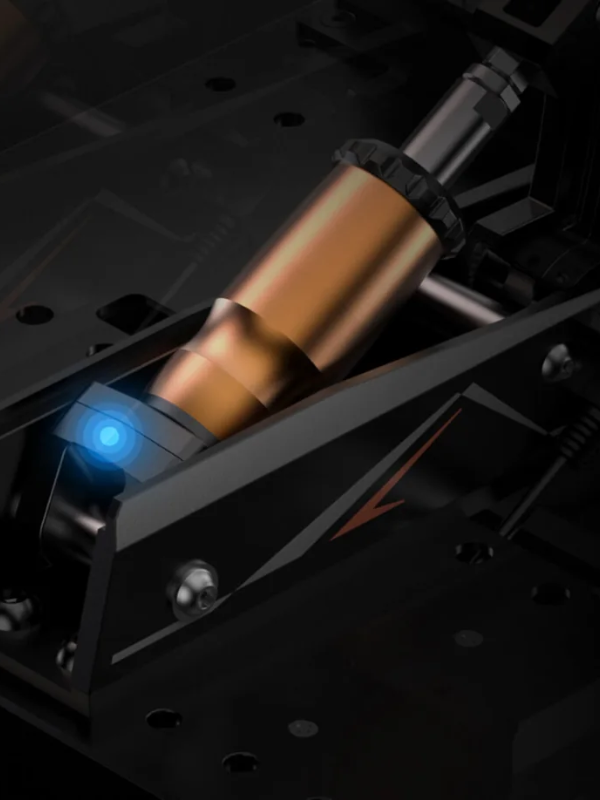

200KG Load Cell Sensor
The brake is equipped with a rare 200kg pressure sensor, covering nearly the entire braking force range of real racing cars. This ensures a strong connection between muscle memory and force application.

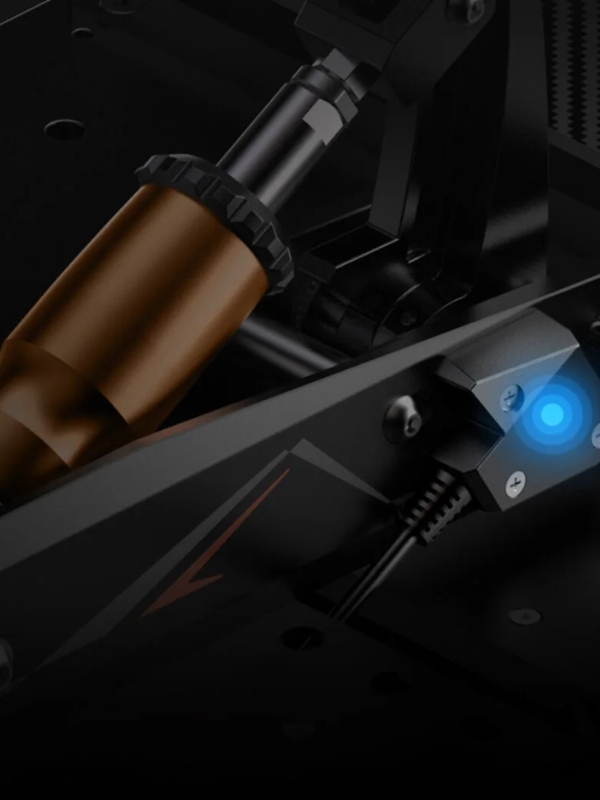

15-bit High-precision
Angle Sensor
Using an industry-first patented sensor fusion algorithm, the system combines a 15-bit angle sensor with a load cell sensor. This innovative approach ensures exceptional precision for brake inputs and allows for precise control of braking force, leveraging muscle memory to enhance performance.
125 types of Brake Pedal Feel

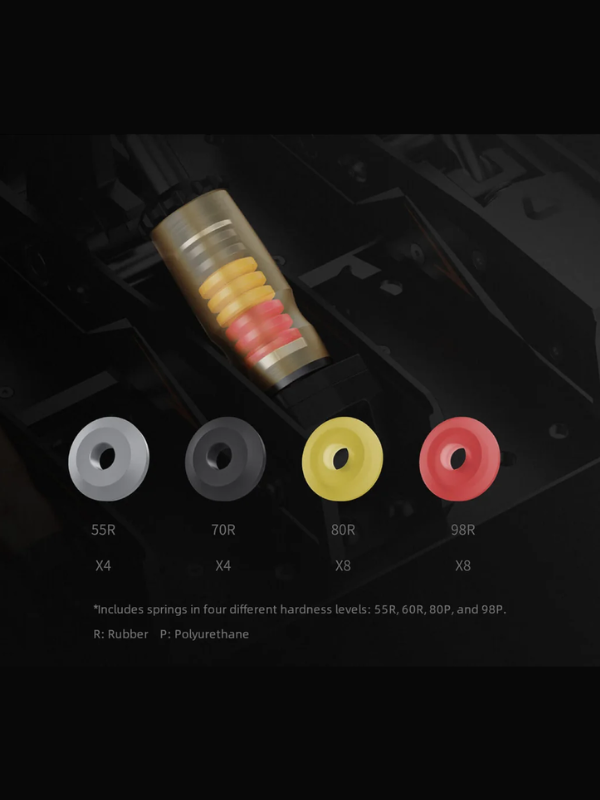

The standard brake features a damping block structure with several options for 55, 70, 80, and 98 hardness levels. This allows for 125 different brake pedal feel combinations, accommodating everything from basic road cars to F3 formula racing cars.

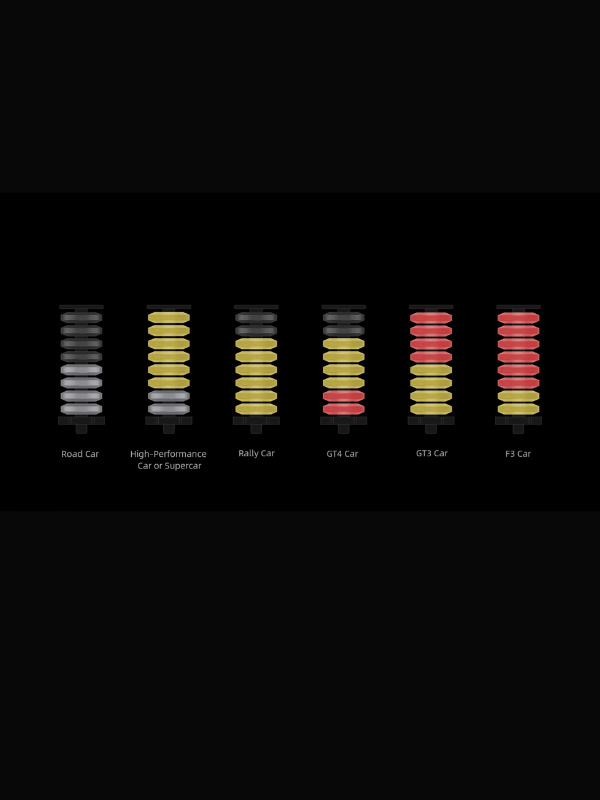

Versatile Damping Block Configuration
To replicate the pedal characteristics of various race cars, you can configure the 8 damping blocks in multiple combinations as illustrated. Select from the recommended setups or adjust according to your individual preferences for a tailored driving experience.

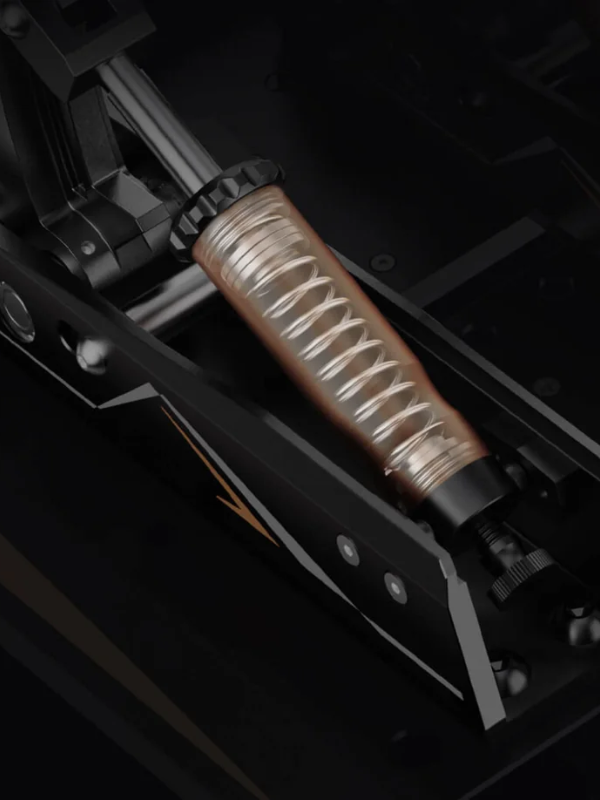

Adjustable Throttle

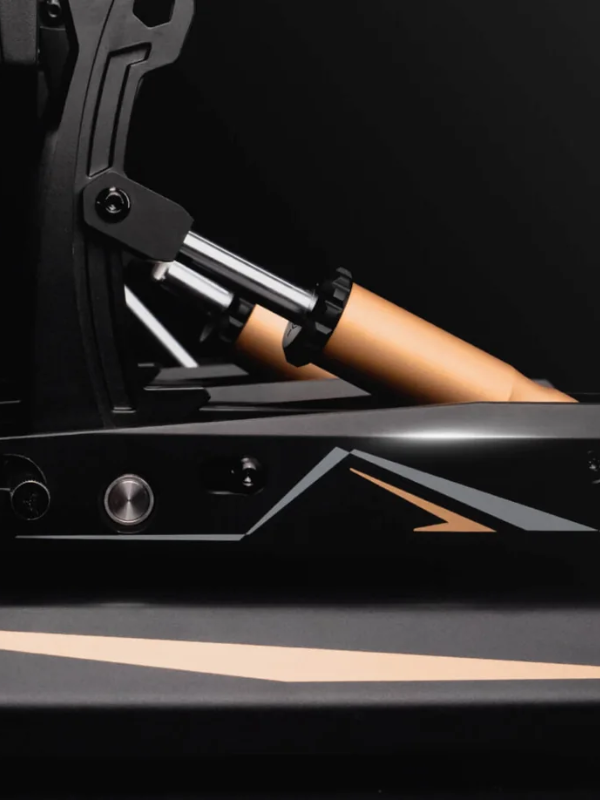

The throttle uses a spring-enclosed design, with an extremely smooth guide rod that ensures a silky pedal feel. It comes with two springs of different resistance levels and allows for continuous force adjustment, making it possible to replicate the throttle resistance of almost any vehicle.
Three-stage
Adjustable Clutch
The clutch pedal mimics the feel of a high-performance car with three distinct stages. The first stage offers short travel with light resistance. In the second stage, resistance increases sharply, similar to a clutch pressure plate spring. The third stage releases quickly, providing a satisfying snap. The clutch includes two springs with different resistance levels and offers continuous force adjustment, allowing it to replicate the throttle resistance of nearly any vehicle.
Quiet and Smooth
Thanks to the enclosed structure and the high-polish steel shaft, the brake and throttle operate smoothly and quietly. The soft cushioning at the limit points ensures excellent noise control.
Tool-free Adjustment
To accommodate frequent adjustments of brake, throttle, and clutch forces for different vehicles, we designed a tool-free mechanism for changing damping blocks and springs and adjusting force levels. This patented system eliminates the need for wrenches or other tools for adjustments.
Adjustable Travel and Angle
The CRP2 Pedal set offers extensive adjustability, allowing you to fine-tune the travel and angle of the brake, throttle, and clutch pedals to suit your personal driving style and comfort.
Adjustable Position and Height
Pedal distance, footrest position, and pedal face height (up to 30mm) are all adjustable, accommodating different foot sizes and preferences.

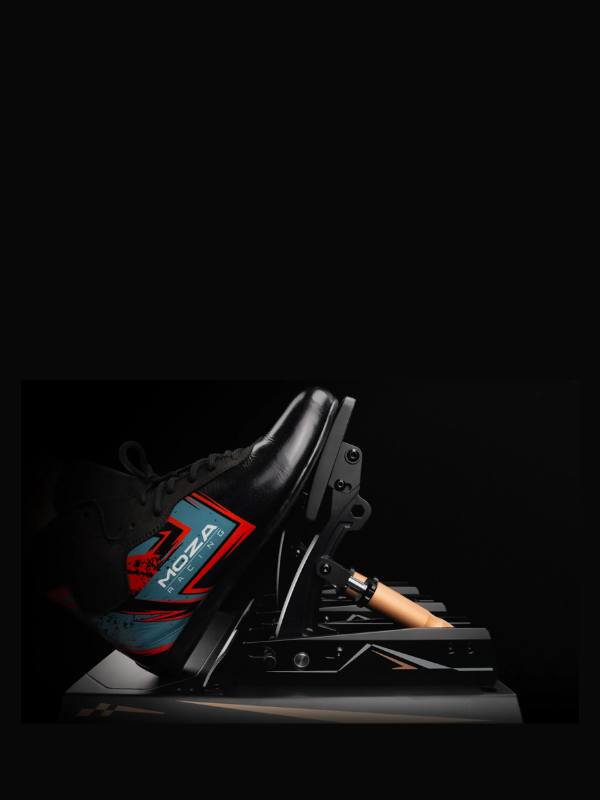

Ergonomic Design
The pedal surface features a biomimetic curved design that conforms to the arch of the foot, providing a snug fit for better force application and overall comfort.
Enhanced Compatibility
When using the Xbox-compatible ESX steering wheel, simply connect the CRP2 pedals directly to the base to set up the entire system for Xbox. The CRP2 pedals can also be connected directly to a PC or to the base.
Professional Software Support
In Pit House, you can monitor the pedal’s status, set the pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves. This powerful software ensures that the professional hardware performs to its fullest potential.

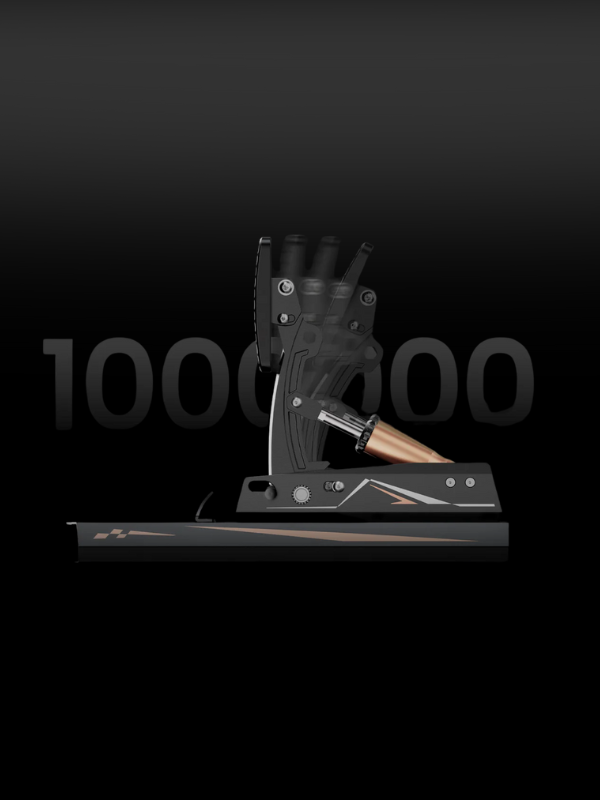

Engineered for Endurance
The CRP2 Pedal set is built to withstand the rigors of intense racing. Each pedal—brake, throttle, and clutch—has undergone over one million press cycles, ensuring unwavering performance, exceptional durability, and reliability you can count on. Experience the confidence of consistent control, race after race.
Performance Customization Options

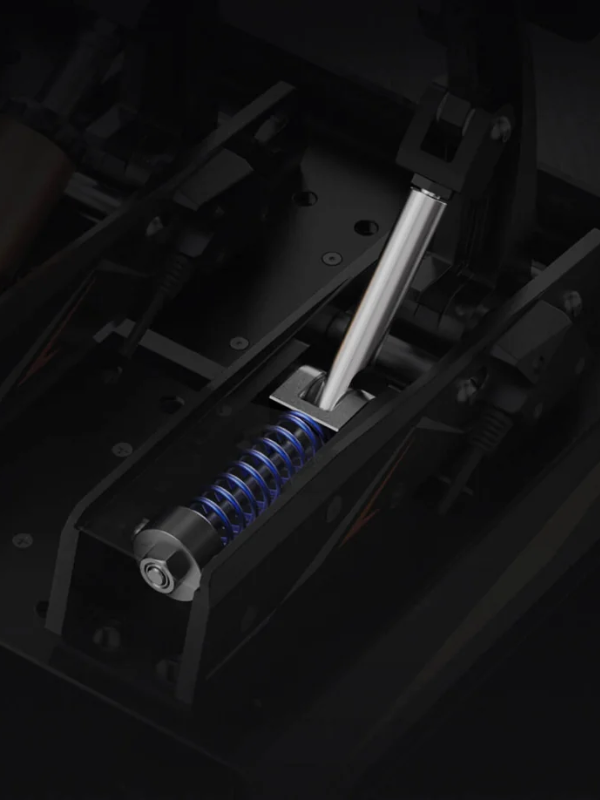

The performance kit offers various pedal feel and travel configurations. The spring delivers a more linear braking experience, while the aluminum block minimizes pedal travel.
Optional Performance Kit
The Performance Kit includes 10 springs, various damping blocks, and a metal block. Combined with the original damping blocks, it offers 1,764 possible pedal feel configurations, simulating the hard brake feel of top-tier race cars like F1 and F2, with nearly zero brake force response time.
