Dual-Mode Rotary Knob
The rotary knob can be configured as either a rotary switch or an encoder.
CONSPIT MAX 01 Wheel
$729.00
CONSPIT MAX 01 Wheel
$729.00
Competitive Sim Racing Control

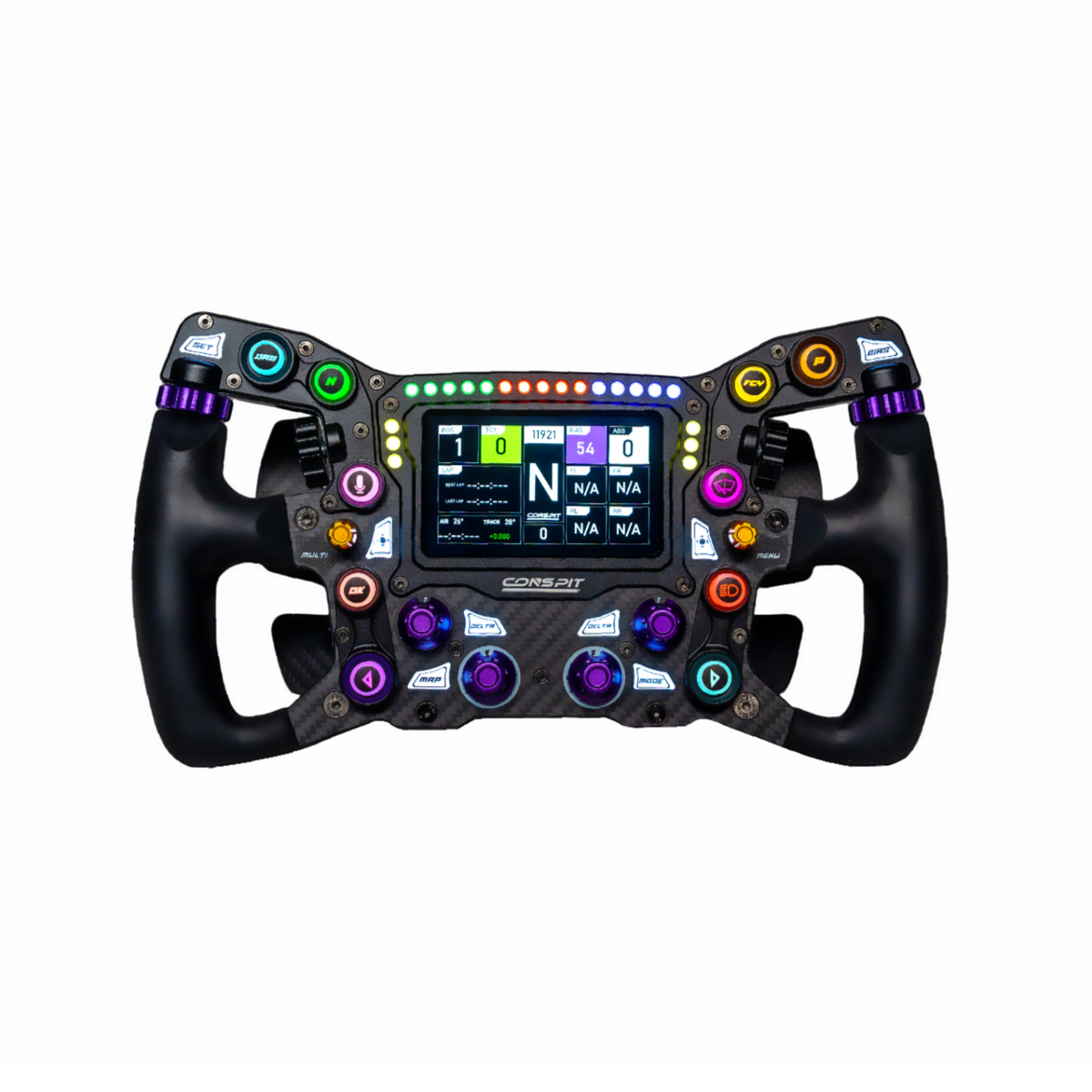

CONSPIT MAX 01
Crafted with a complete focus on competitive sim driving, the CONSPIT MAX 01 combines advanced control features, a robust carbon fiber and aluminum structure, and 100% plug-and-play compatibility with SimHub.
The wheel features a high-resolution 4-inch touch display with 21 programmable RGB dash lights, ten RGB ErgoTouch button modules, four encoders, two 7-way joysticks, and four 12-step rotary switches. An integrated aluminum alloy dashboard frame includes additional flange sections designed to protect the screen.
Its 5 mm thick real carbon fiber front panel is paired with a one-piece aluminum alloy body, while highly durable TPU grips are designed around a 300 mm grip-to-grip distance. Rear thumb push buttons, open-structure thumb encoders, configurable rotary controls, and interactive paddle modules extend the available control options.
MAX 01 connects directly to a PC through USB and supports both SimHub and CONSPIT Link 2.0.
The wheel features a high-resolution 4-inch touch display with 21 programmable RGB dash lights, ten RGB ErgoTouch button modules, four encoders, two 7-way joysticks, and four 12-step rotary switches. An integrated aluminum alloy dashboard frame includes additional flange sections designed to protect the screen.
Its 5 mm thick real carbon fiber front panel is paired with a one-piece aluminum alloy body, while highly durable TPU grips are designed around a 300 mm grip-to-grip distance. Rear thumb push buttons, open-structure thumb encoders, configurable rotary controls, and interactive paddle modules extend the available control options.
MAX 01 connects directly to a PC through USB and supports both SimHub and CONSPIT Link 2.0.
4-Inch Touch Dashboard
High-resolution 4-inch 800 × 480 LCD touch display with an aluminum alloy dashboard frame and additional protective flange sections.
Programmable RGB Lighting
Features 21 programmable RGB dash lights, 10 RGB button modules, and 8 RGB function-light zones for visual and telemetry feedback.
Carbon Fiber + Aluminum Structure
Uses a 5 mm thick real carbon fiber front panel paired with a one-piece aluminum alloy body.
300 mm Grip-to-Grip Design
Durable TPU grips are designed around a 300 mm grip-to-grip distance for secure and comfortable control.
Advanced Control Layout
Four encoders, two 7-way joysticks, four 12-step rotary switches, rear thumb buttons, and open-structure thumb encoders provide extensive on-wheel control.
Full SimHub Support
Designed for 100% plug-and-play compatibility with SimHub.
Independent USB Connection
Connects directly to PC through a detachable coiled USB cable using the Quick-Con adapter system.
Quick-Con Adapter
Uses a standard 70 mm PCD adapter with quick-connect hardware for wheelbase integration.
Product Details

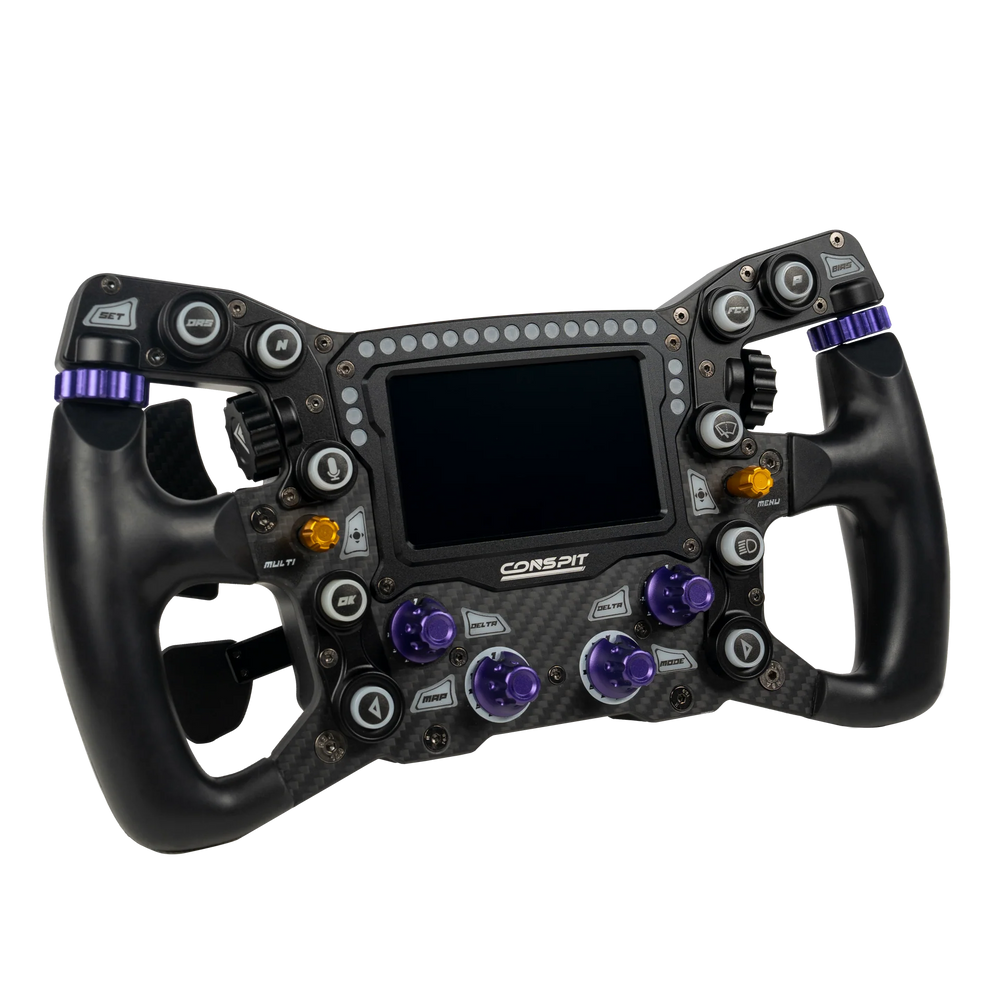

Technical Specifications
| Model | MAX 01 Sim-Racing Wheel |
|---|---|
| Platform | PC |
| Product Dimensions | 304 × 170 × 87 mm |
| Package Dimensions | 365 × 245 × 125 mm |
| Gross Weight | 2 kg |
| Main Material | Carbon Fiber + Aluminum Alloy |
| Front Panel | 5 mm thick 100% real carbon fiber |
| Display | 4.0-inch 800 × 480 LCD dashboard |
| Display Control | Touch |
| RGB LEDs | 29 |
| RGB ErgoTouch Buttons | 10 |
| Encoders | 4 |
| 7-Way Joysticks | 2 |
| Rotary Switches | 4 × 12-step |
| Grip-to-Grip Distance | 300 mm |
| Grip Material | TPU |
| Connection | USB direct |
| Adapter | 70 mm PCD Quick-Con adapter |
| Software | SimHub + CONSPIT Link 2.0 |
Universal PC Integration

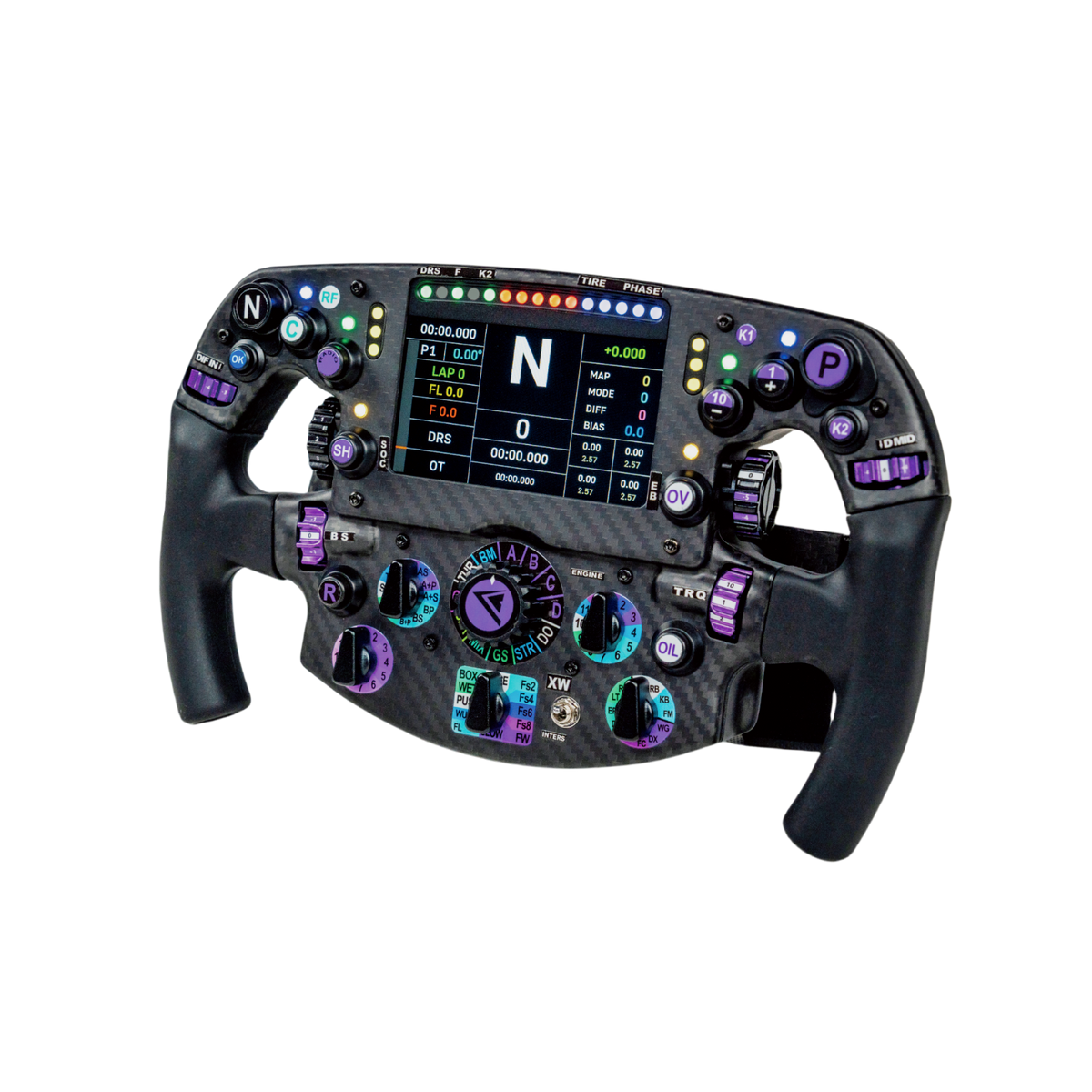

Quick-Con & USB Connectivity
MAX 01 is designed for PC use with direct USB connectivity. Its Quick-Con system uses a standard 70 mm PCD adapter, which the product material states is compatible with all-brand wheelbases. Software support includes both SimHub and CONSPIT Link 2.0.
1
PC | MAX 01 is specified for PC operation.
2
USB Direct | Connect directly to the PC using the detachable coiled USB cable.
3
70 mm PCD | The Quick-Con system uses a standard 70 mm PCD adapter for wheelbase mounting.
4
Wheelbase Compatibility | The 70 mm PCD adapter is stated as compatible with all-brand wheelbases.
5
SimHub | Full plug-and-play support for SimHub.
6
CONSPIT Link 2.0 | Supported through CONSPIT's dedicated control software.
Advanced Driver Control
Configurable Control at Your Fingertips
MAX 01 combines configurable encoders, rotary controls, rear shortcut buttons, RGB feedback, and interactive paddle modules to support extensive in-car adjustments without adding unnecessary physical controls.
Programmable Encoder
P-ENC allows rotary positions to change the button mappings of the two purple thumb encoders for multiple in-car adjustments.
Rotary Macro
A lower rotary knob can control combinations of the upper rotary controls for rapid switching between preset vehicle-control maps.
Open-Structure Thumb Encoders
The purple thumb wheels use an open design that allows operation with either the thumb or index finger from behind.
Rear Thumb Push Buttons
Two quick-access buttons are positioned behind the steering wheel for additional racing controls.
RGB ErgoTouch Buttons
Ten RGB button modules provide responsive and precise tactile feedback.
RGB Function Lights
Eight RGB function-light zones can indicate vehicle status, functional information, or track and sector data.
Paddle Modules
Shift paddle modules are designed to balance quiet operation with tactile feedback.
