SimHub
Required for the 5-inch VoCore display and 16 RGB LEDs.
GTE V3 Carbon Fiber Button Box
$269.00
GTE V3 Carbon Fiber Button Box
$269.00
CARBON FIBER SIM RACING CONTROL
5-INCH DISPLAY, 24 INPUTS & 16 RGB LEDS

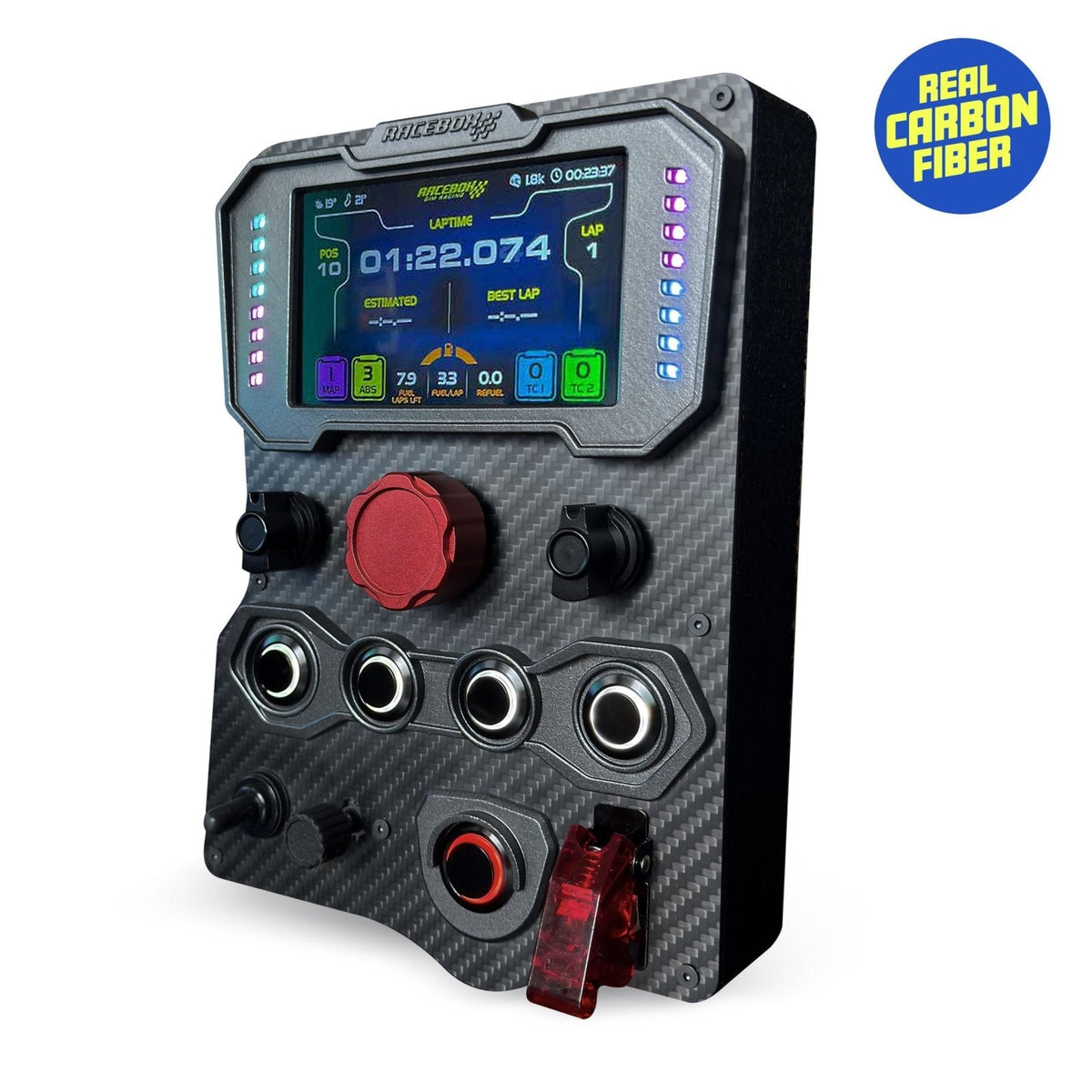

The GTE V3 Carbon Fiber Button Box combines a 5-inch VoCore display, a 7-way ALPS switch, programmable controls, and 16 RGB LEDs for flags, spotter information, and warnings.
The button box can be configured with up to 24 in-game inputs and features three rotary encoders with push buttons, five LED-illuminated push buttons, one momentary toggle switch, and one latching toggle switch with a red cover.
Its front panel is made from 2 mm twill-weave matte carbon fiber, paired with a textured matte-black 3D-printed enclosure and 6061 billet aluminum knobs.
The rear mounting bracket includes 4 × M5 nuts and supports VESA 75 mounting. Connection is provided through an independent USB Type-B port mounted to the enclosure.
A label sheet is included.
The button box can be configured with up to 24 in-game inputs and features three rotary encoders with push buttons, five LED-illuminated push buttons, one momentary toggle switch, and one latching toggle switch with a red cover.
Its front panel is made from 2 mm twill-weave matte carbon fiber, paired with a textured matte-black 3D-printed enclosure and 6061 billet aluminum knobs.
The rear mounting bracket includes 4 × M5 nuts and supports VESA 75 mounting. Connection is provided through an independent USB Type-B port mounted to the enclosure.
A label sheet is included.
2 mm Carbon Fiber Front Panel
Features a 2 mm twill-weave matte carbon fiber front panel.
5-Inch VoCore Display
Includes a 5-inch VoCore display and requires SimHub for operation.
16 RGB LEDs
Features 16 RGB LEDs for flags, spotter information, and warnings and requires SimHub.
24 In-Game Inputs
Can be configured with up to 24 in-game inputs.
Independent USB-B Connection
Uses an independent USB Type-B port mounted to the enclosure.
VESA 75 Compatible
Rear mounting bracket includes 4 × M5 nuts and supports VESA 75 mounting.
Product Details
GTE V3 BUTTON BOX SPECIFICATIONS
| Product | GTE V3 Carbon Fiber Button Box |
|---|---|
| Display | 5-Inch VoCore Display |
| Display Software | SimHub Required |
| RGB LEDs | 16 |
| RGB LED Software | SimHub Required |
| Configurable Inputs | Up to 24 In-Game Inputs |
| Directional Control | 7-Way ALPS Switch |
| Rotary Encoders | 3 with Push Button |
| Knobs | 6061 Billet Aluminum |
| Illuminated Push Buttons | 5 LED-Illuminated Push Buttons, MOM-OFF |
| Momentary Toggle Switch | 1, MOM-OFF-MOM |
| Latching Toggle Switch | 1 with Red Cover, ON-OFF |
| Front Panel | 2 mm Twill-Weave Matte Carbon Fiber |
| Enclosure | Textured 3D-Printed Matte Black Premium Filament |
| Internal Construction | Internal PCB |
| Connection | Independent USB Type-B Port |
| USB Requirement | 2 USB Ports Required |
| Mounting | Rear Mounting Bracket with 4 × M5 Nuts |
| VESA Compatibility | VESA 75 |
| Dimensions | 220 × 175 × 49 mm |
| Dimensions, Inches | 8.7 × 6.9 × 1.9 in |

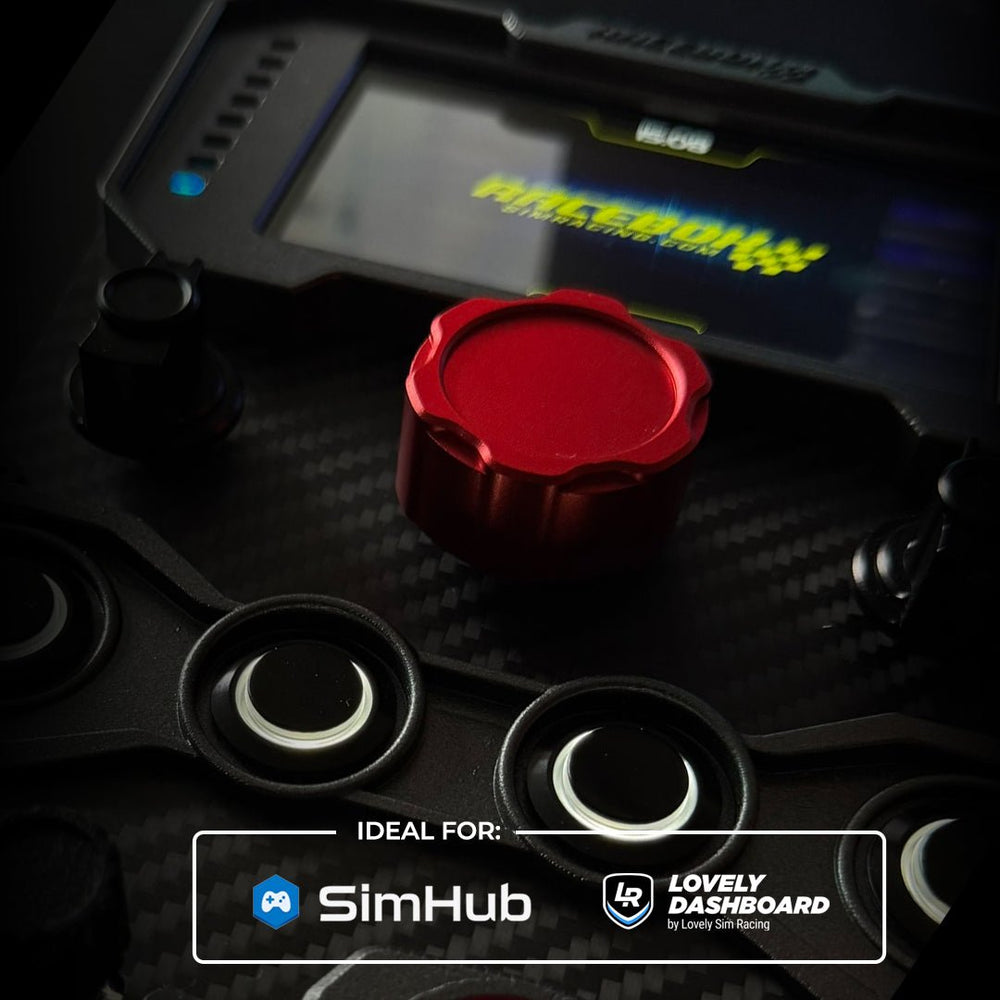

SOFTWARE & GAME SUPPORT
BUILT FOR PC SIM RACING
The GTE V3 Button Box supports direct in-game button configuration and uses compatible dashboard software for the display.
JRT
Supported for dashboard display.
Z1
Supported for dashboard display.
PC Racing Games
Tested with iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor, Automobilista, American Truck Simulator, and Euro Truck Simulator.
