Moza Racing R16 Wheel Base (V2)
Moza Racing R16 Wheel Base (V2)
Moza Racing R16 Wheel Base (V2)
16 NM DIRECT DRIVE

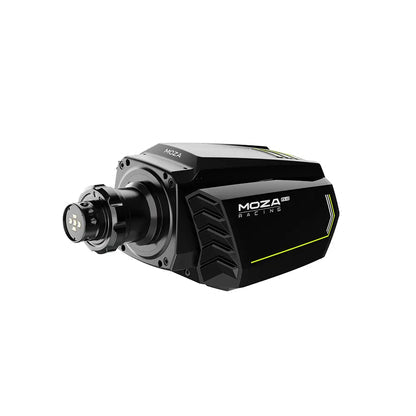

HIGH-TORQUE FORCE FEEDBACK FOR SERIOUS SIM RACING
Delivering 16 N·m of peak torque, the R16 reproduces a wide range of steering forces for GT, Formula, and other racing disciplines. Its optimized motor design minimizes torque ripple, notching, and cogging for smoother and more detailed feedback.
The high-performance servo motor uses an innovative segmented rotor design, high torque density, and an 18-slot / 16-pole configuration to deliver precise steering response across a wide torque range.
An aviation-grade aluminium-alloy housing provides a strong and durable foundation, while intelligent temperature control continuously monitors the motor and electronics during operation.
MOZA Pit House provides extensive force-feedback adjustment, device configuration, presets, and one-click game launching. Supported settings can also be changed through the MOZA mobile app.
16 N·m Direct Drive Torque
Delivers up to 16 N·m of torque for powerful and detailed steering feedback.
Low-Cogging Motor Design
The segmented motor architecture minimizes torque ripple, notching, cogging, and electromagnetic vibration.
High-Performance Servo Motor
High torque density and an 18-slot / 16-pole configuration support smooth and precise steering response.
Aviation-Grade Aluminium Housing
The Wheel Base uses an aluminium-alloy housing for strength and durability.
Intelligent Temperature Control
Continuously monitors the motor and electronic components to support stable performance.
Pit House & Mobile App Control
Configure force feedback and supported device settings through MOZA Pit House and the MOZA mobile app.
Product Details

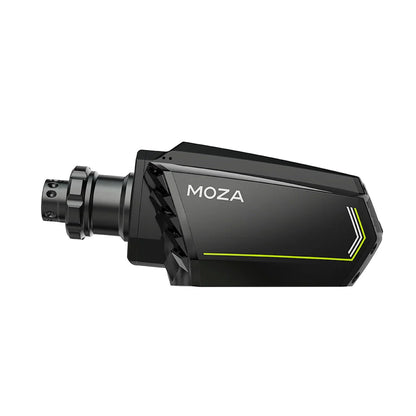

16 NM DIRECT DRIVE PERFORMANCE
| Product | MOZA R16 Wheel Base |
|---|---|
| Product Type | Direct Drive Sim Racing Wheel Base |
| Platform | PC |
| Drive System | Direct Drive |
| Peak Torque | 16 N·m |
| Motor Configuration | 18-Slot / 16-Pole |
| Motor Design | Segmented Skew Servo Motor |
| Housing Material | Aviation-Grade Aluminium Alloy |
| Housing Color | Black |
| USB Refresh Rate | 1000 Hz |
| Force Feedback Equalizer | Supported |
| Speed-Dependent Force Feedback Dampening | Supported |
| Hands-Off Protection | Supported |
| Temperature Management | Intelligent Temperature Control System |
| App Functions | Supported |
| MOZA Pit House Control | Supported |
| Quick Release | Supported |
| Online Firmware Update | Supported |
| Mounting Method | Bottom Mount |
| Side / Front Mounting | Supported with Optional Mounting Bracket |
| Desk Clamp | Optional |
| Emergency Stop Switch | Optional |
| Dimensions | 327 × 170 × 130 mm |
| Weight | 8.9 kg |
In The Box
YOUR MOZA R16 PACKAGE
The R16 package includes the Wheel Base, power and USB connections, installation tools, and product documentation.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
21-Bit Magnetic Encoder With 280MHz High Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.

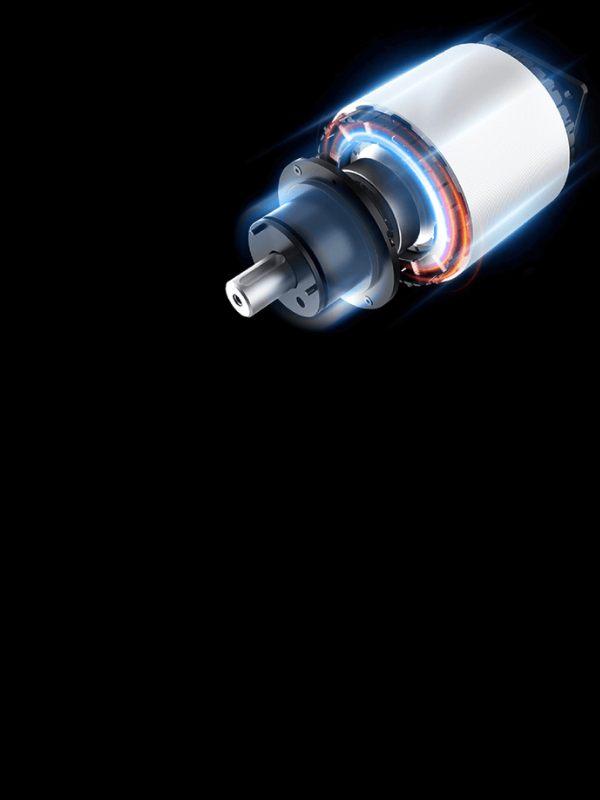

MOZA High-Performance Servo Motor
Race-grade Performance for Sim Racing
Innovative Segmented Rotor Design
Asymmetric segmented skew design. Significantly reduces cogging torque & EM vibration. Near-silent operation at all speeds.
High Torque Density
Optimized slot-fill copper windings.
High-permeability silicon steel core.
NdFeB permanent magnets for maximum output.
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response.
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off.

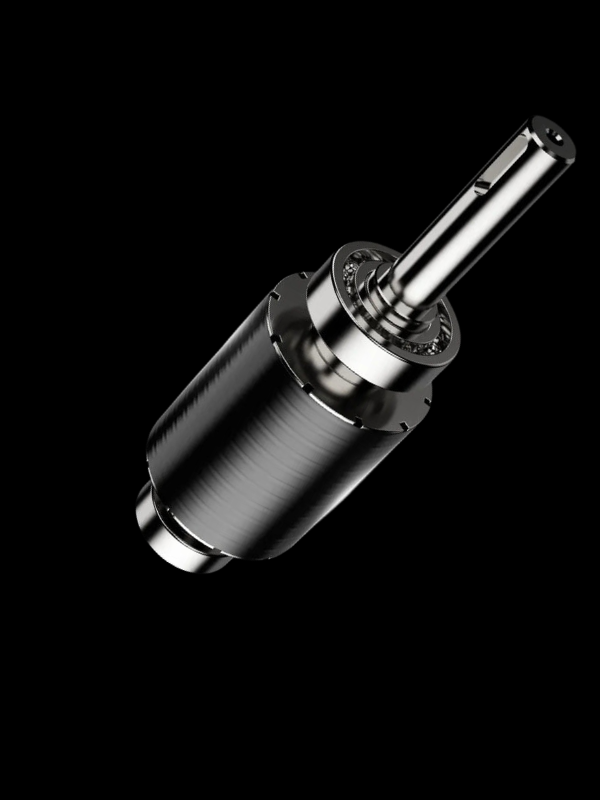

Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.

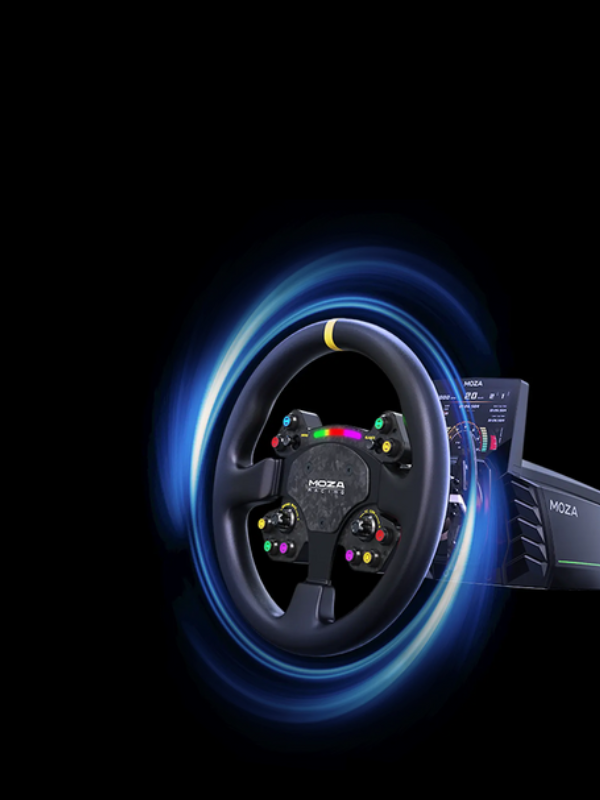

The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.
Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.
Speed- dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.

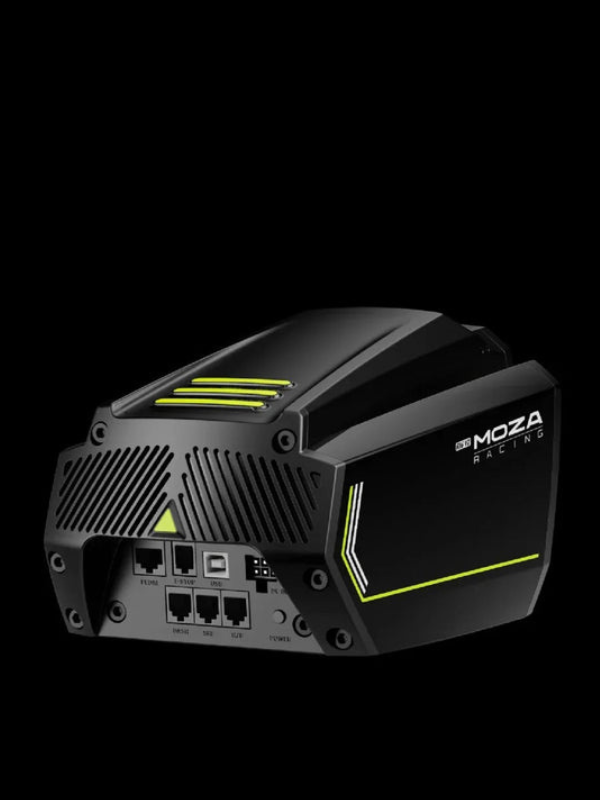

Multiple Connection Ports
With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

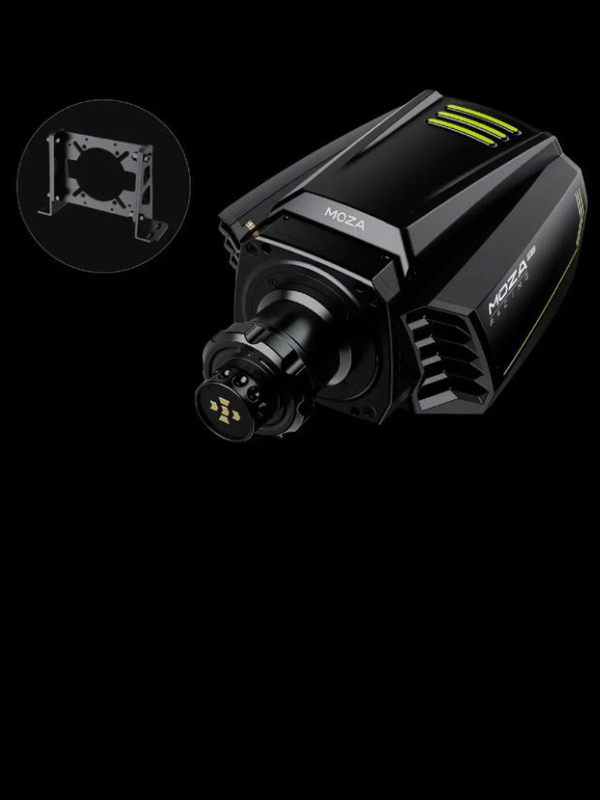

Front Mount Compatibility
Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.
SPECIFICATIONS
Platform: PC
FFB Drive System: Direct Drive
MOZA Pit House Control: Support
Max Steering Angle: 90~2700°
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Peak Power: 360W
Input voltage: 110V~220V AC —>36V DC
USB Refresh Rate: 1000Hz
V-shaped Struts: –
Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Indicator: YES
App Functions: Supported
Quick Release: Supported
Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Box Contents: R16 V2 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method: Bottom mount
Side Mount Option: With optional side/front mount bracket
Desk Clamp: Optional
Emergency Stop Switch: Optional
Online Firmware Upgrade: Applicable
Firmware Update: Applicable
Dimension (L x W x H)（mm）: 327*170*130
Weight: 8.9kg
Built for Serious Sim Racers
Engineered for performance. Built to last.
