Windows PC
Connect directly through USB for use with supported games that accept a second controller, including iRacing, Assetto Corsa, Project CARS, GTR 2, Race 07, rFactor, Live for Speed, and other compatible titles.
FANATEC CLUBSPORT PEDALS V3 INVERTED
$449.99
FANATEC CLUBSPORT PEDALS V3 INVERTED
$449.99

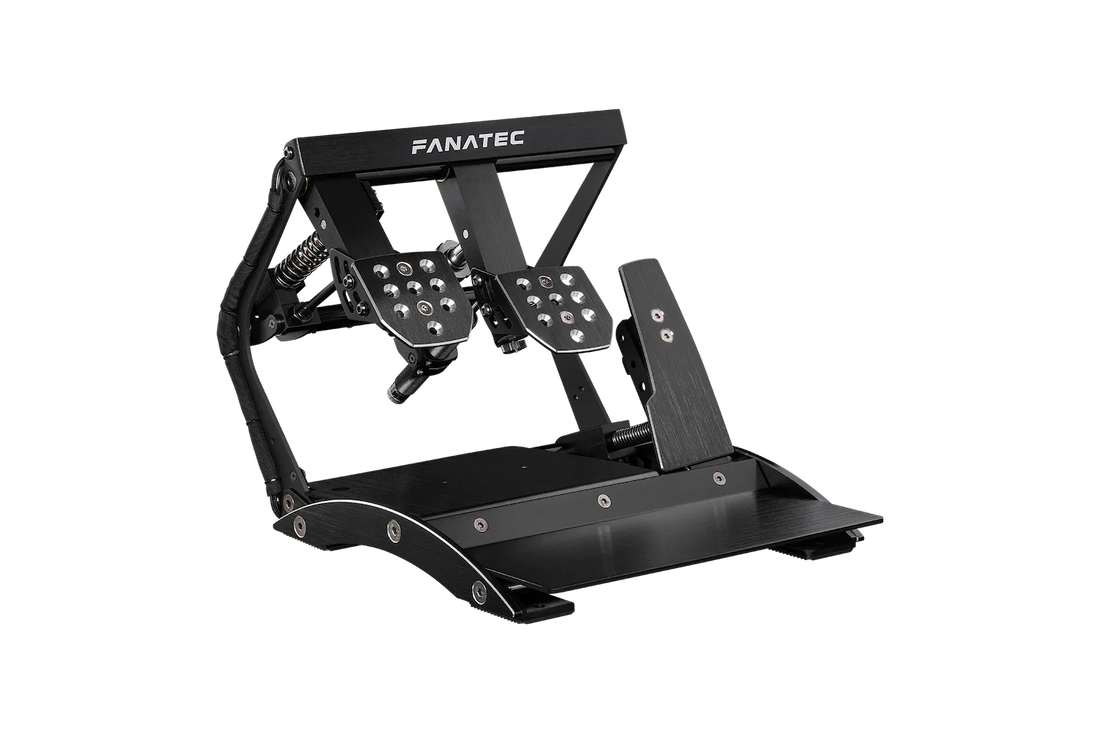

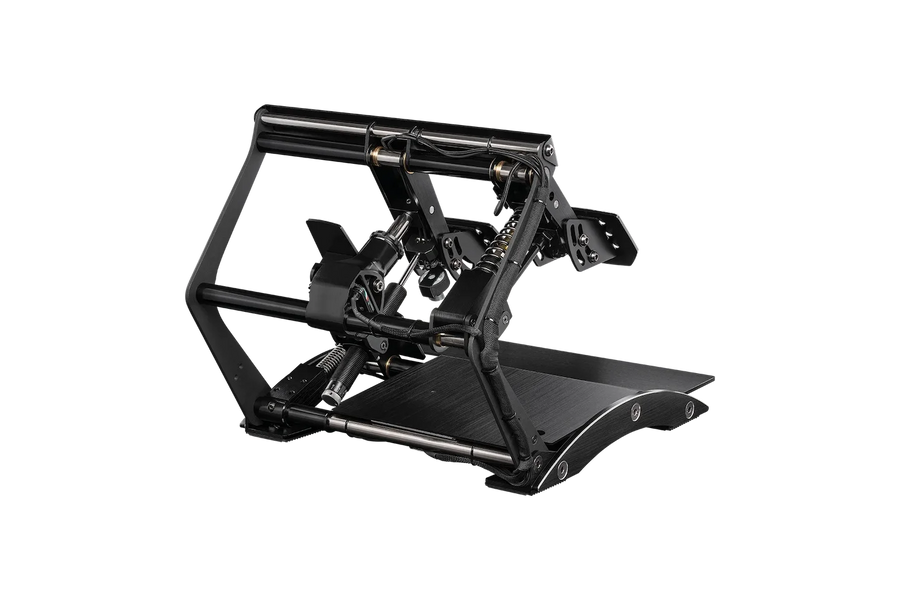

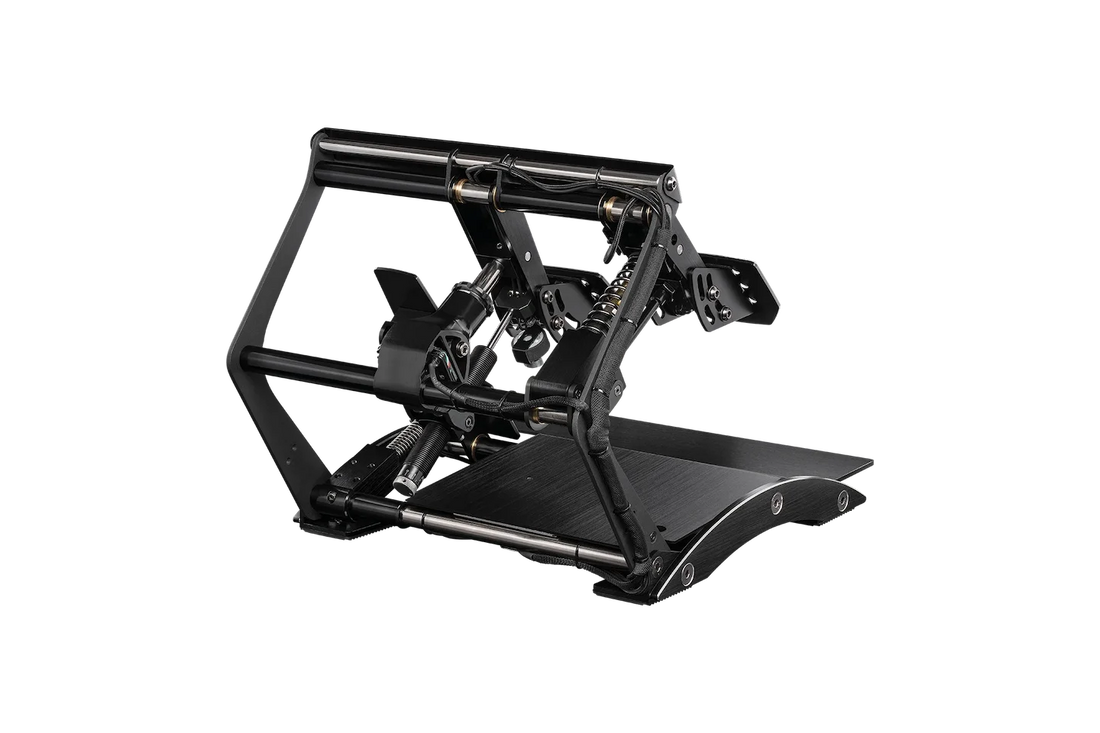

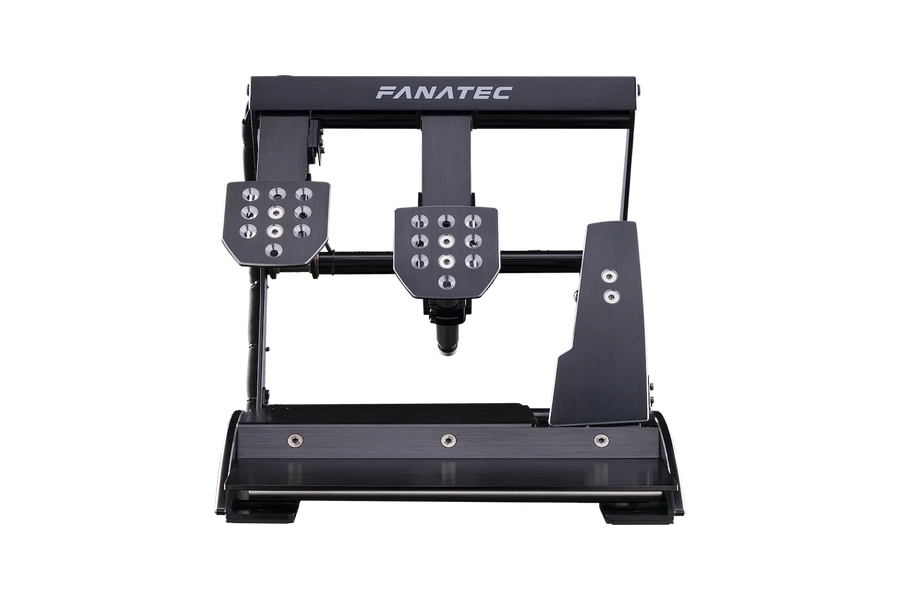

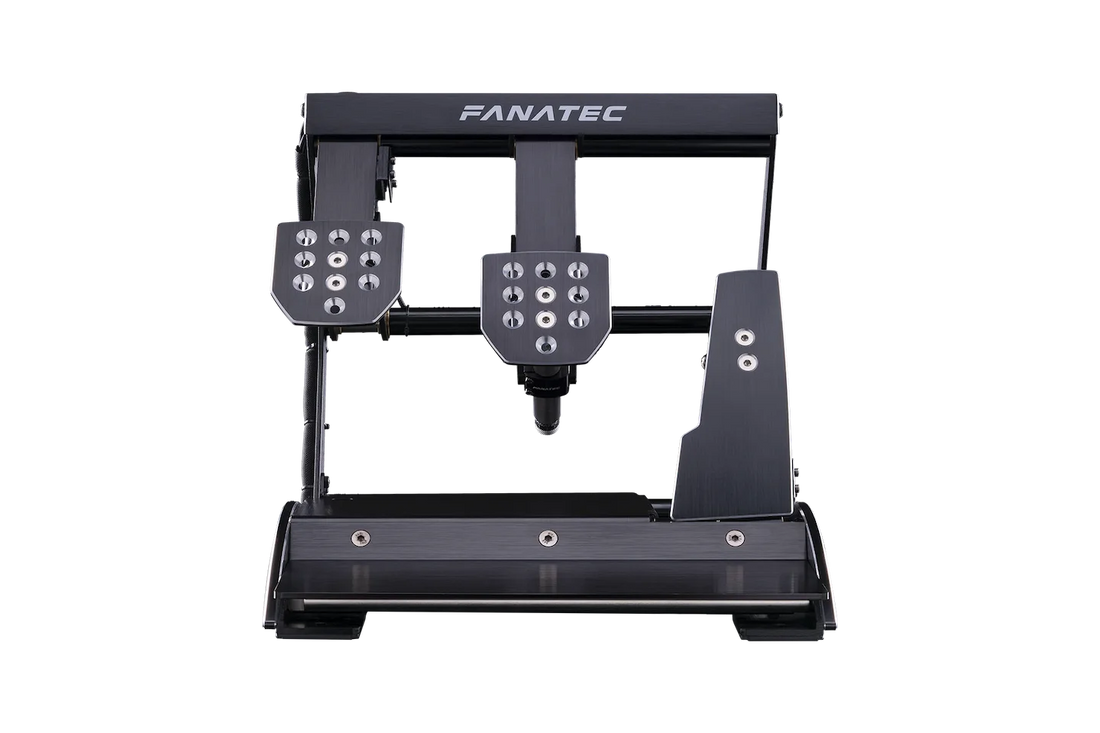

CLUBSPORT PEDALS V3 INVERTED
Real-Car Pedal Geometry with Inverted Brake and Clutch
The ClubSport Pedals V3 Inverted are designed around maximum realism. The brake and clutch pivot from the upper side of the pedal assembly, recreating the arrangement, pedal distances, and longer travel found in real cars.
The full-metal CNC-machined aluminium construction combines a 90 kg load cell brake, magnetic contactless sensors on the throttle and clutch, and 12-bit resolution with up to 4096 values on all axes. The brake also comes with the ClubSport Pedals V3i Damper Kit pre-assembled, adding adjustable hydraulic damping alongside tool-free brake stiffness and travel adjustment.
Integrated vibration motors in the throttle and brake can provide additional feedback for wheel spin, oversteer, ABS, and tyre locking when supported by the connected hardware, game, or software.
The full-metal CNC-machined aluminium construction combines a 90 kg load cell brake, magnetic contactless sensors on the throttle and clutch, and 12-bit resolution with up to 4096 values on all axes. The brake also comes with the ClubSport Pedals V3i Damper Kit pre-assembled, adding adjustable hydraulic damping alongside tool-free brake stiffness and travel adjustment.
Integrated vibration motors in the throttle and brake can provide additional feedback for wheel spin, oversteer, ABS, and tyre locking when supported by the connected hardware, game, or software.
Inverted Brake & Clutch
Upper-mounted brake and clutch pivot points recreate the arrangement and longer pedal travel found in real cars.
90 kg Load Cell Brake
The pressure-sensitive brake uses a custom 90 kg load cell for precise braking based on applied force.
Adjustable Brake Feel
Fine-tune brake stiffness and travel without tools, with additional hydraulic damping from the pre-installed Damper Kit.
Contactless Hall Sensors
Magnetic contactless sensors on the throttle and clutch provide high-resolution input with no mechanical sensor wear.
Full-Metal Construction
CNC-machined aluminium construction provides a rigid and durable foundation for demanding sim racing use.
Extensive Ergonomic Adjustment
Adjust pedal plate position, angle, throttle spring strength, brake sensitivity, and brake travel to suit your preferred driving position.
REALISM & CONTROL
ClubSport Pedals V3 Inverted Specifications
| Pedal Configuration | Throttle, Brake, and Clutch |
|---|---|
| Brake & Clutch Layout | Inverted Upper Pivot |
| Construction | Full Metal CNC-Machined Aluminium |
| Throttle Sensor | Magnetic Contactless Sensor |
| Clutch Sensor | Magnetic Contactless Sensor |
| Brake Sensor | Custom 90 kg Load Cell |
| Maximum Resolution | 12 Bit / 4096 Values on All Axes |
| Brake Stiffness | Adjustable Without Tools |
| Brake Travel | Adjustable Without Tools |
| Brake Damper | ClubSport Pedals V3i Damper Kit Pre-Assembled |
| Damper Resistance | Adjustable |
| Brake Sensitivity | Adjustable Through Compatible Fanatec Tuning Menu |
| Throttle Spring | Exchangeable, Two Spring Strengths Included |
| Pedal Plate Adjustment | Adjustable Position and Angle |
| Pedal Arm Adjustment | Pedal Extensions Allow Angle Adjustment |
| Throttle Feedback | Integrated Vibration Motor |
| Brake Feedback | Integrated Vibration Motor |
| Alternative Pedal Plates | D-Shape Curved Race Plates |
| PC Connection | Direct USB Supported |
| Fanatec Connection | RJ12 Pedal Connection |
| Handbrake Connection | Dedicated ClubSport Handbrake Port |
In The Box
Everything Included with the ClubSport Pedals V3 Invertedd
The ClubSport Pedals V3 Inverted arrive with the brake Damper Kit already installed, together with pedal extensions, alternative pedal plates, mounting components, connection cables, and setup accessories.
1
ClubSport Pedals V3 Inverted
2
ClubSport Pedals V3i Damper Kit, Pre-Assembled on Brake Pedal
3
3x Pedal Extensions, 2x Assembled and 1x Accessory
4
3x D-Shape Pedal Plates with Mounting Screws
5
1x Strong Throttle Spring
6
2x Stabilizer Feet with Mounting Screws
7
1x RJ12 Connection Cable, 150 cm
8
1x USB Connection Cable, 180 cm
9
1x Allen Key for Damper
10
1x Lithium Grease Bottle
11
1x Quick Guide
PC, CONSOLE & FANATEC ECOSYSTEM
Flexible Integration for Fanatec and PC Racing Setups
Connect the ClubSport Pedals V3 Inverted directly to compatible Fanatec hardware through RJ12, or use the included USB cable for standalone operation on a Windows PC with supported racing titles.
Fanatec Wheel Bases & Racing Wheels
Compatible with Fanatec Wheel Bases and Racing Wheels equipped with an RJ12 pedal connector. Fanatec wheels using a PS/2 pedal socket require an additional PS/2-to-RJ12 cable.
PlayStation & Xbox
Console operation is supported when the pedals are connected through a compatible Fanatec Wheel Base or Racing Wheel. Direct USB connection does not provide console compatibility.
Brake Performance Kit
Compatible with the ClubSport Pedals V3 Brake Performance Kit for additional brake tuning options.
Throttle Damper Kit
A ClubSport Pedals V3 Damper Kit can be added to the throttle pedal. The brake Damper Kit is already installed.
ClubSport Handbrake
A dedicated connection is provided for the ClubSport Handbrake.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
PURE REALISM.
Realism to the max - that's the ideology of these inverted pedals. Pivot points, arrangement, distances and overall feeling, just like in a real car!
INVERTED CLUTCH AND BRAKE
The clutch and brake pivot points are inverted to the upper side of the pedals, attached to a very solid frame, just like you would expect from the Fanatec ClubSport Series. The longer pedal travels and the pedal distances are inspired by real cars in every detail.
BRAKE PEDAL EQUIPPED WITH ADJUSTABLE DAMPER
These pedals come equipped with a resistance-adjustable ClubSport Damper Kit, mounted and ready to use on the brake pedal. In combination with the tool-less adjustment of the brake resistance (as in the V3 pedals) this pedal set delivers pure realism right out of the box!
BRAKE WITH CONFIDENCE.
The brake pedal has been completely reworked, with an all-new custom load cell sensor.
AMXIMUM ADJUSTABILITY
Full metal construction with cutting-edge features, just like the ClubSport Pedals V3 and its predecessors.
VIBRATION FEEDBACK PEDALS
The new vibration motor on the gas pedal can be used by games to indicate if you lose grip and should let up on the gas. The second motor on the brake can trigger if you brake too hard and lock the tires, or when the ABS kicks in.
DRIVE YOUR WAY.
CSL Elite Pedals V2 connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device (on PC) using the included USB cable. Pedal position can be adjusted sideways along the heel rest, and it is easily configurable as a two-pedal set.
CHOOSE YOUR PEDAL SURFACE
Detachable rubber pads on the pedal faces give you the choice between high or low friction. For example, you might prefer more grip on the brake pedal for applying very high forces, but a slick throttle to assist with smooth acceleration out of corners.
ELECTRONICALLY ADJUSTABLE.
The amount of braking force required can be easily tweaked through the Fanatec Tuning Menu (or Fanatec Control Panel on PC)*. Manual calibration of all three pedal axes is also possible.
