Windows PC
Connect through a compatible Fanatec Wheel Base via RJ12 or use the included USB cable to run the pedals as a standalone PC input device.

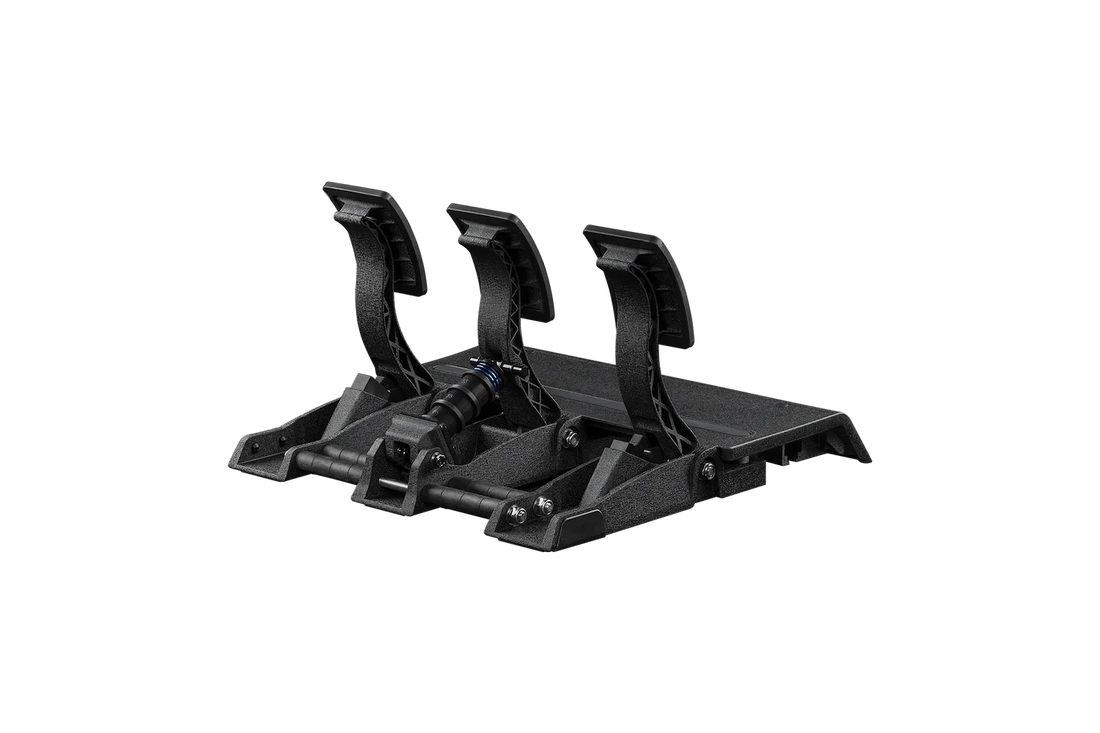

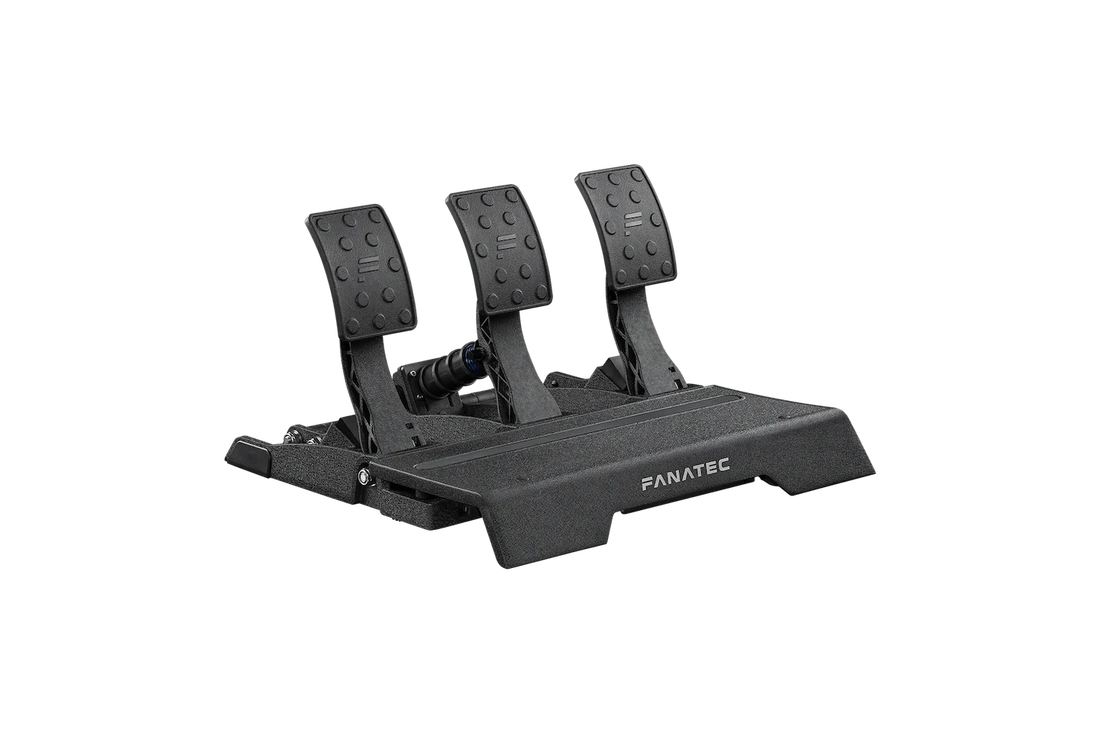

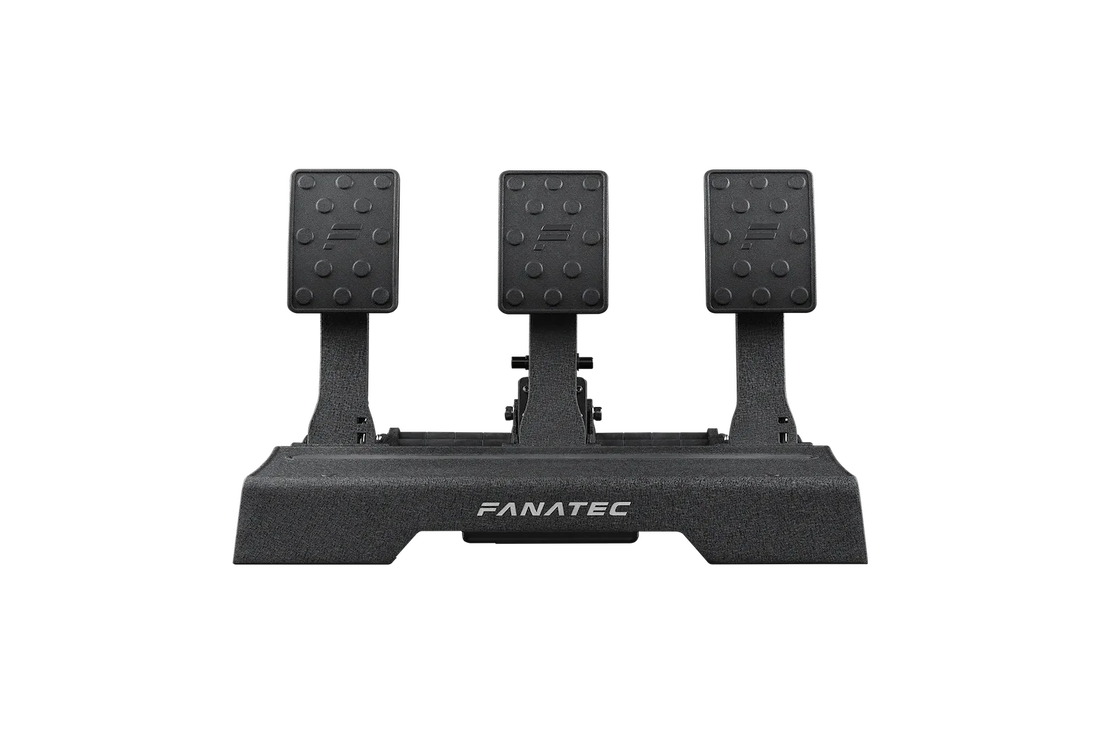

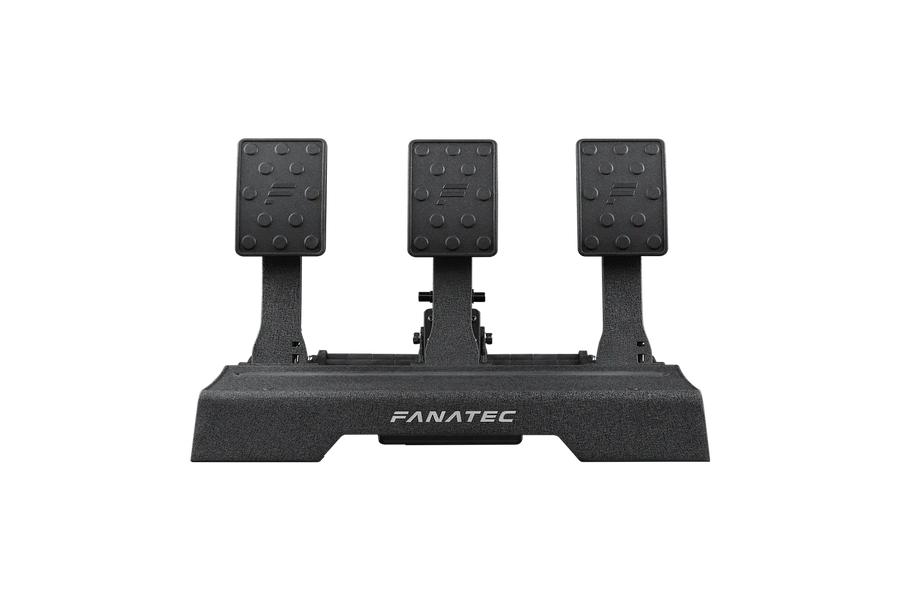

FANATEC CSL ELITE PEDALS
$329.99
FANATEC CSL ELITE PEDALS
$329.99
BETTER THAN EVER
Precision Pedal Control with a Fully Reworked Load Cell Brake
The CSL Elite Pedals V2 combine a three-pedal layout with an all-new load cell brake system, contactless Hall sensors on the throttle and clutch, and a durable full-metal construction.
The brake measures applied pressure rather than pedal position, supporting up to 90 kg of measured foot force at the pedal plate. An adjustable elastomer stack lets you tune brake firmness without tools, while the included metal spring creates a dual-stage preload feel that simulates the initial movement of a brake pedal before heavier resistance builds.
Cast and machined aluminium pedal arms, faces, and heel rest provide a solid platform, while adjustable pedal positioning, detachable rubber covers, and the option to configure the set as two pedals give you flexibility to tailor the setup to your driving style.
The brake measures applied pressure rather than pedal position, supporting up to 90 kg of measured foot force at the pedal plate. An adjustable elastomer stack lets you tune brake firmness without tools, while the included metal spring creates a dual-stage preload feel that simulates the initial movement of a brake pedal before heavier resistance builds.
Cast and machined aluminium pedal arms, faces, and heel rest provide a solid platform, while adjustable pedal positioning, detachable rubber covers, and the option to configure the set as two pedals give you flexibility to tailor the setup to your driving style.
90 kg Load Cell Brake
The redesigned brake measures pedal pressure with up to 90 kg of adjustable foot force for precise and repeatable braking.
Tool-Free Brake Tuning
Choose between included 65, 75, and 85 Shore elastomers to adjust brake firmness without tools.
Full-Metal Construction
Cast and machined aluminium pedal arms, faces, and heel rest provide a strong and stable foundation under heavy braking.
Dual-Stage Brake Feel
A metal spring and elastomer system creates an initial preload stage followed by progressive braking resistance.
Contactless Hall Sensors
Magnetic Hall sensors on the throttle and clutch provide precise input without physical sensor wear.
Flexible Pedal Setup
Adjust pedal position along the heel rest, remove the rubber pedal covers, or configure the set as a two-pedal layout.
PRECISION & ADJUSTABILITY
CSL Elite Pedals V2 Specifications
| Pedal Configuration | Throttle, Brake and Clutch |
|---|---|
| Construction | Cast and Machined Aluminium |
| Finish | Durable Powder-Coated Finish |
| Brake System | Load Cell |
| Maximum Brake Foot Force | Up to 90 kg at Pedal Plate |
| Load Cell Rating | Greater Than 200 kg |
| Minimum Brake Sensitivity | Approximately 10 kg |
| Brake Sensitivity Adjustment | Fanatec Tuning Menu or Fanatec Control Panel on PC |
| Brake Resistance System | Elastomer Stack with Metal Preload Spring |
| Included Elastomer Hardness | 65, 75 and 85 Shore |
| Brake Adjustment | Tool-Free |
| Throttle Sensor | Contactless Hall Sensor |
| Clutch Sensor | Contactless Hall Sensor |
| Pedal Position | Sideways Adjustable Along Heel Rest |
| Two-Pedal Configuration | Supported |
| Individual Pedal Mounting | Supported |
| Inverted Mounting | Supported, Mounting Hardware Not Included |
| Pedal Covers | Detachable Rubber Covers |
| Wheel Base Connection | RJ12 |
| Standalone PC Connection | USB |
| Handbrake Connection | Dedicated Handbrake Port |
| Assembly | Fully Assembled |
In The Box
Ready to Race Out of the Box
The CSL Elite Pedals V2 arrive fully assembled as a three-pedal set and include the alternative brake tuning components, connection cables, setup tools, and documentation required for installation and adjustment.
1
CSL Elite Pedals V2 Three-Pedal Set, Fully Assembled
2
Alternative Elastomers and Metal Spring for Brake Tuning
3
2x Brake Pedal Assembly Helpers
4
1x RJ12 to RJ12 Wheel Base Connection Cable, Approximately 3 m
5
1x USB Cable, Approximately 3 m
6
2x 13 mm Wrenches
7
1x 6 mm Allen Key
8
1x 4 mm Allen Key
9
1x Quick Guide
10
1x Sticker Set
FANATEC ECOSYSTEM READY
Connect Through Your Wheel Base or Directly to PC
Connect the CSL Elite Pedals V2 directly to a compatible Fanatec Wheel Base using the included RJ12 cable, or use the pedals as a standalone USB input device on Windows PC. Console compatibility is provided through compatible Fanatec hardware.
PlayStation 4 & PlayStation 5
Use the pedals on supported PlayStation consoles when connected through a PlayStation-licensed Fanatec Wheel Base.
Xbox One & Xbox Series X/S
Use the pedals on Xbox when connected through a compatible Fanatec Wheel Base together with an Xbox-licensed Fanatec Steering Wheel.
Fanatec CSL Wheel Bases
Compatible with all CSL Elite Wheel Bases, the CSL DD Wheel Base, and the Gran Turismo DD Pro Wheel Base.
Fanatec ClubSport Wheel Bases
Compatible with all ClubSport Wheel Bases through the RJ12 pedal connection.
Fanatec Podium Wheel Bases
Compatible with all Podium Wheel Bases through the RJ12 pedal connection.
ClubSport Handbrake
A dedicated handbrake port allows integration with the ClubSport Handbrake.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
BETTER THAN EVER.
The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.
MAGNETIC SENSORS

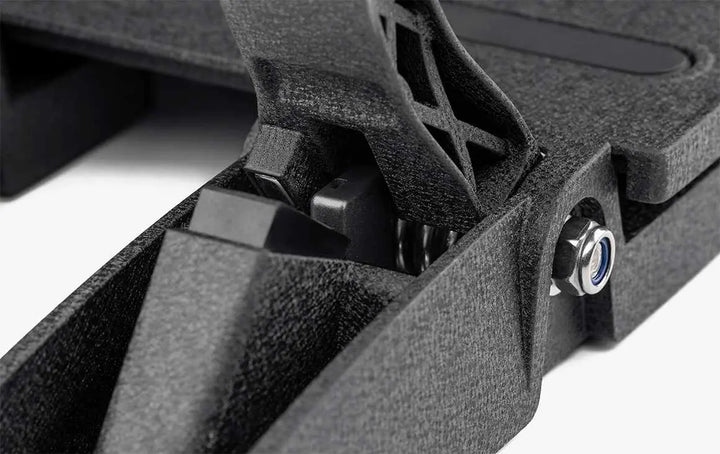

Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
SOLID, FULL-METAL DESIGN.

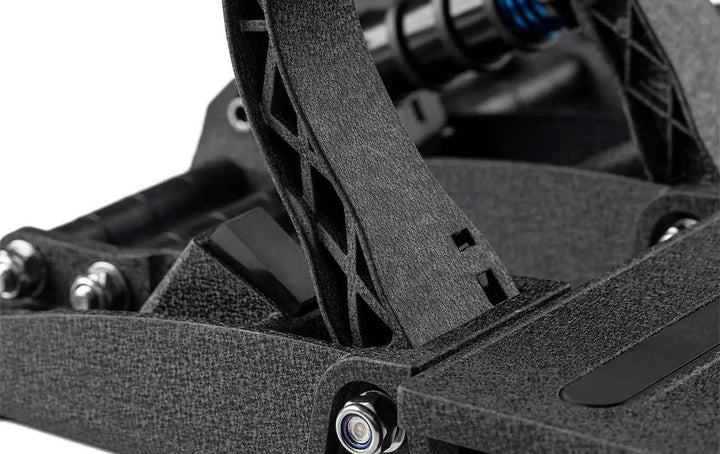

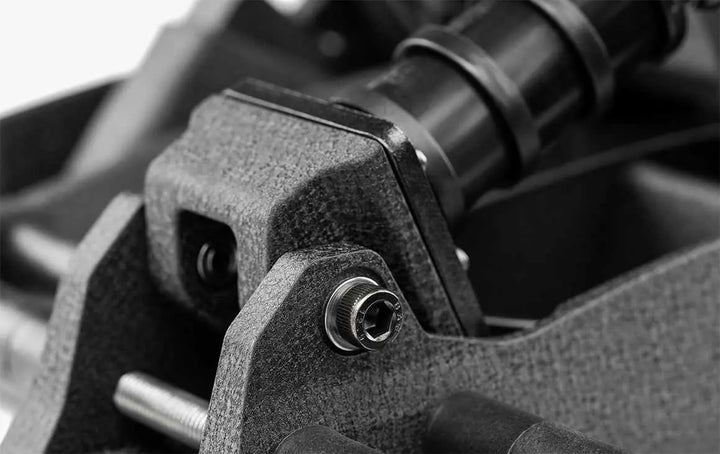

The pedal arms, faces, and heel rest are made from cast and machined aluminium, with a durable powder-coated finish. Additional bracing towards the rear of the assembly provides extra stiffness and stability under heavy load.
BRAKE WITH CONFIDENCE.
The brake pedal has been completely reworked, with an all-new custom load cell sensor.
MUSCLE MEMORY.
The load cell sensor measures pressure rather than position. Tuned to a genuine 90 kg (adjustable) at the pedal plate, this realistic level of resistance trains your muscle memory and you’ll brake with confidence and precision every time.
DUAL STATE BRAKE FUNCTION.

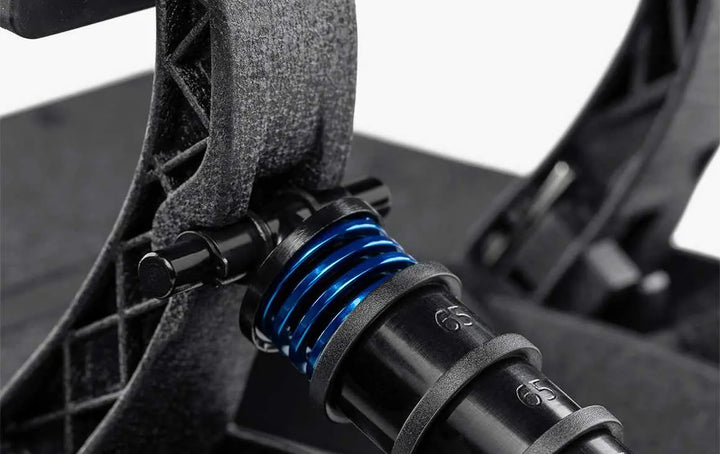

The adjustable, tool-free elastomer stack incorporates a coil spring to simulate the initial movement of the brake pad to the disc. You can easily adjust the firmness of the pedal travel by selecting between elastomer springs (included).
DRIVE YOUR WAY.

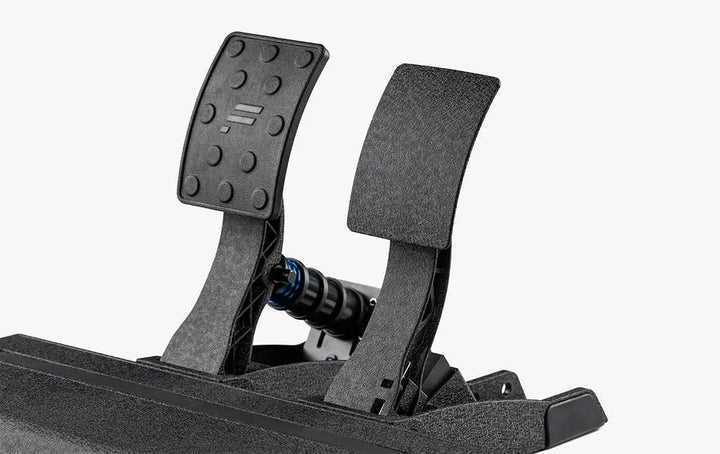

CSL Elite Pedals V2 connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device (on PC) using the included USB cable. Pedal position can be adjusted sideways along the heel rest, and it is easily configurable as a two-pedal set.
CHOOSE YOUR PEDAL SURFACE
Detachable rubber pads on the pedal faces give you the choice between high or low friction. For example, you might prefer more grip on the brake pedal for applying very high forces, but a slick throttle to assist with smooth acceleration out of corners.
ELECTRONICALLY ADJUSTABLE.

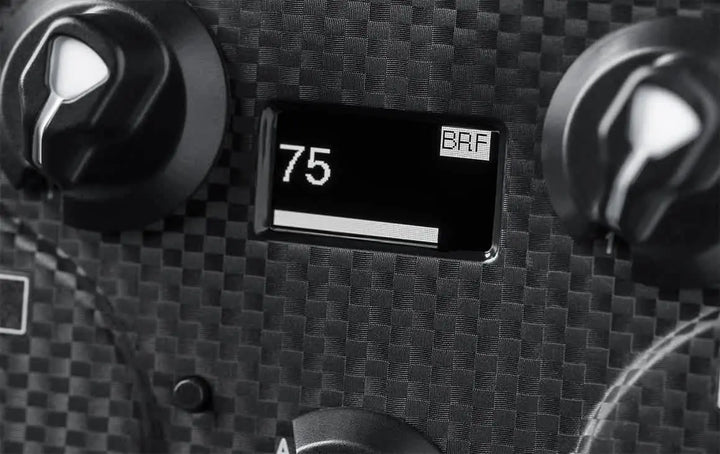

The amount of braking force required can be easily tweaked through the Fanatec Tuning Menu (or Fanatec Control Panel on PC)*. Manual calibration of all three pedal axes is also possible.
Fanatec CSL Elite Pedals V2
