ENGINEERING

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.

The pedals (brake, throttle and clutch) offer a strong and stiff feeling, the Heusinkveld custom made elastomers for the brake pedal providing you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.

Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

ADJUSTMENT OPTIONS

Each pedal has different adjustment options but some adjustments are for all pedals:

Pedal angle

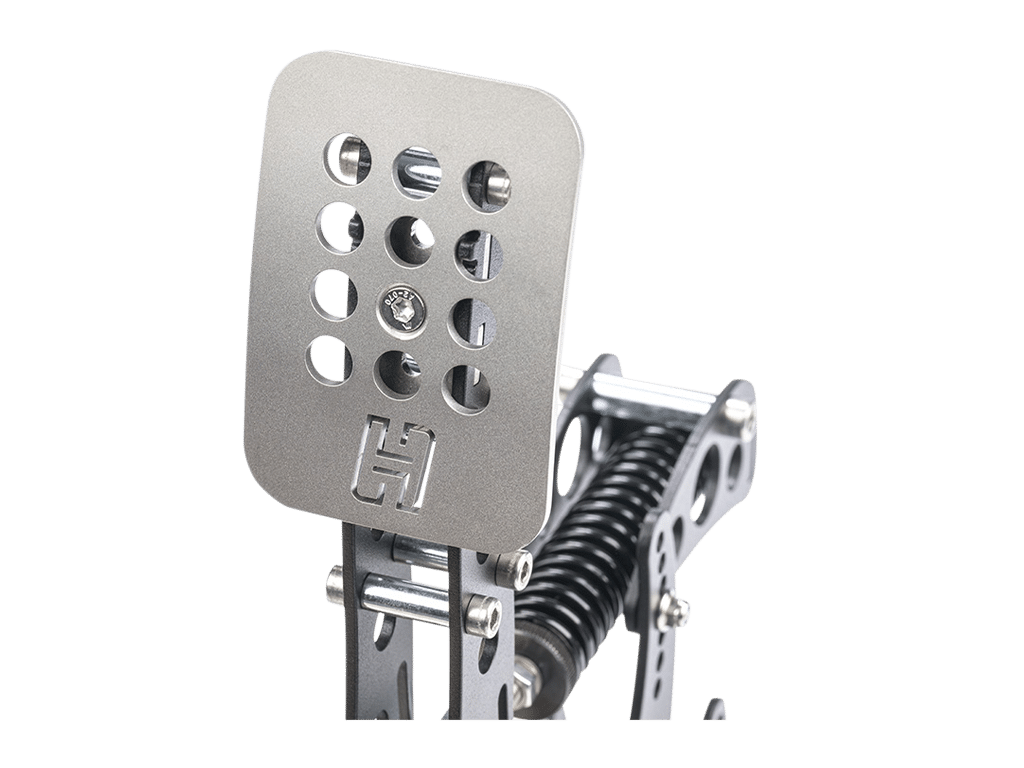

Pedal plate height

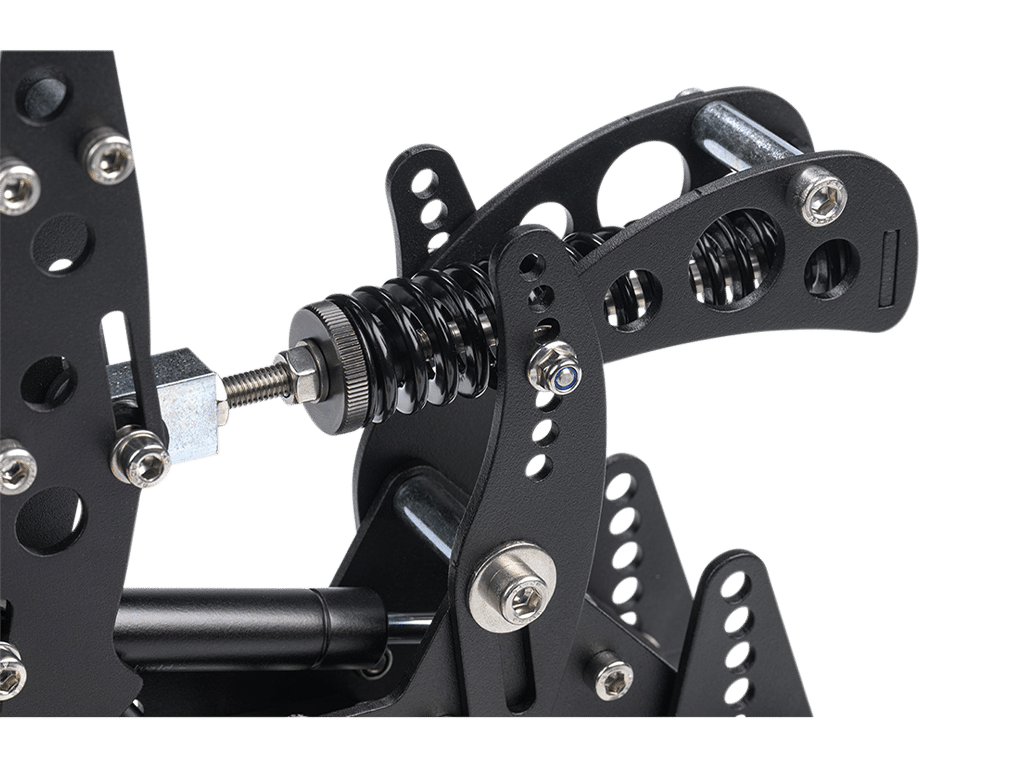

Hydraulic damping

Throttle & Clutch:
Pedal travel
Overall pedal force
Pedal spring preload

Clutch only:
Pedal force
Pedal force curve

Software:

Output curves
Deadzones
Components

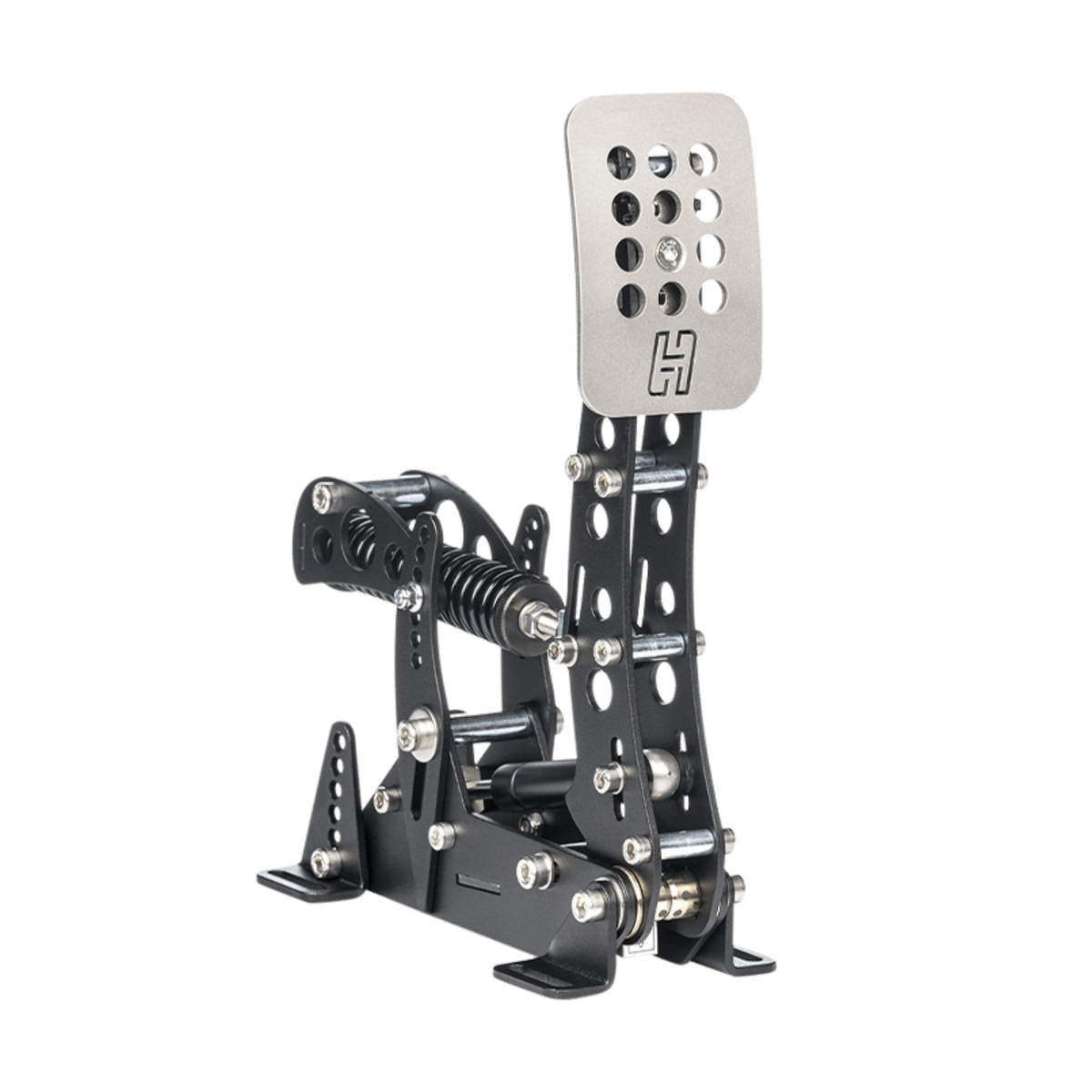

Heusinkveld Ultimate+ Black 1-pedal set contains a clutch

Electronics

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

Compatibility: PC (Windows 10 or newer)
Software: SmartControl & SmartControl Live
Controller: Yes, external controller box
Plug and Play: Yes
Max actual Braking Force: 140 kg
Hydraulic Damping: Yes, adjustable 2-way damping on brake and clutch. Adjustable 1-way damping on throttle
Dimensions: 445x310x91mm
Material: Powder coated and glass bead blasted stainless steel
Weight: 1.99 kg
Sensor type: Force-sensitive 200kg load cell (brake pedal)
Position-sensitive load cell (throttle & clutch)
Packaging: Eco-Friendly Packaging:
Type of Simracer: Suitable for professional driver training, Esports, commercial use, home use
Type of Cars: F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars
Adjustments & Mounting:
9 brake resistance settings, pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping, pedal output curves, deadzones. Mount on a full frame rig (you can use our Ultimate+ Baseplate)

Pedals
USB Cable
Mounting Materials
Installation & Adjustment Tools
Manual

SmartControl:

Our Heusinkveld Sprint pedals come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.

These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.

SmartControl Live:

Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferenceswhile driving.Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.
