All MOZA Wheel Bases
The Vision GS is specified as compatible with all MOZA Wheel Bases.
MOZA Vision GS
Elevate your racing with the MOZA Vision GS Wheel!
MOZA Vision GS Steering Wheel
$699.00
Sale
•
Save
$50.00
MOZA Vision GS Steering Wheel
$699.00
Sale
•
Save
$50.00
FUTURISTIC CONTROL

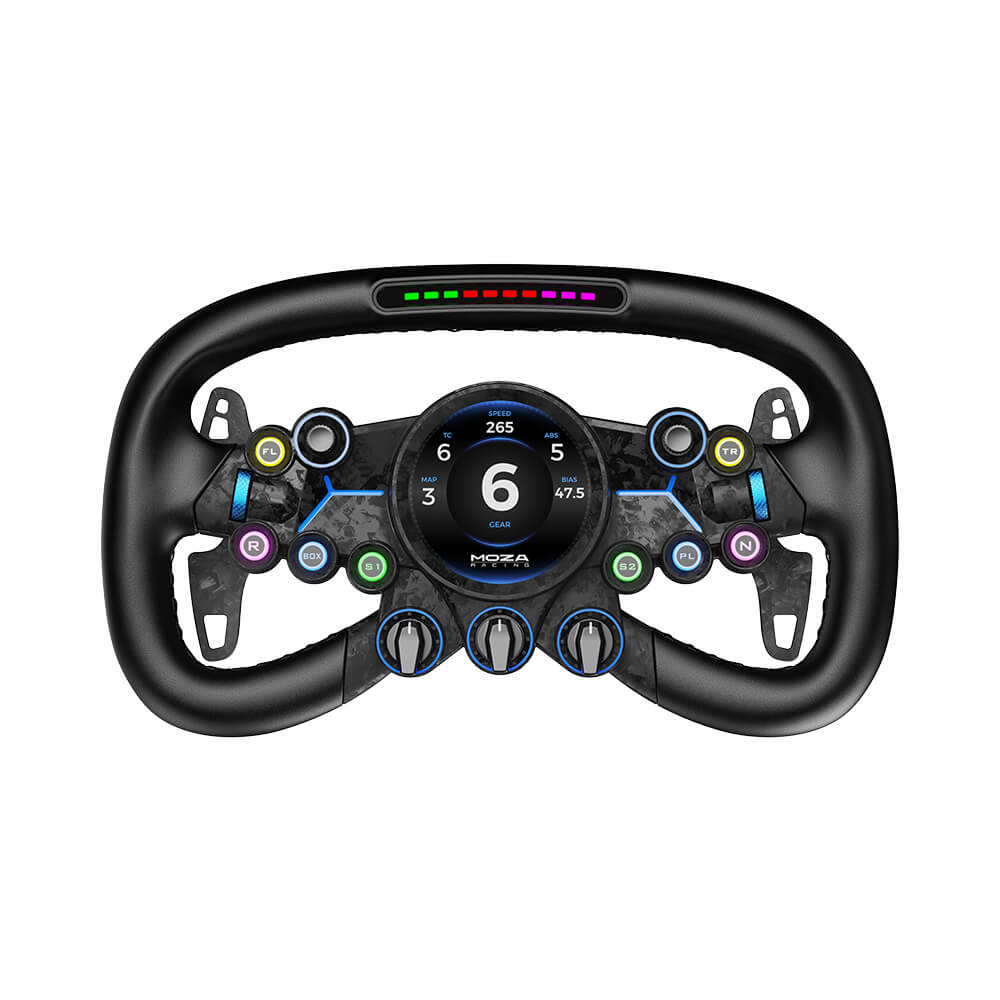

A 310 MM WHEEL BUILT AROUND A CIRCULAR TOUCHSCREEN
Experience advanced control and a distinctive visual interface with the MOZA Vision GS Wheel.
The 310 mm wheel features a 2.85-inch HD circular touchscreen powered by a 1.3 GHz quad-core processor for real-time display rendering. Its fully customizable UI system includes 10 presets and allows personalized dash layouts, while touchscreen gestures make it easy to switch between interfaces.
A built-in gyroscope and MOZA software algorithms keep the display horizontally oriented for improved visibility while driving.
The wheel combines an aerospace-grade aluminium-alloy back plate, carbon-fibre-reinforced composite face plate, and hand-stitched microfiber leather grips.
With 72 programmable input signals, eight short-travel RGB backlit buttons, two rear buttons, three rotary encoders, two thumb encoders, a 7-way switch, universal joystick, magnetic shift paddles, and dual clutch paddles, the Vision GS provides extensive control directly from the wheel.
The 310 mm wheel features a 2.85-inch HD circular touchscreen powered by a 1.3 GHz quad-core processor for real-time display rendering. Its fully customizable UI system includes 10 presets and allows personalized dash layouts, while touchscreen gestures make it easy to switch between interfaces.
A built-in gyroscope and MOZA software algorithms keep the display horizontally oriented for improved visibility while driving.
The wheel combines an aerospace-grade aluminium-alloy back plate, carbon-fibre-reinforced composite face plate, and hand-stitched microfiber leather grips.
With 72 programmable input signals, eight short-travel RGB backlit buttons, two rear buttons, three rotary encoders, two thumb encoders, a 7-way switch, universal joystick, magnetic shift paddles, and dual clutch paddles, the Vision GS provides extensive control directly from the wheel.
2.85-Inch HD Circular Touchscreen
Displays real-time information through a fully customizable circular touchscreen interface with multiple presets.
72 Programmable Input Signals
Extensive controls include buttons, rotary encoders, thumb encoders, a 7-way switch, joystick, and paddle inputs.
10 Top-Mounted RPM LEDs
High-brightness RPM indicators support 16.7 million colors and can also provide supported flag information.
Carbon Fibre Composite Face Plate
The face plate uses carbon-fibre-reinforced composite material for strength and rigidity.
Aerospace-Grade Aluminium Construction
The framework and back plate use CNC-machined aerospace-grade aluminium alloy.
Hand-Stitched Microfiber Leather Grips
Microfiber leather grips feature hand stitching for the specified steering surface and finish.
Product Details

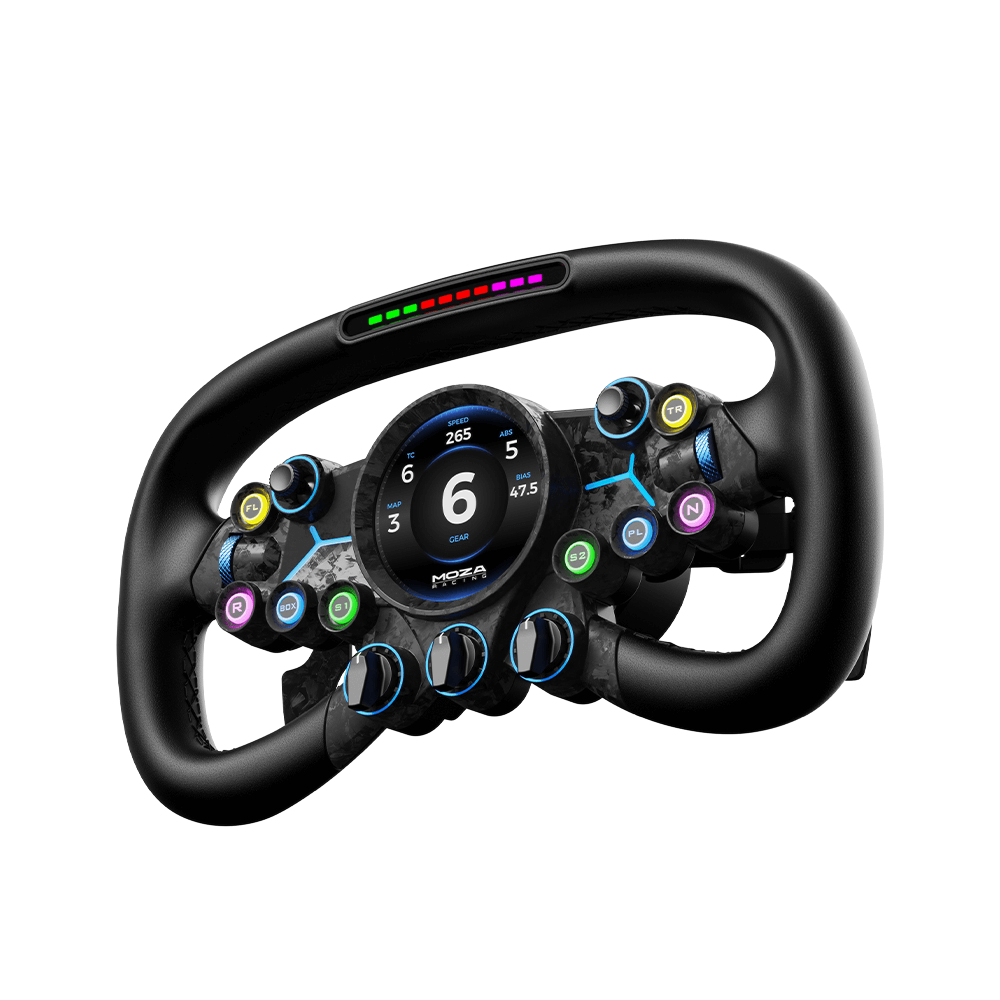

TOUCHSCREEN CONTROL WITH 72 PROGRAMMABLE INPUTS
| Product | MOZA Vision GS Wheel |
|---|---|
| Product Type | Sim Racing Steering Wheel |
| Size | 310 mm |
| Back Plate Material | Aerospace-Grade Aluminium Alloy |
| Face Plate Material | Carbon Fibre Reinforced Composite |
| Grip Material | Microfiber Leather |
| Display | 2.85-Inch HD Circular Touchscreen |
| Display UI | Fully Customizable |
| UI Presets | 10 |
| Processor | 1.3 GHz Quad-Core Processor |
| Horizontal Screen View | Supported |
| Short-Travel Backlit Buttons | 8 |
| Backlit Button Colors | 16.7 Million Colors |
| Rear Buttons | 2 |
| Rotary Encoders | 3 |
| Rotary Encoder Material | Aluminium Alloy |
| Thumb Encoders | 2 |
| Thumb Encoder Material | Aluminium Alloy |
| 7-Way Switch | 1 |
| Universal Joystick | 1 |
| Programmable Input Signals | 72 |
| Shift Indicator Lights | 10 Top-Mounted RPM LEDs |
| Shift Indicator Colors | 16.7 Million Colors |
| Shift Paddles | Carbon Fibre Magnetic Shift Paddles |
| Dual Clutch Paddles | Hall Sensor Magnetic Paddles with Dual Clutch |
| Paddle Sensor Precision | 0.03 mm |
| Intelligent Telemetry | Supported |
| RPM LED Adjustment | Supported Through MOZA Pit House |
| Release Method | All-Aluminium Quick Release |
| Communication Methods | Wireless or Conductive Slip Ring |
| Software | MOZA Pit House |
In The Box
YOUR MOZA VISION GS PACKAGE
The supplied package contents confirm the Vision GS Wheel, MOZA stickers, an L-shaped wrench, and a plastic tweezer.
1
MOZA Vision GS Wheel × 1
2
MOZA Stickers × 1
3
Tool Kit L-Shaped Wrench
4
Plastic Tweezer
OPEN ECOSYSTEM
BUILT FOR MOZA AND THIRD-PARTY WHEEL BASES
The MOZA Vision GS Wheel is compatible with all MOZA Wheel Bases. Communication supports both wireless and conductive slip ring modes, providing compatibility across the MOZA Wheel Base ecosystem. For third-party systems, the supplied specifications state that the Vision GS works with third-party Wheel Bases via a MOZA hub. Another supplied section describes direct PC connection through MOZA's universal adapter.
MOZA Wireless Connection
Supports wireless communication with compatible MOZA Wheel Base configurations.
Conductive Slip Ring
Supports communication through a conductive slip ring for compatible MOZA Wheel Base configurations.
Third-Party Wheel Bases
The supplied specifications state that third-party Wheel Bases can be used through a MOZA hub.
MOZA Universal Adapter
The supplied open-ecosystem information states that the wheel can connect directly to a PC through MOZA's universal adapter.
MOZA Pit House
Configure dual-clutch mode, knob and joystick modes, RPM LEDs, button colors, and other supported wheel settings.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
HD Circular Display Screen
Fully Customizable UI System
Quad-core High-performance Processor
Horizontal Screen View
Top-Mounted RPM Indicator
Aerospace-Grade Aluminum Alloy Construction
Hand-stitched Microfiber Leather Grips
Open Ecosystem
Add a title

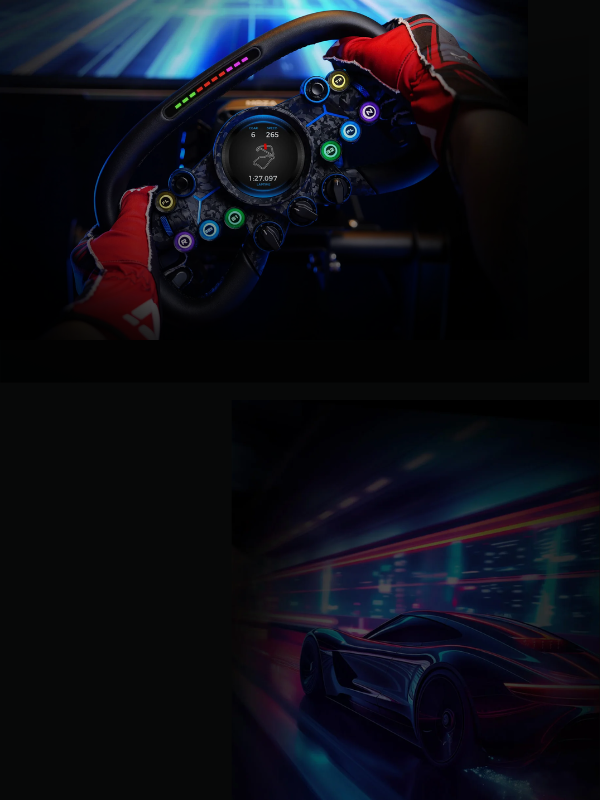

HD Circular Display Screen
Transforms the ES Wheel into A 280mm Formula Wheel

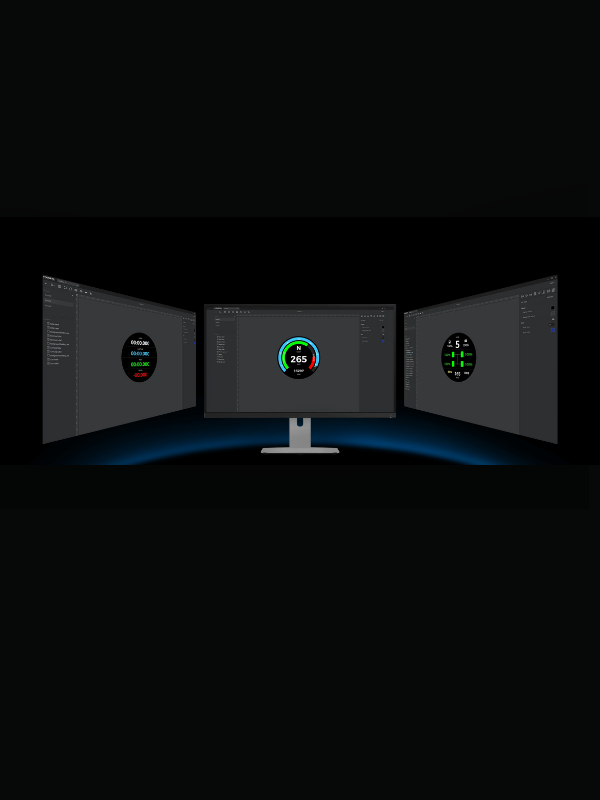

Fully Customizable UI System
MOZA leads as the first sim racing hardware manufacturer with a proprietary UI customization system. It offers 10 presets and complete freedom for users to create their own personalized UI dash displays.
Effortless UI Switching
with Touchscreen
Effortlessly change the UI style by sliding the circular touchscreen up, down, left, or right.

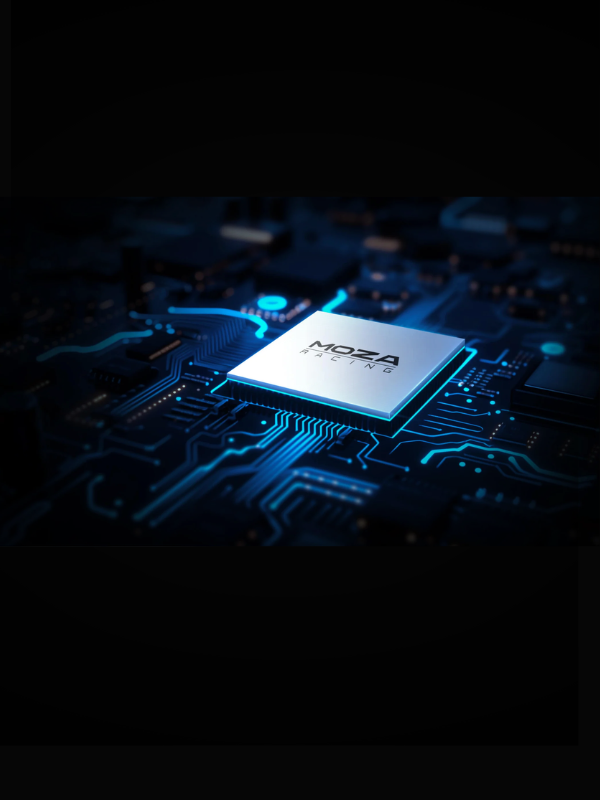

Quad-core High-performance Processor
Equipped with an ultra fast 1.3GHz quad core processor the MOZA Vision GS performs complex real time display rendering with almost zero latency.

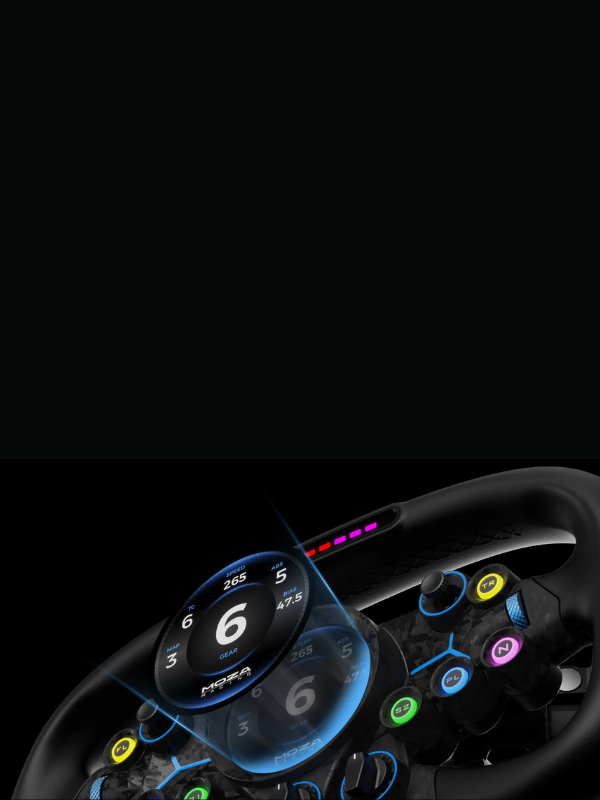

Horizontal Screen View
Equipped with a gyroscope and MOZA software algorithms, the screen remains perfectly horizontal, ensuring low latency and enhanced visibility.

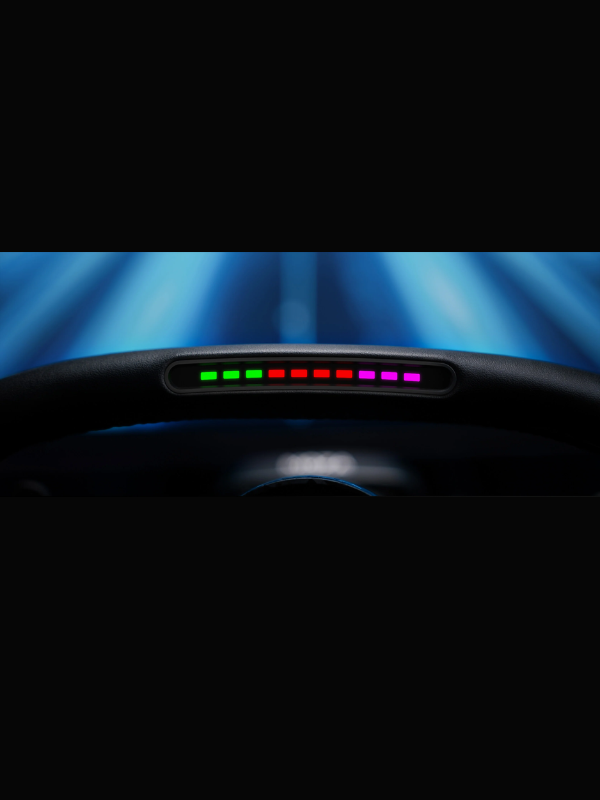

Top-Mounted RPM Indicator
This top-mounted RPM indicator draws inspiration from supercar wheel designs. With 10 high-brightness LEDs customizable to 16.7 million colors, it can also function as a flag signal indicator.

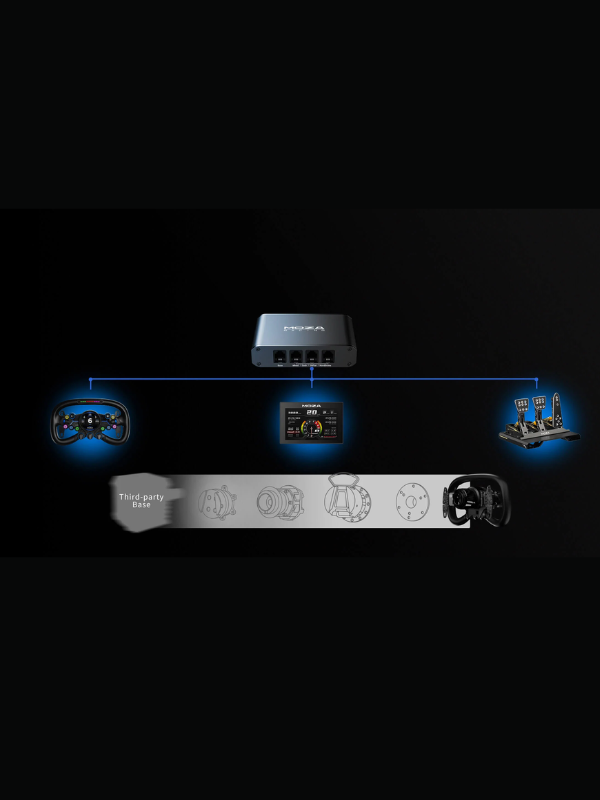

Open Ecosystem
It can be directly connected to a PC via MOZA's universal adapter, making it compatible with third-party bases outside of MOZA’s ecosystem, showcasing MOZA's open and inclusive ecosystem philosophy.
Aerospace-Grade Aluminum
Alloy Construction
Meticulously crafted with CNC precision, the framework and back plate feature an aerospace-grade aluminum alloy build. The material presents a refined metallic texture and ensures exceptional strength and rigidity.

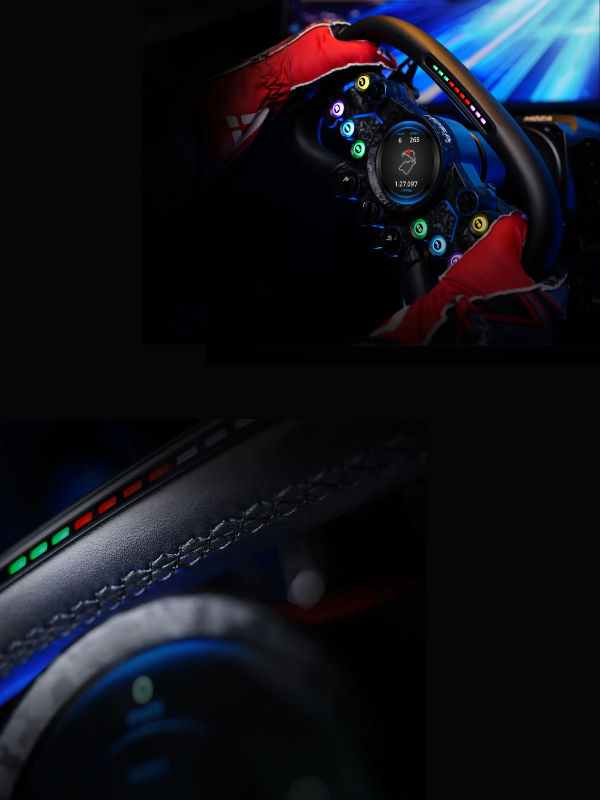

Hand-stitched
Microfiber Leather Grips
Crafted from high-quality microfiber leather, it offers a delicate texture and soft touch. The hand stitching ensures a tight and smooth finish, providing ultra comfortable grips.
Forged Carbon Fiber Magnetic
Paddles with Dual Clutch
Crafted from forged carbon fiber, these paddles boast non-contact hall sensors offering 0.03mm precision for stable and precise control. Equipped with pre-installed silencer pads, they ensure a smooth and noise-free shifting experience. The lower clutch paddles effortlessly switch between single and dual clutch modes, ideal for professional sim racing titles like iRacing and the F1 series.
Carbon Fiber
Composite Face Plate
The Vision GS wheel features a face plate constructed from carbon fiber reinforced composites. This material provides exceptional strength and durability and surpasses the rigidity of standard composite materials or plastics.
Customizable Dual Rear Buttons
The rear of the steering wheel features two unique buttons that can be assigned to any function. Use them to switch vehicle presets, activate DRS, engage the KERS system, adjust engine braking, configure the differential, and more.
Short-Travel RGB
Backlit Buttons
The rear of the steering wheel features two unique buttons that can be assigned to any function. Use them to switch vehicle presets, activate DRS, engage the KERS system, adjust engine braking, configure the differential, and more.
72 Programmable Input Signals
Experience versatile control with the Vision GS featuring a 7-way funky switch, a universal joystick, 3 rotary encoders, and 2 thumb encoders. The 7-way funky switch functions as a 4-way directional pad, rotary encoder, and push button, offering flexible input options. Fine-tune brake bias, TC, and more with the thumb encoders, while the rotary encoders enable real-time ABS adjustments with mode switching support. Navigate seamlessly with the universal joystick, providing 360-degree viewing. With a total of 72 programmable input signals, meet all your driving needs!
All-aluminum Quick Release
The Vision GS wheel utilizes MOZA's custom quick release connection system compatible with all MOZA bases. The quick release is constructed entirely from aerospace-grade aluminum and allows for quick swapping of wheels in seconds.
Wireless & Conductive Slip Ring
The steering wheel communication supports both wireless and conductive slip ring modes meaning full compatibility with all MOZA bases.
MOZA Pit House Software
The MOZA Pit House steering wheel control page features a user-friendly interface that allows you to test the functionality of your wheel, adjust settings for dual-clutch paddle mode, and select between knob and joystick modes. You can also customize the gear shift indicator light color, brightness, and timing, and adjust button colors.
Endured Millions of Tests
All buttons and the wheel frame have undergone up to a million rigorous test cycles aimed at delivering a high-quality user experience.
