FANATEC PODIUM HUB
$209.99
FANATEC PODIUM HUB
$209.99
THE ULTIMATE MODULAR CORE

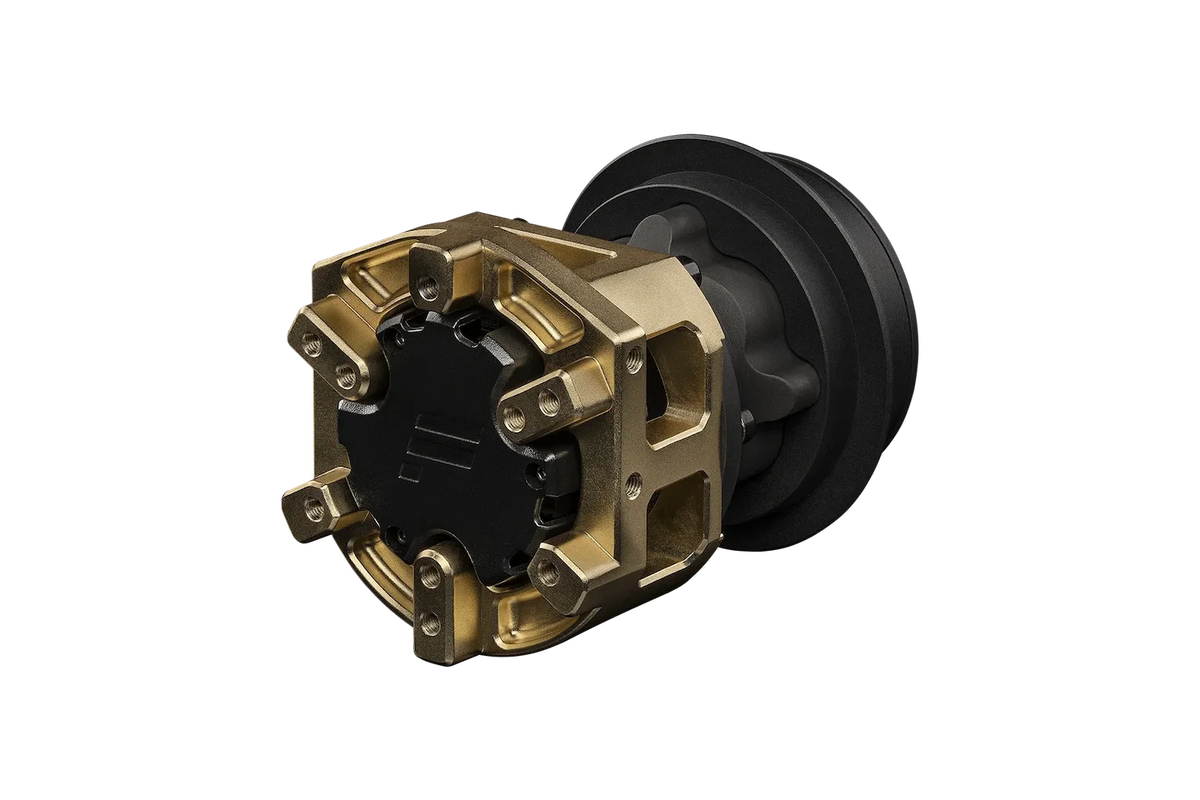

BUILD YOUR STEERING WHEEL YOUR WAY
Build a completely customized Fanatec steering wheel around the Podium Hub.
Designed as the premium core of the Fanatec modular steering wheel system, the Podium Hub combines a lightweight gold-anodised aluminium monocoque with a strong space-frame design that surrounds and protects its internal electronics.
A dedicated ARM processor delivers low-latency operation, firmware upgradeability, support for up to 10 buttons, and dual 16-bit analogue inputs. Additional controls and displays can be added through the Hub's modular connections.
Two paddle module connectors support the Podium Advanced Paddle Module, while two button cluster connections provide up to six additional button inputs. The integrated DataPort-C connector supports compatible accessories such as the Podium Button Module Endurance and Podium Button Module Rally.
Mount Fanatec wheel rims or compatible third-party rims using 6 × 70 mm or 3 × 50 mm bolt patterns, then expand your setup with Fanatec's modular components as your racing needs evolve.
Designed as the premium core of the Fanatec modular steering wheel system, the Podium Hub combines a lightweight gold-anodised aluminium monocoque with a strong space-frame design that surrounds and protects its internal electronics.
A dedicated ARM processor delivers low-latency operation, firmware upgradeability, support for up to 10 buttons, and dual 16-bit analogue inputs. Additional controls and displays can be added through the Hub's modular connections.
Two paddle module connectors support the Podium Advanced Paddle Module, while two button cluster connections provide up to six additional button inputs. The integrated DataPort-C connector supports compatible accessories such as the Podium Button Module Endurance and Podium Button Module Rally.
Mount Fanatec wheel rims or compatible third-party rims using 6 × 70 mm or 3 × 50 mm bolt patterns, then expand your setup with Fanatec's modular components as your racing needs evolve.
Gold-Anodised Aluminium Monocoque
A single-piece aluminium central hub and lightweight space-frame design provide strength without unnecessary weight.
Wide Wheel Rim Compatibility
Mount Fanatec wheel rims or compatible third-party rims using 6 × 70 mm or 3 × 50 mm bolt patterns.
Modular Paddle Support
Two dedicated connectors support the Podium Advanced Paddle Module and compatible paddle upgrades.
Expandable Button Controls
Two button cluster connectors support additional steering wheel controls as part of your custom setup.
DataPort-C Expansion
Connect compatible Fanatec button and display modules through the integrated DataPort-C connector.
QR2 Ready
The included QR2 Wheel-Side provides the quick-release connection for a compatible QR2-equipped Fanatec Wheel Base.
Product Details

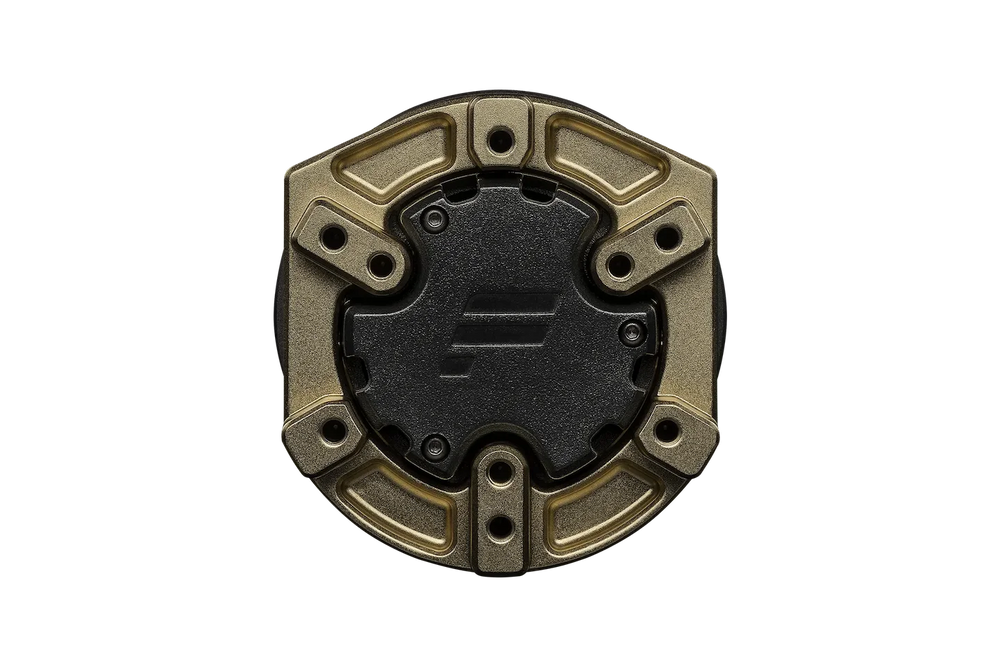

PREMIUM HARDWARE FOR A MODULAR STEERING WHEEL
| Product | Fanatec Podium Hub |
|---|---|
| Product Type | Modular Steering Wheel Hub |
| Hub Construction | Gold-Anodised Aluminium Monocoque |
| Frame Design | Lightweight Space Frame |
| Processor | Dedicated ARM Processor |
| Firmware | Upgradeable |
| Supported Buttons | Up to 10 |
| Analogue Inputs | 2 × 16-Bit |
| Paddle Module Connectors | 2 |
| Button Cluster Connectors | 2 |
| Button Cluster Capacity | 2 × 3 Buttons |
| Accessory Connector | 1 × DataPort-C |
| Quick Release | Interchangeable |
| Included Quick Release | QR2 Wheel-Side, Packaged Separately |
| Fanatec Wheel Rim Support | All Compatible Fanatec Wheel Rims |
| Third-Party Rim Patterns | 6 × 70 mm and 3 × 50 mm |
| Third-Party Wheel Support | Compatible Rims and USB Steering Wheels |
In The Box
YOUR PODIUM HUB PACKAGE
Your Podium Hub includes the modular hub, QR2 Wheel-Side quick release, installation tool, safety bolt, and Quick Guide. Wheel rims, paddle modules, button clusters, and other modular accessories are sold separately unless otherwise specified.
1
Podium Hub
2
QR2 Wheel-Side, Packaged Separately
3
2 mm Allen Key
4
Safety Bolt
5
Quick Guide
FANATEC MODULAR ECOSYSTEM
BUILD AND EXPAND YOUR CUSTOM STEERING WHEEL
The Podium Hub is compatible with the listed Fanatec Wheel Bases and supports Fanatec wheel rims together with compatible third-party rims using 6 × 70 mm or 3 × 50 mm mounting patterns. It also supports Fanatec modular accessories including the Podium Advanced Paddle Module, ClubSport Magnetic Paddle Module, Podium Button Module Endurance, Podium Button Module Rally, and ClubSport Button Cluster Pack.
Podium Wheel Base DD2
Pair your Podium Hub with the Podium DD2 for a modular steering wheel setup.
Podium Wheel Base DD1 PS4™
Compatible with the Podium Hub.
ClubSport DD Wheel Base
Compatible with the Podium Hub using a supported quick release.
ClubSport DD+ Wheel Base
Compatible with the Podium Hub and supported modular steering wheel components.
ClubSport Wheel Base V2
Compatible, but Tuning Menu control requires an optional button or display module.
ClubSport Wheel Base V2.5
Compatible with the Podium Hub.
CSL Elite Wheel Base
Compatible, but Tuning Menu control requires an optional button or display module.
CSL Elite Wheel Base V1.1
Compatible, but Tuning Menu control requires an optional button or display module.
CSL Elite Wheel Base +
Compatible with the officially PlayStation-licensed CSL Elite Wheel Base +.
CSL DD Wheel Base
Compatible with the Podium Hub using an appropriate quick release.
Gran Turismo DD Pro Wheel Base
Compatible with the Podium Hub.
Podium Advanced Paddle Module
Connect through the dedicated paddle module interfaces for analogue and additional button inputs.
ClubSport Magnetic Paddle Module
Compatible magnetic paddle upgrade for your Podium Hub setup.
Podium Button Module Endurance
Connect through DataPort-C to build an endurance-style steering wheel.
Podium Button Module Rally
Compatible modular button and display accessory for the Podium Hub.
ClubSport Button Cluster Pack
Add compatible button clusters using the dedicated Hub connectors.
Fanatec Wheel Rims
Supports compatible Fanatec wheel rims through the Hub's mounting system.
Third-Party Wheel Rims
Supports compatible rims using 6 × 70 mm or 3 × 50 mm bolt patterns, including suitable Sparco, MOMO, and OMP rims.
Windows PC
Compatible with Windows PC.
Xbox
The Podium Hub is not compatible with Xbox systems.
PlayStation
Functionality depends on the connected PlayStation-compatible Wheel Base, console capabilities, firmware, OS, game support, and developer support.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
THE ULTIMATE CORE FOR YOUR MODULAR STEERING WHEEL
The Podium Hub is the premium core component for the Fanatec® modular steering wheel system.
ALUMINIUM MONOCOQUE
The space frame design surrounds the electronic components for the lightest possible weight. The central hub is created from a single piece of anodised aluminium for maximum strength.
HIGH PERFORMANCE CENTRAL CORE
Integrating a dedicated ARM processor, the Podium Hub is low latency, firmware upgradeable, and supports 10 buttons and dual 16-bit resolution analogue inputs. Additional buttons, axes, and displays can be connected via DataPort-C.
CUSTOMISATION AND FLEXIBILITY
Use the Podium Hub to mount wheel rims from Fanatec and other manufacturers, or even full steering wheels. Easily upgrade and customise using Fanatec modular components.
WHEEL RIM COMPATIBILITY
The Podium Hub features mounting holes for wheel rims using the 6x70mm or 3x50mm bolt pattern. It is also possible to run third-party steering wheels with a coiled USB cable connecting directly to your PC.
SUPPORTS PODIUM SERIES MODULAR COMPONENTS
The Podium Hub contains connectors for the Podium Advanced Paddle Module, two Universal Hub button clusters, and a DataPort-C connector for attaching Fanatec button or display modules.
