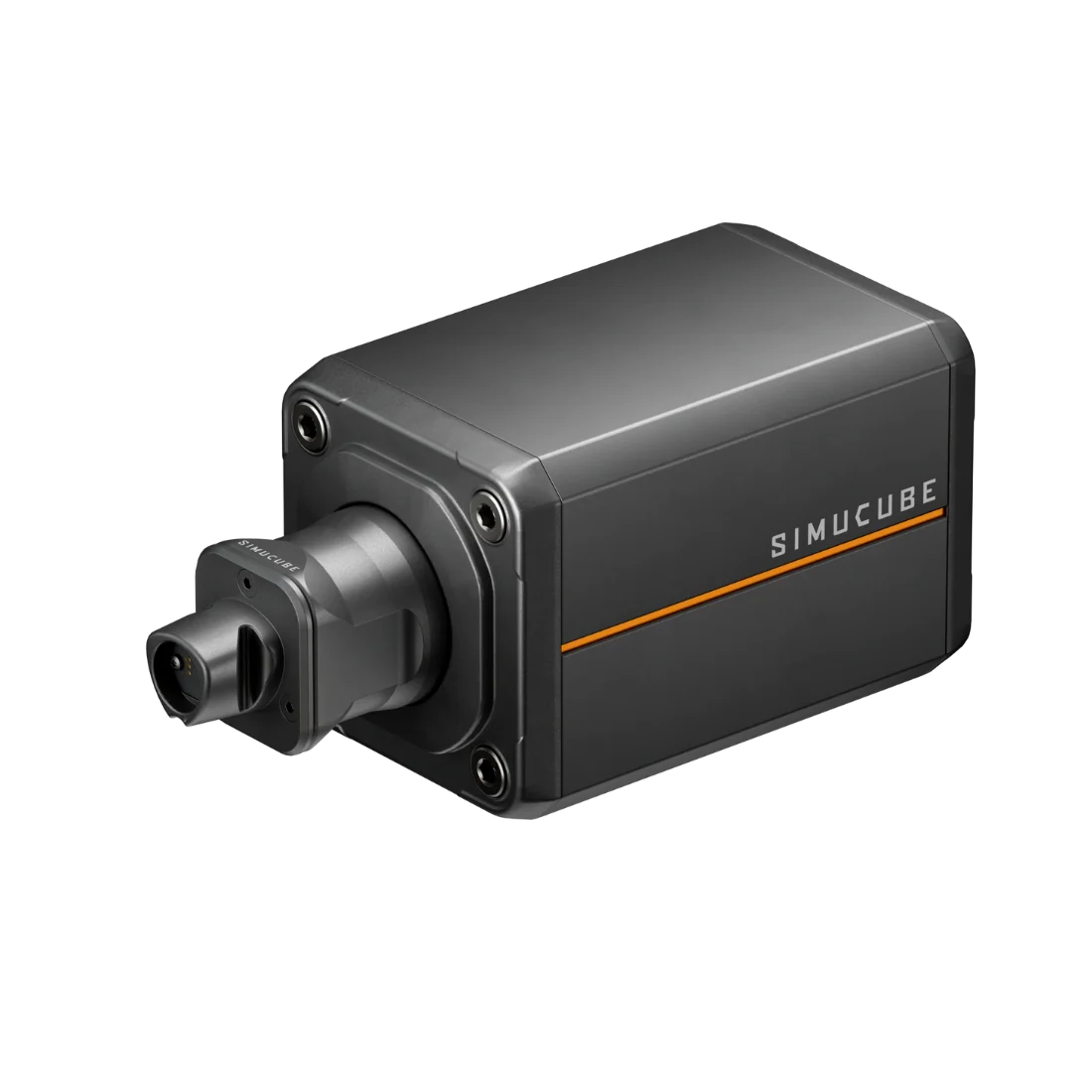

Simucube 3 Ultimate
Simucube 3 Ultimate
Simucube 3 Ultimate
Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option āIncluding Simucube Linkā.
Simucube 3 Ultimate

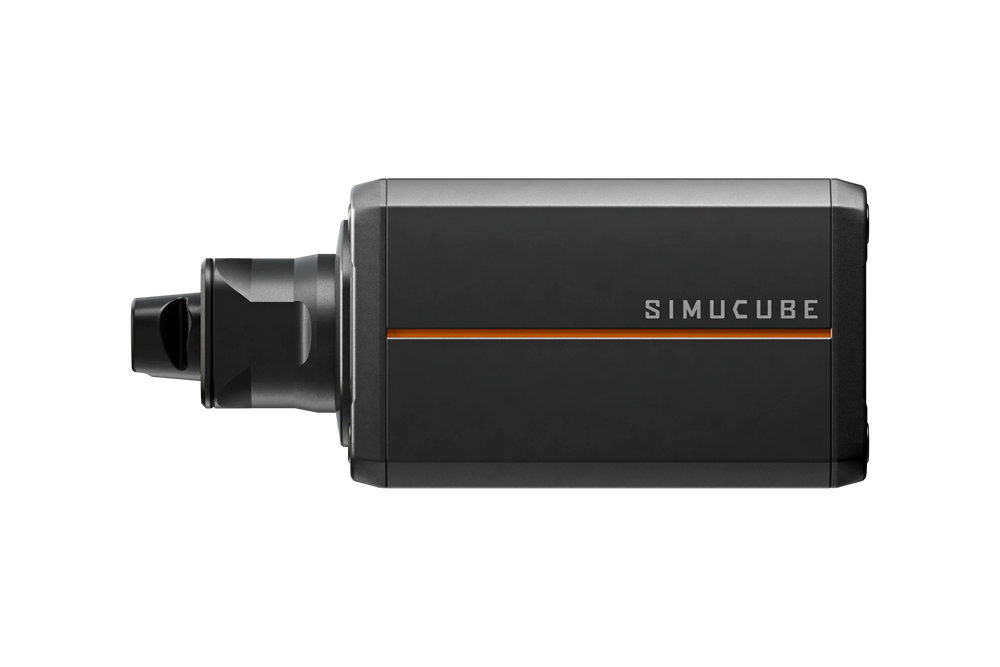

Technical Specifications
| DIMENSIONS: | |
|---|---|
| Wheel base dimensions | 135 x 135 x 323 mm |
| Package dimensions | 190 x 300 x 390 mm |
| Mounting | Front and Bottom |
| Mounting hole pattern DIA | 135 mm and 78,4 mm |
| Flange centering feature DIA | 110 mm |
| Wheel base weight | 13 kg |
| SPECIFICATIONS: | |
| Motor type | IPM motor. Maximum response speed. Direct drive optimized IPM motor |
| Max torque | 35 Nm |
| Angle sensor | 23-bit absolute (8 000 000 steps) |
| Power supply | 360 W (450 W peak) |
Simucube 3 Ultimate
What's Included
System Support
Compatibility
Simucube 3 Ultimate
Shipping Information
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
BUILT DIFFERENT
A wheelbase built the right way
We're setting an ever-higher standard. Brand new motors, re-engineered control algorithm, rock-solid innovative quick release, and easy-to-use software. All you need from Simucube 3.
BRAND NEW CONTROL ALGORITHM
35 Nm of torque that feels better than ever
Simucube 3 Sport goes through process of being "Laser-scanned", creating a digital twin inside our code. That results in a sharper. more detailed, more consistent feedback with whisper quite performance.
SHARPER, MORE DETAILED FEELING
Zero torque ripple, cogging, or graininess
New motors and new technology mean we've been able to improve on the performance of the Simucube 2, controlling output torque, not just current.
LIGHTNING FAST RESPONSE TIME
More responsive than ever
Through Simucube Link Hub, we are pulling tens of thousands of times per second, where we ask the status of the device, allowing you to catch slides and react faster than ever.
INDUSTRIAL GRADE
Build quality that lasts a lifetime.
We cut no corners when it comes to quality. Simucube 3 is crafted from industrial-grade materials designed to lasts a lifetime.
LOCKS IN. STAYS IN.
A QUICK RELEASE THAT WON'T BUDGE
Powered by P3G polygon technology, our quick release delivers a self-centering fit that locks in instantly. The large contact surfaces distribute torque evenly for exceptional strength, while the zero-play connection ensures absolute precision under the force-feedback loads. Designed for smooth assembly and effortless wheel swaps, it's the perfect balance of engineering strength and racing convenience.
SIMUCUBE 3 ULTIMATE
A new kind of motor
All Simucube 3 wheelbases come with a new motor.
However, for the Simucube 3 Ultimate, we set our requirements so high that we had come up with a similar type of motor as found in the most powerful electric cars.
The Simucube 3 Ultimate uses a more advanced "spoke-type IPM" motor. In this design, the magnetic field is concentrated much more densely, which means the Ultimate can deliver higher torque and faster response while using less power.
From ABS to RPM, if the car feels it, you feel it.
More information at your fingertips. We introduced telemetry-based effects, such as road texture, ABS feedback, and RPM. Everything the race car feels, you feel, allowing you to react instinctively.
Future-proof performance
Sim racers can invest with confidence, knowing their wheelbase will stay ahead of the game for years to come, with a team of engineers supporting the hardware and software.
Built for muscle memory
Ideal for training muscle memory that allows you to become a more consistent racer. Where you will have the same high quality feedback on lap 1 and lap 200.
Cool & reliable operation
Runs cool, even after hours of continuous use. Due to power efficiency of motor combined with a advanced re-designed algorithm, the wheelbase responds to changes in its environment and adjusts dynamically.
Smooth, silent operation
Simucube 3 runs whisper-quiet, leaving only pure feedback in your hands. Weāve found a way to get the most out of the motors and keep them silent.
SIMUCUBE LINK HUB
Made for sim racing
Trust sim racing like never before. The Simucube Link Hub protects your sim racing rig from unexpected USB disconnections, power surges and grounding issues, while connecting all your Simucube devices.
- Occupies only one USB port
- Gear protected from power surges
- Free up spaces for other USB devices
You only need one Simucube Link Hub. If you own Valo GT-23 or ActivePedal you do not need another Simucube Link Hub.
BOX. BOX. BOX.
Tune device settings mid race
cluded with every wheelbase is our brand new control box that allows you to tune the settings of all your devices on the fly without having to leave the sim.
SIMUCUBE 3 ULTIMATE
SPECIFICATIONS
Max Torque: 35 Nm
Motor: Maximum response speed. Direct drive optimized IPM motor
Control Box: Included
Mounting Holes: Front and Bottom
Dimensions incl. Link Quick Release: 135x135x323mm
Weight: 13.0kg
Power Supply: 360W
Angle Sensor: 23-bit absolute (8 mil. steps)
Simucube Link Hub: Excluded
REVIEWS
Recommended by Top Performers
"Feedback feels sharper."
The Simucube 3 range is a clear upgrade over the Simucube 2. The new hardware feels better, especially with the improved quick-release. The redesigned software is far more intuitive and user-friendly.
Most importantly, the force feedback delivers sharper, more detailed sensations, making it easier to read the car and drive consistently. Added adjustability also allows a setup closer to the feel of a real GT3 car.
James BaldwinĀ / Professional motorsports athlete
"More precise, realistic, and immersive."
The Simucube 3 delivers force feedback that feels more precise, realistic, and immersive than ever ā closer to a real race car. With the intuitive new Tuner, zero-flex quick release, and advanced control box, Simucube has truly raised the bar for wheelbases. Again.
Tim HeinemannĀ / Professional motorsports athlete
"Big step up from Simucube 2"
The first thing that I noticed is that the wheelbase instantly feels very accurate, which is a big step up from a SC2. I have been very happy as soon as I set it up. I was instantly quick with SC3, which is very important. Simucube 3 feels exactly how you want it to feel, which is the beauty of it. When I want the settings to feel like a real racing car, I manage to do that quite quickly with the settings.
Atze KerkhofĀ / Team Redline
Frequently Asked Questions
Simucube 3 improves on Simucube 2 in three main areas:
- Feeling
- Quick release
- Easy of use
Each wheelbase is now individually calibrated with a new control algorithm for maximum precision, silent operation, and consistent feel. Added telemetry effects like road texture, ABS, and RPM give more detail, and all-new motors deliver higher fidelity, while the Ultimate model uses a spoke-type IPM motor for faster response and more torque efficiency.
The new Simucube Link Quick Release uses a harmonic polygon shape for maximum stability, with LightBridge technology providing contactless, wear-free power and data transfer. A new control box makes adjustments easier, letting drivers quickly change torque, damping, and other settings mid-race while also managing connected devices.
Only one Simucube Link Hub is required.
Simucube Link Hub is required because it is the backbone of all post 2022 Simucube devices. It is what connects all products together with reliable connectivity that removes the possibility for electromagnetic interference, the risk of which increases when adding high-powered devices to your rig.
The option including Simucube Link Hub is by default selected on the product page. If you already own Simucube Link Hub, select āexcluding Simucube Link Hubā.
You only needĀ ONEĀ Simucube Link Hub for all your Simucube devices to work. So if you own Simucube Valo GT-23 or any ActivePedal, youĀ DO NOTĀ need to buy another Simucube Link Hub.
You do not need two Simucube Link Hubs!
Yes, all Simucube Wireless Wheels are compatible. You will need Simucube Link Hub for the data transfer, and you can continue to use USB-powered wheels. You also need to purchase the Simucube Link Quick Release.
If your steering wheel uses a 50.8mm bolt pattern, then you must purchase our 50.8mm to 70mm adapter.
Yes, the USB-cabled wheels work as they do with Simucube 2. You just plug it in like a normal USB device. For the mechanical connection, you need our Simucube Link Quick Release.
Yes, Simucube 2 will continue to receive support. We will continue to support RMA cases and software for Simucube 2 wheelbase users, as we have done to date.
You can front and bottom mount Simucube 3.
You can also use the current Simucube Mount.
We have developed Simucube Lightbridge, which is an elegant design specifically for sim racing technology. It allows for wearless and contactless power and data transfer with the Simucube Link Quick Release with compatible wheels.
There is no USB passthrough. However, you may still use USB wheels as with Simucube 2.
We have developed a series of accessories/adapters:
- 50.8mm to 70 mm Adapter for Simucube 3
- Link Quick Release Adapter for Simucube 2
- Shaft Extension Kit
- 70 mm Adapter for Simucube 3
