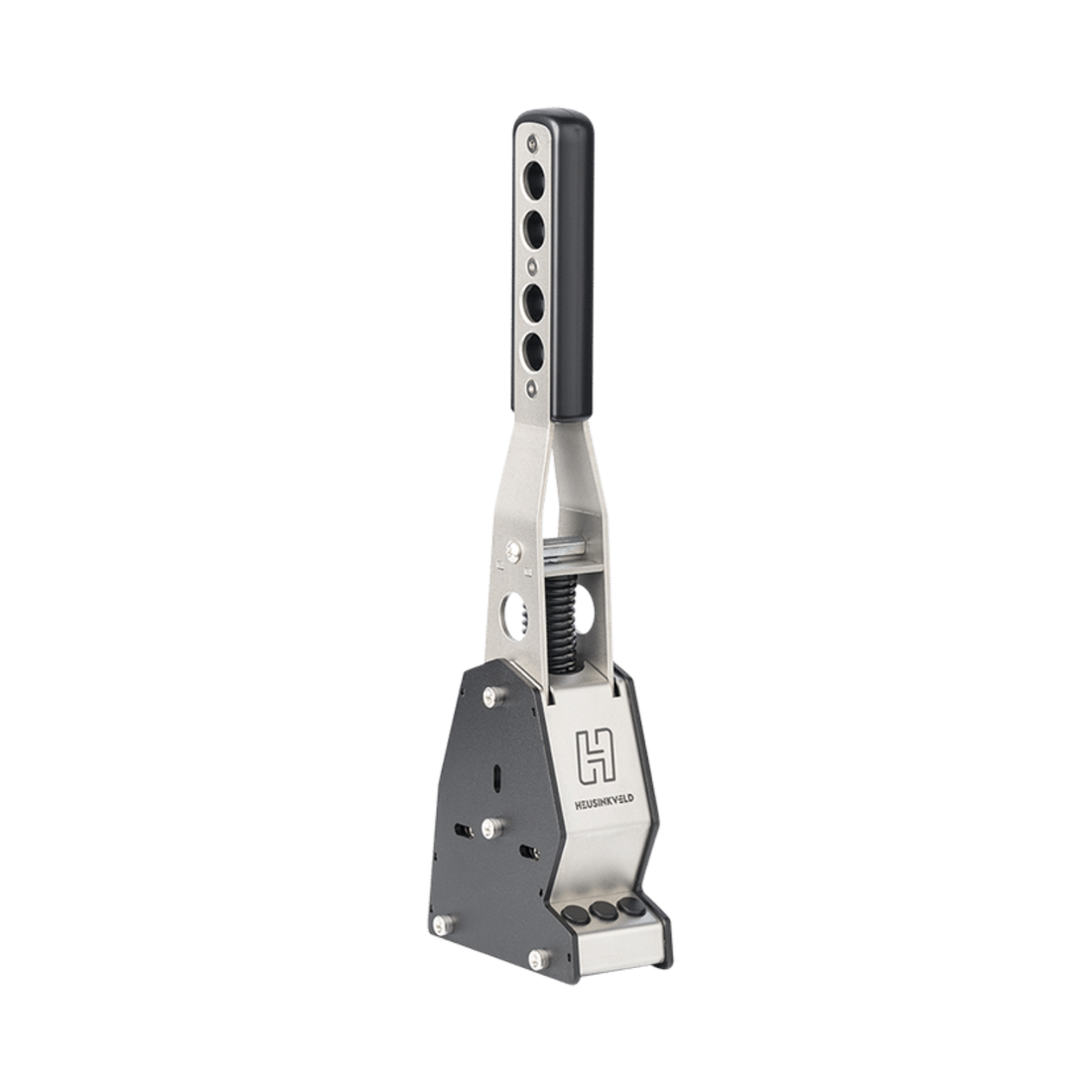

Heusinkveld MagShift
Heusinkveld MagShift
Adjust the amount of force when upshifting or downshifting with this next generation sequential shifter. Simulates the shifting of rally cars, GT’s, touring cars and classic race cars. MagShift offers precise, consistent and custumizable shift feel.

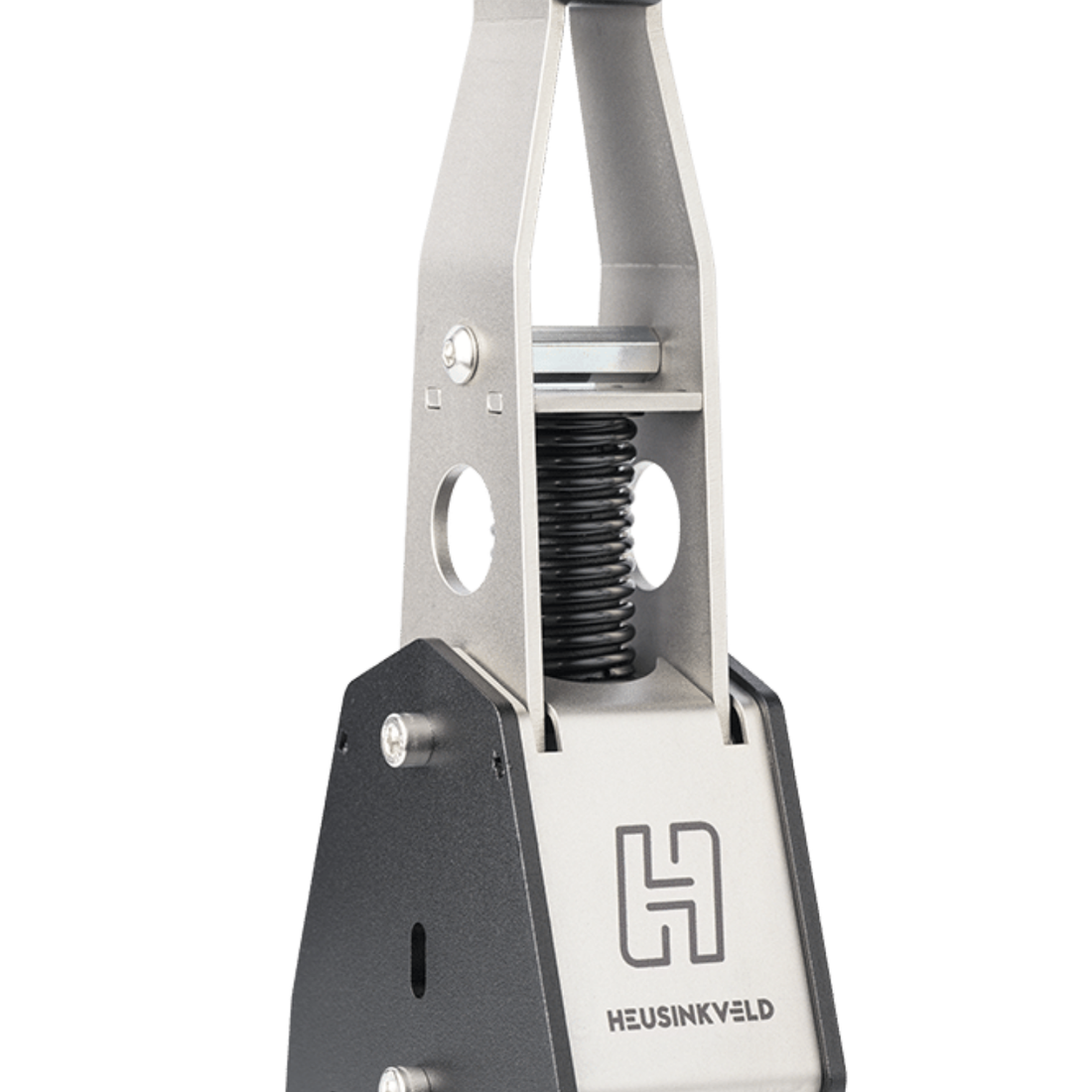

Magshift is a GT-style sequential shifter with patented magnetic mechanism. The compact base-unit houses the innovative magnetic shift system. This shift system simulates the feel of an actual gear clicking into place. The result is a sharp, satisfying “clunk” when shifting. Due to the magnetic technology, the MagShift eliminates wear parts. This results in a product that maintains consistent performance over time, even with heavy use (tested for 1 million duty cycles).
The shifter’s shape is remarkably compact, allowing it to fit into a variety of racing setups without taking up unnecessary space.
If you like the feeling of a larger shifter, MagShift is a great addition for a real-life race experience. It maximizes immersion, with MagShift you can match the controls to the ones used in the car you are driving.
Adjustment options
The magnetic shift system is 3-way adjustable. The overall force, upshift and downshift can all be set individually. This allows you to set a firm upshift and soft downshift for example to simulate a specific car or simply because you drive at your best pace.
Set your preferred peak force anywhere between 4.5 and 11kg. At the firmest setting you’ll be able to simulate the shifter forces as experienced in real race cars.
Mini button box
Besides the realistic shift feel, MagShift is also a mini button box. Whether you’re rally racing, competing in endurance events, or simulating F1, the buttons can adapt to your specific needs.
The 3 buttons can be assigned to any available function in your favourite simulator software. Such as activating car systems (e.g., lights, wipers, pit limiter) or engaging secondary functions like handbrakes or launch control. Extra functions can be unlocked when you install Heusinkveld SmartControl software. Read more in the SmartControl section.
The buttons are built with tactile feedback in mind, providing a satisfying “click” when pressed, ensuring reliable operation even under pressure. The location of the buttons is strategically placed, to be easily accessible during racing without interfering with the primary shifting action. Their positioning ensures quick and intuitive operation, reducing the need to reach for controls elsewhere.
Compatability: PC (Windows 10 or newer)
Software: SmartControl & SmartControl Live

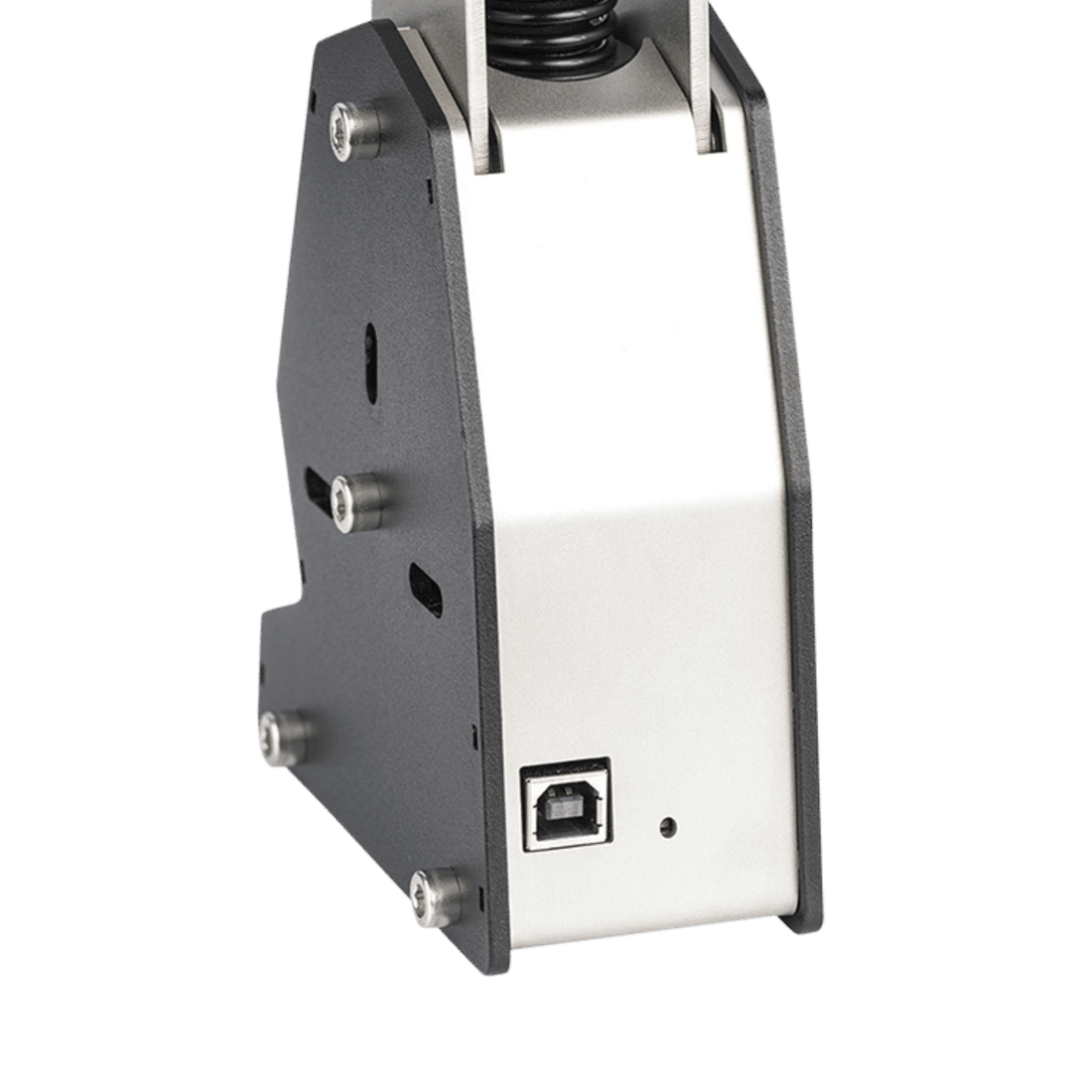

Controller: Integrated inside base, connection trough USB
Plug and play: Yes
Max force: From 4.5 up to 11 kg
Dimensions: 370x130x72mm 362 mm (14,25 in) when installed in the lowest position. 377 mm (14,84 in) when installed in the highest position
Material: Powder coated stainless steel
Weight: 2.42 kg
Sensor type: Opto-electronic sensors
Packaging: Eco-Friendly Packaging
Certificate: EMC + CE
Type of simracer: Suitable for professional driver training, Esports, commercial use, home use
Type of cars: Rally cars, GT’s, touring cars and classic racing
Adjustments/settings:
Upshift, downshift, overall force, 10 customizable outputs with 3 buttons, yaw, height and tilt
Mounting:
Directly on a rig using the included u-shaped mounting bracket
Magshift
USB Cable
Mounting Materials
Installation & Adjustment Tools
Manual
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
EXTRA CONTROL AT YOUR FINGER TIPS

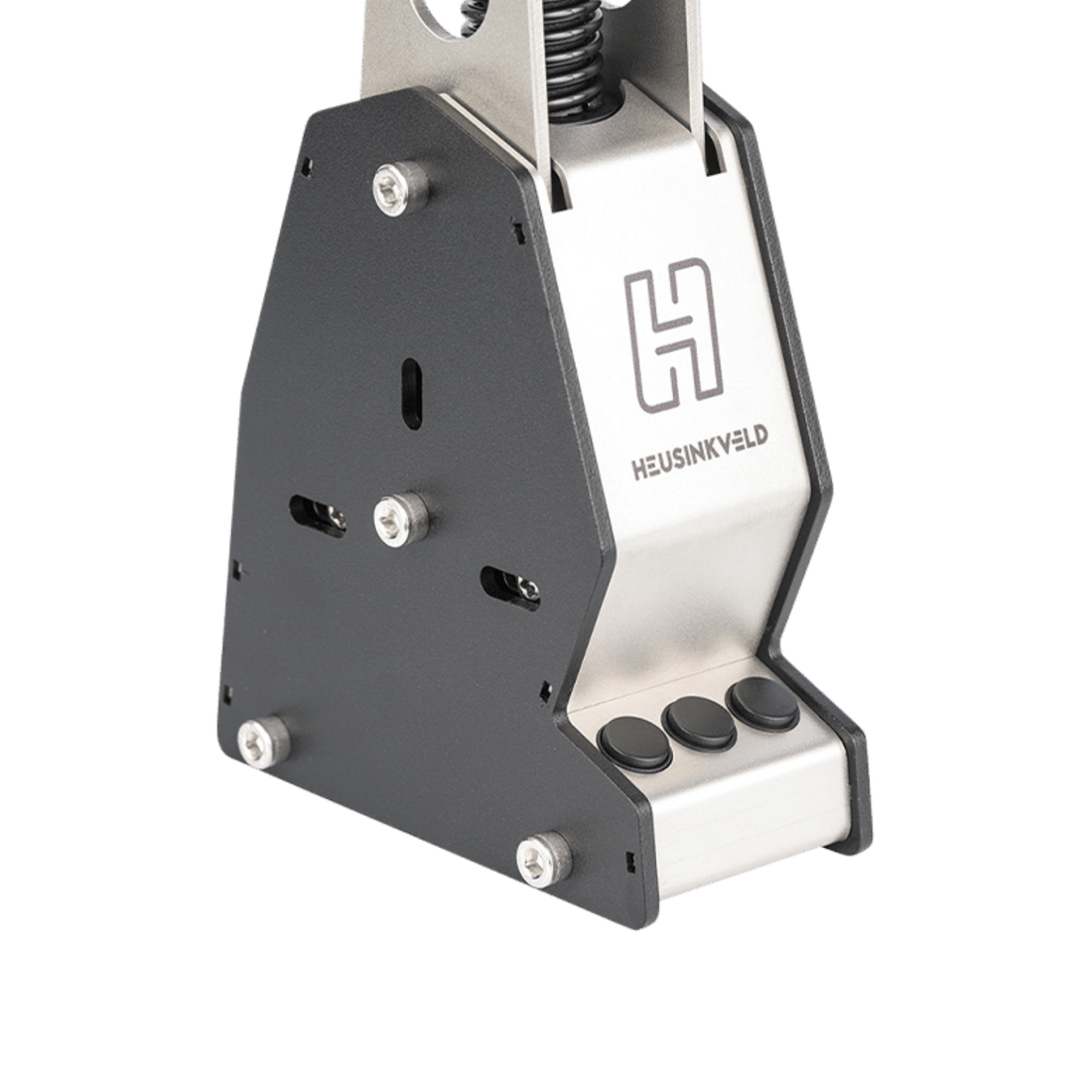

MagShift comes with a mini button box integrated in the base of the shifter
Super Durable and Heavy Duty
MagShift lets you work the gearbox just like on a real track. Set your preferred peak shift force between 4,5 and 11 kilo and simulate the forces as experienced in real race cars.
Experience Heusinkveld Versatility
A patented 3-way adjustable magnetic shift system. Adjustable tilt and yaw. An integrated button box. MagShift is packed with extra features.
Reliability is a Standard Option
MagShift has opto-electronic sensors. They arewear free and guarantee years of trouble free operation. EMC tested, CE certified and plug & play functionality. That is Heusinkveld MagShift.
Multiply outputs with SmartControl
MagShift comes with advanced software which allows you to configure multiple outputs from a single input. This means that you can use the lever and 3 extra buttons to trigger up to 10 functions.
FORCE
Adjustable shift force between 4,5 and 11 kg.
Overall, upshift and downshift force individually adjustable.
OUTPUT
Use SmartControl to customize all outputs.
Trigger multiple outputs based on a single shift or button input.
MOUNTING
Fine-tune height, tilt and yaw of the shifter
With the included the U-shaped mounting bracket.
Mounting Made Easy
MagShift comes with a U-shaped mounting bracket, perfect for aluminium profiles.Fine-tune the height and tiltof MagShift using the adjustment holes.
Experience the satisfying shift feel of the innovative magnetic shift system
MagShift enhances immersion by delivering a sharp and satisfying feel with each shift, replicating the feel of a real sequential shifter. The patented magnetic mechanism ensures precise and consistent feedback. Never miss a shift again and match the controls to the ones used in the car you are driving!
Heusinkveld Magshift
FREQUENTLY ASKED QUESTIONS
A sequential shifter is not strictly necessary for sim racing, but it can enhance the experience, especially if you enjoy realism or are focused on certain types of racing. Whether you need one depends on the kind of racing you do:
- Rally or Off-Road Racing: For games like Dirt Rally or WRC, a sequential shifter can be a great addition, as many rally cars use sequential gearboxes. It gives a more authentic feel when shifting through gears.
- Touring or GT Racing: In racing games like iRacing or Assetto Corsa, some cars use sequential gearboxes. Having a sequential shifter can provide a more realistic feel when driving these cars, as it mimics the actual shifting mechanism.
- Formula or Open-wheel Racing: These cars typically use paddle shifters instead of sequential gearboxes. In these cases, a sequential shifter is unnecessary, and paddle shifters or a traditional H- pattern shifter would suffice if you prefer a more realistic
setup. - Personal Preference: If you enjoy the tactile feeling of shifting gears manually, a sequential shifter can add a lot of immersion, especially if you prefer racing cars that use
them in real life.
In conclusion, while it’s not essential for all types of si racing, a sequential shifter can definitely add to the experience for certain types of racing, especially if you’re aiming for a more authentic and immersive setup.
With the exact mounting dimensions(link) you can easily check if the MagShift can be mounted directly on your Rig.
To adjust the force required for up/down shifting: Insert 2 torx keys (6) simultaneously into adjustment bolts (one on each side). Turn counterclockwise to Loosen the screws. Leave both hex keys inserted move adjustment slider to new position. Make sure the slider sits straight Re-tighten the screws. Do not overtighten.
