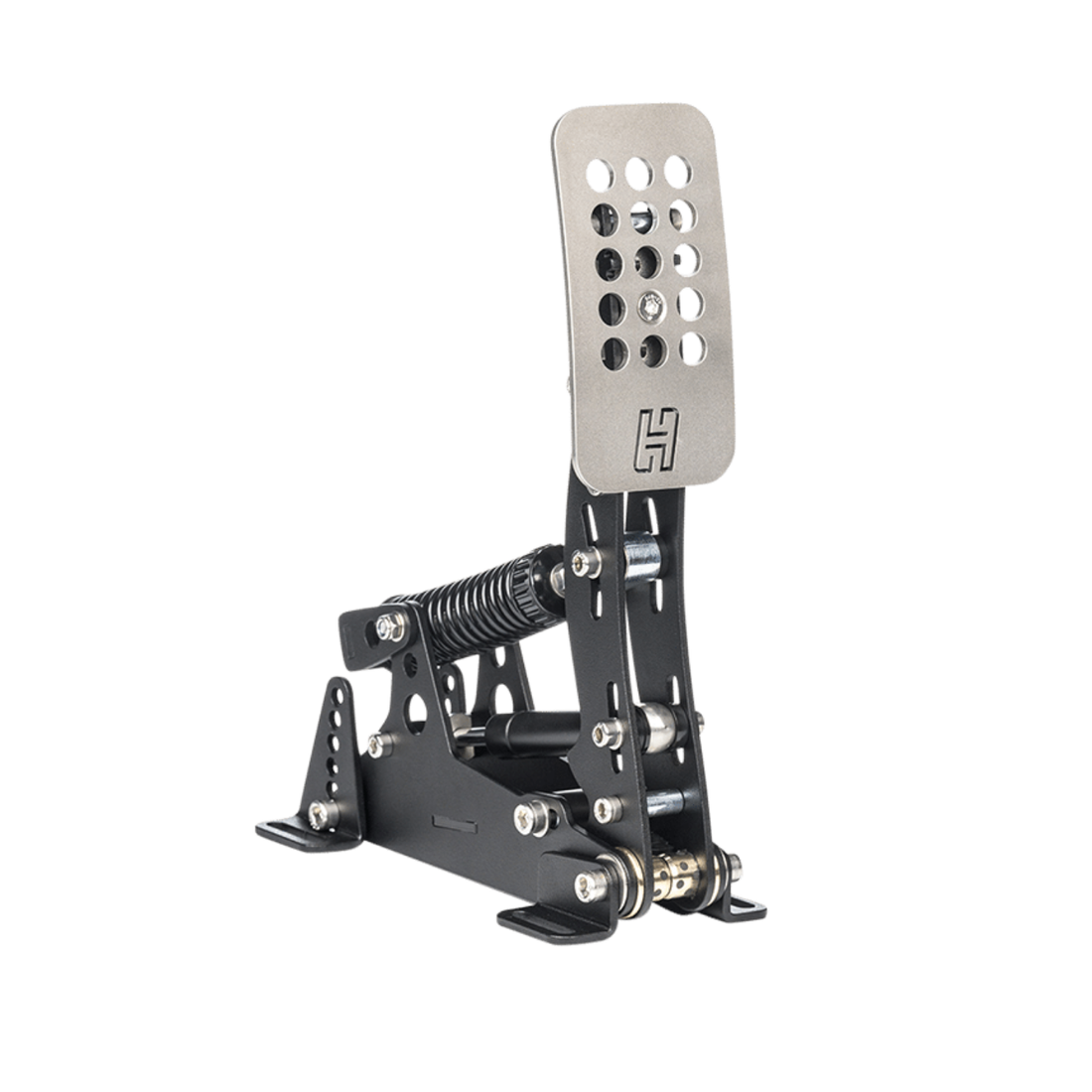

Heusinkveld Add-on for Simucube ActivePedal
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.
The pedal offers a strong and stiff feeling. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.
Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.
The pedal offers a strong and stiff feeling. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.
Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.
Each pedal has different adjustment options but some adjustments are for all pedals:
-Pedal angle
-Pedal plate height
-Hydraulic damping
Throttle & Clutch:
-Pedal travel
-Overall pedal force
-Pedal spring preload
Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+.
This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.
Compatability: PC (Windows 10 or newer)
Software: Not included
Controller: Not included
Plug and play: Yes
Hydraulic damping: Yes, adjustable 1-way damping on throttle
Dimensions: 445x310x91mm
Material: Powder coated and glass bead blasted stainless steel
Weight: 1.0 kg
In the box: Pedal, mounting materials, manual
Sensor type: Position-sensitive load cell
Packaging: Eco-Friendly Packaging
Certificate: EMC + CE
Type of Simracer
Suitable for professional driver training, Esports, commercial use, home use
Type of cars: F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars
Adjustments & mounting
Adjustments/settings: Pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping
Mounting: If you want to use our pedals together with Simucube’s Active pedal, you need Simucube’s baseplate, the Active pedal does not fit on our baseplate
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
If you are using a Simucube ActivePedal you might look for an additional throttle or throttle and clutch pedal. We’ve got you covered, using our Ultimate+ Black Throttle and Clutch next to Simucube ActivePedal gives you ultimate control and consistency when it comes to shifting and accelerating.
Note: to use in combination with the Simucube ActivePedal each Heusinkveld pedal requires its own ‘Simucube ActivePedal Connector for Heusinkveld Sim Pedals’. You can purchase this connector in the Simucube webshop.
Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer.
The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose.
Heusinkveld Add-on for Simucube ActivePedal
FREQUENTLY ASKED QUESTIONS
The following components are required in order to use this Add-on for Simucube ActivePedal:
- A Simucube ActivePedal
- Simucube ActivePedal Connector for Heusinkveld Sim Pedals, one for each Heusinkveld pedal.
You can purchase the ‘Simucube ActivePedal Connector for Heusinkveld Sim Pedals’ here.
Please refer toSimucube documentationon how to calibrate Heusinkveld pedals in combination with Simucube ActivePedal.
You can not use Heusinkveld SmartControl and SmartControl Live, this product does not include a controller.
No, the Heusinkveld pedals in this Add-On only work together with a Simucube ActivePedal + the required Simucube ActivePedal Connector.
